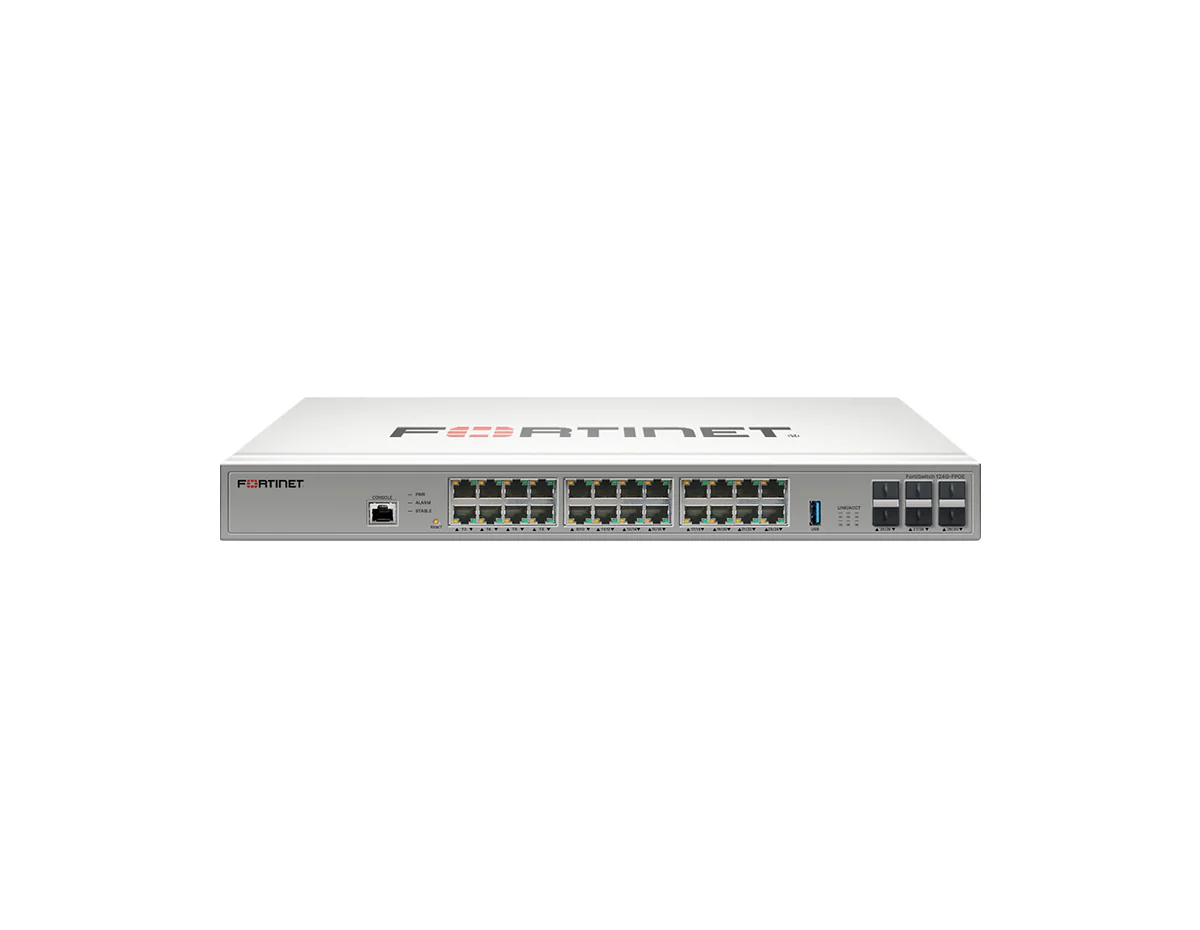

Fortinet FortiSwitch FS-124G-FPOE Managed PoE Switch
[shortdesc] 24x 2.5G RJ45 PoE ports, 6x 10G SFP+ uplinks, 780W PoE budget, Layer 2/3 switching, rack-mountable [/shortdesc]
[properties]
| Brand | Fortinet |
| Model | FortiSwitch 124G-FPOE |
| SKU | FS-124G-FPOE |
| Product Type | Managed Ethernet Switch |
| Switching Type | 2.5 Gigabit Ethernet |
| Form Factor | 1U Rack-mountable |
| Total Ports | 24 x RJ45, 6 x SFP+ |
| RJ45 Ports | 16 x 2.5GBase-T PoE+; 8 x 2.5GBase-T PoE++ |
| Uplink Ports | 6 x 1G / 10G SFP+ |
| PoE Standard | PoE+ (802.3af/at) and PoE++ (802.3bt) |
| Total PoE Budget | 780 W |
| Switching Capacity | 240 Gbps |
| Forwarding Rate | 355 Mpps |
| MAC Address Table | 32K entries |
| Packet Buffer | 2 MB |
| Management | CLI, Web GUI, SNMP v1/v2c/v3, FortiLink |
| Airflow | Side-to-back |
| Ingress Protection | IP20 |
| Color | White |
[/properties]
[specifications]
| Layer Support | Layer 2 with Layer 3 capabilities |
| VLAN Support | Up to 4000 VLANs |
| Spanning Tree | STP, RSTP, MSTP |
| Link Aggregation | LACP, MC-LAG |
| QoS | 802.1p, DSCP-based priority queuing |
| Security Features | 802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard |
| MAC Security | IEEE 802.1ae (MACsec) |
| Routing Protocols | BGP, OSPF, RIP, IS-IS, VRRP, Static IP routing |
| Latency | < 1 µs |
| Memory | 1 GB DDR4 |
| Flash | 256 MB NAND |
| Power Supply | Internal AC power supply |
| Input Voltage | AC 100–240 V, 50/60 Hz |
| Power Consumption | 880 W (maximum) |
| Operating Temperature | -5 °C to 45 °C (23 °F to 113 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (H × W × D) | 44 × 440 × 310 mm (1.71 × 17.3 × 12.2 in) |
| Weight | 4.86 kg (10.72 lbs) |
[/specifications]
[accesories]
| Included | Rack mounting kit; Console cable; User documentation |
| Optional | FRPS-740 External Redundant Power Supply; Fortinet SFP and SFP+ transceiver modules |
[/accesories]
High-Performance Secure Access Switching for Modern Networks
The Fortinet FortiSwitch 124G-FPOE is a high-density, multi-gigabit access switch designed for enterprise branches, campus access layers, and PoE-heavy deployments. Built to integrate seamlessly with Fortinet security architectures, it combines powerful 2.5G switching, high-capacity PoE output, and 10G uplinks in a compact 1RU form factor. The result is a scalable access solution that simplifies operations while delivering consistent performance at the network edge.
Key Benefits & Features
- Multi-Gigabit Access Switching: Twenty-four 2.5GBase-T ports support modern Wi-Fi access points, cameras, and high-bandwidth edge devices without bottlenecks.
- High-Power PoE Output: Delivers up to 780W total PoE budget, featuring 8 dedicated PoE++ (90W) ports and 16 PoE+ ports for powering diverse devices.
- High-Speed Uplink Connectivity: Six 1G/10G SFP+ ports enable fast aggregation and core connectivity.
- Enterprise-Grade Performance: 240 Gbps switching capacity and up to 355 Mpps forwarding ensure low-latency traffic handling.
- Centralized and Secure Management: Supports FortiLink integration for unified control, visibility, and policy enforcement directly from a FortiGate.
Ideal Use Cases
- Enterprise branch and campus access networks
- High-density Wi-Fi 6 and Wi-Fi 6E deployments
- IP surveillance and IoT infrastructure requiring 802.3bt Power over Ethernet
- Secure access layers integrated with Fortinet security platforms
- Organizations requiring high PoE capacity in a compact footprint
Technical Specifications
- Ports: 24x 2.5G RJ45 (16x PoE+, 8x PoE++), 6x 1G/10G SFP+
- PoE Budget: Up to 780W total
- Switching Capacity: 240 Gbps
- Forwarding Rate: Up to 355 Mpps
- Latency: Less than 1 microsecond
- MAC Address Table: 32K entries
- VLAN Support: Up to 4,000 VLANs
- Form Factor: 1RU rack-mountable
Power Your Access Layer with Confidence
Deploy high-density PoE and multi-gigabit performance with the Fortinet FortiSwitch 124G-FPOE. Order today and build a secure, future-ready access network.
