• L2+ managed POE switch with 24GE + 4SFP+, 24port POE with max 370W limit and smart fan temperature control


[/shortdesc] [properties]

Properties	FS-124F-FPOE
Description	Layer 2 FortiGate switch controller compatible PoE+ switch with 24 GE RJ45 + 4 10G SFP+ ports, 24 port PoE with maximum 370 W limit
Product Family	FortiSwitch
Product Type	Switch
Total Network Interfaces	24x GE RJ45 and 4x 10GE SFP+
Dedicated Management 10/100/1000 Ports	0
RJ-45 Serial Console Port	1
Form Factor	1 RU Rack Mount
Power over Ethernet (PoE) Ports	24 (802.3af/at)
PoE Power Budget (single/dual PSU)	370 W
Mean Time Between Failures	> 10 years

[/properties]

[specifications]

Switching Capacity (Duplex)	128 Gbps
Packets Per Second (Duplex)	190 Mpps
MAC Address Storage	32 K
Network Latency	< 1µs
VLANs Supported	4 K
Link Aggregation Group Size	8
Total Link Aggregation Groups	16
Packet Buffers	2 MB
DRAM	512 MB DDR3
FLASH	64 MB
ACL	768
Spanning Tree Instances	16
Route Entries (IPv4/IPv6)	-
Multicast Route Entries	-
Host Entries	-
Dimensions in.	1.73 x 10.24 x 17.32
Power Required	100240V AC, 50-60 Hz
Power Supply	AC built in
Redundant Power	No
Power Consumption (Average / Maximum)	449.8 W / 451.3 W
Heat Dissipation	118.327 BTU/h
Operating Temperature	32°113°F (0°45°C)
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

[/specifications]

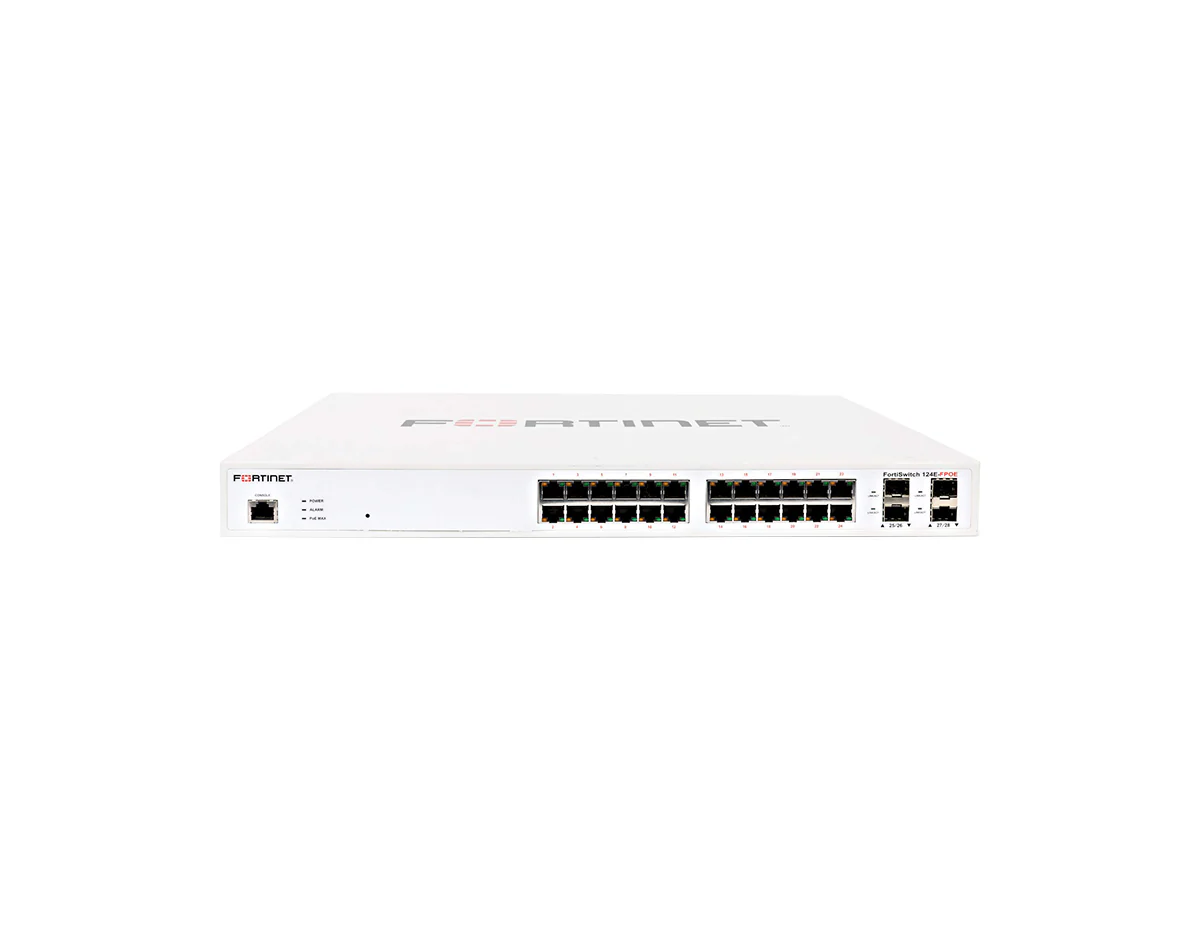

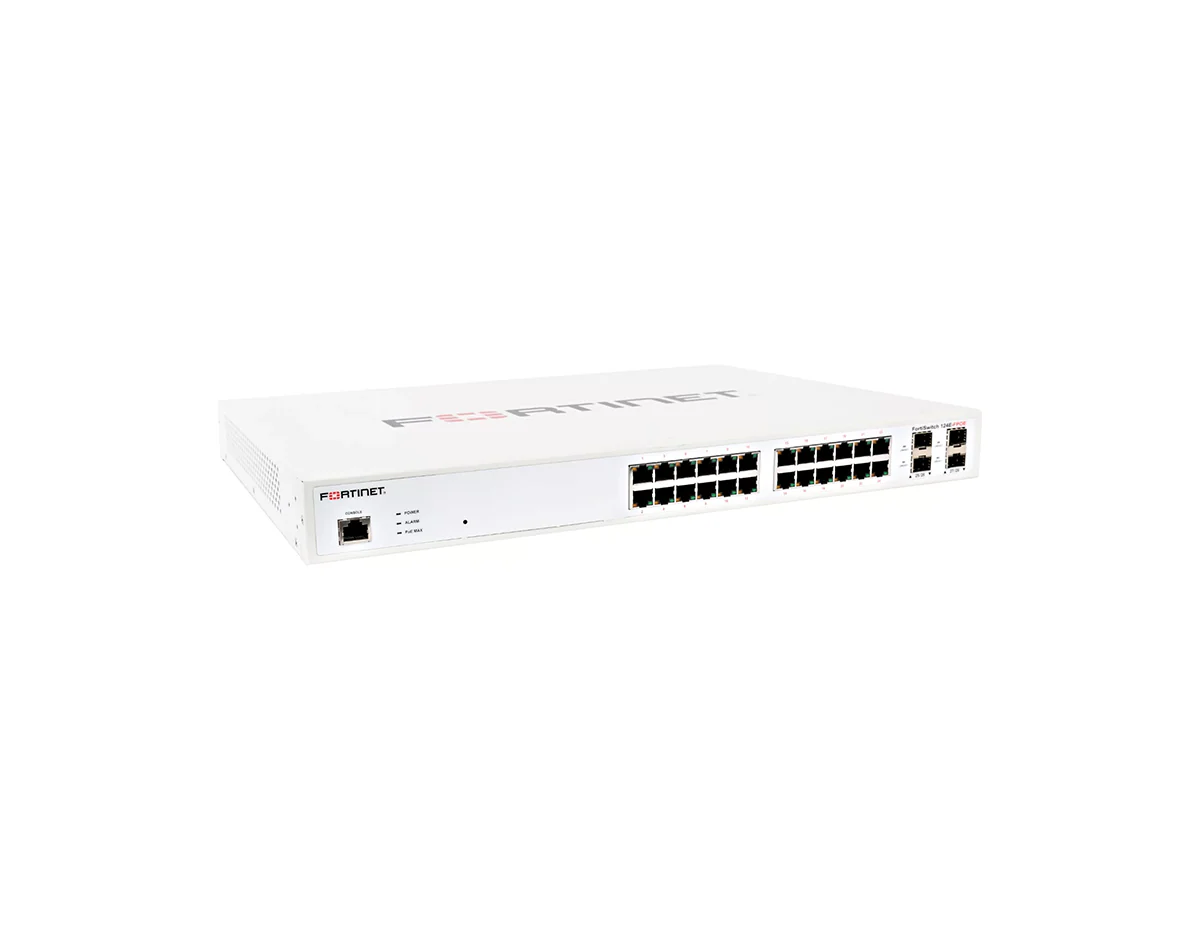

Fortinet FS-124F-FPOE Switch

The FS-124F-FPOE is a stackable switch that offers a switching capacity of 128 Gbps. It is well-suited for SD-Branch and campus deployments and can be integrated with the FortiGate NGFW using the management protocol FortiLink. Additionally, it is compatible with non-FortiLink deployments. It is equipped with 24x GE RJ45 ports, 4x 10GE SFP+ ports, and 24 PoE ports.

Quick Specs:

• 1RU Rackmount
• 24x GE RJ45 ports + 4x 10GE SFP+ ports + 24 PoE ports
• Layer2 FortiGate switch controller compatible PoE+ switch
• Packets Per Second (Duplex): 190 Mpps

Please see the related tabs for the FS-124F-FPOE datasheet and compatible accessories.
