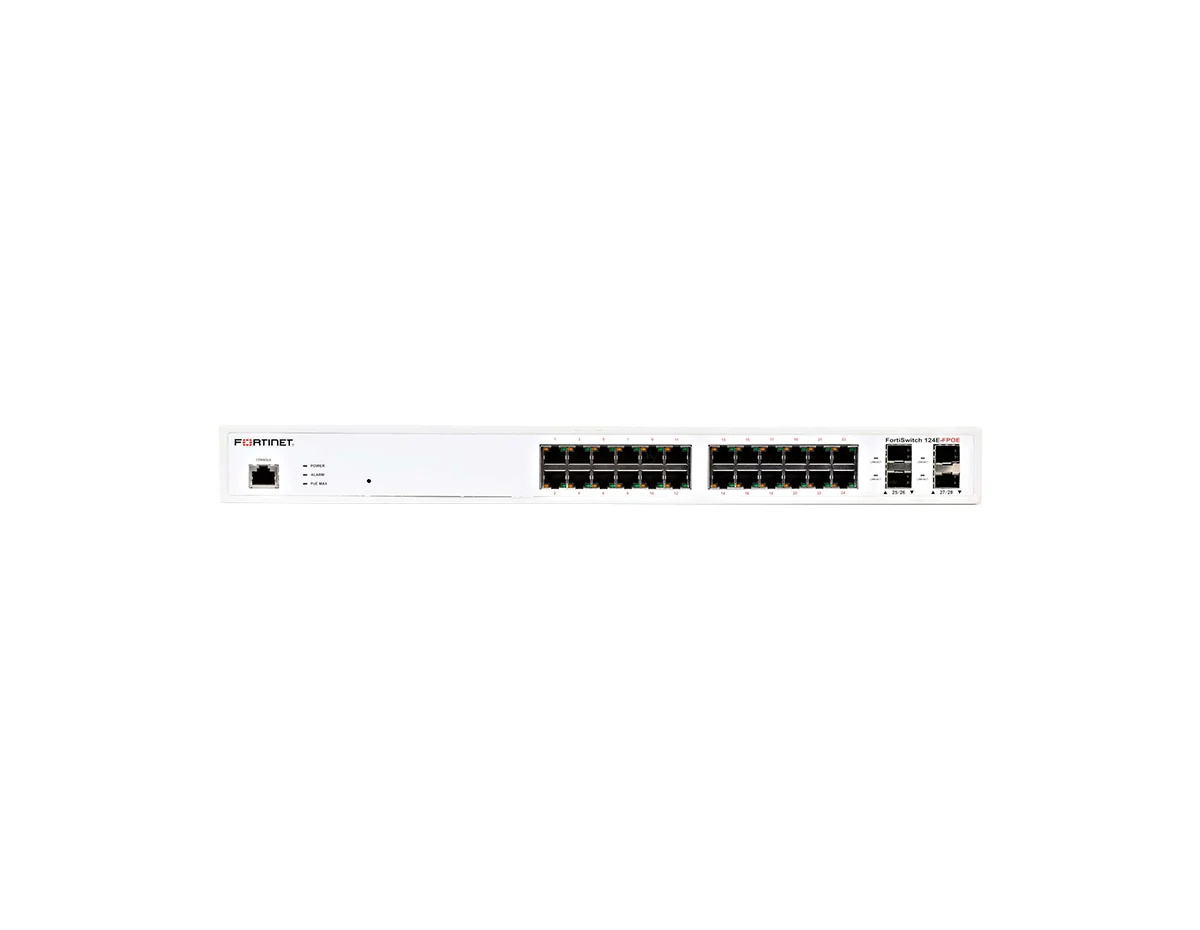

Fortinet FS-124E-POE Switch
- L2+ managed POE switch with 24GE +4SFP, 12 port POE with max 185W limit and smart fan temperature control
[properties]
| Properties | FS-124E-POE |
| Description | Layer 2 FortiGate switch controller compatible PoE+ switch with 24 GE RJ45 + 4 SFP ports, 12 port PoE with maximum 185 W limit. |
| Product Family | FortiSwitch |
| Product Type | Switch |
| Total Network Interfaces | 24x GE RJ45 and 4x GE SFP |
| Dedicated Management 10/100/1000 Ports |
0 |
| RJ-45 Serial Console Port | 1 |
| Form Factor | 1 RU Rack Mount |
| Power over Ethernet (PoE) Ports | 12 (802.3af/at) |
| PoE Power Budget (single/dual PSU) |
185 W |
| Mean Time Between Failures | > 10 years |
[/properties]
[specifications]
| Switching Capacity (Duplex) | 56 Gbps |
| Packets Per Second (Duplex) | 83 Mpps |
| MAC Address Storage | 8 K |
| Network Latency | 4µs |
| VLANs Supported | 4 K |
| Link Aggregation Group Size | 8 |
| Total Link Aggregation Groups | 8 |
| Packet Buffers | 512 KB |
| DRAM | 256 MB DDR3 |
| FLASH | 32 MB |
| ACL | 640 |
| Spanning Tree Instances | 16 |
| Route Entries (IPv4/IPv6) | - |
| Multicast Route Entries | - |
| Host Entries | - |
| Dimensions in. | 1.7 x 12.2 x 17.3 |
| Power Required | 100240V AC, 50-60 Hz |
| Power Supply | AC built in |
| Redundant Power | No |
| Power Consumption (Average / Maximum) | 202.78 W / 205.45 W |
| Heat Dissipation | 60.67 BTU/h |
| Operating Temperature | 32°-113°F (0°45°C) |
| Certification | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
[/specifications]
Fortinet FS-124E-POE Switch
The Fortinet FS-124E-POE is a member of the FortiSwitch family. The FS-124E-POE is an effective and uncomplicated Ethernet solution that offers excellent performance. It is well-suited for small to medium businesses that prioritize security. The device can be easily managed through the familiar FortiGate interface, providing a user-friendly and comprehensive monitoring platform, and controlling network users and devices. This product has 24x GE RJ45 ports, 4x GE SFP ports, 12 PoE ports, and 256MB DDR3 RAM.
Quick Specs:
- Switching Capacity (Duplex): 56 Gbps
- Packets Per Second (Duplex): 83 Mbps
- 24x GE RJ45 ports + 4x GE SFP ports + 12 PoE ports
- 1RU Rack Mount
Please see the related tabs for the FS-124E-POE datasheet and compatible accessories.
This product has been discontinued.
