Fortinet FS-108F Switch
[properties]
| Properties | FS-108F |
| Description |
Layer 2 FortiGate switch controller compatible switch with 8 x GE RJ45 ports, 2 x GE SFP, Fanless, 12V/3A power adapter of input voltage 100 – 240VAC, and PSE dual powered
|
| Product Family | FortiSwitch |
| Product Type | Switch |
| Total Network Interfaces |
7x GE RJ45, 1x GE/POE-PD RJ45, and 2x GE SFP
|
| Dedicated Management 10/100/1000 Ports |
0 |
| RJ-45 Serial Console Port | 1 |
| Form Factor | Desktop |
| Power over Ethernet (PoE) Ports | - |
| PoE Power Budget (single/dual PSU) |
- |
| Mean Time Between Failures | > 10 years |
[/properties][specifications]
| Switching Capacity (Duplex) | 20 Gbps |
| Packets Per Second (Duplex) | 30 Mpps |
| MAC Address Storage | 8 K |
| Network Latency | 4µs |
| VLANs Supported | 4 K |
| Link Aggregation Group Size | 8 |
| Total Link Aggregation Groups | 8 |
| Packet Buffers | 512 KB |
| DRAM | 256 MB DDR3 |
| FLASH | 32 MB |
| ACL | 768 |
| Spanning Tree Instances | 16 |
| Route Entries (IPv4/IPv6) | - |
| Multicast Route Entries | - |
| Host Entries | - |
| Dimensions in. | 1.18 x 4.72 x 7.09 |
| Power Required | 100–240V AC, 50/60 Hz / PoE-PSE(af) |
| Power Supply | 12V/1A DC power adapter included, PoE-PD Built in |
| Redundant Power | — |
| Power Consumption | 6.2 W |
| Heat Dissipation | 21.142 BTU/h |
| Operating Temperature | 32°-113°F (0°–45°C) |
| Certification | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
[/specifications]

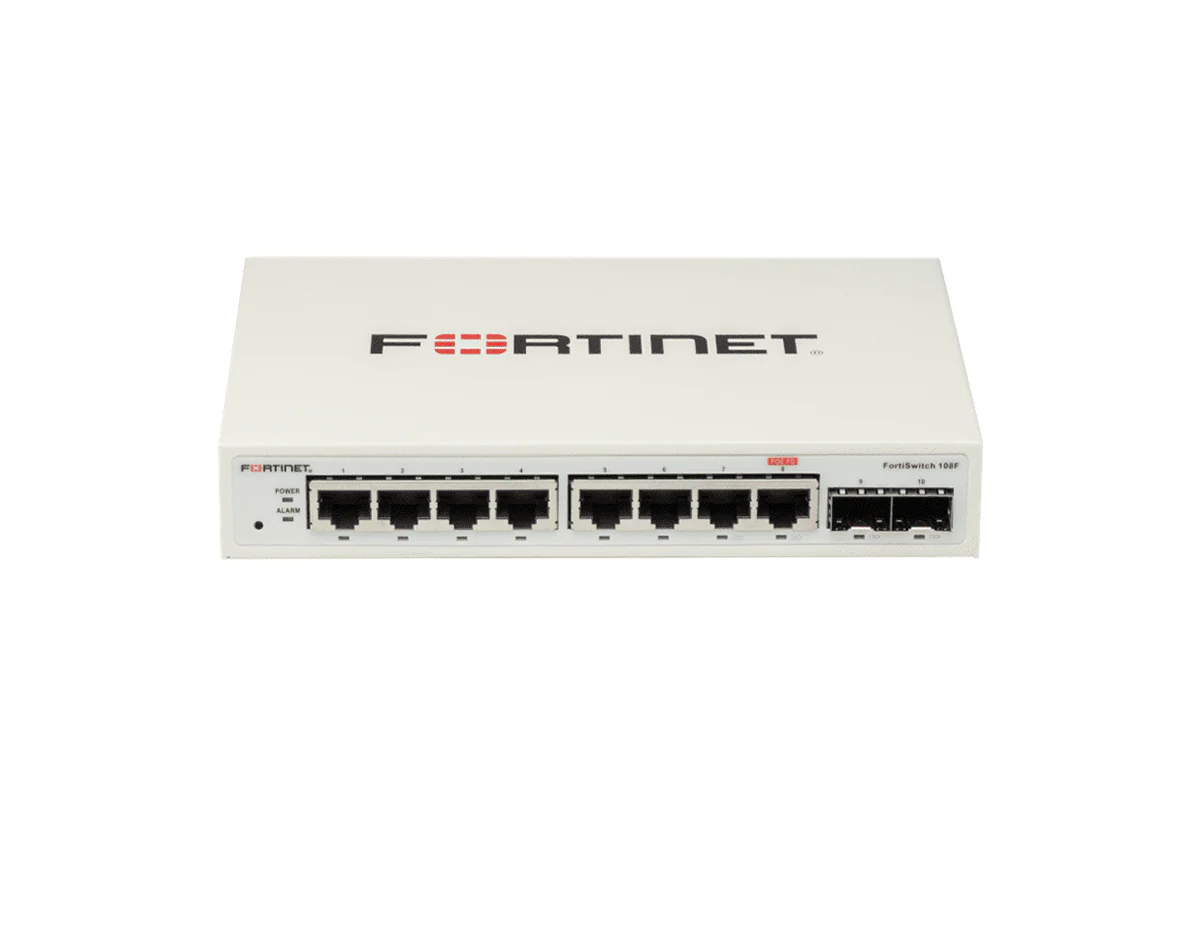

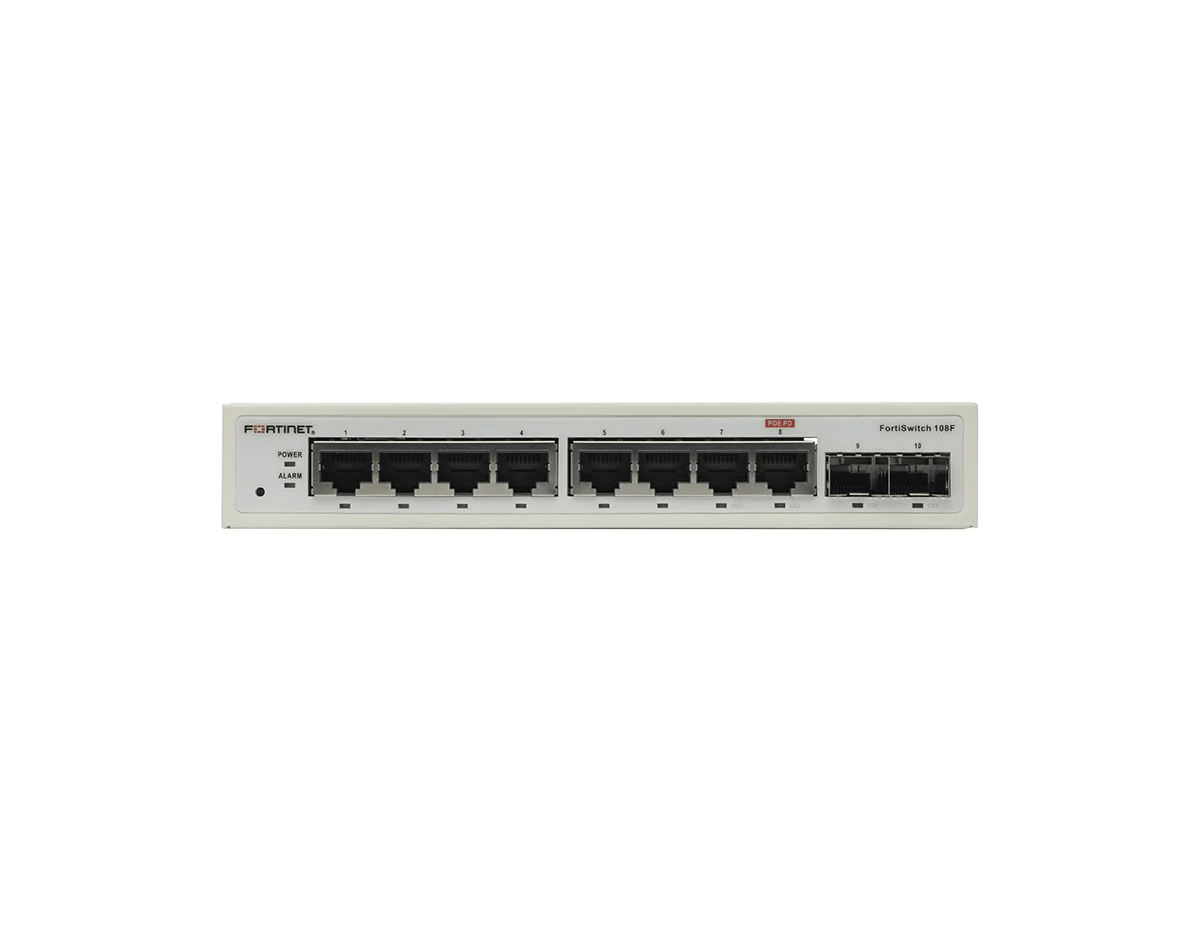

Fortinet FS-108F Switch
The FS-108F is a fanless and compact switch that is suitable for small networks with lower traffic. It has 20 Gbps of switching capacity. It is managed and stackable. It is an entry-level switch from the FortiSwitch product series. It also offers Layer 2/3 functionalities.
Quick Specs:
- 7x GE RJ45 + 1x GE/POE-PD RJ45 ports
- 2x GE SFP uplink ports
- Desktop
- PSE dual powered
Please see the related tabs for the FS-108F datasheet and compatible accessories.
