[shortdesc]24x 1G/10G SFP+ ports, 2x 100G QSFP28 uplinks, Layer 2/3 switching, 880 Gbps throughput, dual hot-swappable AC power[/shortdesc]

[properties]

Brand	Fortinet
Model	FortiSwitch 1024E
SKU	FS-1024E
Product Type	Ethernet Switch
Management Type	Managed
Layer Support	Layer 2 / Layer 3
Form Factor	Rack-mountable (1U)
Port Configuration	24 x 1G/10G SFP+ ports, 2 x 100G QSFP28 ports
Total Ports	26
Switching Capacity	880 Gbps
Forwarding Rate	1309 Mpps
MAC Address Table	64K entries
Packet Buffer	8 MB
Queues per Port	8
Airflow	Front to back
Power Supply	Dual hot-swappable AC power supplies
Redundant Power	Yes (1+1)
Maximum Power Consumption	176 W
Memory	8 GB DDR4
Storage	8 GB SSD
Dimensions (H × D × W)	44 × 460 × 440 mm
Weight	6.58 kg (14.5 lbs)
Operating Temperature	0 °C to 45 °C
Storage Temperature	−40 °C to 70 °C
Operating Humidity	10% to 90% non-condensing
MTBF	Greater than 10 years

[/properties]

[specifications]

Networking Standards	IEEE 802.1Q, 802.1D, 802.1s, 802.1w, 802.1ad, 802.1AX, 802.1X, 802.3, 802.3ae, 802.3ba, 802.3bj, 802.3bm
Routing Protocols	OSPFv2, RIP, VRRP, BGP, IS-IS, Static IPv4/IPv6
VLAN Support	Up to 4000 VLANs
ACL Capacity	Up to 18,000 entries
Host Entries	Up to 24,000
Link Aggregation	LACP, MC-LAG supported
Latency	Approximately 1 microsecond
Jumbo Frame Support	Yes
Authentication	RADIUS, 802.1X, MAC-based authentication
Management Interfaces	CLI, Web GUI, SNMP v1/v2c/v3, SSH, Telnet, HTTP, HTTPS
Monitoring & Telemetry	sFlow, Syslog, SNTP, Port Mirroring
High Availability	Active-Active redundancy, FortiLink HA support
Certifications	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS 2

[/specifications]

[accesories]

Included in the box	FortiSwitch 1024E unit; Dual AC power supplies
Optional Accessories	FS-PSU-300 Spare AC Power Supply; Fortinet SFP+ and QSFP28 transceivers
Management Options	FortiGate via FortiLink; FortiSwitch Manager; Standalone Web GUI and CLI

[/accesories]

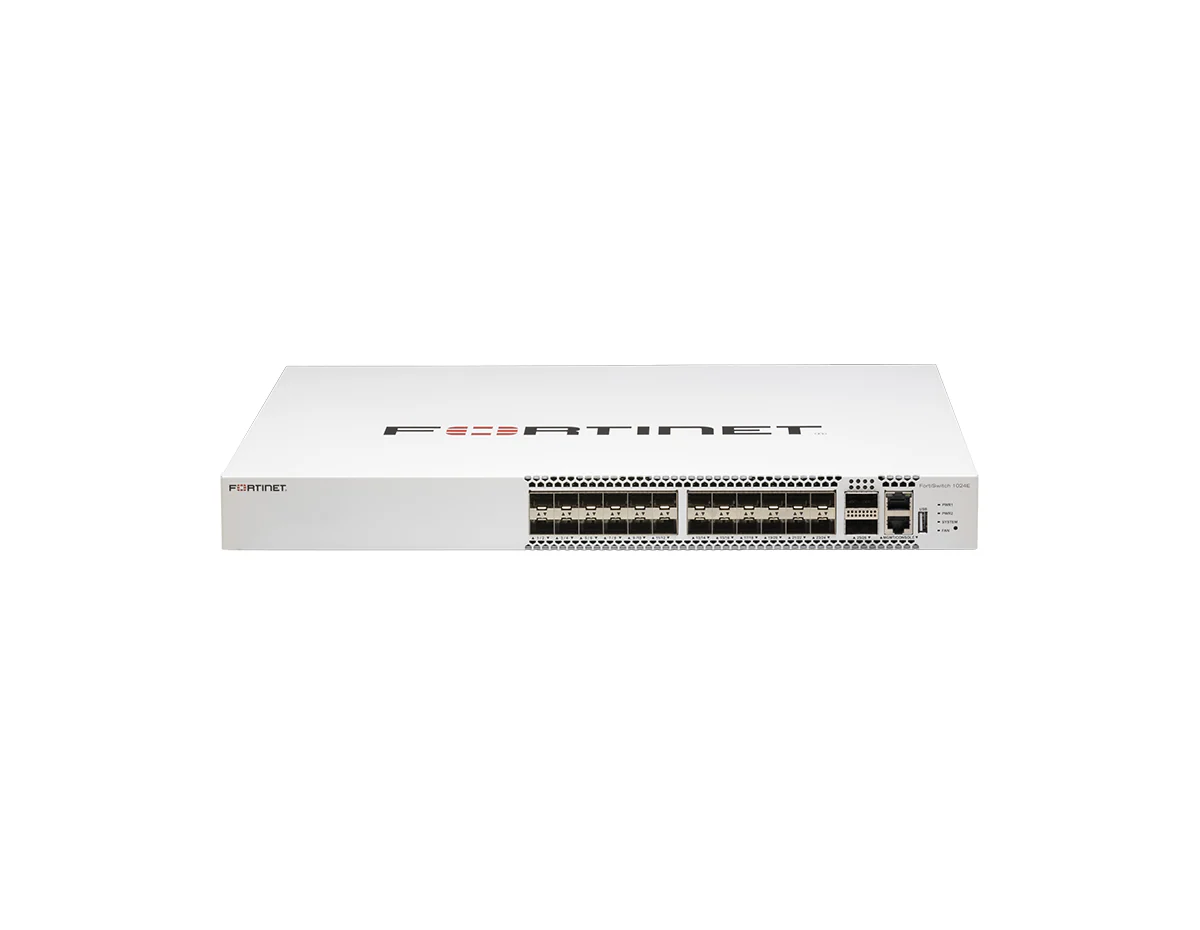

High-Density 10G Switching for Secure Data Center Networks

The Fortinet FortiSwitch 1024E is a high-performance Layer 2/3 data center switch designed for environments that demand speed, resiliency, and simplified management. Built for top-of-rack and aggregation deployments, it delivers wire-speed 10G access with ultra-fast 100G uplinks while integrating seamlessly into the Fortinet Security Fabric.

When deployed with FortiGate via FortiLink, the FortiSwitch 1024E becomes a logical extension of the firewall, enabling centralized policy enforcement, access control, and network visibility from a single interface. It can also operate as a fully standalone managed switch using CLI, GUI, or SNMP.

Key Benefits & Features

• High-Density 10G Access: 24 SFP+ ports support 1G and 10G connectivity for servers, firewalls, and storage systems.
• Ultra-Fast 100G Uplinks: Dual QSFP28 ports deliver high-bandwidth aggregation and backbone connectivity.
• Enterprise Layer 2/3 Capabilities: Supports VLANs, LACP, routing protocols, multicast, and advanced traffic control.
• Security Fabric Integration: FortiLink enables centralized management and consistent security policies through FortiGate.
• High Availability Design: Dual hot-swappable AC power supplies ensure continuous operation.

Ideal Use Cases

• Top-of-rack switching in data centers
• Firewall or server aggregation layers
• Enterprise campus core deployments
• SD-Branch and secure network architectures
• High-bandwidth virtualization environments

Technical Specifications

• Ports: 24x 1G/10G SFP+ and 2x 100G QSFP28
• Switching Capacity: 880 Gbps
• Forwarding Rate: 1309 Mpps
• Latency: Approximately 1 microsecond
• MAC Address Table: 64,000 entries
• VLAN Support: Up to 4,000 VLANs
• Form Factor: 1U rack-mountable
• Power Supply: Dual redundant hot-swappable AC
• Airflow: Front-to-back

Build a Faster and More Secure Switching Core

Deploy the Fortinet FortiSwitch 1024E to deliver scalable 10G performance with enterprise-grade reliability. Order today.
