[shortdesc] 1.2 m length, 4 mm shrouded banana, 2 mm probe tip, silicone insulation, CAT III 1000 V CAT IV 600 V, 10 A max [/shortdesc]

[properties]

Model	Fluke TL71
Product Type	Premium Test Lead Set
Lead Length	1.2 m (4 ft)
Probe Tip Diameter	2 mm
Connector Type	Standard 4 mm (0.16 in) shrouded banana
Category Rating	CAT II 1000 V; with protective caps: CAT IV 600 V, CAT III 1000 V
Maximum Current	10 A max
Operating Temperature	−20 °C to 55 °C (−4 °F to 131 °F)
Relative Humidity	Up to 90% RH
Operating Altitude	2000 m (6,562 ft)
Lead Insulation	Silicone-insulated
Probe/Lead Style	Comfort grip probes; right-angle test leads
WearGuard™ Indicator	Yes (shows contrasting color when worn)
Compatibility	Works with instruments that accept standard 4 mm shrouded banana connectors
Color	One pair: red & black

[/properties]

[specifications]

Lead Length / Tip	1.2 m (4 ft); 2 mm probe tip
Connector Size	4 mm (0.16 in) shrouded banana
Measurement Categories	CAT II 1000 V, 10 A; with protective caps: CAT IV 600 V, CAT III 1000 V
Operating Environment	−20 °C to 55 °C (−4 °F to 131 °F); up to 90% RH; altitude 2000 m (6,562 ft)
Construction	Silicone-insulated leads for superior cold-flexibility and high-temperature resistance
Wear Indication	WearGuard™ exposes contrasting color when lead insulation is damaged
Application Note	Recommended for µV measurements

[/specifications]

[accesories]

Included

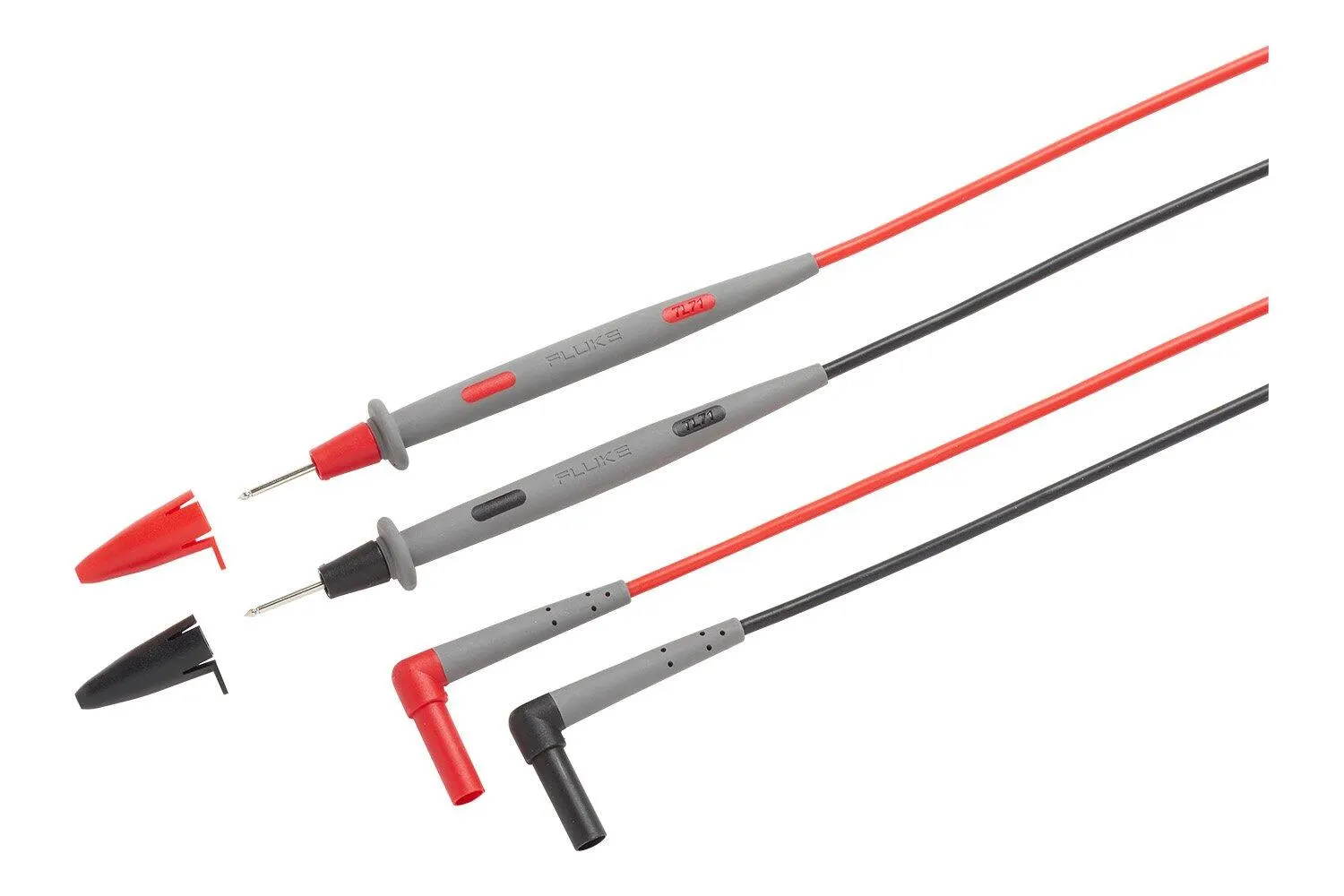

One pair (red, black) comfort grip probes with silicone-insulated, right-angle test leads

[/accesories]

Premium Test Leads Built for Safe, Accurate Measurements

The Fluke TL71 pairs comfort-grip probes with flexible, silicone-insulated right-angle test leads to deliver reliable contact and safety in demanding environments. Rated up to CAT III 1000 V and CAT IV 600 V with protective caps, the TL71 helps technicians measure confidently while the WearGuard™ indicator makes insulation damage easy to spot.

Key Benefits & Features

• WearGuard™ indicator: Contrasting color reveals insulation wear so you can replace leads before a safety risk develops.
• Silicone-insulated leads: Superior flexibility in cold conditions and resistance to high temperatures for year-round field use.
• High safety ratings: Base rating of CAT II 1000 V, 10 A; reaches CAT III 1000 V and CAT IV 600 V when protective caps are used.
• Right-angle connectors: Reduce strain at the meter and improve lead routing in tight panels.
• Precision probe tips: 2 mm tips provide secure contact for stable, repeatable readings.

Ideal Use Cases

• Field service and HVAC diagnostics requiring flexible, cold-resistant leads.
• Industrial maintenance where CAT III/CAT IV environments are common.
• Electronics troubleshooting and microvolt measurements (Recommended for µV measurements).
• General DMM work with instruments accepting 4 mm shrouded banana connectors.

Technical Specifications

• Lead length: 1.2 m (4 ft)
• Probe tip: 2 mm
• Connectors: Standard 4 mm shrouded banana
• Current rating: 10 A max
• Category ratings: CAT II 1000 V; CAT III 1000 V and CAT IV 600 V with protective caps
• Operating temperature: −20°C to 55°C (−4°F to 131°F)
• Relative humidity: 90% RH
• Altitude: 2000 m (6,562 ft)
• Design: Comfort-grip probes with right-angle leads; silicone insulation
• Compatibility: Instruments that accept 4 mm shrouded banana connectors

Get Trusted Fluke Accuracy

Equip your DMM with durable, safety-rated leads that stay flexible and readable in any season. Order today.
