[shortdesc] True-RMS AC clamp module, 0.5 A to 400 A range, wireless 2.4 GHz communication, logs 65,000 readings, and captures inrush current. [/shortdesc]

[properties]

Model	Fluke a3000 FC
Product Type	Wireless AC Current Clamp Module
Measurement Type	True-RMS AC Current Clamp Meter
Current Measurement Range	0.5 A to 400.0 A
Resolution	0.1 A
Inrush Function	Yes
Max Inrush Display	999.9 A
Logging Function	Yes
Memory	Record up to 65,000 readings
RF Communications	2.4 GHZ ISM Band
RF Communication Range (Open Air)	Up to 20 m
RF Communication Range (Sheetrock Wall)	Up to 6.5 m
RF Communication Range (Concrete Wall / Steel Enclosure)	Up to 3.5 m
Compatible Master Units	Fluke 3000 FC DMM; Fluke Ti200/300/400 Infrared Camera; PC via optional pc3000 FC Adapter; Fluke Connect Mobile app
Not Compatible With	Fluke CNX test tools
Jaw Opening	34 mm (1.33 in)
Display	LCD w/backlight, 3.5 digits
Log Rate / Interval	1 sec minimum (adjustable by PC)
Battery Type	2 AA, NEDA 15 A, IEC LR6
Battery Life	400 hours
Operating Temperature	-10 C to +50 C
Storage Temperature	-40 C to +60 C
Operating Humidity	90% at 35 C; 75% at 40 C; 45% at 50 C
Altitude (Operating)	2,000 m
Altitude (Storage)	12,000 m
Safety Rating	CAT III 600 V
Ingress Protection (IP) Rating	IP30
Pollution Degree	2
Size (H x W x D)	20.3 cm x 7.49 cm x 3.55 cm (8 in x 2.95 in x 1.4 in)
Weight	0.22 kg (8 oz)

[/properties]

[specifications]

Current Range	0.5 A to 400.0 A
Resolution	0.1 A
Accuracy (10 Hz to 100 Hz)	2% +/- 5 digits (at 400.0 A)
Accuracy (100 Hz to 500 Hz)	2.5% +/- 5 digits (at 400.0 A)
Inrush	Max displayed reading 999.9 A
Crest Factor (50 Hz / 60 Hz)	3 at 500 A; 2.5 at 600 A; 1.42 at 1000 A; Add 2% for C.F. > 2
Log Rate / Interval	1 sec minimum (adjustable by PC)
Temperature Coefficient	Add 0.1 x (specified accuracy) / C (< 18 C or > 28 C)
EMC	EN 61326-1
Safety Compliance	IEC 61010-1, 600 V CAT III, 3rd edition, Pollution Degree 2
Certifications	CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE

[/specifications]

[accesories]

Included	True-RMS AC Clamp Meter
Optional	pc3000 FC Adapter

[/accesories]

Wireless True-RMS Current Measurement with Safer Remote Monitoring

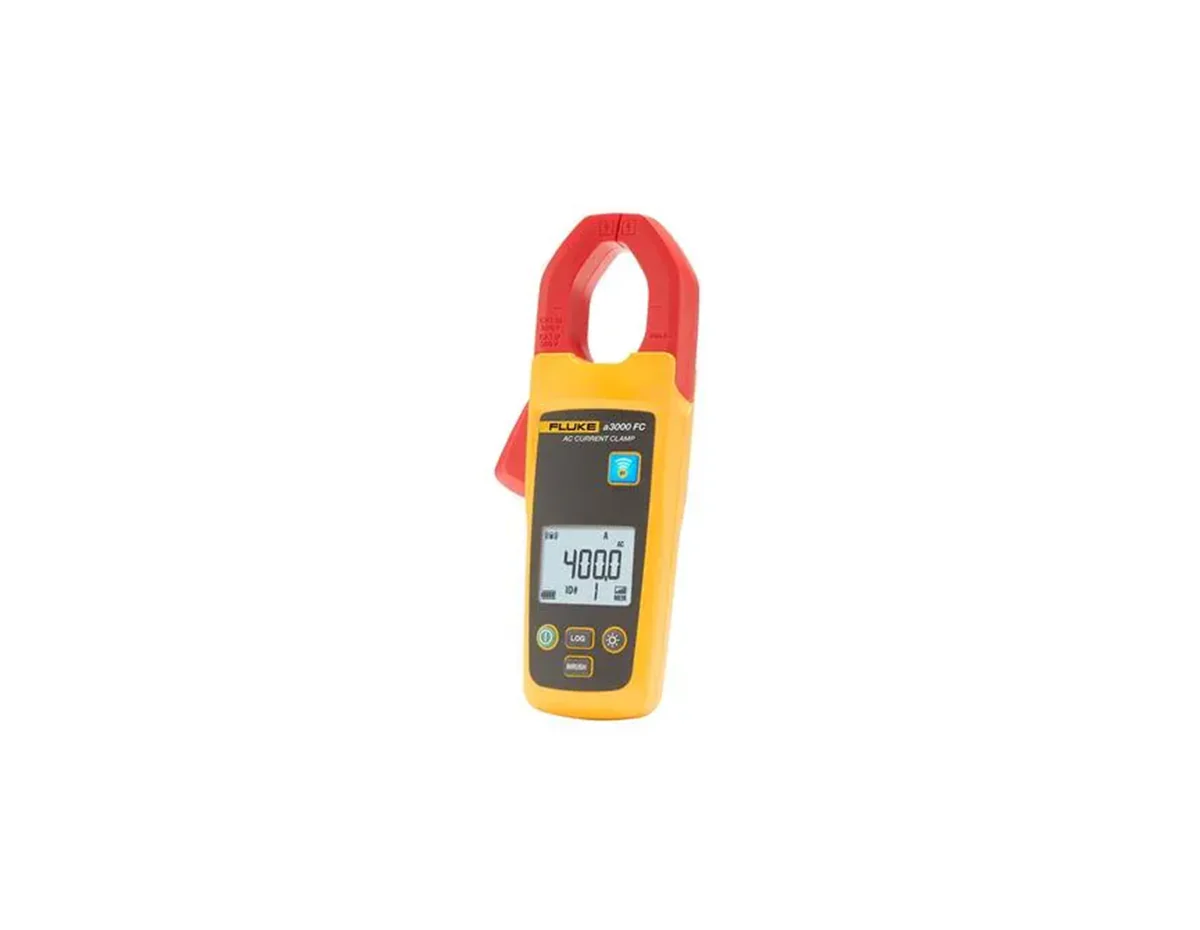

The Fluke a3000 FC Wireless AC Current Clamp Module delivers precise True-RMS current measurements up to 400 A while allowing technicians to monitor readings remotely through the Fluke Connect system. Designed for industrial electricians and maintenance professionals, it enhances safety by enabling measurement collection outside hazardous panels. With wireless data transfer, logging, and inrush capture, it streamlines troubleshooting and preventive maintenance workflows.

Key Benefits & Features

• True-RMS AC Measurement: Accurately measures non-linear loads from 0.5 A to 400 A, ensuring reliable readings in real-world industrial environments.
• Wireless Fluke Connect Integration: Transmits live measurements via 2.4 GHz ISM band to compatible Fluke Connect devices, PCs, and mobile apps for remote visibility.
• Advanced Logging Capability: Records and stores up to 65,000 time-stamped readings with adjustable intervals starting at 1 second for long-term trend analysis.
• Inrush Current Function: Captures startup surge currents up to 999.9 A to diagnose motor and transformer performance issues.
• Standalone or System Operation: Operates independently as a clamp meter or as part of a scalable Fluke Connect wireless test system.

Ideal Use Cases

• Three-phase panel diagnostics with remote viewing
• Motor startup and inrush current analysis
• Preventive maintenance logging and load trending
• Electrical troubleshooting in industrial facilities
• Arc flash risk reduction environments

Technical Specifications

• Current Range: 0.5 A to 400.0 A AC
• Resolution: 0.1 A
• Accuracy: 2% +/- 5 digits (10 Hz to 100 Hz), 2.5% +/- 5 digits (100 Hz to 500 Hz)
• Inrush: Max displayed reading 999.9 A
• Memory: Up to 65,000 readings
• Wireless Frequency: 2.4 GHz ISM band
• Wireless Range: Up to 20 m unobstructed
• Safety Rating: CAT III 600 V
• Jaw Opening: 34 mm
• Battery: 2 AA, up to 400 hours operation

Improve Safety and Speed in Electrical Diagnostics

Reduce exposure to live panels while capturing precise AC current data with the Fluke a3000 FC. Designed for connected maintenance environments. Order today to upgrade your electrical troubleshooting workflow.
