The FLUKE-902FC is a robust, true-RMS wireless HVAC clamp meter designed for professionals who need safe, accurate, and efficient diagnostics in electrical and HVAC systems. With wireless data logging via Fluke Connect®, it simplifies measurement, reporting, and collaboration in demanding field conditions.

[/shortdesc]

[specifications] [/specifications]

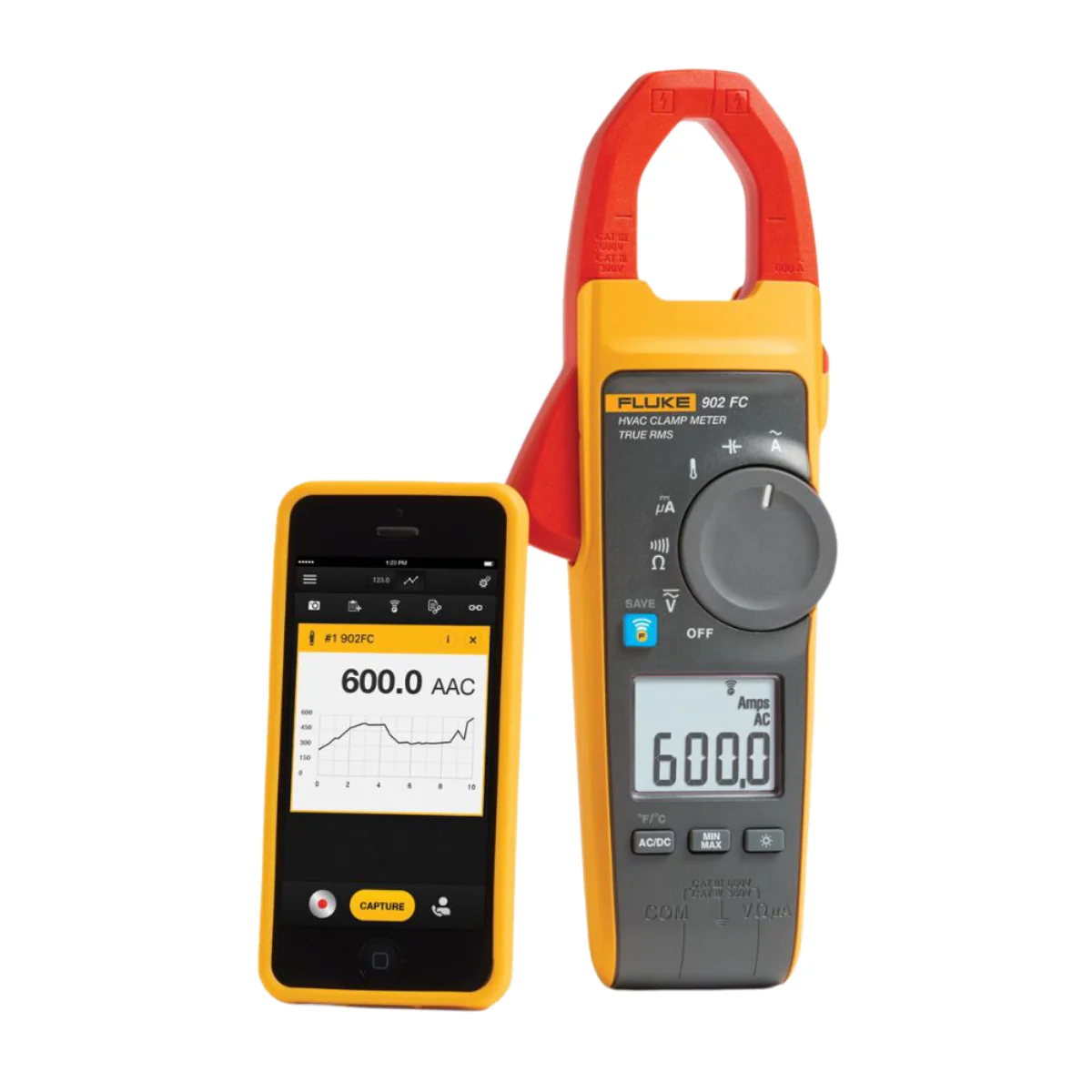

FLUKE-902FC True-RMS HVAC Clamp Meter

The Fluke 902 FC is a compact and durable clamp meter that provides accurate true-RMS measurements for troubleshooting HVAC and electrical systems. With wireless connectivity via Fluke Connect®, professionals can log data, generate reports, and share readings in real time, improving productivity and safety. Its wide measurement range includes AC/DC voltage, current, capacitance, resistance, microamps, and temperature, which makes it an all-in-one solution for HVAC maintenance tasks.

Key Features:

• True-RMS AC voltage and current for precise measurement on non-linear loads
• 600 A AC current and 600 V AC/DC voltage measurement capacity
• Temperature measurement from -10 °C to 400 °C (14 °F to 752 °F)
• 200 µA DC current range ideal for flame sensor diagnostics
• 1000 µF capacitance measurement for HVAC capacitor testing
• Resistance measurement up to 60 kΩ
• Min/Max recording to capture fluctuations automatically
• Backlit display for visibility in dim environments
• CAT III 600V / CAT IV 300V safety rated
• Wireless data sharing and logging with Fluke Connect® app

Technical Specifications:

• AC Current: 60/600 A, ±2.0% accuracy (45–65 Hz)
• Voltage: AC/DC up to 600 V
• Resistance: Up to 60,000 Ω
• Capacitance: 1000 µF
• Microamps: 200 µA DC, ideal for flame sensors
• Temperature Range: -10 °C to 400 °C (14 °F to 752 °F)
• Continuity Beeper: 75 dBA @ 15 cm
• Display: Large backlit LCD
• Power Supply: 2 AA alkaline batteries
• Operating Conditions: -10 °C to +50 °C, up to 90% RH
• Dimensions: 230 × 83.7 × 45.4 mm
• Weight: 419 g
• Safety Compliance: IEC 61010 CAT III 600 V / CAT IV 300 V
