[shortdesc]

• Fluke 772 Milliamp Process Clamp Meter measures 4-20 mA current without breaking the loop. Features include signal sourcing, simulation, and loop power, ideal for process control

[/shortdesc]

[properties]

Product Name	Fluke 772 Milliamp Process Clamp Meter
Product Description	Measures 4-20 mA current without breaking the loop. Features include signal sourcing, simulation, and loop power, ideal for process control.
Type	Process Clamp Meter
Compatibility	4 to 20 mA Control Systems
Media Type	Process Control Applications
Power	4 x 1.5 V Alkaline (IEC LR6) batteries, 12 hours in mA source into 500 ohms
Size	44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in)
Weight	410 g (14.4 oz)
Durability	Rugged construction with IP40 rating and 1-meter drop test certification (except the jaw)
Operating Conditions	-10°C to 50°C; < 90% humidity below 30°C, < 75% humidity at 30–55°C; 0 to 2000 m altitude
Storage Conditions	-25°C to 60°C
IP Rating	IP 40
Vibration	Random 2 g, 5 to 500 Hz
Shock	1 meter drop test (except the jaw)

 [/properties]

[specifications]

Diameter of measurable conductor	0.177” (4.5 mm max)
Operating temperature	-10°C to 50°C
Storage temperature	-25°C to 60°C
Operating humidity	< 90% @ <30°C; < 75% @ 30 to 55°C
Operating altitude	0 to 2000 m
IP rating	IP 40
Size	44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in)
Weight	410 g (14.4 oz)
Vibration	Random 2 g, 5 to 500 Hz
Shock	1 meter drop test (except the jaw)
EMI/RFI	Meets EN61326-1; for current measurement with jaw, add 1 mA to specification for EMC field strengths of 1 V/m up to 3 V/m
Temperature coefficient	0.01%/°C (< 18°C or > 28°C)
Power	(4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms
mA measurement (measured by clamp)	Resolution/Range: 0 to 20.99 mA; Accuracy: 0.2% + 5 counts
mA measurement (21.0 mA to 100.0 mA)	Resolution/Range: 21.0 mA to 100.0 mA; Accuracy: 1% + 5 counts
mA measurement (measured in series)	Resolution/Range: 0 to 24.00 mA; Accuracy: 0.2% + 2 counts
mA source	Resolution/Range: 0 to 24.00 mA; Accuracy: 0.2% + 2 counts
mA simulate	Resolution/Range: 0 to 24.00 mA; Accuracy: 0.2% + 2 counts
Loop power	24 V for powering field devices
Signal Sourcing	Sources 4 to 20 mA signals to test control system inputs
Simulation Capabilities	Simulates 4 to 20 mA signals for system diagnostics
Min/Max Recording	Captures fluctuations in current for precise troubleshooting
Display	Backlit digital LCD

[/specifications]

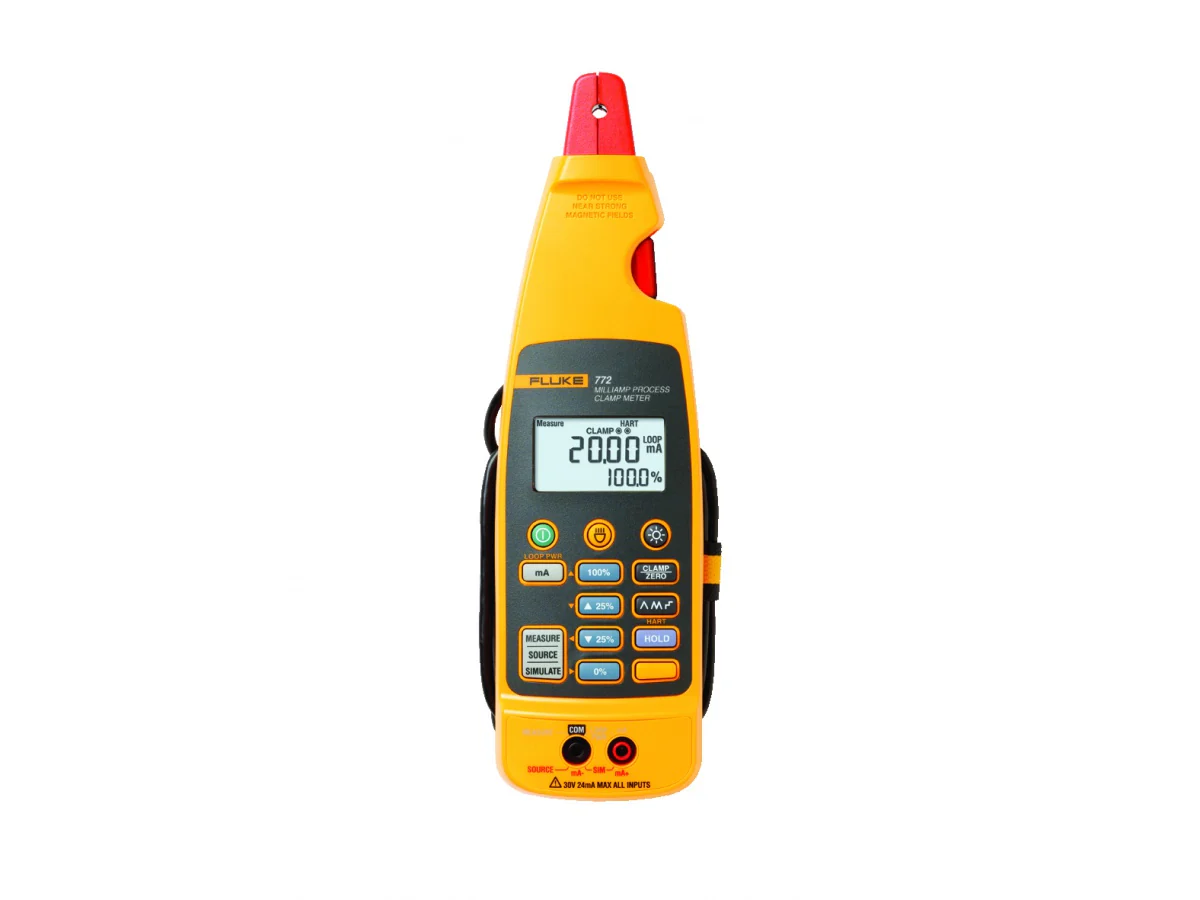

Fluke 772 Milliamp Process Clamp Loop Meter

The Fluke 772 Milliamp Process Clamp Loop Meter is a versatile tool designed for professionals working with 4 to 20 mA control systems. It provides a non-intrusive way to measure current without breaking the loop and includes advanced features like signal sourcing, simulation, and loop power testing, making it an essential instrument for troubleshooting and verifying process control systems.

Key Features:

• Non-Intrusive Measurement: Measures 4 to 20 mA signals without breaking the loop.
• Signal Sourcing: Sources 4 to 20 mA signals to test control system inputs.
• Simulation Capabilities: Simulates 4 to 20 mA signals for system diagnostics.
• Loop Power: Provides 24 V loop power to test transmitters in real-time.
• Min/Max Recording: Captures fluctuations in current for precise troubleshooting.
• Ergonomic Design: Compact and easy to use with a backlit display for low-light conditions.
• Durability: Rugged construction with IP40 rating and 1-meter drop test certification.

Technical Specifications:

• mA Measurement: 0 to 24 mA, accuracy ±0.2% + 2 counts
• mA Source/Simulate: 0 to 24 mA with accuracy ±0.2% + 2 counts
• Loop Power: 24 V for powering field devices
• Display: Backlit digital LCD
• Power: 4 x 1.5 V Alkaline (IEC LR6) batteries
• Operating Temperature: -10°C to 50°C
• Size: 248 x 76 x 41 mm
• Weight: 1 lb
