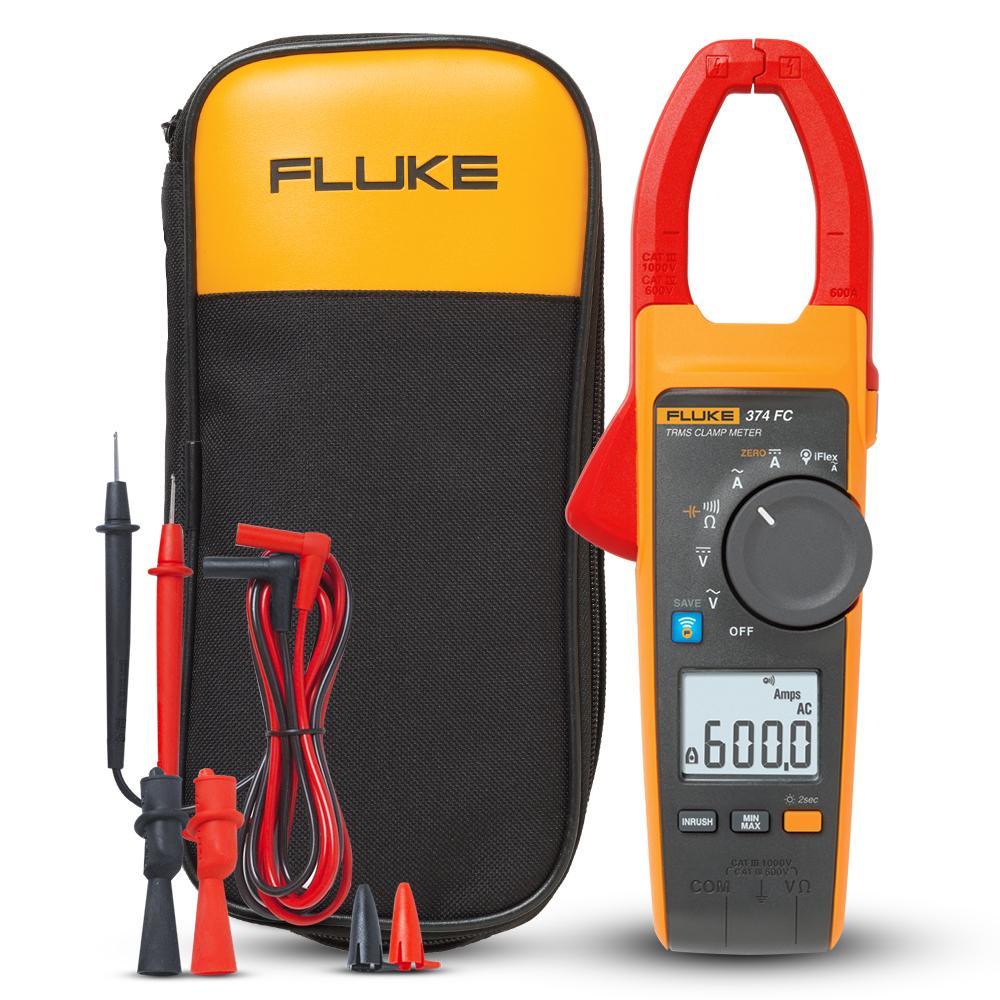

Fluke 374 FC True-RMS AC/DC Clamp Meter

The Fluke 374 FC True-RMS Clamp Meter combines powerful electrical measurement capabilities with Fluke Connect® wireless technology for enhanced safety and productivity. Designed for commercial and industrial electricians, this clamp meter allows users to measure AC/DC current up to 600 A with the fixed jaw, or up to 2500 A with the optional iFlex® flexible current probe. Fluke Connect enables remote reading and data logging from a safe distance, reducing the need for personal protective equipment in hazardous environments. With true-RMS accuracy, capacitance, resistance, voltage, and frequency measurements, the 374 FC is a versatile, durable tool.

Key Features:

• Wireless Connectivity: Fluke Connect® enables live readings and data transfer via Bluetooth for enhanced safety and collaboration.
• iFlex® Ready: Optional flexible current probe extends AC current measurement up to 2500 A and improves access in tight spaces.
• True-RMS Accuracy: Accurate measurements on non-linear loads for reliable diagnostics.
• Comprehensive Measurement Range: Measures AC/DC current (up to 600 A), voltage (up to 1000 V), resistance, capacitance, and frequency.
• Data Logging and Reporting: Log and trend measurements, generate reports, and share via ShareLive™ video calls or email.
• CAT IV Safety: Rated CAT III 1000 V and CAT IV 600 V for safe operation in high-energy environments.
• Compact and Durable: Ergonomic design with backlit display, 34 mm jaw opening, and rugged build for field use.
• Includes Accessories: Comes with TL75 test leads, soft carrying case, and two AA batteries.

Technical Specifications:

• AC Current (via jaw): 600.0 A, Accuracy: 2% ±5 digits (10–100 Hz), 2.5% ±5 digits (100–500 Hz)
• AC Current (via iFlex®): 2500 A, Accuracy: 3% ±5 digits (5–500 Hz)
• DC Current: 600.0 A, Accuracy: 2% ±5 digits
• AC Voltage: 1000 V, Accuracy: 1.5% ±5 digits
• DC Voltage: 1000 V, Accuracy: 1% ±5 digits
• mV DC: Range: 500.0 mV, Accuracy: 1% ±5 digits
• Resistance: Up to 6000 Ω, Accuracy: 1% ±5 digits
• Capacitance: Up to 1000 μF, Accuracy: 1% ±4 digits
• Frequency: Up to 500 Hz
• Display Hold / Min/Max / Inrush: Supported
• Jaw Opening: 34 mm
• Dimensions (L x W x H): 249 x 85 x 45 mm
• Weight: 395 g
• Battery: 2 AA alkaline batteries
• Operating Temperature: -10°C to +50°C (14°F to 122°F)
• Safety Rating: CAT III 1000 V / CAT IV 600 V (IEC 61010-1, 61010-2-032, 61010-2-033)
• IP Rating: IP30 (non-operating)
