[shortdesc]

• Fluke 289 TRMS Industrial Logging Multimeter is a high-precision tool designed for troubleshooting complex electrical systems, real-time graphing with TrendCapture technology

[/shortdesc]

[properties]

Property
Model	Fluke 289
Product Type	True-RMS Industrial Logging Multimeter with TrendCapture
Display	50,000-count 1/4 VGA graphic display with white backlight
Data Logging	Yes – up to 10,000 readings with TrendCapture
Logging Duration	Over 200 hours continuous logging
Trend Analysis	On-device graphical viewing of logged data
Input Impedance Mode	LoZ (low impedance) to avoid ghost voltage
Low-Pass Filter	For noisy environments and motor drive applications
Low Ohms Measurement	50 Ω range, 1 mΩ resolution, 10 mA source current
Interface	Soft keys and scroll navigation, customizable display
Saved Measurements	Yes – with field recall and naming
True-RMS	Yes (AC voltage and current)
Backlight & Flashlight	Backlight display only
Firmware	Field-upgradable

[/properties]



[specifications]

Specification
DC Voltage Range	Up to 1000 V (basic accuracy: ±0.025%)
AC Voltage Range	Up to 1000 V (accuracy: ±0.4% True-RMS)
DC Current Range	Up to 10 A (accuracy: ±0.15%)
AC Current Range	Up to 10 A (accuracy: ±0.7% True-RMS)
Resistance Range	Up to 500 MΩ (accuracy: ±0.05%)
Capacitance Range	1 nF to 100 mF (accuracy: ±1.0%)
Frequency Range	Up to 999.99 kHz (accuracy: ±0.005%)
Temperature Range	-200 °C to +1350 °C (accuracy: ±1% + 2 °C) (probe excl.)
Continuity / Diode	Yes
Conductance	0.01 nS to 50.00 nS
Duty Cycle	1% to 99%
Peak/Crest Capture	250 μs peak min/max
Bandwidth	100 kHz

[/specifications]



[accesories]

Accessory
Test Leads (TLK289)	Electronic Test Lead Kit (included in the box)
Soft Case (C781)	Protective soft meter case (included in the box)
User Manual	Printed documentation (included in the box)
6x AA Batteries	For operation (included in the box)
FlukeView Forms Software	For PC data logging and analysis
i400 Current Clamp	AC current clamp accessory
TPAK Magnetic Hanger	Hands-free hanging solution for meter

[/accesories]

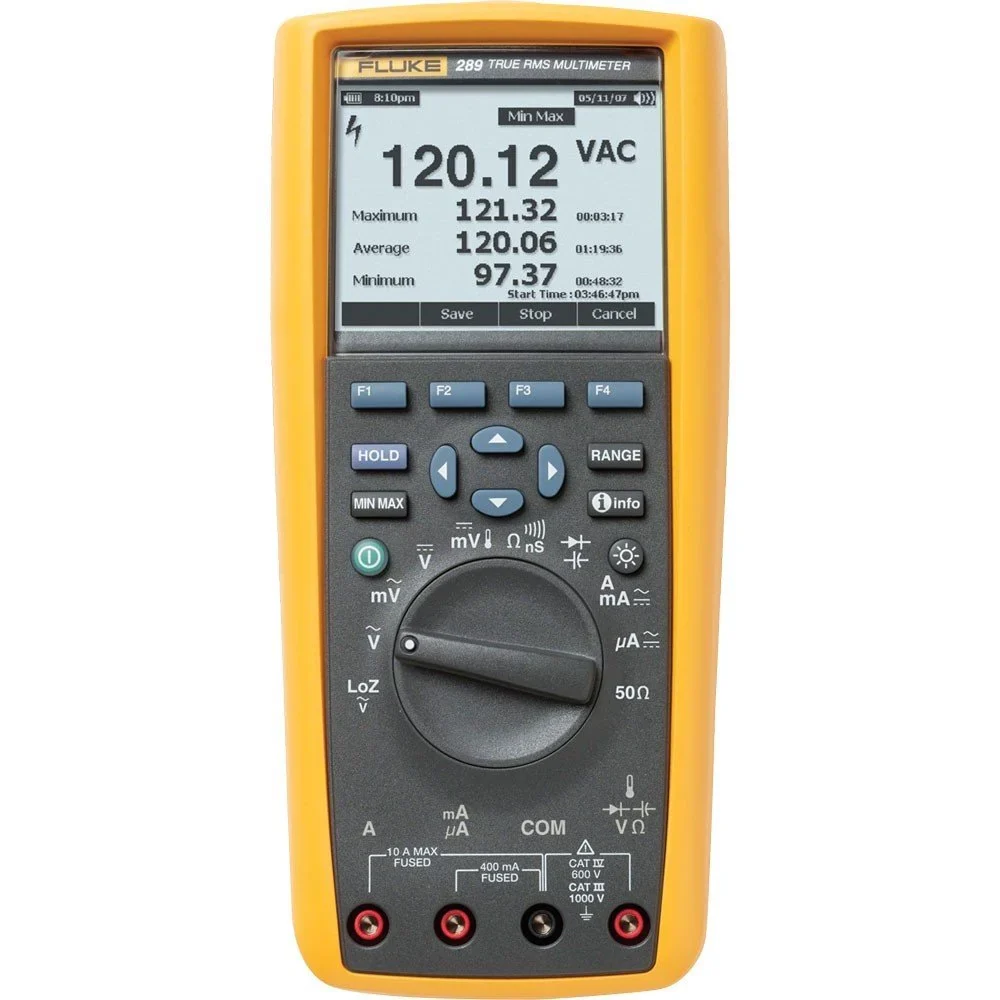

Fluke 289 TrendCapture TRMS Industrial Logging Multimeter (Fluke-289)

The Fluke 289 is a next-generation high-performance industrial multimeter designed for troubleshooting and maintenance in plant automation, power distribution, and electro-mechanical equipment. With its advanced TrendCapture feature, users can log data and analyze it directly on the device's large 50,000-count display. The built-in low pass filter ensures accurate voltage and frequency measurements even in noisy environments, and the expanded logging memory allows for unattended monitoring over time. With real-time clock-stamped data, on-board help screens, and an optically isolated communication port, the Fluke 289 is the perfect watchdog for industrial professionals.

Key Features:

• Advanced Data Logging: Stores up to 15,000 readings for long-term monitoring and analysis.
• TrendCapture Technology: Graphically displays logged data to quickly identify anomalies.
• High-Resolution Display: Large 50,000-count VGA display with a white backlight for easy readability.
• True-RMS Accuracy: Provides precise AC voltage and current measurements on non-linear loads.
• Low Impedance (LoZ) Mode: Eliminates ghost voltages and enhances testing accuracy.
• Auto & Manual Logging: Adjustable recording and auto-hold thresholds allow for flexible data collection.
• Industrial Durability: Meets MIL-PRF-28800F Class 2 vibration standards and withstands 1-meter drops.
• PC Connectivity: Supports data transfer via an optically isolated USB port (software optional).

Technical Specifications:

• DC Voltage Measurement: 50.000 mV to 1000.0 V (±0.025% accuracy)
• AC Voltage Measurement: 50.000 mV to 1000.0 V (±0.4% true-RMS accuracy)
• DC Current Measurement: 500.00 µA to 10.000 A (±0.15% accuracy)
• AC Current Measurement: 500.00 µA to 10.000 A (±0.7% true-RMS accuracy)
• Resistance: 50.000 Ω to 500.0 MΩ (±0.05% accuracy)
• Capacitance: 1.000 nF to 100 mF (±1.0% accuracy)
• Frequency: 99.999 Hz to 999.99 kHz (±0.005% accuracy)
• Temperature Range: -200.0°C to 1350.0°C (-328.0°F to 2462.0°F) (±1.0% accuracy, probe dependent)
• Battery Life: 100 hours typical, 200 hours in logging mode
• Power Supply: 6 AA alkaline batteries (NEDA 15A IEC LR6)
• Size: 22.2 cm x 10.2 cm x 6 cm (8.75 in x 4.03 in x 2.38 in)
• Weight: 870.9 g (28 oz)
• Operating Temperature: -20°C to 55°C (-4°F to 131°F)
• Storage Temperature: -40°C to 60°C (-40°F to 140°F)
• Compliance: EMC EN61326-1, IEC/EN 61010-1 2nd Edition
