Fluke-1587-FC Insulation Multimeter
[shortdesc]
- Fluke 1587 FC is a high-performance insulation multimeter that combines a digital insulation tester with a full-featured, true-RMS digital multimeter, ideal for troubleshooting and preventative maintenance
[/shortdesc]
[properties]
| Property | |
| Model | Fluke 1587 FC |
| Product Type | 2-in-1 Insulation Multimeter with True-RMS DMM |
| Display | 6000-count backlit display |
| Insulation Test Range | 0.01 MΩ to 2 GΩ |
| Insulation Test Voltages | 50 V, 100 V, 250 V, 500 V, 1000 V |
| VFD Low-Pass Filter | Yes (for accurate motor drive measurements) |
| PI/DAR Ratio with Graphing | Yes (via Fluke Connect app) |
| Temperature Measurement | Yes |
| Frequency Measurement | Yes |
| Capacitance | Yes |
| Diode Test | Yes |
| Continuity Test | Audible tone below 25 Ω |
| Safety Rating | CAT III 1000 V, CAT IV 600 V |
| Battery Type | 4x AA (NEDA 15A or IEC LR6) |
| Battery Life | 1000 hours (DMM); 1000 insulation tests (5s on/25s off) |
| Enclosure Protection | IP40 (non-operating) |
| Dimensions (H x W x L) | 5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in) |
| Weight | 550 g (1.2 lb) |
| Operating Temperature | -20°C to +55°C (-4°F to 131°F) |
| Storage Temperature | -40°C to +60°C (-40°F to 140°F) |
| Altitude (Operating / Storage) | 2000 m / 12,000 m |
[/properties]
[specifications]
| Specification | |
| AC Voltage Range | Up to 1000 V (True-RMS) |
| DC Voltage Range | Up to 1000 V |
| Millivolts (DC) | 600.0 mV, ±(0.1 % + 1) |
| AC/DC Current | 60 mA / 400 mA ranges |
| Resistance | 0.1 Ω to 50 MΩ |
| Frequency Measurement | Up to 99.99 kHz |
| Capacitance | Up to 9999 μF |
| Temperature Measurement | -40°C to +537°C / -40°F to +998°F |
| Test Voltage Accuracy | +20%, -0% |
| Insulation Test Accuracy | ±(1.5% + 5 counts) up to 600 MΩ, ±(10% + 3 counts) to 2 GΩ |
| Short Circuit Test Current | 1 mA nominal |
| Auto Discharge | <0.5 seconds (for ≤1 μF load) |
| Live Circuit Detection | Inhibits insulation test > 30 V |
| Fuse Protection | 0.44A, 1000 V, IR 10 kA (mA input) |
| Over-range Capability | 110% of range (except capacitance: 100%) |
| Frequency Overload Protection | <107 V-Hz |
| Input Impedance | 10 MΩ (nominal) |
| EMC Compliance | IEC 61326-1, IEC 61326-2-2, CISPR 11 Group 1 Class A |
| RF Communication (Wireless) | 2.4 GHz ISM Band (FCC/IC Certified) |
[/specifications]

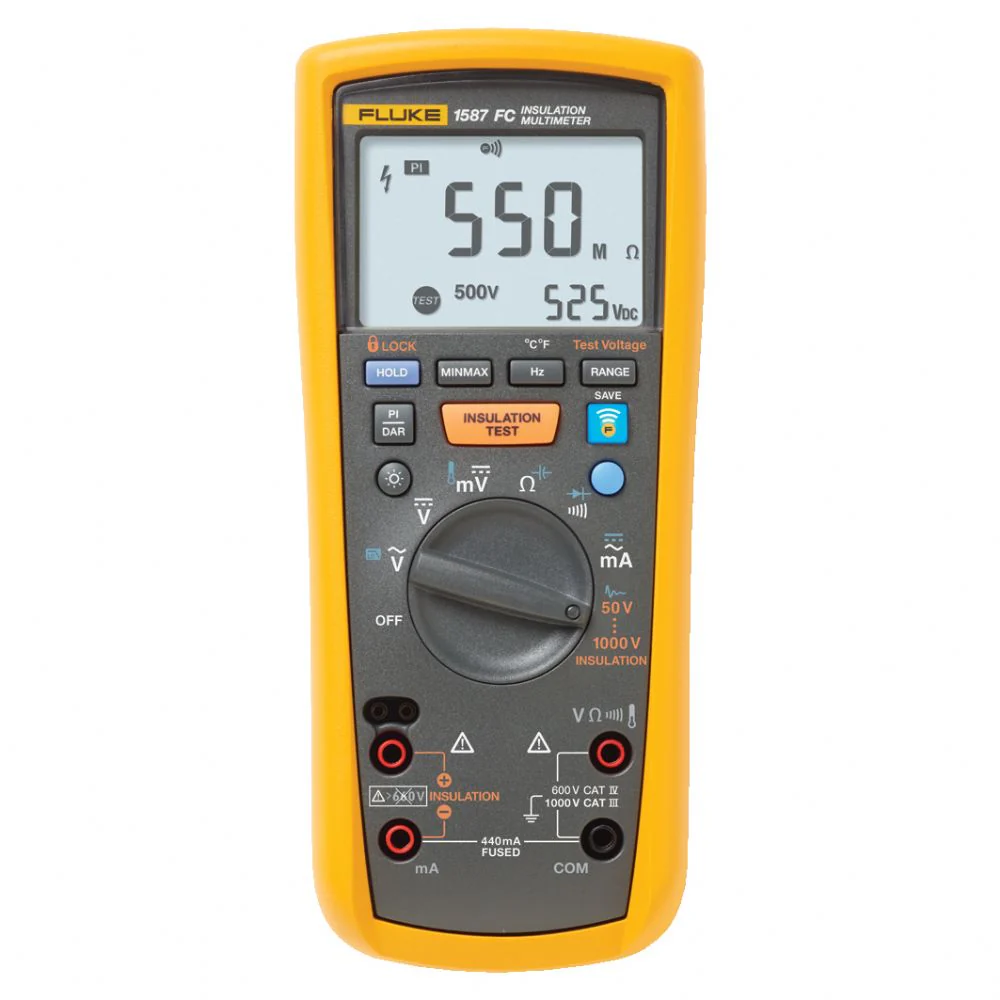

Fluke 1587 FC Insulation Multimeter
The Fluke 1587 FC is a versatile 2-in-1 insulation multimeter that provides accurate insulation resistance testing along with true-RMS digital multimeter functions. With insulation test voltages ranging from 50V to 1000V, it can measure insulation resistance up to 2 GΩ, making it suitable for industrial applications. Featuring Fluke Connect compatibility, users can remotely monitor test results via a smartphone for enhanced safety and efficiency.
Key Features:
- Advanced Insulation Testing: Measures insulation resistance from 0.01 MΩ to 2 GΩ with test voltages of 50V, 100V, 250V, 500V, and 1000V.
- True-RMS Digital Multimeter: Offers AC/DC voltage, AC/DC current, resistance, continuity, capacitance, frequency, and temperature measurements.
- Fluke Connect Wireless Compatibility: Enables remote monitoring, historical tracking, and real-time decision-making.
- Live Circuit Detection: Prevents insulation testing if voltage is greater than 30V.
- Low-Pass Filter (VFD Mode): Provides accurate motor drive measurements.
- Auto-Discharge Function: Ensures user safety by automatically discharging capacitive voltage.
- Min/Max and Auto-Hold Features: Records signal fluctuations for easy data analysis.
- CAT IV 600V / CAT III 1000V Safety Rating: Designed for industrial and commercial applications.
- Large Backlit Display: Provides easy visibility in low-light environments.
- Rugged & Portable: Supplied with a hard case, remote probe, test leads, alligator clips, and K-type thermocouple for comprehensive testing.
Technical Specifications:
- AC/DC Voltage Measurement: Up to 1000V
- Insulation Resistance: 0.01 MΩ to 2 GΩ
- Test Voltages: 50V, 100V, 250V, 500V, 1000V
- Capacitance Measurement: Up to 9999 μF
- Frequency Measurement: Up to 99.99 kHz
- Temperature Measurement: -40°C to 537°C
- Connectivity: Fluke Connect Wireless
- Battery Life: Up to 1000 hours of meter use
- Display: 6000-count backlit digital display
- Power Supply: Four AA batteries
- Safety Ratings: CAT IV 600V / CAT III 1000V
- Physical Dimensions: 5.0 cm H x 10.0 cm W x 20.3 cm L
- Weight: 550g (1.2 lb)
