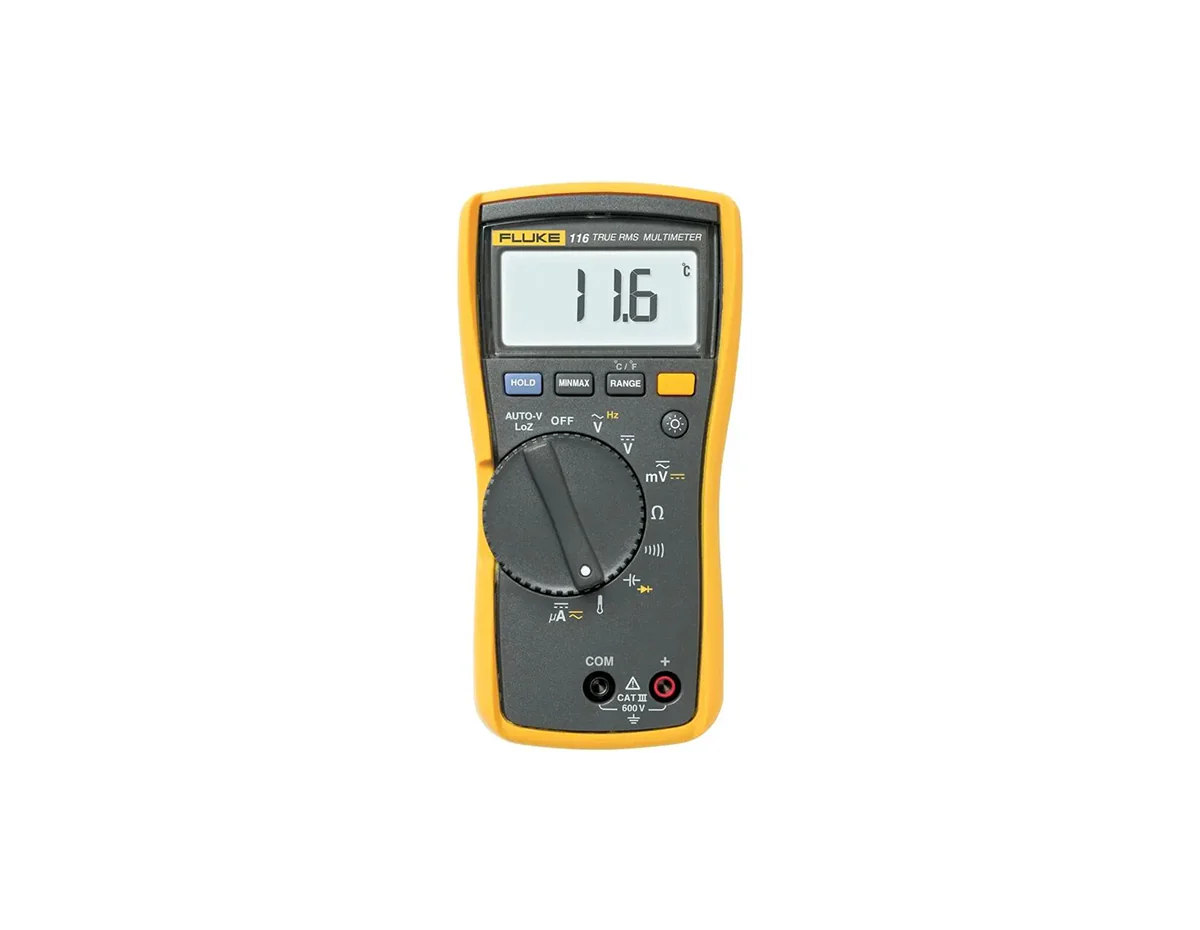

Fluke 116 HVAC True-RMS Multimeter with Temperature and Microamps
[shortdesc] True-RMS HVAC multimeter featuring built-in thermometer, microamp flame sensor testing, LoZ ghost voltage prevention, and CAT III 600V safety rating. [/shortdesc]
[properties]
| Model | Fluke 116 |
| Product Type | HVAC Digital Multimeter |
| Measurement Type | True-RMS |
| Voltage Range | Up to 600 V AC/DC |
| Microamps Measurement | Up to 600 microamps |
| Temperature Range | -40 degrees C to 400 degrees C |
| Resistance Range | Up to 40 Megohms |
| Capacitance Range | Up to 9999 microfarads |
| Frequency Range | Up to 50 kHz |
| Display | 6000 counts digital display with 33-segment bar graph |
| Safety Rating | CAT III 600 V |
| Battery | 9 V Alkaline (IEC 6LR61) |
| Battery Life | Approx. 400 hours (without backlight) |
| Operating Temperature | -10 degrees C to +50 degrees C |
| Storage Temperature | -40 degrees C to +60 degrees C |
| Standards | IEC 61010-1; IEC 61010-2-033; IEC 61326-1 |
[/properties]
[specifications]
| DC Voltage | 6.000 V / 60.00 V / 600.0 V; Accuracy plus/minus (0.5% + 2) |
| AC Voltage (True-RMS) | 6.000 V / 60.00 V / 600.0 V; Accuracy plus/minus (1.0% + 3) |
| DC Millivolts | 600.0 mV; Accuracy plus/minus (7.5% + 2) |
| AC Millivolts (True-RMS) | 600.0 mV; Accuracy plus/minus (1.0% + 3) |
| Resistance | 600.0 Ohms to 40.00 Megohms; Accuracy plus/minus (0.9% + 1) |
| Continuity | Beeper on less than 20 Ohms; off greater than 250 Ohms |
| Capacitance | 1000 nF to 9999 microfarads; Accuracy up to plus/minus (1.9% + 2) |
| Temperature (Type-K) | -40 degrees C to 400 degrees C; Accuracy plus/minus (1% + 10) |
| AC Microamps (True-RMS) | 600.0 microamps; Accuracy plus/minus (1.5% + 3) |
| DC Microamps | 600.0 microamps; Accuracy plus/minus (1.0% + 2) |
| Frequency | 99.99 Hz to 50.00 kHz; Accuracy plus/minus (0.1% + 2) |
| Diode Test | 2.000 V; Accuracy plus/minus (0.9% + 2) |
| Display Update Rate | Digital: 4/sec; Bar graph: 32/sec |
| Maximum Voltage | 600 V between any terminal and ground |
[/specifications]
[accesories]
| Included | TL75 Test Leads; 80BK-A Integrated Temperature Probe; Holster; User documentation; 9 V battery (installed) |
| Optional Accessories | Magnetic hanger (ToolPak compatible) |
[/accesories]
Precision HVAC Diagnostics in a Compact Tool
The Fluke 116 HVAC True-RMS Multimeter is purpose-built for HVAC professionals who demand accuracy, speed, and reliability in the field. Designed specifically for troubleshooting heating, ventilation, and air conditioning systems, it integrates temperature and microamp measurement capabilities to quickly identify faults and optimize performance. With Fluke trusted engineering, this meter delivers consistent results even in complex electrical environments.
Key Benefits & Features
- Built-in Temperature Measurement: Integrated thermometer supports precise HVAC diagnostics from -40 degrees C to 400 degrees C, eliminating the need for separate tools.
- Microamp Flame Sensor Testing: Accurately measure microamps to test flame rods and ensure safe burner operation in HVAC systems.
- True-RMS Accuracy: Reliable readings on non-linear signals, ensuring accurate diagnostics across modern electrical systems.
- Low Input Impedance (LoZ): Helps prevent false readings caused by ghost voltage, improving troubleshooting confidence.
- Enhanced Visibility & Usability: Large white LED backlight and ergonomic design enable one-handed operation in low-light or tight spaces.
Ideal Use Cases
- HVAC system troubleshooting and maintenance
- Flame sensor testing in heating systems
- Electrical diagnostics in commercial and residential environments
- Field service technicians requiring compact, accurate tools
- Preventive maintenance and system performance verification
Technical Specifications
- Voltage Range: Up to 600V AC/DC
- Temperature Range: -40 degrees C to 400 degrees C
- Microamp Measurement: Up to 600 microamps AC/DC
- Resistance Range: Up to 40 Megohms
- Capacitance: Up to 9999 microfarads
- Display: 6000-count digital display with bar graph
- Safety Rating: CAT III 600V
- Battery Life: Up to 400 hours typical without backlight
- Operating Temperature: -10 degrees C to +50 degrees C
Upgrade Your HVAC Toolkit Today
Equip your team with the Fluke 116 for faster, more accurate diagnostics. Order today and improve service efficiency.
