[shortdesc] Industrial NGFW, 8 Gbps firewall throughput, 6x Gigabit Ethernet ports, fanless rugged design, SD-WAN and ZTNA support, including 3 year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]

[properties]

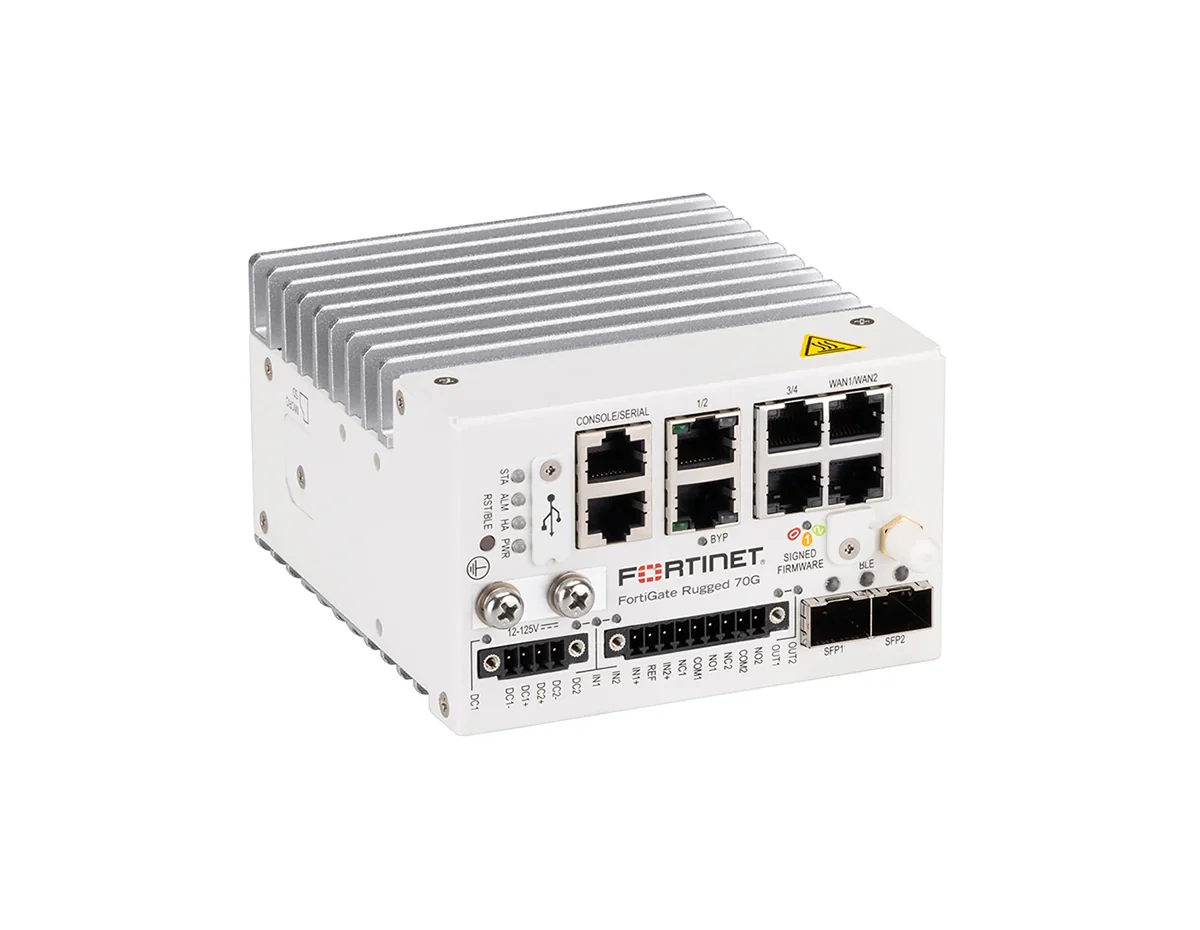

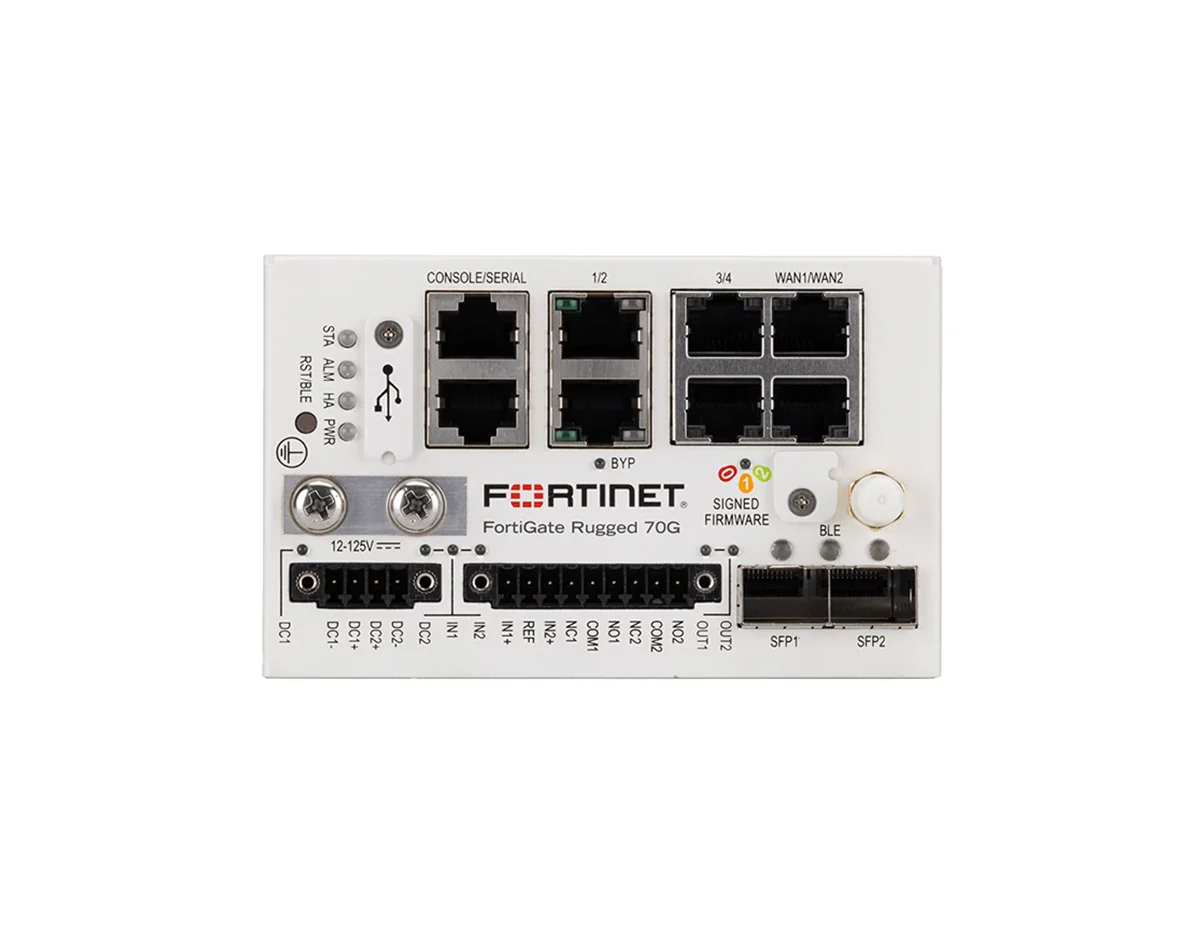

Model	FortiGate Rugged 70G
SKU	FGR-70G-BDL-950-36
Product Type	Rugged Next-Generation Firewall (NGFW)
Form Factor	DIN-rail mountable
Processor	FortiSP5
Operating System	FortiOS
Firewall Throughput	8 Gbps
NGFW Throughput	1.5 Gbps
Threat Protection Throughput	1.3 Gbps
IPS Throughput	2.5 Gbps
VPN Throughput (IPsec)	7.1 Gbps
Concurrent Sessions	1,400,000
New Sessions per Second	85,000
Ethernet Interfaces	6 × GE RJ45
SFP Slots	2 × GE SFP
Bypass Ports	1 × GE RJ45 bypass pair (PORT1 & PORT2)
USB Ports	1 × USB 2.0
Console Ports	1 × RJ45 console
Serial Interface	1 × RJ45
Bluetooth	Bluetooth Low Energy (BLE)
Trusted Platform Module	Yes (TPM)
IP Rating	IP40
Power Supply	12V to 125V DC redundant dual inputs
Average Power Consumption	18.3 W
Maximum Power Consumption	19.9 W
Dimensions (H × W × D)	111 × 69 × 122 mm
Weight	1 kg
Operating Temperature	−40 °C to 75 °C
Storage Temperature	−40 °C to 85 °C
Operating Humidity	5% to 95% non-condensing

[/properties]

[specifications]

Firewall Performance	IPv4 firewall throughput up to 8 Gbps (1518 / 512 / 64 byte UDP)
Firewall Latency	5.82 µs (64-byte UDP)
Firewall Throughput (Packets)	12 Mpps
Application Control Throughput	3.6 Gbps (HTTP 64K)
SSL Inspection Throughput	1.4 Gbps
SSL Inspection CPS	715
SSL Inspection Concurrent Sessions	1,400,000
IPsec VPN Tunnels (Gateway to Gateway)	200
IPsec VPN Tunnels (Client to Gateway)	500
Virtual Domains (VDOMs)	10 (default / maximum)
Maximum FortiAPs	96 total / 48 tunnel
Maximum FortiSwitches	24
Maximum FortiTokens	500
High Availability	Active-Active, Active-Passive, Clustering
Encryption	AES 256-bit, SHA 256, SSL, TLS 1.3
Supported Network Protocols	DNS, HTTP, HTTPS, IPSec, IPv4, IPv6, TCP/IP, UDP
Certifications	IEC 61850-3, IEEE 1613, EN 55032 Class A, EN 55035, FCC Part 15 Class A, CE, UL/cUL, CB, USGv6
Environmental Compliance	RoHS

[/specifications]

[accesories]

Optional

GE SFP transceiver modules; Rugged DIN-rail power supplies; Industrial-grade SFP modules (SMF/MMF)

[/accesories]

Rugged Security Built for Harsh and Industrial Networks

The Fortinet FortiGate Rugged 70G Firewall (FGR-70G-BDL-950-36) is a next-generation firewall engineered for mission-critical industrial and operational technology (OT) environments. Designed to operate reliably in extreme temperatures and harsh conditions, it delivers enterprise-grade security without compromising network performance. Powered by Fortinet’s proprietary FortiSP5 secure processor and running on FortiOS, the 70G provides deep visibility, advanced threat prevention, and high-speed connectivity at the network edge.

This fanless, DIN-rail-mountable appliance combines NGFW security, SD-WAN, and Zero Trust Network Access (ZTNA) into a single ruggedized platform, making it ideal for remote sites, factories, utilities, transportation systems, and critical infrastructure deployments where traditional appliances cannot survive.

Key Benefits & Features

• Industrial-Grade Rugged Design: Fanless IP40-rated hardware built to operate from -40°C to 75°C, ensuring reliability in harsh industrial environments.
• High-Performance NGFW: Delivers up to 8 Gbps firewall throughput with 2.5 Gbps IPS and 1.5 Gbps NGFW performance driven by the FortiSP5 processor.
• Advanced Threat Protection: Supports IPS, SSL inspection, application control, malware protection, and AI-powered FortiGuard services to secure OT networks.
• Integrated Secure SD-WAN: Optimizes WAN connectivity while enforcing consistent security policies across distributed and remote sites.
• Hardware-Based Trust: Built-in Trusted Platform Module (TPM) ensures secure boot and hardware-level protection against tampering.

Ideal Use Cases

• Industrial and OT network security
• Utilities, energy, and critical infrastructure sites
• Transportation, rail, and roadside deployments
• Remote and unmanned facilities
• Secure SD-WAN edge for harsh environments

Technical Specifications

• Firewall Throughput: Up to 8 Gbps
• IPS Throughput: Up to 2.5 Gbps
• NGFW Throughput: Up to 1.5 Gbps
• VPN Throughput: Up to 7.1 Gbps (IPsec)
• Network Ports: 6x Gigabit Ethernet RJ45, 2x SFP slots
• Concurrent Sessions: Up to 1.4 million
• Form Factor: DIN-rail mountable, fanless
• Operating Temperature: -40°C to 75°C
• Operating System: FortiOS

Included Security Subscription (3 Year)

• FortiCare Premium support with ticket handling, advanced hardware replacement (NBD), and access to firmware and general upgrades.
• FortiGuard Unified Threat Protection (UTP) services providing core network security capabilities.
• UTP services may include features such as Intrusion Prevention (IPS), Advanced Malware Protection, Antivirus, Botnet IP and Domain Protection, and FortiGate Cloud Sandbox, depending on supported hardware capabilities.
• Additional security services may include Application Control, URL DNS and Video Filtering, and Anti-spam.

Secure Your Industrial Edge Today

Deploy the Fortinet FortiGate Rugged 70G Firewall to protect critical networks with uncompromising performance and reliability. Order today.
