Fortinet FGR-70G-BDL-809-12 FortiGate Rugged 70G Next Generation Firewall
[shortdesc] Industrial NGFW, 8 Gbps firewall throughput, 6x Gigabit Ethernet ports, fanless rugged design, SD-WAN and ZTNA support, including 1 year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]
[properties]
| Model | FortiGate Rugged 70G |
| SKU | FGR-70G-BDL-809-12 |
| Product Type | Rugged Next-Generation Firewall (NGFW) |
| Form Factor | DIN-rail mountable |
| Processor | FortiSP5 |
| Operating System | FortiOS |
| Firewall Throughput | 8 Gbps |
| NGFW Throughput | 1.5 Gbps |
| Threat Protection Throughput | 1.3 Gbps |
| IPS Throughput | 2.5 Gbps |
| VPN Throughput (IPsec) | 7.1 Gbps |
| Concurrent Sessions | 1,400,000 |
| New Sessions per Second | 85,000 |
| Ethernet Interfaces | 6 × GE RJ45 |
| SFP Slots | 2 × GE SFP |
| Bypass Ports | 1 × GE RJ45 bypass pair (PORT1 & PORT2) |
| USB Ports | 1 × USB 2.0 |
| Console Ports | 1 × RJ45 console |
| Serial Interface | 1 × RJ45 |
| Bluetooth | Bluetooth Low Energy (BLE) |
| Trusted Platform Module | Yes (TPM) |
| IP Rating | IP40 |
| Power Supply | 12V to 125V DC redundant dual inputs |
| Average Power Consumption | 18.3 W |
| Maximum Power Consumption | 19.9 W |
| Dimensions (H × W × D) | 111 × 69 × 122 mm |
| Weight | 1 kg |
| Operating Temperature | −40 °C to 75 °C |
| Storage Temperature | −40 °C to 85 °C |
| Operating Humidity | 5% to 95% non-condensing |
[/properties]
[specifications]
| Firewall Performance | IPv4 firewall throughput up to 8 Gbps (1518 / 512 / 64 byte UDP) |
| Firewall Latency | 5.82 µs (64-byte UDP) |
| Firewall Throughput (Packets) | 12 Mpps |
| Application Control Throughput | 3.6 Gbps (HTTP 64K) |
| SSL Inspection Throughput | 1.4 Gbps |
| SSL Inspection CPS | 715 |
| SSL Inspection Concurrent Sessions | 1,400,000 |
| IPsec VPN Tunnels (Gateway to Gateway) | 200 |
| IPsec VPN Tunnels (Client to Gateway) | 500 |
| Virtual Domains (VDOMs) | 10 (default / maximum) |
| Maximum FortiAPs | 96 total / 48 tunnel |
| Maximum FortiSwitches | 24 |
| Maximum FortiTokens | 500 |
| High Availability | Active-Active, Active-Passive, Clustering |
| Encryption | AES 256-bit, SHA 256, SSL, TLS 1.3 |
| Supported Network Protocols | DNS, HTTP, HTTPS, IPSec, IPv4, IPv6, TCP/IP, UDP |
| Certifications | IEC 61850-3, IEEE 1613, EN 55032 Class A, EN 55035, FCC Part 15 Class A, CE, UL/cUL, CB, USGv6 |
| Environmental Compliance | RoHS |
[/specifications]
[accesories]
| Optional | GE SFP transceiver modules; Rugged DIN-rail power supplies; Industrial-grade SFP modules (SMF/MMF) |
[/accesories]
Rugged Security Built for Harsh and Industrial Networks
The Fortinet FortiGate Rugged 70G Firewall (FGR-70G-BDL-809-12) is a next-generation firewall engineered for mission-critical industrial and operational technology (OT) environments. Designed to operate reliably in extreme temperatures and harsh conditions, it delivers enterprise-grade security without compromising network performance. Powered by Fortinet’s proprietary FortiSP5 secure processor and running on FortiOS, the 70G provides deep visibility, advanced threat prevention, and high-speed connectivity at the network edge.
This fanless, DIN-rail-mountable appliance combines NGFW security, SD-WAN, and Zero Trust Network Access (ZTNA) into a single ruggedized platform, making it ideal for remote sites, factories, utilities, transportation systems, and critical infrastructure deployments where traditional appliances cannot survive.
Key Benefits & Features
- Industrial-Grade Rugged Design: Fanless IP40-rated hardware built to operate from -40°C to 75°C, ensuring reliability in harsh industrial environments.
- High-Performance NGFW: Delivers up to 8 Gbps firewall throughput with 2.5 Gbps IPS and 1.5 Gbps NGFW performance driven by the FortiSP5 processor.
- Advanced Threat Protection: Supports IPS, SSL inspection, application control, malware protection, and AI-powered FortiGuard services to secure OT networks.
- Integrated Secure SD-WAN: Optimizes WAN connectivity while enforcing consistent security policies across distributed and remote sites.
- Hardware-Based Trust: Built-in Trusted Platform Module (TPM) ensures secure boot and hardware-level protection against tampering.
Ideal Use Cases
- Industrial and OT network security
- Utilities, energy, and critical infrastructure sites
- Transportation, rail, and roadside deployments
- Remote and unmanned facilities
- Secure SD-WAN edge for harsh environments
Technical Specifications
- Firewall Throughput: Up to 8 Gbps
- IPS Throughput: Up to 2.5 Gbps
- NGFW Throughput: Up to 1.5 Gbps
- VPN Throughput: Up to 7.1 Gbps (IPsec)
- Network Ports: 6x Gigabit Ethernet RJ45, 2x SFP slots
- Concurrent Sessions: Up to 1.4 million
- Form Factor: DIN-rail mountable, fanless
- Operating Temperature: -40°C to 75°C
- Operating System: FortiOS
Included Security Subscription (1 Year)
- FortiCare Premium support with ticket handling, advanced hardware replacement (NBD), and access to firmware and general upgrades.
- FortiGuard Enterprise Protection services bundle including IPS, AI-based Inline Malware Prevention, Advanced Malware Protection, Inline CASB Database, and Data Loss Prevention.
- Additional Enterprise Protection services including Application Control, URL DNS and Video Filtering, Anti-spam, Attack Surface Security, and FortiConverter Service.
Secure Your Industrial Edge Today
Deploy the Fortinet FortiGate Rugged 70G Firewall to protect critical networks with uncompromising performance and reliability. Order today.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Fortinet FGR-70G-BDL-809-12 FortiGate Rugged 70G Next Generation Firewall
Fortinet FGR-70G-BDL-809-12 FortiGate Rugged 70G Next Generation Firewall
[shortdesc] Industrial NGFW, 8 Gbps firewall throughput, 6x Gigabit Ethernet ports, fanless rugged design, SD-WAN and ZTNA support, including 1 year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]
[properties]
| Model | FortiGate Rugged 70G |
| SKU | FGR-70G-BDL-809-12 |
| Product Type | Rugged Next-Generation Firewall (NGFW) |
| Form Factor | DIN-rail mountable |
| Processor | FortiSP5 |
| Operating System | FortiOS |
| Firewall Throughput | 8 Gbps |
| NGFW Throughput | 1.5 Gbps |
| Threat Protection Throughput | 1.3 Gbps |
| IPS Throughput | 2.5 Gbps |
| VPN Throughput (IPsec) | 7.1 Gbps |
| Concurrent Sessions | 1,400,000 |
| New Sessions per Second | 85,000 |
| Ethernet Interfaces | 6 × GE RJ45 |
| SFP Slots | 2 × GE SFP |
| Bypass Ports | 1 × GE RJ45 bypass pair (PORT1 & PORT2) |
| USB Ports | 1 × USB 2.0 |
| Console Ports | 1 × RJ45 console |
| Serial Interface | 1 × RJ45 |
| Bluetooth | Bluetooth Low Energy (BLE) |
| Trusted Platform Module | Yes (TPM) |
| IP Rating | IP40 |
| Power Supply | 12V to 125V DC redundant dual inputs |
| Average Power Consumption | 18.3 W |
| Maximum Power Consumption | 19.9 W |
| Dimensions (H × W × D) | 111 × 69 × 122 mm |
| Weight | 1 kg |
| Operating Temperature | −40 °C to 75 °C |
| Storage Temperature | −40 °C to 85 °C |
| Operating Humidity | 5% to 95% non-condensing |
[/properties]
[specifications]
| Firewall Performance | IPv4 firewall throughput up to 8 Gbps (1518 / 512 / 64 byte UDP) |
| Firewall Latency | 5.82 µs (64-byte UDP) |
| Firewall Throughput (Packets) | 12 Mpps |
| Application Control Throughput | 3.6 Gbps (HTTP 64K) |
| SSL Inspection Throughput | 1.4 Gbps |
| SSL Inspection CPS | 715 |
| SSL Inspection Concurrent Sessions | 1,400,000 |
| IPsec VPN Tunnels (Gateway to Gateway) | 200 |
| IPsec VPN Tunnels (Client to Gateway) | 500 |
| Virtual Domains (VDOMs) | 10 (default / maximum) |
| Maximum FortiAPs | 96 total / 48 tunnel |
| Maximum FortiSwitches | 24 |
| Maximum FortiTokens | 500 |
| High Availability | Active-Active, Active-Passive, Clustering |
| Encryption | AES 256-bit, SHA 256, SSL, TLS 1.3 |
| Supported Network Protocols | DNS, HTTP, HTTPS, IPSec, IPv4, IPv6, TCP/IP, UDP |
| Certifications | IEC 61850-3, IEEE 1613, EN 55032 Class A, EN 55035, FCC Part 15 Class A, CE, UL/cUL, CB, USGv6 |
| Environmental Compliance | RoHS |
[/specifications]
[accesories]
| Optional | GE SFP transceiver modules; Rugged DIN-rail power supplies; Industrial-grade SFP modules (SMF/MMF) |
[/accesories]
Rugged Security Built for Harsh and Industrial Networks
The Fortinet FortiGate Rugged 70G Firewall (FGR-70G-BDL-809-12) is a next-generation firewall engineered for mission-critical industrial and operational technology (OT) environments. Designed to operate reliably in extreme temperatures and harsh conditions, it delivers enterprise-grade security without compromising network performance. Powered by Fortinet’s proprietary FortiSP5 secure processor and running on FortiOS, the 70G provides deep visibility, advanced threat prevention, and high-speed connectivity at the network edge.
This fanless, DIN-rail-mountable appliance combines NGFW security, SD-WAN, and Zero Trust Network Access (ZTNA) into a single ruggedized platform, making it ideal for remote sites, factories, utilities, transportation systems, and critical infrastructure deployments where traditional appliances cannot survive.
Key Benefits & Features
- Industrial-Grade Rugged Design: Fanless IP40-rated hardware built to operate from -40°C to 75°C, ensuring reliability in harsh industrial environments.
- High-Performance NGFW: Delivers up to 8 Gbps firewall throughput with 2.5 Gbps IPS and 1.5 Gbps NGFW performance driven by the FortiSP5 processor.
- Advanced Threat Protection: Supports IPS, SSL inspection, application control, malware protection, and AI-powered FortiGuard services to secure OT networks.
- Integrated Secure SD-WAN: Optimizes WAN connectivity while enforcing consistent security policies across distributed and remote sites.
- Hardware-Based Trust: Built-in Trusted Platform Module (TPM) ensures secure boot and hardware-level protection against tampering.
Ideal Use Cases
- Industrial and OT network security
- Utilities, energy, and critical infrastructure sites
- Transportation, rail, and roadside deployments
- Remote and unmanned facilities
- Secure SD-WAN edge for harsh environments
Technical Specifications
- Firewall Throughput: Up to 8 Gbps
- IPS Throughput: Up to 2.5 Gbps
- NGFW Throughput: Up to 1.5 Gbps
- VPN Throughput: Up to 7.1 Gbps (IPsec)
- Network Ports: 6x Gigabit Ethernet RJ45, 2x SFP slots
- Concurrent Sessions: Up to 1.4 million
- Form Factor: DIN-rail mountable, fanless
- Operating Temperature: -40°C to 75°C
- Operating System: FortiOS
Included Security Subscription (1 Year)
- FortiCare Premium support with ticket handling, advanced hardware replacement (NBD), and access to firmware and general upgrades.
- FortiGuard Enterprise Protection services bundle including IPS, AI-based Inline Malware Prevention, Advanced Malware Protection, Inline CASB Database, and Data Loss Prevention.
- Additional Enterprise Protection services including Application Control, URL DNS and Video Filtering, Anti-spam, Attack Surface Security, and FortiConverter Service.
Secure Your Industrial Edge Today
Deploy the Fortinet FortiGate Rugged 70G Firewall to protect critical networks with uncompromising performance and reliability. Order today.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
[shortdesc] Industrial NGFW, 8 Gbps firewall throughput, 6x Gigabit Ethernet ports, fanless rugged design, SD-WAN and ZTNA support, including 1 year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]
[properties]
| Model | FortiGate Rugged 70G |
| SKU | FGR-70G-BDL-809-12 |
| Product Type | Rugged Next-Generation Firewall (NGFW) |
| Form Factor | DIN-rail mountable |
| Processor | FortiSP5 |
| Operating System | FortiOS |
| Firewall Throughput | 8 Gbps |
| NGFW Throughput | 1.5 Gbps |
| Threat Protection Throughput | 1.3 Gbps |
| IPS Throughput | 2.5 Gbps |
| VPN Throughput (IPsec) | 7.1 Gbps |
| Concurrent Sessions | 1,400,000 |
| New Sessions per Second | 85,000 |
| Ethernet Interfaces | 6 × GE RJ45 |
| SFP Slots | 2 × GE SFP |
| Bypass Ports | 1 × GE RJ45 bypass pair (PORT1 & PORT2) |
| USB Ports | 1 × USB 2.0 |
| Console Ports | 1 × RJ45 console |
| Serial Interface | 1 × RJ45 |
| Bluetooth | Bluetooth Low Energy (BLE) |
| Trusted Platform Module | Yes (TPM) |
| IP Rating | IP40 |
| Power Supply | 12V to 125V DC redundant dual inputs |
| Average Power Consumption | 18.3 W |
| Maximum Power Consumption | 19.9 W |
| Dimensions (H × W × D) | 111 × 69 × 122 mm |
| Weight | 1 kg |
| Operating Temperature | −40 °C to 75 °C |
| Storage Temperature | −40 °C to 85 °C |
| Operating Humidity | 5% to 95% non-condensing |
[/properties]
[specifications]
| Firewall Performance | IPv4 firewall throughput up to 8 Gbps (1518 / 512 / 64 byte UDP) |
| Firewall Latency | 5.82 µs (64-byte UDP) |
| Firewall Throughput (Packets) | 12 Mpps |
| Application Control Throughput | 3.6 Gbps (HTTP 64K) |
| SSL Inspection Throughput | 1.4 Gbps |
| SSL Inspection CPS | 715 |
| SSL Inspection Concurrent Sessions | 1,400,000 |
| IPsec VPN Tunnels (Gateway to Gateway) | 200 |
| IPsec VPN Tunnels (Client to Gateway) | 500 |
| Virtual Domains (VDOMs) | 10 (default / maximum) |
| Maximum FortiAPs | 96 total / 48 tunnel |
| Maximum FortiSwitches | 24 |
| Maximum FortiTokens | 500 |
| High Availability | Active-Active, Active-Passive, Clustering |
| Encryption | AES 256-bit, SHA 256, SSL, TLS 1.3 |
| Supported Network Protocols | DNS, HTTP, HTTPS, IPSec, IPv4, IPv6, TCP/IP, UDP |
| Certifications | IEC 61850-3, IEEE 1613, EN 55032 Class A, EN 55035, FCC Part 15 Class A, CE, UL/cUL, CB, USGv6 |
| Environmental Compliance | RoHS |
[/specifications]
[accesories]
| Optional | GE SFP transceiver modules; Rugged DIN-rail power supplies; Industrial-grade SFP modules (SMF/MMF) |
[/accesories]
Rugged Security Built for Harsh and Industrial Networks
The Fortinet FortiGate Rugged 70G Firewall (FGR-70G-BDL-809-12) is a next-generation firewall engineered for mission-critical industrial and operational technology (OT) environments. Designed to operate reliably in extreme temperatures and harsh conditions, it delivers enterprise-grade security without compromising network performance. Powered by Fortinet’s proprietary FortiSP5 secure processor and running on FortiOS, the 70G provides deep visibility, advanced threat prevention, and high-speed connectivity at the network edge.
This fanless, DIN-rail-mountable appliance combines NGFW security, SD-WAN, and Zero Trust Network Access (ZTNA) into a single ruggedized platform, making it ideal for remote sites, factories, utilities, transportation systems, and critical infrastructure deployments where traditional appliances cannot survive.
Key Benefits & Features
- Industrial-Grade Rugged Design: Fanless IP40-rated hardware built to operate from -40°C to 75°C, ensuring reliability in harsh industrial environments.
- High-Performance NGFW: Delivers up to 8 Gbps firewall throughput with 2.5 Gbps IPS and 1.5 Gbps NGFW performance driven by the FortiSP5 processor.
- Advanced Threat Protection: Supports IPS, SSL inspection, application control, malware protection, and AI-powered FortiGuard services to secure OT networks.
- Integrated Secure SD-WAN: Optimizes WAN connectivity while enforcing consistent security policies across distributed and remote sites.
- Hardware-Based Trust: Built-in Trusted Platform Module (TPM) ensures secure boot and hardware-level protection against tampering.
Ideal Use Cases
- Industrial and OT network security
- Utilities, energy, and critical infrastructure sites
- Transportation, rail, and roadside deployments
- Remote and unmanned facilities
- Secure SD-WAN edge for harsh environments
Technical Specifications
- Firewall Throughput: Up to 8 Gbps
- IPS Throughput: Up to 2.5 Gbps

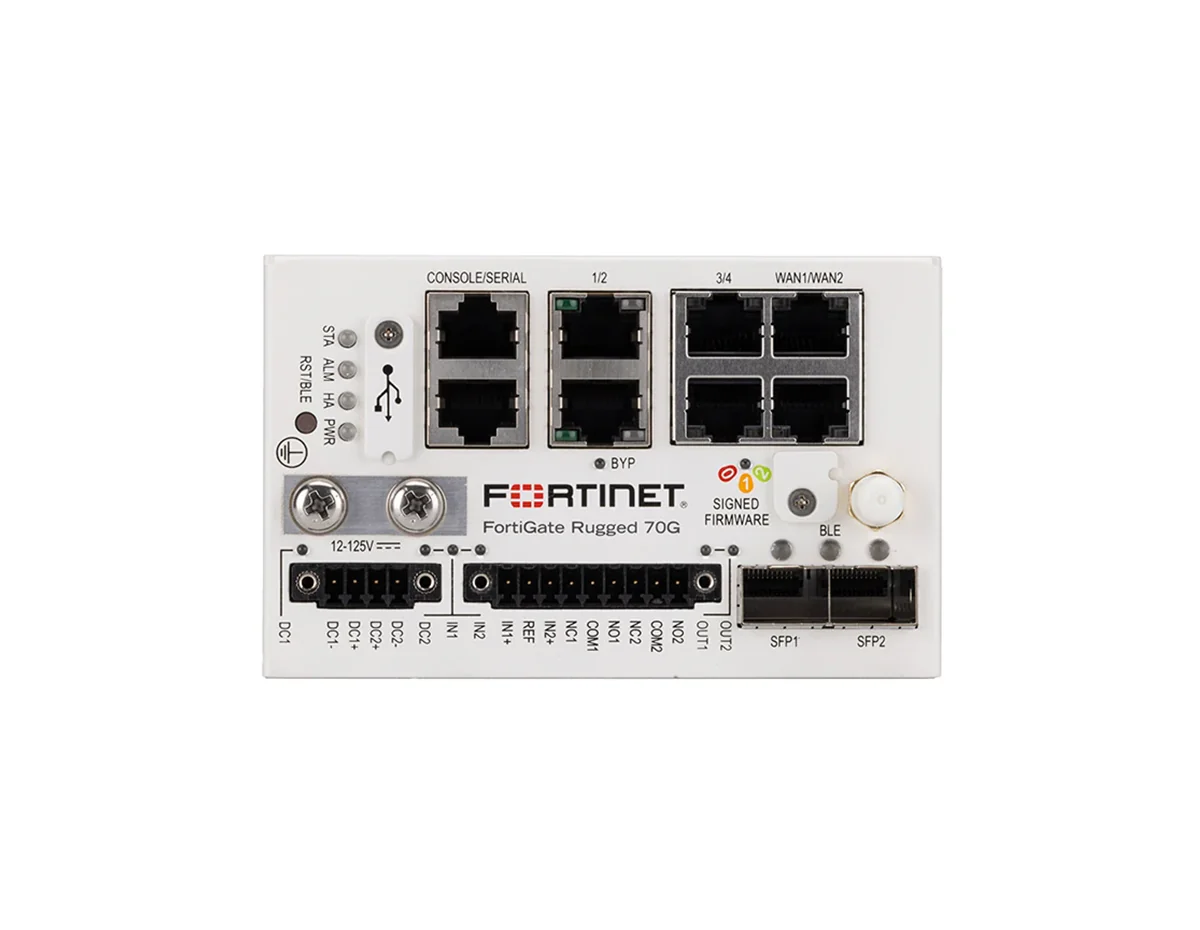

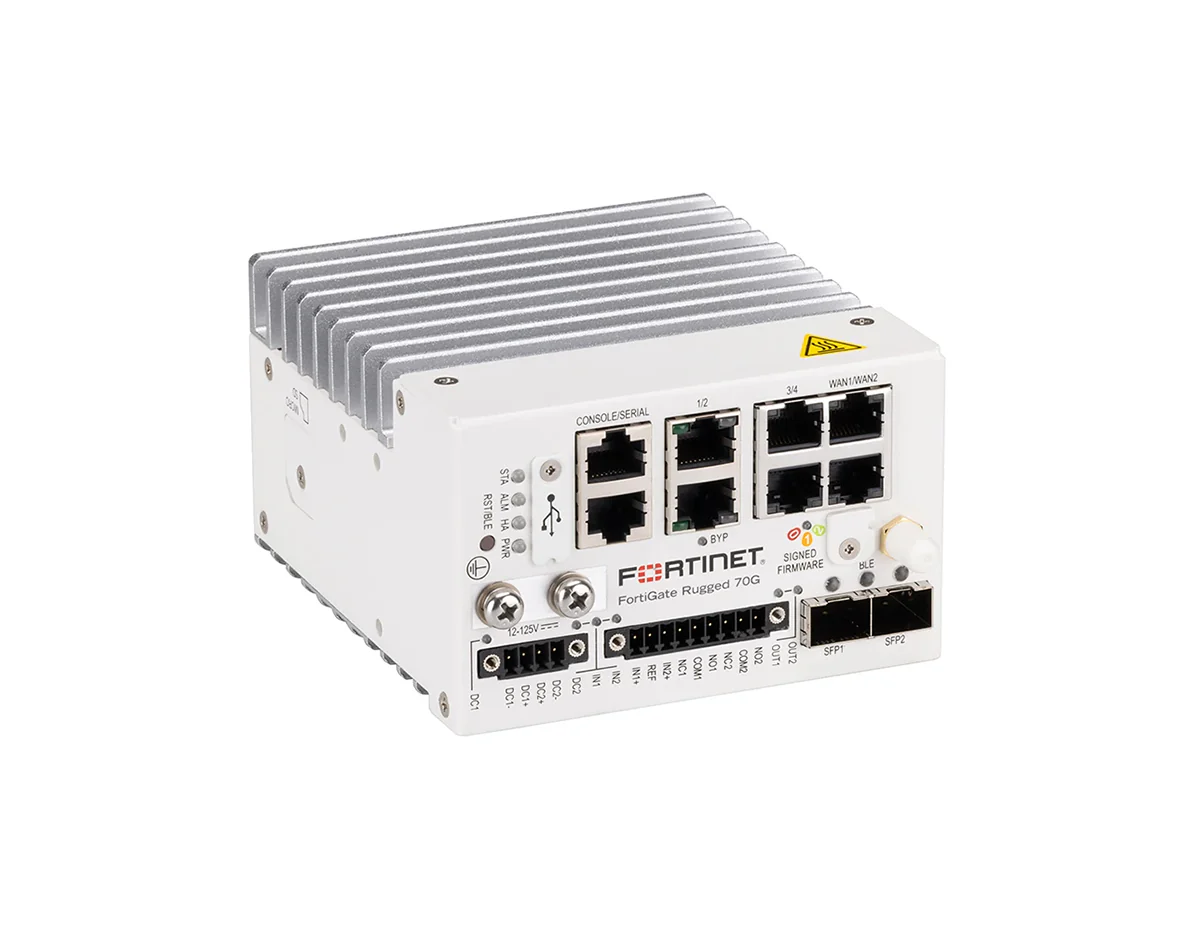

- NGFW Throughput: Up to 1.5 Gbps
- VPN Throughput: Up to 7.1 Gbps (IPsec)
- Network Ports: 6x Gigabit Ethernet RJ45, 2x SFP slots
- Concurrent Sessions: Up to 1.4 million
- Form Factor: DIN-rail mountable, fanless
- Operating Temperature: -40°C to 75°C
- Operating System: FortiOS
Included Security Subscription (1 Year)
- FortiCare Premium support with ticket handling, advanced hardware replacement (NBD), and access to firmware and general upgrades.
- FortiGuard Enterprise Protection services bundle including IPS, AI-based Inline Malware Prevention, Advanced Malware Protection, Inline CASB Database, and Data Loss Prevention.
- Additional Enterprise Protection services including Application Control, URL DNS and Video Filtering, Anti-spam, Attack Surface Security, and FortiConverter Service.
Secure Your Industrial Edge Today
Deploy the Fortinet FortiGate Rugged 70G Firewall to protect critical networks with uncompromising performance and reliability. Order today.
