[shortdesc] Ruggedized NGFW, dual 5G Active/Active WAN, 6x GE RJ45 LAN with bypass, 2x SFP slots, GPS support, dual DC power inputs, including 3 year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]

[properties]

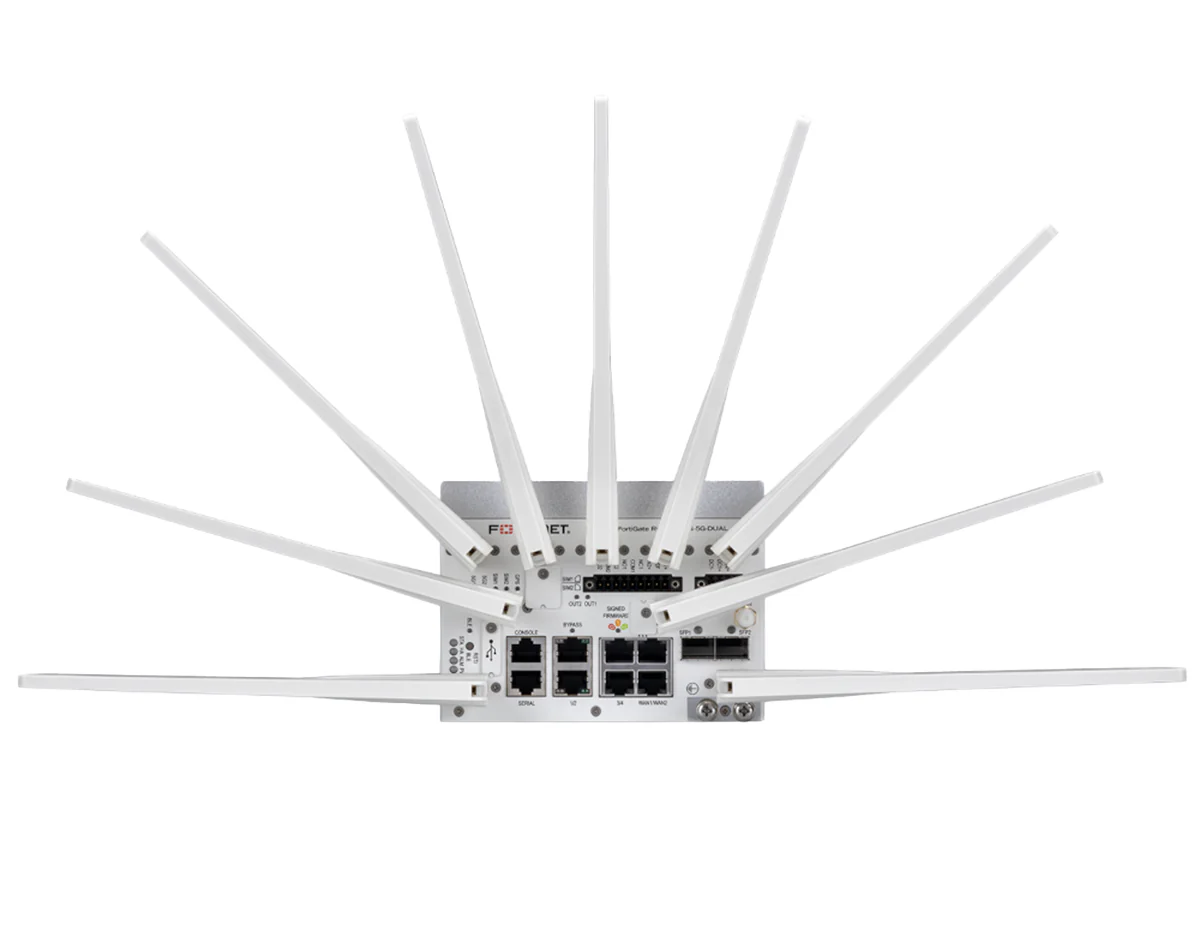

Model	FortiGate Rugged 70G-5G-DUAL
SKU	FGR-70G-5G-DUAL-BDL-950-36
Product Type	Next-Generation Firewall (NGFW)
Form Factor	DIN-rail mountable
Rugged Design	Indoor ruggedized appliance
IP Rating	IP40
Processor	Fortinet FortiSP5
Operating System	FortiOS
Firewall Throughput (IPv4)	8 Gbps
IPS Throughput	2.5 Gbps
NGFW Throughput	1.5 Gbps
Threat Protection Throughput	1.3 Gbps
IPsec VPN Throughput	7.1 Gbps
Ethernet Interfaces	6 × GE RJ45
SFP Slots	2 × GE SFP
Bypass Ports	1 × GE RJ45 bypass pair (PORT1 & PORT2)
Cellular Connectivity	Dual 5G modems with GPS
SIM Support	2 × SIM slots (Active/Active)
Bluetooth	Bluetooth Low Energy (BLE)
Power Supply	12V–125V DC, redundant dual inputs
Power Consumption	25 W (average), 26.2 W (maximum)
Dimensions (H × W × D)	139 × 104 × 122 mm
Weight	2.1 kg
Operating Temperature	−40 °C to 75 °C
Operating Humidity	5% to 95% non-condensing
Operating Altitude	Up to 3048 m

[/properties]

[specifications]

Firewall Latency	5.82 µs (64-byte UDP)
Firewall Throughput (PPS)	12 Mpps
Concurrent Sessions	1.4 million
New Sessions per Second	85,000
Firewall Policies	5,000
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	500
SSL Inspection Throughput	1.4 Gbps
SSL Inspection CPS	715
SSL Inspection Concurrent Sessions	1.4 million
Application Control Throughput	3.6 Gbps
Virtual Domains (VDOMs)	10 (default / maximum)
Maximum FortiAPs	96 total / 48 tunnel
Maximum FortiSwitches	24
High Availability	Active-Active, Active-Passive, Clustering
5G Modem Model	Telit Cinterion FN990A28-HP
5G Bands	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79
LTE Bands	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Certifications	IEC 61850-3, IEEE 1613, EN 50155, EN 50121, FCC Class A, CE, UL/cUL, RoHS

[/specifications]

[accesories]

Included	Dual 5G cellular modules; Passive GPS antenna; External SMA WWAN antennas; MicroSD slot; Digital I/O module
Optional – Transceivers	FN-TRAN-GC, FN-TRAN-LX, FR-TRAN-SX, FR-TRAN-ZX, FN-TRAN-FX
Optional – Power	FortiPSU Rugged DIN Rail 240W PSU (SP-RGDIN-240-PS)

[/accesories]

Mission-Critical Security for Harsh and Remote Environments

The Fortinet FortiGate Rugged 70G-5G-Dual is a next-generation firewall purpose-built for industrial, transportation, and remote deployments where reliability, performance, and secure connectivity are essential. Designed with a rugged, fanless architecture, this appliance delivers enterprise-grade security while withstanding extreme temperatures, vibration, and challenging operating conditions.

Powered by Fortinet’s FortiSP5 security processor and FortiOS, the 70G-5G-Dual combines high-performance NGFW capabilities with dual embedded 5G cellular connectivity, enabling resilient WAN access for mission-critical networks. Active/Active dual 5G modem support ensures continuous connectivity even when primary links fail.

Key Benefits & Features

• Dual 5G Cellular WAN: Two embedded 5G modems with Active/Active SIM support provide resilient, high-speed wireless connectivity for remote and mobile sites.
• Ruggedized Industrial Design: Fanless, IP40-rated chassis built for extreme temperatures and demanding industrial environments.
• Integrated Bypass Ports: 1x GE RJ45 bypass port pair maintains network traffic flow during power loss or appliance failure.
• High-Performance NGFW: Up to 1.5 Gbps NGFW throughput and 1.3 Gbps threat protection powered by FortiSP5 ASIC.
• Advanced FortiOS Security: Supports IPS, application control, SSL inspection, SD-WAN, and zero trust access policies.

Ideal Use Cases

• Industrial and OT network security
• Transportation and rail infrastructure
• Remote sites requiring resilient 5G connectivity
• Utility, energy, and substation deployments
• Secure SD-WAN for harsh environments

Technical Specifications

• Firewall Throughput: Up to 8 Gbps
• NGFW Throughput: Up to 1.5 Gbps
• Threat Protection Throughput: Up to 1.3 Gbps
• Network Interfaces: 6x GE RJ45 LAN, 2x GE SFP slots
• Bypass Ports: 1x GE RJ45 bypass port pair
• Cellular Connectivity: Dual embedded 5G modems with Active/Active SIM slots
• Expansion: USB port and MicroSD card slot
• Power Input: Redundant 12V–125V DC dual power inputs
• Form Factor: DIN-rail mountable rugged appliance

Included Security Subscription (3 Year)

• FortiCare Premium support with ticket handling, advanced hardware replacement (NBD), and access to firmware and general upgrades.
• FortiGuard Unified Threat Protection (UTP) services providing core network security capabilities.
• UTP services may include features such as Intrusion Prevention (IPS), Advanced Malware Protection, Antivirus, Botnet IP and Domain Protection, and FortiGate Cloud Sandbox, depending on supported hardware capabilities.
• Additional security services may include Application Control, URL DNS and Video Filtering, and Anti-spam.

Secure Your Remote Infrastructure Today

Deploy resilient, high-performance security at the edge with the FortiGate Rugged 70G-5G-Dual. Order today and protect critical operations without compromise.
