[shortdesc] Rugged IP40 industrial firewall, 6x GE RJ45 ports, 2x SFP slots, bypass port pair, SD-WAN, FortiOS security, 10 Gbps Firewall Throughput, including 3 year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]

[properties]

Model	FGR-70F-BDL-950-36
Brand	Fortinet
Product Line	FortiGate Rugged
Product Type	Network Security Firewall Appliance (NGFW)
Form Factor	DIN-rail mountable
IP Rating	IP40
Ethernet Technology	Gigabit Ethernet
Total Ports	8
RJ45 LAN Ports	4x GE RJ45 LAN
RJ45 WAN Ports	2x GE RJ45 WAN
Bypass Port	1x GE RJ45 bypass port pair (between PORT3 and PORT4)
SFP Slots	2x GE SFP
Serial Ports	1x RJ45 (console)
USB Ports	1x USB 2.0
MicroSD Slot	Yes
Processor	FortiSoC4
Trusted Platform Module	Yes (TPM)
Digital I/O Module	Yes
Bluetooth Low Energy	Yes
Power Input	12V to 48V DC, redundant dual inputs
Average Power Consumption	16 W
Maximum Power Consumption	18 W

[/properties]

[specifications]

Firewall Throughput (IPv4)	10 Gbps
Firewall Latency	6.71 µs (64 byte UDP)
Firewall Throughput (PPS)	15 Mpps
IPS Throughput	1.4 Gbps
NGFW Throughput	1 Gbps
Threat Protection Throughput	800 Mbps
Concurrent Sessions (TCP)	1,500,000
New Sessions per Second	35,000
IPsec VPN Throughput	6.5 Gbps
Gateway-to-Gateway VPN Tunnels	200
Client-to-Gateway VPN Tunnels	500
SSL Inspection Throughput	750 Mbps
Virtual Domains (Default / Max)	10 / 10
Maximum FortiAPs	64 (Total), 32 (Tunnel)
Maximum FortiSwitches	24
High Availability	Active-Active, Active-Passive, Clustering
Dimensions (H x W x D)	111 x 80.5 x 122 mm
Weight	1.3 kg
Operating Temperature	-40°C to 75°C
Storage Temperature	-40°C to 85°C
Humidity	5% to 95% non-condensing
Operating Altitude	Up to 3,048 m (10,000 ft)

[/specifications]

[accesories]

Included	Device unit only (power cables not included)
Compatible SFP Modules	Fortinet 1GE SFP SX, LX, ZX, RJ45 Transceiver Modules
Optional Power Supply	FortiPSU Rugged DIN Rail 240W PSU

[/accesories]

Industrial-Grade Firewall Security for Harsh Environments

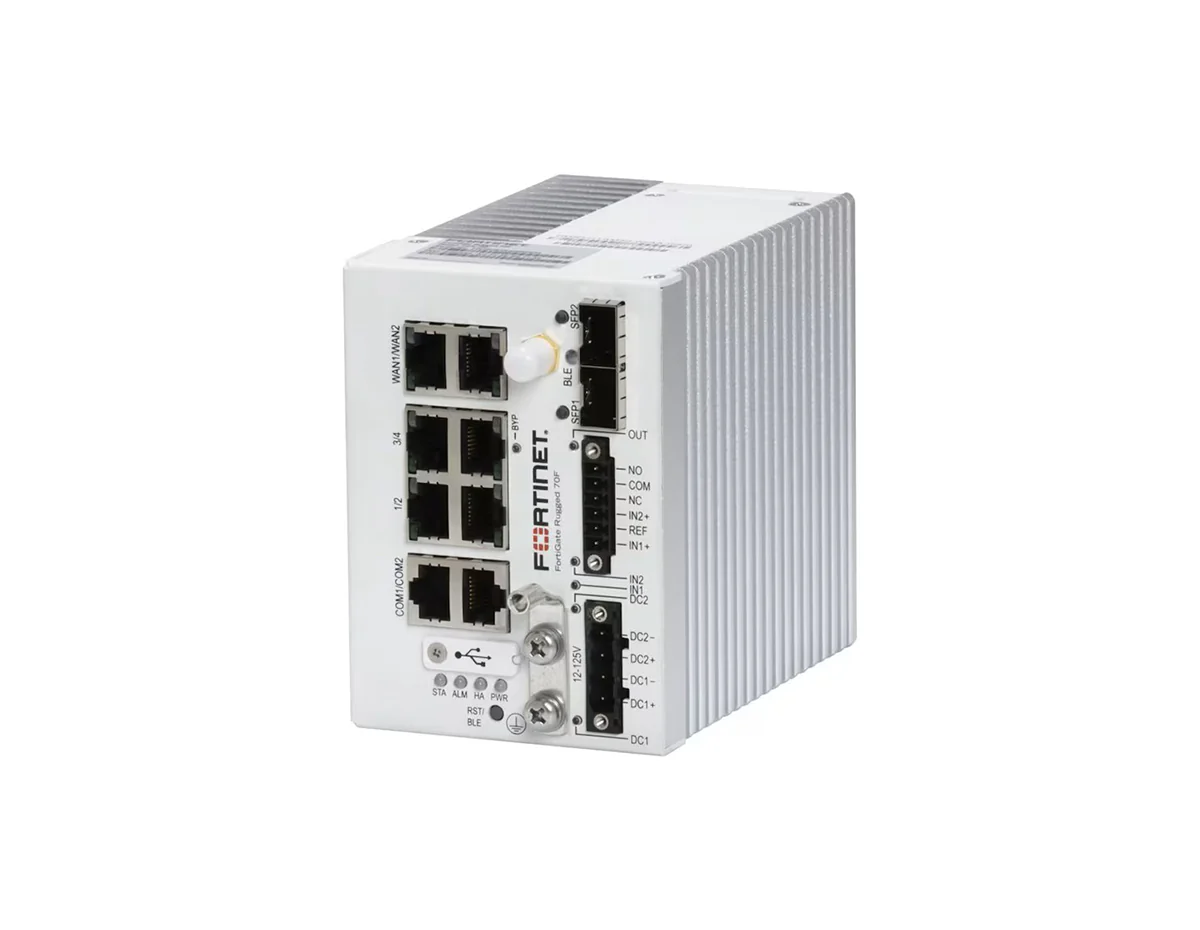

The Fortinet FortiGate Rugged 70F Firewall is a next-generation firewall engineered for mission-critical industrial and operational technology networks. Designed to operate reliably in harsh environments, the FGR-70F-BDL-950-36 combines ruggedized hardware with advanced FortiOS security to deliver high-performance threat protection without compromising network availability.

Built on Fortinet’s purpose-built security processor architecture, this appliance provides deep visibility, secure segmentation, and integrated SD-WAN capabilities, making it ideal for distributed industrial sites where uptime, reliability, and cybersecurity are essential.

Key Benefits & Features

• Ruggedized Industrial Design: Fanless, IP40-rated enclosure built for indoor industrial environments with wide operating temperature support.
• Advanced NGFW Protection: Delivers up to 1 Gbps NGFW throughput and 800 Mbps threat protection for secure OT and IT convergence.
• Integrated Bypass Capability: GE RJ45 bypass port pair ensures network continuity during power loss or maintenance.
• Built-In SD-WAN: Optimizes application performance and WAN resilience across distributed industrial and remote sites.
• Unified FortiOS Platform: Simplifies management with centralized policy control, automation, and deep traffic visibility.

Ideal Use Cases

• Industrial and manufacturing networks
• Operational technology (OT) security deployments
• Critical infrastructure and utilities
• Remote industrial sites and substations
• Secure network segmentation in harsh environments

Technical Specifications

• Firewall Throughput: Up to 10 Gbps
• NGFW Throughput: Up to 1 Gbps
• Threat Protection Throughput: Up to 800 Mbps
• Interfaces: 6x GE RJ45 ports, 2x GE SFP slots
• Bypass Ports: 1x GE RJ45 bypass pair (PORT3 and PORT4)
• Form Factor: DIN-rail mountable
• Power Input: Redundant 12V to 48V DC dual inputs
• Operating Temperature: -40°C to 75°C

Included Security Subscription (3 Year)

• FortiCare Premium support with ticket handling, advanced hardware replacement (NBD), and access to firmware and general upgrades.
• FortiGuard Unified Threat Protection (UTP) services providing core network security capabilities.
• UTP services may include features such as Intrusion Prevention (IPS), Advanced Malware Protection, Antivirus, Botnet IP and Domain Protection, and FortiGate Cloud Sandbox, depending on supported hardware capabilities.
• Additional security services may include Application Control, URL DNS and Video Filtering, and Anti-spam.

Secure Your Industrial Network with Confidence

Deploy rugged, high-performance firewall protection where reliability matters most. Order the FortiGate Rugged 70F today.
