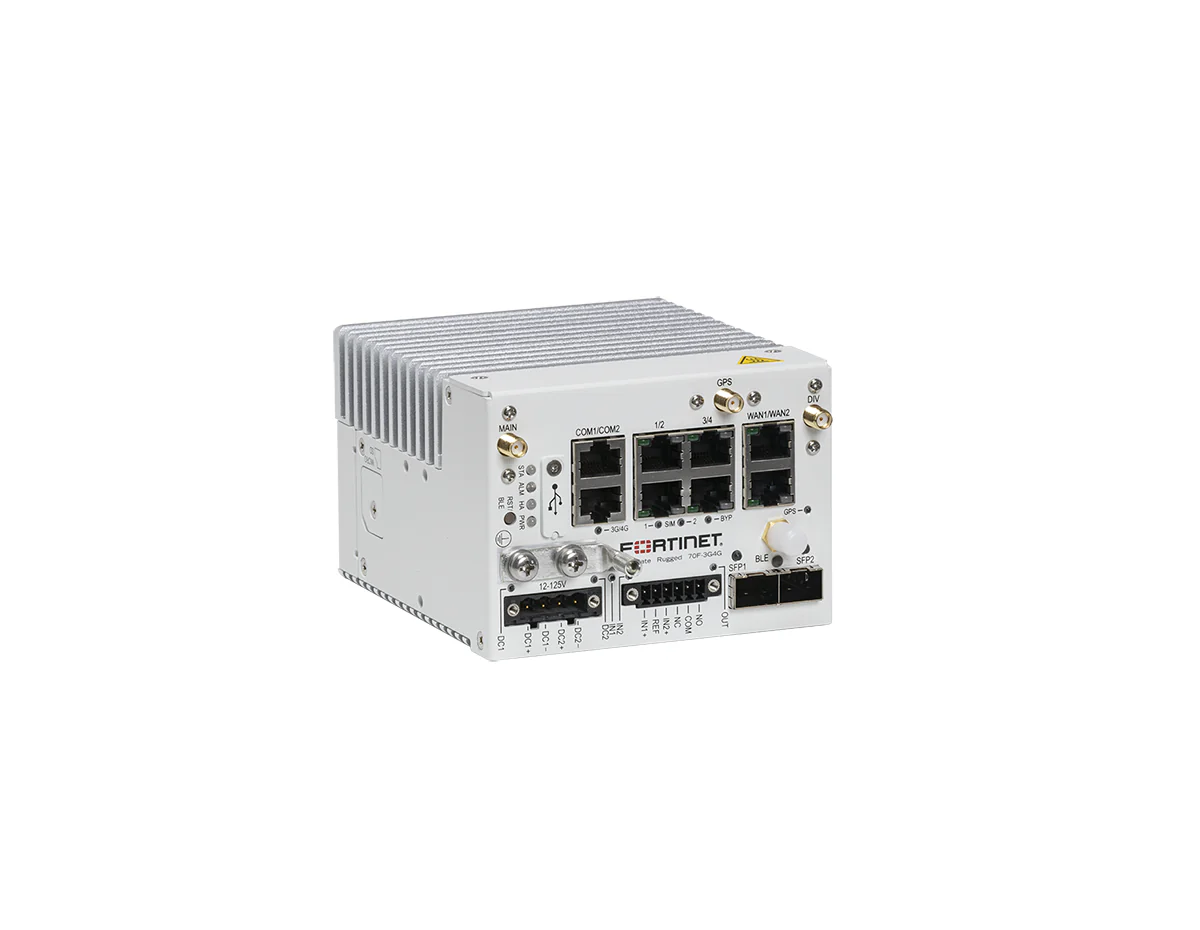

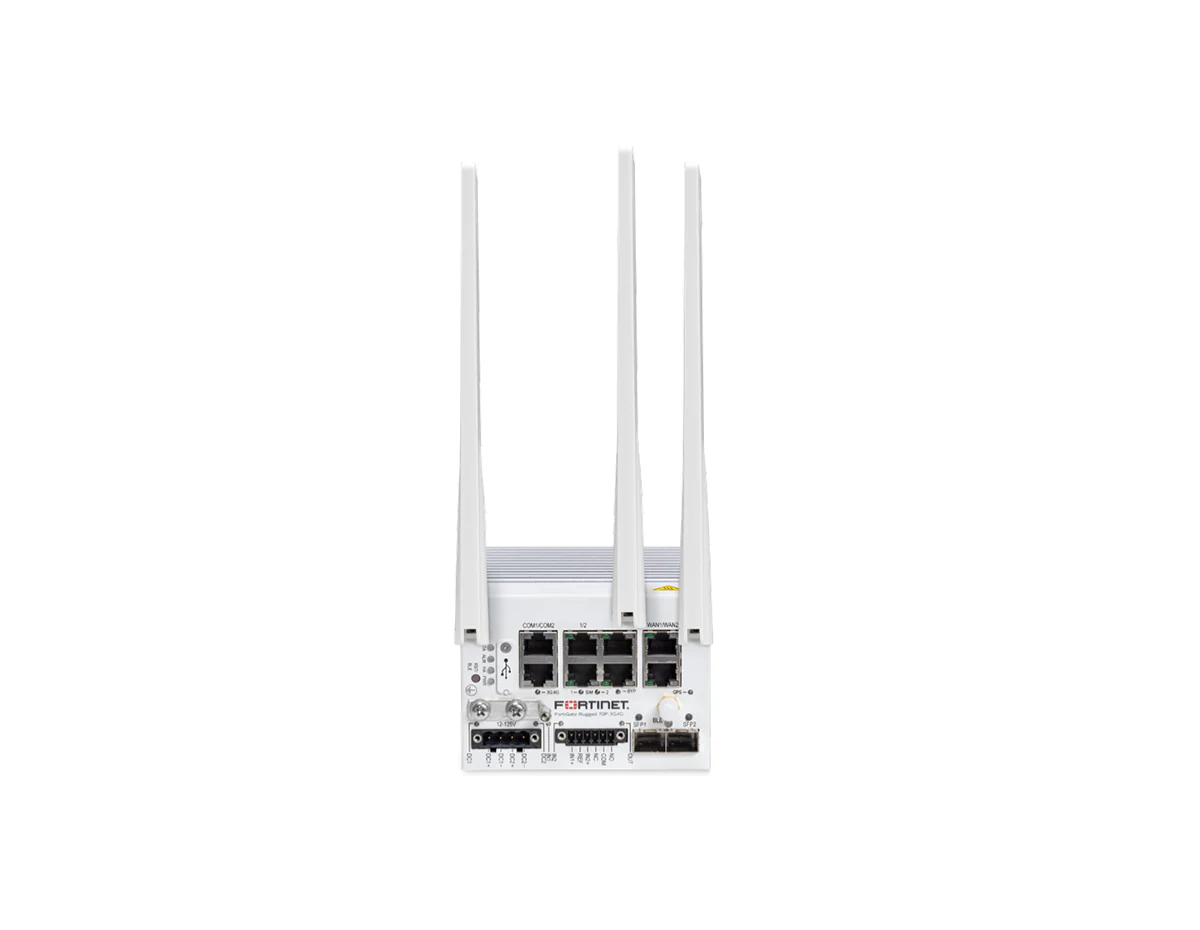

Fortinet FortiGate Rugged FGR-70F-3G4G Firewall
[shortdesc] Industrial NGFW, IP40 rugged fanless design, embedded 3G/4G LTE with GPS, 6x GE RJ45 ports, 2x SFP slots, SD-WAN ready for harsh environments [/shortdesc]
[properties]
| Brand | Fortinet |
| Model | FortiGate Rugged 70F-3G4G |
| SKU | FGR-70F-3G4G |
| Product Type | Rugged Next-Generation Firewall |
| Form Factor | DIN-rail mountable |
| IP Rating | IP40 |
| Processor | FortiSoC4 |
| Operating System | FortiOS |
| GE RJ45 Ports | 6 × GE RJ45 |
| Bypass Port Pair | 1 × GE RJ45 bypass pair (PORT3 and PORT4) |
| SFP Slots | 2 × GE SFP |
| Serial Ports | 1 × RJ45 (data), 1 × RJ45 (console) |
| USB Port | 1 × USB 2.0 |
| MicroSD Slot | Yes |
| Cellular Connectivity | Embedded 3G/4G LTE modem with GPS |
| SIM Slots | 2 × SIM (Active / Passive) |
| Digital I/O Module | Yes |
| Power Input | 12V to 125V DC, redundant dual inputs |
| Power Consumption | 18.3 W (average), 19.9 W (maximum) |
| Operating Temperature | -40 °C to 75 °C (-40 °F to 167 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions (H × W × D) | 111 × 80.5 × 122 mm (4.4 × 3.2 × 4.8 in) |
| Weight | 1.3 kg (2.87 lb) |
[/properties]
[specifications]
| IPS Throughput | 1.4 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 800 Mbps |
| IPv4 Firewall Throughput | 8 Gbps |
| Firewall Latency | 6.71 μs (64 byte UDP) |
| Firewall Throughput | 12 Mpps |
| Concurrent Sessions | 1,500,000 |
| New Sessions per Second | 35,000 |
| IPsec VPN Throughput | 6.5 Gbps |
| SSL VPN Throughput | 900 Mbps |
| SSL Inspection Throughput | 500 Mbps |
| Virtual Domains | 10 (default / maximum) |
| Maximum FortiAPs | 64 total / 32 tunnel |
| Maximum FortiSwitches | 24 |
| High Availability | Active-Active, Active-Passive, Clustering |
[/specifications]
[accesories]
| Included in the box | DIN-rail mounting bracket |
| Included in the box | I/O connector |
| Included in the box | Power connector |
| Optional | GE SFP transceiver modules (SX, LX, ZX) |
| Optional | Rugged DIN rail power supply units |
[/accesories]
Industrial-Grade Security for Mission-Critical Networks
The Fortinet FortiGate Rugged 70F-3G4G is a robust next-generation firewall engineered specifically for harsh industrial environments and operational technology (OT) deployments. Combining advanced NGFW security with integrated 3G/4G LTE and GPS, it delivers reliable protection and connectivity where traditional commercial firewalls fail. Powered by the specialized FortiSoC4 secure processor, this appliance ensures deep packet inspection and threat prevention for ICS/SCADA systems without sacrificing network performance.
Key Benefits & Features
- Rugged Fanless Design: IP40-rated, DIN-rail mountable appliance built to operate reliably in extreme temperatures (-40°C to 75°C) and vibration-prone industrial conditions.
- Integrated Cellular Connectivity: Embedded 3G/4G LTE modem with dual SIM (active/passive) support and GPS capabilities ensures WAN resilience and location tracking for remote sites.
- Enterprise NGFW Performance: Delivers superior processing power with up to 1 Gbps NGFW throughput and 800 Mbps threat protection to secure high-bandwidth industrial traffic.
- Built-in SD-WAN: Optimizes WAN paths across wired and cellular links to improve uptime, application steering, and cloud connectivity reliability.
- Advanced OT Visibility: Supports deep inspection for industrial protocols with centralized policy enforcement via FortiOS, ensuring compliance and safety in automated environments.
Ideal Use Cases
- Industrial manufacturing and automation networks
- Remote electrical substations and utility infrastructure
- Smart transportation and roadside cabinets
- Oil, gas, and energy field operations
- Remote sites requiring cellular WAN backup or out-of-band management
Technical Specifications
- Firewall Type: Next-Generation Firewall (NGFW)
- NGFW Throughput: Up to 1 Gbps
- Threat Protection Throughput: Up to 800 Mbps
- Interfaces: 6x GE RJ45 ports, 2x GE SFP slots, 1x bypass port pair
- Cellular: Embedded 3G/4G LTE modem with dual SIM slots and GPS
- Form Factor: DIN-rail mountable, fanless, ruggedized enclosure
- Power Input: Redundant 12V to 125V DC dual inputs for high availability
- Operating Temperature: -40°C to 75°C
Secure Your Industrial Network Today
Deploy resilient, security-driven networking at the edge with the Fortinet FortiGate Rugged 70F-3G4G. Order today to ensure continuous operation and advanced threat protection for your critical infrastructure.
