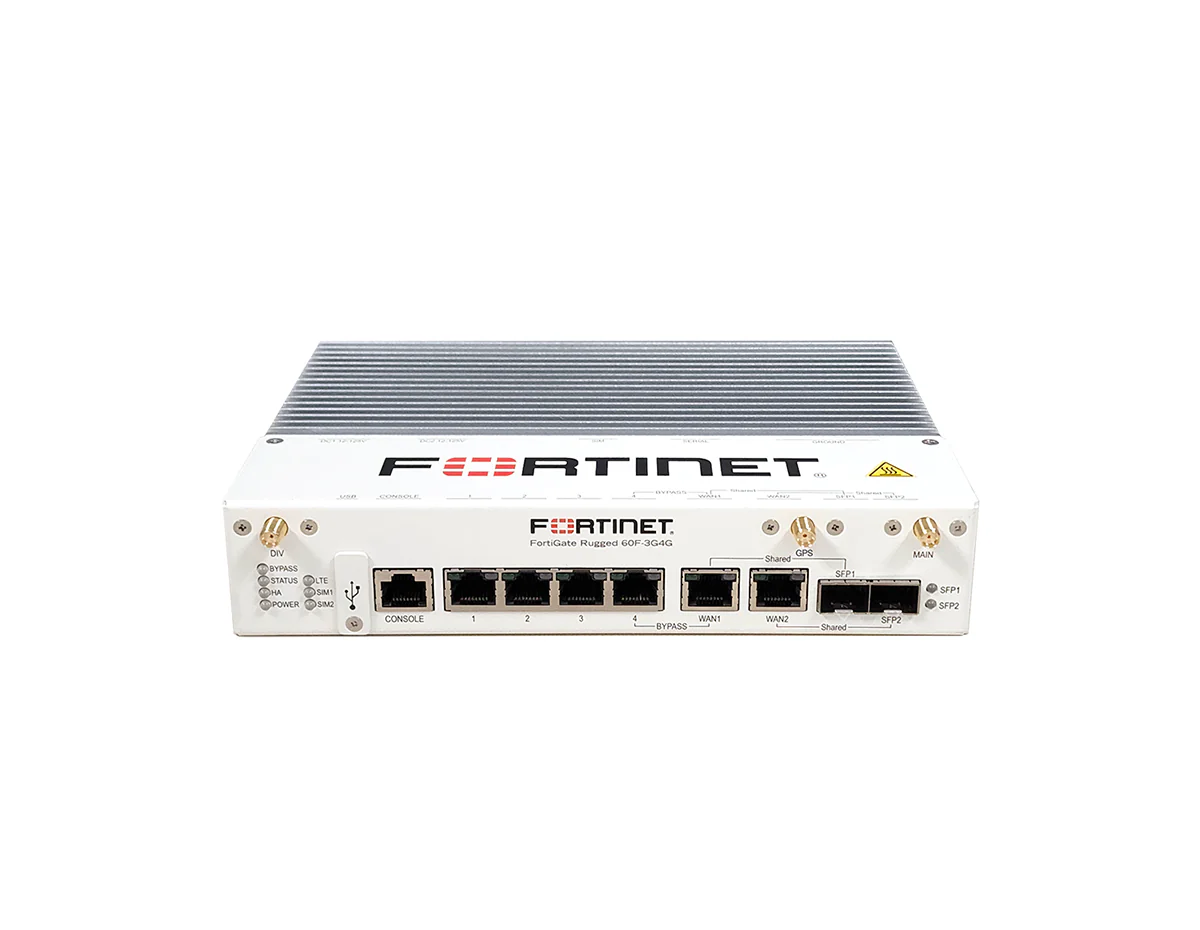

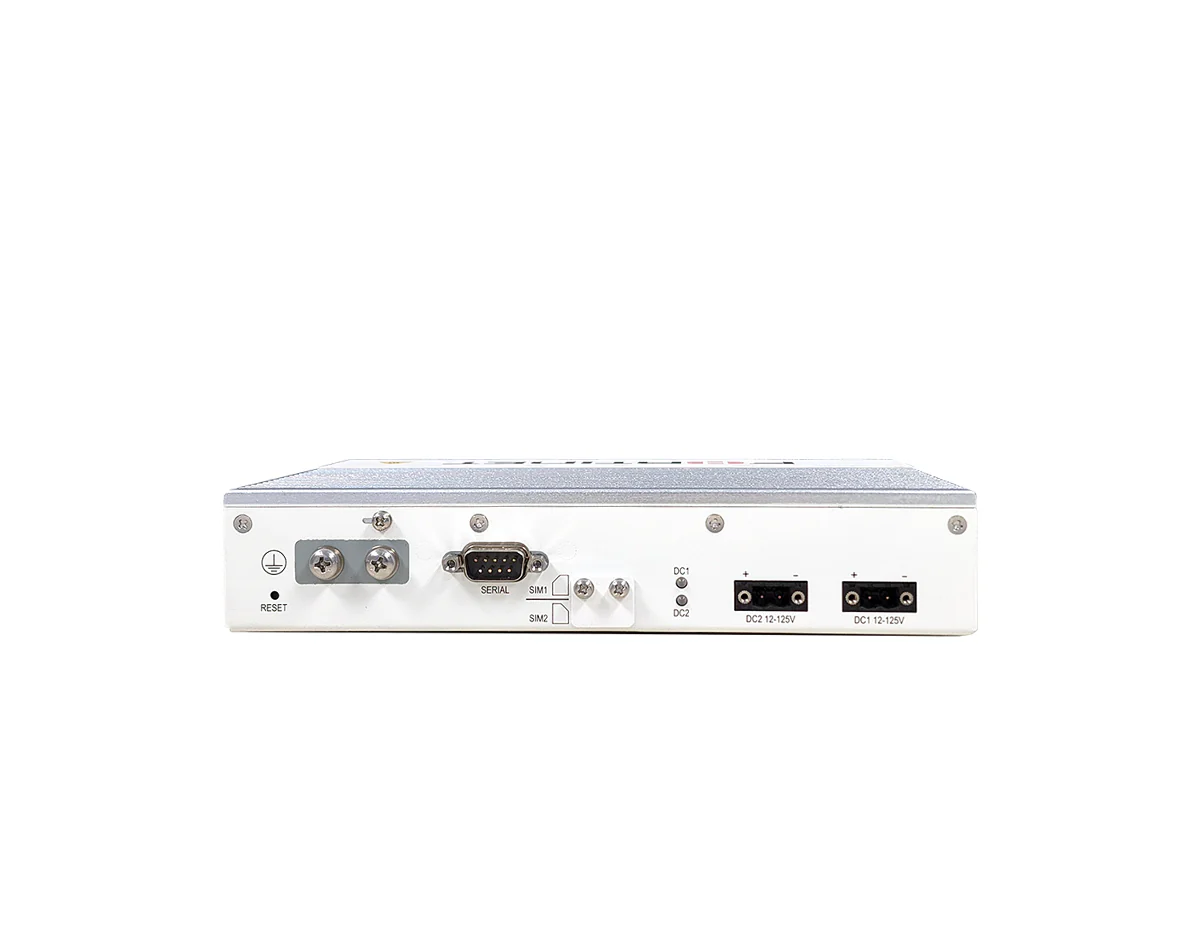

Fortinet FGR-60F-3G4G-BDL-950-60 Rugged Industrial Firewall
[shortdesc] Industrial NGFW, Embedded 3G/4G LTE with dual SIM, SD-WAN ready, fanless IP20 rugged design, 4x GE RJ45 and 2x Shared Media ports, FortiOS-powered security, including 5 year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]
[properties]
| Model | FortiGate Rugged 60F-3G4G |
| SKU | FGR-60F-3G4G-BDL-950-60 |
| Product Type | Ruggedized Next-Generation Firewall |
| Operating System | FortiOS |
| Form Factor | Desktop, DIN-rail, Wall Mount |
| Processor | FortiSoC4 |
| Firewall Performance | 3 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 700 Mbps |
| IPsec VPN Throughput | 2 Gbps |
| GE RJ45 Interfaces | 4 |
| GE RJ45/SFP Shared Ports | 2 |
| Bypass Port Pair | 1 Pair |
| Cellular Connectivity | Embedded 3G/4G LTE (Category 12) with GPS |
| SIM Slots | Dual SIM (Active/Passive) |
| Power Supply | 12V to 48V DC, redundant dual inputs |
| IP Rating | IP20 |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
[/properties]
[specifications]
| Firewall Latency | 3.28 µs (64 byte UDP) |
| Firewall Throughput | 4.5 Mpps |
| Concurrent Sessions | 700,000 |
| New Sessions per Second | 35,000 |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 500 |
| SSL Inspection Throughput | 310 Mbps |
| Application Control Throughput | 1.4 Gbps |
| Virtual Domains | 10 (default / maximum) |
| Maximum FortiAPs | 30 (total) / 10 (tunnel) |
| Maximum FortiSwitches | 24 |
| Dimensions (H x W x D) | 42.7 x 216 x 165 mm |
| Weight | 1.84 kg |
| Power Consumption | 16.3 W (average), 25.5 W (maximum) |
| Humidity | 5% to 95% non-condensing |
| Operating Altitude | Up to 3048 m (10,000 ft) |
[/specifications]
[accesories]
| Included in the box | FortiGate Rugged 60F-3G4G unit, DC terminal block, Wall mount kit, DIN-rail kit, External LTE antennas |
| Optional Accessories | GE SFP transceiver modules, AC power adapter (sold separately) |
[/accesories]
Rugged Security Built for Mission-Critical Networks
The FortiGate Rugged 60F-3G4G is an industrial-grade next-generation firewall designed to secure critical IT and OT networks operating in harsh environments. Unlike traditional office firewalls, this model combines ruggedized hardware, integrated cellular connectivity, and Fortinets FortiOS to deliver reliable, high-performance security at the network edge.
With embedded 3G/4G LTE and GPS, dual SIM support, and fanless operation, the FortiGate Rugged 60F-3G4G ensures continuous connectivity and protection for remote sites, industrial facilities, and mobile deployments where reliability is non-negotiable.
Key Benefits & Features
- Ruggedized Fanless Design: Built with robust components and no moving parts to ensure reliable operation in electrically noisy, temperature-extreme industrial environments.
- Integrated 3G/4G LTE Connectivity: Embedded cellular modem with dual SIM (active/passive) and GPS enables resilient WAN access for remote and mobile deployments.
- Consolidated Security Architecture: Powered by FortiOS and the specialized FortiSoC4, combining firewall, IPS, application control, malware protection, and SSL inspection in a single platform.
- Secure SD-WAN Capability: Optimizes WAN performance and reduces connectivity costs while maintaining strong security controls.
- High-Performance VPN: Supports up to 2 Gbps IPsec VPN throughput for secure site-to-site and remote access connectivity.
Ideal Use Cases
- Industrial automation and OT network security
- Remote substations and utilities infrastructure
- Transportation and roadside systems
- Oil, gas, and energy sector deployments
- Temporary or mobile industrial sites requiring LTE backup
Technical Specifications
- Firewall Throughput: 3 Gbps
- NGFW Throughput: 1 Gbps
- Threat Protection Throughput: 700 Mbps
- IPsec VPN Throughput: 2 Gbps
- Network Interfaces: 4x GE RJ45 ports, 2x shared GE RJ45/SFP ports
- Cellular Connectivity: Embedded 3G/4G LTE modem with dual SIM and GPS
- Form Factor: Desktop, DIN-rail, or wall mount
- Operating Temperature: -40°C to 75°C
- Power Input: Redundant 12V to 48V DC inputs
Included Security Subscription (5 Year)
- FortiCare Premium support with ticket handling, advanced hardware replacement (NBD), and access to firmware and general upgrades.
- FortiGuard Enterprise Protection services bundle including IPS, AI-based Inline Malware Prevention, Advanced Malware Protection, Inline CASB Database, and Data Loss Prevention.
- Additional Enterprise Protection services including Application Control, URL DNS and Video Filtering, Anti-spam, Attack Surface Security, and FortiConverter Service.
Included Security Subscription (5 Year)
- FortiCare Premium support with ticket handling, advanced hardware replacement (NBD), and access to firmware and general upgrades.
- FortiGuard Unified Threat Protection (UTP) services providing core network security capabilities.
- UTP services may include features such as Intrusion Prevention (IPS), Advanced Malware Protection, Antivirus, Botnet IP and Domain Protection, and FortiGate Cloud Sandbox, depending on supported hardware capabilities.
- Additional security services may include Application Control, URL DNS and Video Filtering, and Anti-spam.
Secure Your Industrial Edge with Confidence
Deploy the FortiGate Rugged 60F-3G4G to protect critical networks where standard firewalls fail. Order today and build resilient, secure industrial connectivity.
