[shortdesc] Rugged next-generation firewall, integrated 5G WWAN with dual SIM, 6× Gigabit Ethernet RJ45 ports, 2× GE SFP slots, fanless DIN-rail industrial design, including 1 year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]

[properties]

Brand	Fortinet
Model	FortiGate Rugged 50G-5G
SKU	FGR-50G-5G-BDL-950-12
Product Type	Next-Generation Firewall (NGFW)
Product Line	FortiGate Rugged Series
Deployment	Indoor / Industrial
Form Factor	DIN-rail mountable
IP Rating	IP40
Processor	FortiSP5
Operating System	FortiOS
Firewall Throughput (IPv4)	Up to 6 Gbps
IPS Throughput	2.25 Gbps
NGFW Throughput	1.25 Gbps
Threat Protection Throughput (ATP)	1.1 Gbps
Concurrent Sessions	700,000
New Sessions per Second	85,000
Virtual Domains (Default / Max)	5 / 5
High Availability	Active-Active, Active-Passive, Clustering
Power Supply	12V to 54V DC, redundant dual inputs
Power Consumption (Avg / Max)	16 W / 24 W
Operating Temperature	-40°C to 75°C (-40°F to 167°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% non-condensing
Dimensions (H × W × D)	139 × 89.5 × 122 mm
Weight	1.8 kg (3.97 lb)

[/properties]

[specifications]

GE RJ45 Ports	6 × Gigabit Ethernet RJ45
WAN / LAN Configuration	4 × GE RJ45 LAN, 2 × GE RJ45 WAN
SFP Slots	2 × GE SFP slots
Serial Interfaces	2 × RJ45 (1 × data, 1 × console)
USB Ports	1 × USB 2.0 (client/server)
Digital I/O Module	Yes
Trusted Platform Module (TPM)	Yes
Bluetooth Low Energy (BLE)	Yes
Cellular Modem	Embedded 5G WWAN with GPS
SIM Slots	2 × SIM (Active / Passive)
WWAN Antennas	4 × SMA WWAN antennas
GPS Antenna	1 × SMA GPS antenna
5G Bands	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
LTE Bands	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
IPsec VPN Throughput	5.3 Gbps
SSL Inspection Throughput	1.3 Gbps
Application Control Throughput	3 Gbps
Maximum FortiAPs	16 total / 8 tunneled
Maximum FortiSwitches	8
Maximum FortiTokens	500

[/specifications]

[accesories]

Included in the box	Embedded 5G WWAN module, 4 × external SMA WWAN antennas, 1 × external SMA GPS antenna
Optional SFP Modules	FN-TRAN-GC, FN-TRAN-LX, FR-TRAN-SX, FR-TRAN-ZX, FN-TRAN-FX
Optional Power Supply	FortiPSU Rugged DIN Rail 240W (SP-RGDIN-240-PS)

[/accesories]

Industrial-Grade Security with Integrated 5G Connectivity

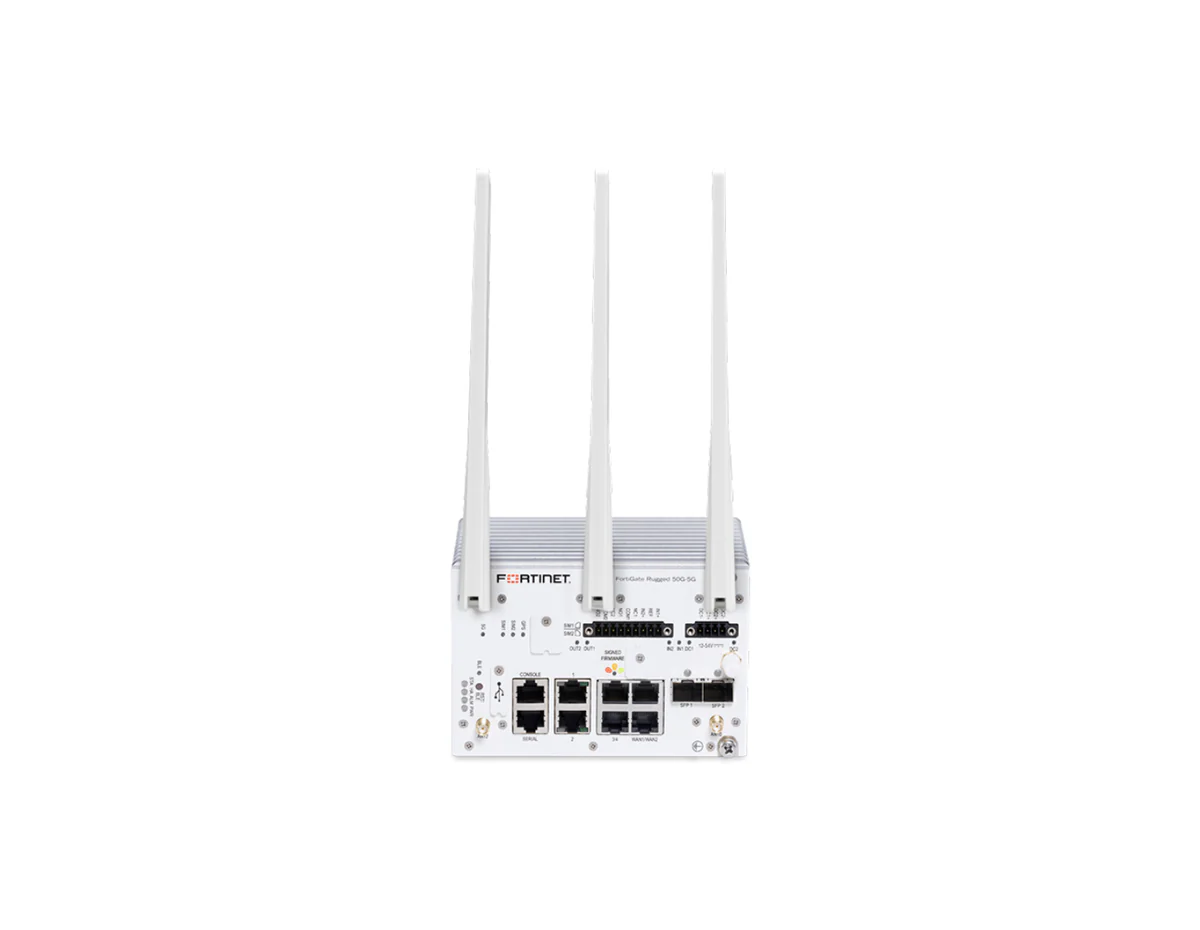

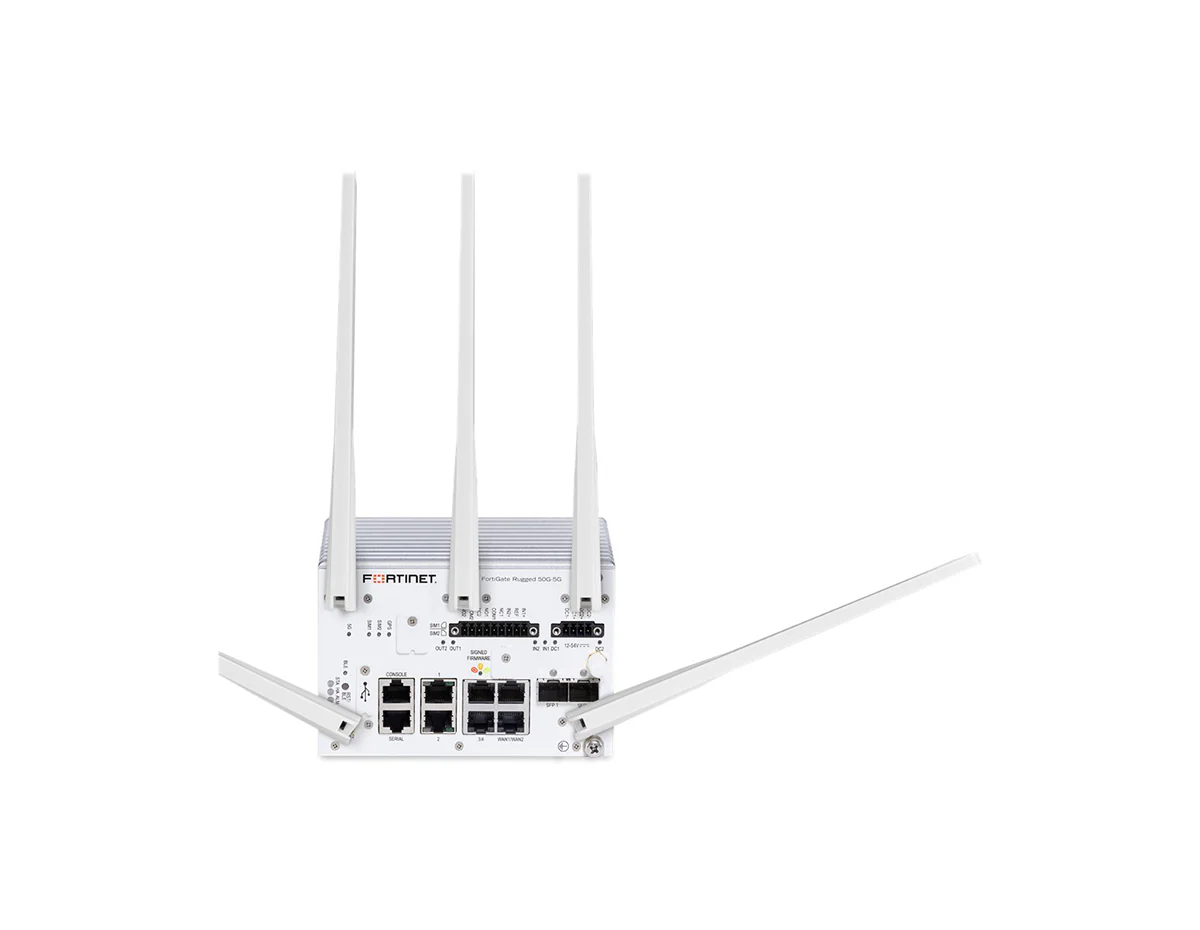

The Fortinet FortiGate Rugged 50G-5G is a next-generation firewall purpose-built for securing mission-critical industrial and operational technology (OT) environments. Designed to operate reliably in harsh conditions, it combines advanced NGFW security with integrated 5G cellular connectivity, delivering secure and resilient networking without compromising performance.

Powered by the Fortinet FortiSP5 security processing unit and FortiOS, the FGR-50G-5G-BDL-950-12 enables deep inspection, threat prevention, and secure SD-WAN at the network edge. This architecture makes it the ideal solution for remote sites, industrial automation, and critical infrastructure deployments where uptime and security are paramount.

Key Benefits & Features

• Rugged Fanless Design: IP40-rated, solid-state construction ensures continuous operation in industrial environments with wide temperature tolerance (-40°C to 75°C).
• Integrated 5G Cellular WAN: Embedded 5G modem with dual SIM (active/passive) and external SMA antennas enables reliable primary or backup connectivity.
• Advanced NGFW Performance: Delivers up to 2.25 Gbps IPS, 1.25 Gbps NGFW, and 1.1 Gbps threat protection throughput for high-security edge deployments.
• Secure SD-WAN Built In: Optimizes WAN performance and application routing while reducing operational costs.
• Industrial I/O & Management: Features a digital I/O module, serial ports, and centralized management via the Fortinet Security Fabric.

Ideal Use Cases

• Industrial and OT network security
• Remote sites requiring resilient 5G WAN connectivity
• Transportation, utilities, and critical infrastructure
• Secure SD-WAN edge deployments
• Network segmentation in harsh environments

Technical Specifications

• Firewall Type: Next-Generation Firewall (NGFW)
• IPS Throughput: Up to 2.25 Gbps
• NGFW Throughput: Up to 1.25 Gbps
• Threat Protection Throughput: Up to 1.1 Gbps
• Network Interfaces: 6× GE RJ45 ports, 2× GE SFP slots
• Cellular Connectivity: Embedded 5G WWAN, dual SIM (active/passive), GPS
• Additional Ports: 2× RJ45 serial (data and console), 1× USB
• Power Input: Redundant 12V–54V DC inputs
• Form Factor: DIN-rail mountable, fanless
• Ingress Protection: IP40

Included Security Subscription (1 Year)

• FortiCare Premium support with ticket handling, advanced hardware replacement (NBD), and access to firmware and general upgrades.
• FortiGuard Unified Threat Protection (UTP) services providing core network security capabilities.
• UTP services may include features such as Intrusion Prevention (IPS), Advanced Malware Protection, Antivirus, Botnet IP and Domain Protection, and FortiGate Cloud Sandbox, depending on supported hardware capabilities.
• Additional security services may include Application Control, URL DNS and Video Filtering, and Anti-spam.

Secure Your Industrial Network with Confidence

Deploy the FortiGate Rugged 50G-5G to deliver resilient, high-performance security at the industrial edge. Order today and build a future-ready secure network.
