[shortdesc] Firewall, desktop, 120GB SSD, 8x GE RJ45, 2x shared-media 10GE/5/2.5GE WAN, including 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]

[properties]

Model / SKU	FortiGate / FG-91G-BDL-950-12
Bundle / Subscription	Firewall plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (1-Year Contract)
Form Factor	Desktop
Internal Storage	1x 120 GB SSD
Firewall Throughput	28 / 28 / 27.9 Gbps (1518/512/64 byte UDP)
NGFW Throughput	2.5 Gbps
Threat Protection Throughput	2.2 Gbps
Interfaces	8x GE RJ45 Ports, 2x 10/5/2.5/GE RJ45 or 10GE/GE SFP+/SFP Shared Media Ports
Power Input	12V DC, 3A (Dual Redundancy Optional)
Dimensions (H x W x L)	42 x 216 x 178 mm (1.65 x 8.5 x 7.0 inches)
Weight	1.12 kg (2.47 lbs)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Compliance / Certifications	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; USGv6/IPv6

[/properties]

[specifications]

System Performance - Enterprise Traffic Mix
IPS Throughput	4.5 Gbps
System Performance and Capacity
Firewall Latency (64 byte UDP)	3.23 μs
Firewall Throughput (Packets Per Second)	41.85 Mpps
Concurrent Sessions (TCP)	3 Million
New Sessions/Second (TCP)	124,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	25 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	2,500
SSL-VPN Throughput	1.4 Gbps
Concurrent SSL-VPN Users (Tunnel Mode)	200
SSL Inspection Throughput (IPS, avg. HTTPS)	2.6 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	1,400
SSL Inspection Concurrent Sessions	300,000
Application Control Throughput (HTTP 64K)	6.7 Gbps
CAPWAP Throughput (HTTP 64K)	23.6 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	24
Maximum Number of FortiAPs (Total / Tunnel)	128 / 64
Maximum Number of FortiTokens	500
Hardware & Interfaces
Trusted Platform Module (TPM)	Included
Bluetooth Low Energy (BLE)	Included
Environment & Power
Power Required	Powered by up to 2 External DC Power Adapters (1 adapter included), 100-240V AC, 50/60 Hz
Power Consumption (Average / Maximum)	22.4 W / 23.5 W
Heat Dissipation	80.1 BTU/hr
Storage Temperature	-35°C to 70°C (-31°F to 158°F)
Humidity	10% to 90% non-condensing
Noise Level	21.73 dBA
Operating Altitude	Up to 10,000 ft (3048 m)

[/specifications]

[accesories]

Included Accessories

External DC Power Adapter (1 adapter included)

Optional Accessories

Rack Mount Tray (SP-RACKTRAY-02) Wall Mount Kit (SP-FG60F-MOUNT-20) Mounting Ear Brackets (SP-EAR-FG90G-10) AC Power Adaptor (SP-FG60E-PDC-5) Power Cable (SP-FG60CPCOR-XX) (sold separately) 1 GE SFP RJ45 Transceiver Module (FN-TRAN-GC) 1 GE SFP SX Transceiver Module (FN-TRAN-SX) 1 GE SFP LX Transceiver Module (FN-TRAN-LX) 1 GE SFP Transceiver Module, 90km Range (FR-TRAN-ZX) 10 GE SFP+ RJ45 Transceiver Module (FN-TRAN-SFP+GC) 10 GE SFP+ Transceiver Module, Short Range (FN-TRAN-SFP+SR) 10 GE SFP+ Transceiver Module, Long Range (FN-TRAN-SFP+LR) 10 GE SFP+ Transceiver Module, Extended Range (FN-TRAN-SFP+ER) 10 GE SFP+ Transceiver Module, 30km Long Range BiDi (FN-TRAN-SFP+BD27) (pairs with FN-TRAN-SFP+BD33) 10 GE SFP+ Transceiver Module, 30km Long Range BiDi (FN-TRAN-SFP+BD33) (pairs with FN-TRAN-SFP+BD27) 10 GE SFP+ Passive Direct Attach Cable, 1m (FN-CABLE-SFP+1) 10 GE SFP+ Passive Direct Attach Cable, 3m (FN-CABLE-SFP+3) 10 GE SFP+ Passive Direct Attach Cable, 5m (FN-CABLE-SFP+5)

[/accesories]

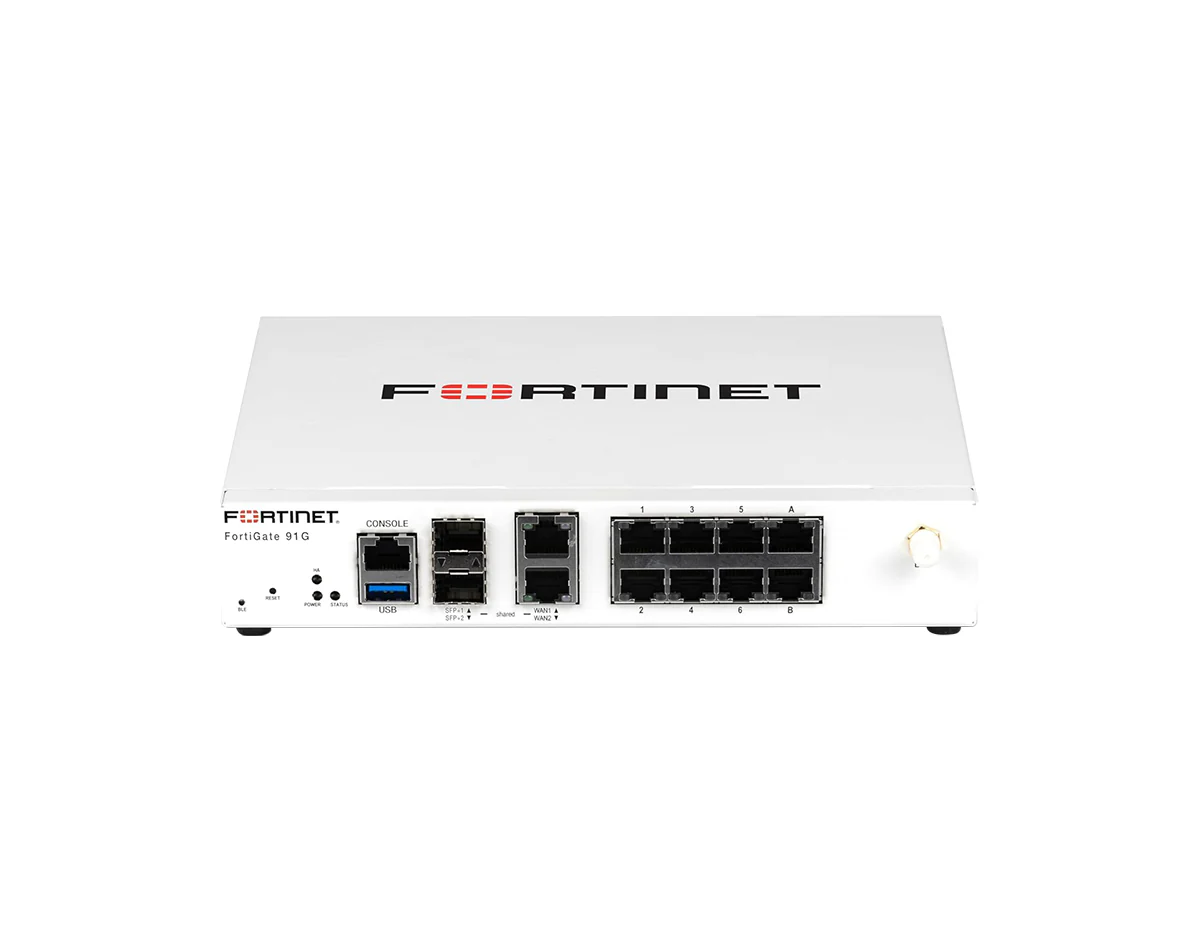

The FortiGate 91G-BDL-950-12 combines FortiGate 90G Series performance with integrated 120GB SSD storage for on-device data storage needs, plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 1 year. This compact desktop appliance is built on Fortinet's SP5 ASIC and delivers up to 28 / 28 / 27.9 Gbps firewall throughput (1518/512/64 byte UDP) and up to 25 Gbps IPsec VPN throughput (512 byte). Its versatile connectivity options, including two shared-media WAN ports supporting either 10/5/2.5/GE RJ45 or 10GE/GE SFP+/SFP, help meet demanding bandwidth requirements in modern branch environments.

Running on FortiOS, the FortiGate 91G converges networking and security capabilities into a single operating system, supporting secure SD-WAN and next-generation firewall functions in one appliance. With enterprise-grade performance, strong session capacity, and efficient power usage, this bundle helps organizations maintain continuous security updates and support coverage while deploying high-throughput security at the edge.

High-Speed 10G Connectivity with Integrated Storage

Key Benefits

• Onboard SSD Storage: Includes 1x 120 GB SSD for on-device storage.
• Flexible High-Speed Uplinks: 2x shared-media ports supporting 10/5/2.5/GE RJ45 or 10GE/GE SFP+/SFP.
• SP5 ASIC Performance: Delivers up to 28 / 28 / 27.9 Gbps firewall throughput (1518/512/64 byte UDP) and up to 4.5 Gbps IPS throughput.
• High IPsec VPN Capacity: Up to 25 Gbps IPsec VPN throughput (512 byte) for secure site connectivity.
• Low Latency Forwarding: Firewall latency of 3.23 μs (64 byte UDP packets) for latency-sensitive applications.
• Efficient Desktop Design: Power consumption of 22.4 W average (23.5 W maximum).

Ideal Use Cases

• Enterprise Branch Security: NGFW protection and policy control for distributed office locations.
• Secure SD-WAN: Converged SD-WAN and security functions for WAN transformation at scale.
• High-Throughput Connectivity: Branch environments requiring GE access with optional 10GE uplinks.
• Encrypted Traffic Security: Deployments leveraging SSL inspection and strong session capacity.

Technical Specifications Summary

• Firewall Throughput (1518/512/64 byte UDP): 28 / 28 / 27.9 Gbps
• IPS Throughput: 4.5 Gbps
• NGFW Throughput: 2.5 Gbps
• Threat Protection Throughput: 2.2 Gbps
• IPsec VPN Throughput (512 byte): 25 Gbps
• Session Capacity: 3 Million concurrent sessions; 124,000 new sessions/second; 5,000 firewall policies
• SSL-VPN / SSL Inspection: 1.4 Gbps SSL-VPN; 2.6 Gbps inspection; 1,400 CPS; 300,000 concurrent sessions
• Interfaces: 8x GE RJ45 + 2x shared-media WAN (10/5/2.5/GE RJ45 or 10GE/GE SFP+/SFP)
• Internal Storage: 1x 120 GB SSD
• Power / Thermals: 12V DC, 3A; 22.4 W average / 23.5 W maximum; 80.1 BTU/hr
• Physical / Environment / Compliance: 42 x 216 x 178 mm; 1.12 kg; 0°C to 40°C; 21.73 dBA; FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; USGv6/IPv6

Upgrade Your Network Security

Secure your edge with the high-performance, storage-equipped FortiGate 91G-BDL-950-12.
