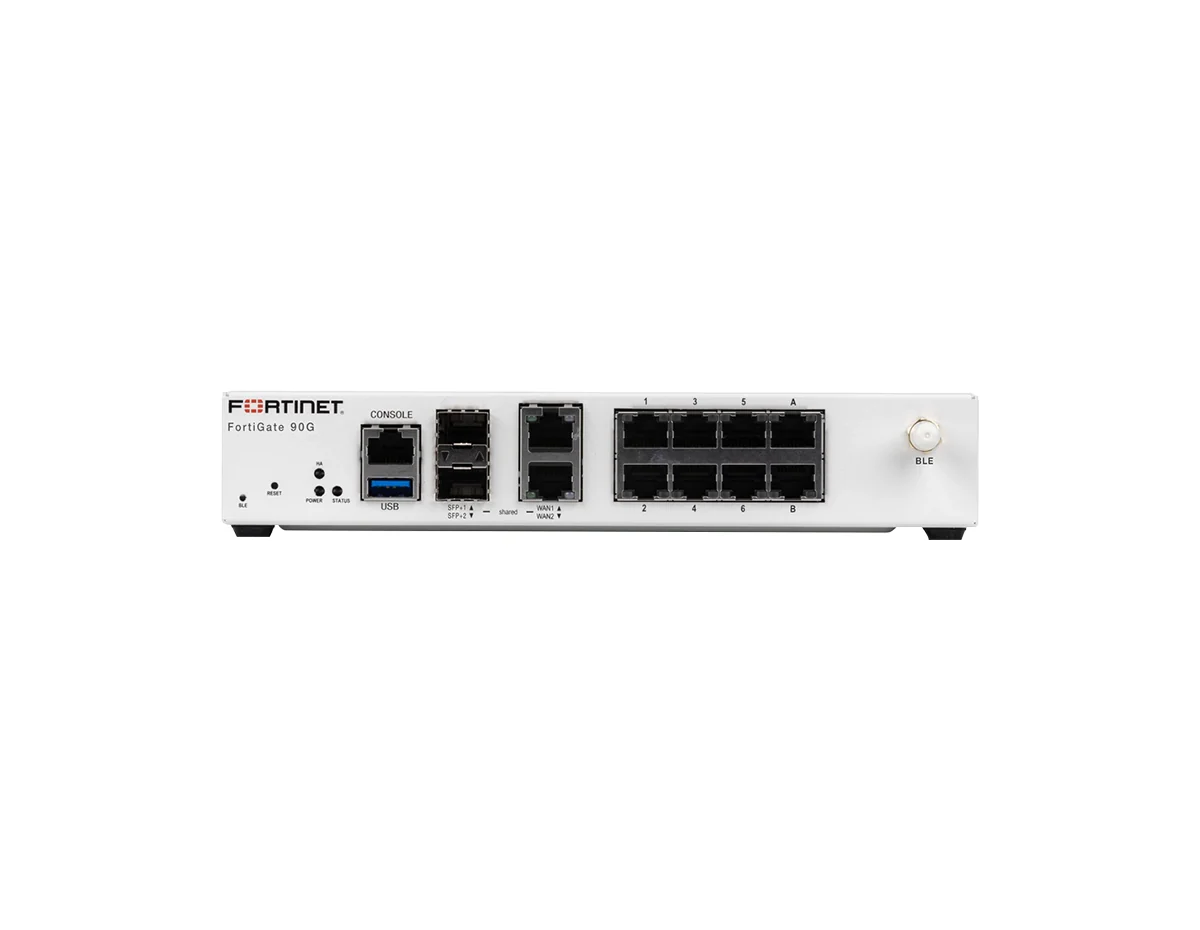

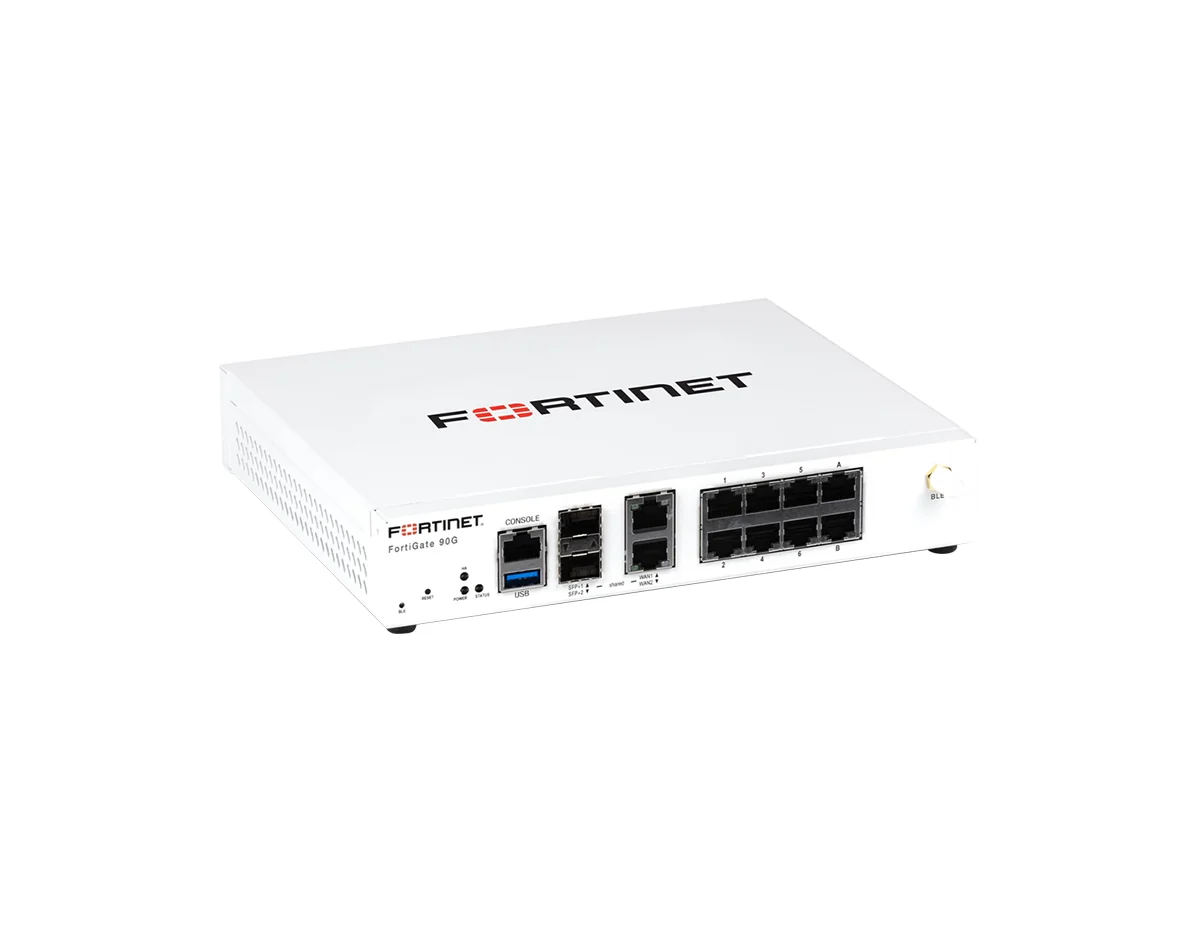

Fortinet FortiGate 90G Enterprise Protection 5-Year Bundle (FG-90G-BDL-809-60)
[shortdesc] Firewall, desktop, 8x GE RJ45, 2x 10GE RJ45/SFP+ shared ports, up to 28 Gbps, including 5 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]
[properties]
| Model / SKU | FortiGate / FG-90G-BDL-809-60 |
| Bundle / Subscription | Firewall plus FortiCare Premium and FortiGuard Enterprise Protection (5-Year Contract) |
| Form Factor | Desktop |
| Firewall Throughput | 28 Gbps |
| NGFW Throughput | 2.5 Gbps |
| Threat Protection Throughput | 2.2 Gbps |
| Interfaces | 8x GE RJ45 Ports, 2x 10GE/GE SFP+/SFP or 10/5/2.5/GE RJ45 Shared Media Ports |

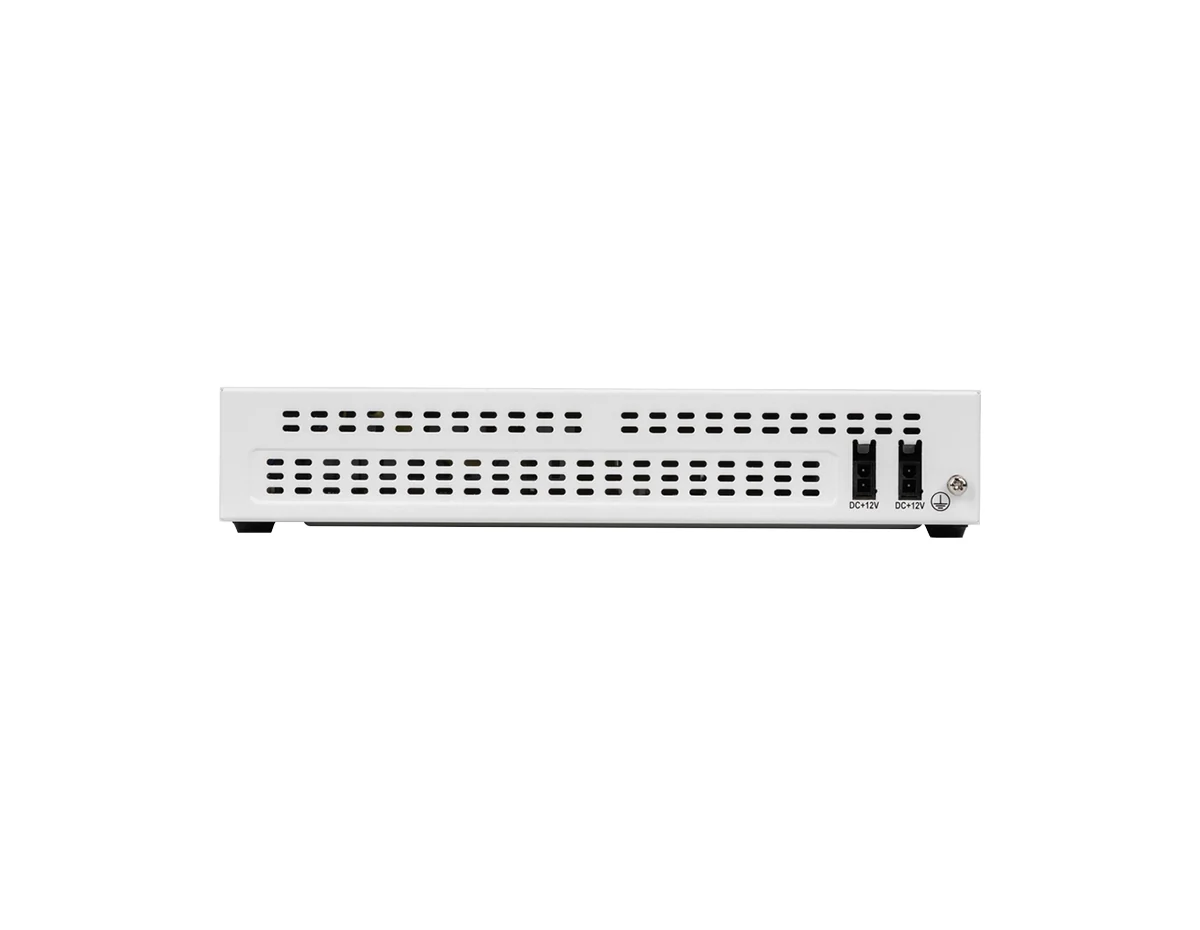

| Power Input | 12V DC, 3A (dual redundancy optional) |
| Dimensions (H x W x L) | 42 x 216 x 178 mm (1.65 x 8.5 x 7.0 inches) |
| Weight | 1.12 kg (2.47 lbs) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Certifications | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, USGv6/IPv6 |
[/properties]
[specifications]
| System Performance - Enterprise Traffic Mix | |
| IPS Throughput | 4.5 Gbps |
| System Performance and Capacity | |
| Firewall Throughput (1518/512/64 byte UDP) | 28 / 28 / 27.9 Gbps |
| Firewall Latency (64 byte UDP) | 3.23 μs |
| Firewall Throughput (Packets Per Second) | 41.85 Mpps |
| Concurrent Sessions (TCP) | 3 M |
| New Sessions/Second (TCP) | 124,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 25 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2,500 |
| SSL-VPN Throughput | 1.4 Gbps |
| Concurrent SSL-VPN Users (Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 2.6 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 1,400 |
| SSL Inspection Concurrent Sessions | 300,000 |
| Application Control Throughput (HTTP 64K) | 6.7 Gbps |
| CAPWAP Throughput (HTTP 64K) | 23.6 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel) | 128 / 64 |
| Maximum Number of FortiTokens | 500 |
| Hardware & Interfaces | |
| 10/5/2.5/GE RJ45 or 10GE/GE SFP+/SFP Shared Media Pairs | 2 |
| GE RJ45 Internal Ports | 8 |
| USB Ports | 1 |
| Console Port (RJ45) | 1 |
| Trusted Platform Module (TPM) | Included |
| Bluetooth Low Energy (BLE) | Included |
| Environment & Power | |
| Power Required | Powered by up to 2 External DC Power Adapters (1 adapter included), 100-240V AC, 50/60 Hz |
| Power Consumption (Average / Maximum) | 19.9 W / 20.53 W |
| Heat Dissipation | 70.0 BTU/hr |
| Storage Temperature | -35°C to 70°C (-31°F to 158°F) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | 21.73 dBA |
| Operating Altitude | Up to 10,000 ft (3048 m) |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
[/specifications]
[accesories]
| Included Accessories | External DC Power Adapter (1 adapter included) |
| Optional Accessories |
|
[/accesories]
The FortiGate 90G-BDL-809-60 series redefines desktop security performance by integrating the advanced Fortinet SP5 ASIC, enabling enterprise-grade protection and 10G connectivity in a compact form factor. Designed for hybrid mesh firewalls and secure SD-WAN deployments, the FG-90G delivers unmatched speed with 28 Gbps firewall throughput and 25 Gbps IPsec VPN performance. This makes it an exceptional choice for modern branches requiring high-bandwidth, direct internet access and secure cloud connectivity.
Running on the unified FortiOS operating system, the FortiGate 90G consolidates networking and security into a single appliance, reducing complexity and operational costs. It features flexible connectivity options, including two 10GE shared media ports (RJ45/SFP+) that allow businesses to easily upgrade their WAN infrastructure without replacing hardware. This bundle includes FortiCare Premium and FortiGuard Enterprise Protection for 5 years to help maintain continuous security updates and support coverage.
Next-Gen 10G Connectivity and SP5 ASIC Performance
Key Benefits
- SP5 ASIC Power: Powered by Fortinet’s SP5 ASIC to deliver up to 28 Gbps firewall throughput and up to 4.5 Gbps IPS performance.
- 10GE High-Speed Ports: Includes 2x 10GE/GE SFP+/SFP or 10/5/2.5/GE RJ45 shared media ports for flexible, high-bandwidth WAN connectivity.
- Compact Efficiency: Desktop form factor with energy-efficient operation (Average 19.9 W) and low noise (21.73 dBA).
- Converged Security: Integrates NGFW and secure SD-WAN capabilities under FortiOS to simplify operations and improve total cost of ownership.
- Deep Visibility: Supports high-performance SSL inspection throughput (up to 2.6 Gbps) to help detect threats in encrypted traffic.
- Redundant Power Capable: Supports dual external DC power adapters (redundancy optional) for enhanced reliability.
Ideal Use Cases
- High-Speed Branch Offices: Locations requiring 10G uplink connectivity for data-intensive applications.
- Distributed Enterprises: Scalable secure SD-WAN deployments with direct internet access.
- Hybrid Mesh Firewalls: Unified security across on-premise, cloud, and remote locations.
- Secure Retail & Logistics: Reliable connectivity for POS systems and inventory management.
Technical Specifications Summary
- Enterprise Mix Security Performance: IPS 4.5 Gbps; NGFW 2.5 Gbps; Threat Protection 2.2 Gbps
- Firewall Throughput (1518/512/64 byte UDP): 28 / 28 / 27.9 Gbps
- Firewall Latency: 3.23 μs (64 byte UDP)
- Firewall Capacity: 41.85 Mpps; 3 M concurrent sessions (TCP); 124,000 new sessions/sec (TCP); 5,000 policies
- IPsec VPN: 25 Gbps (512 byte); 200 gateway-to-gateway tunnels; 2,500 client-to-gateway tunnels
- SSL VPN & Inspection: SSL-VPN 1.4 Gbps; 200 concurrent users (tunnel mode); SSL inspection 2.6 Gbps; 1,400 CPS; 300,000 concurrent sessions
- Interfaces: 8x GE RJ45; 2x 10/5/2.5/GE RJ45 or 10GE/GE SFP+/SFP shared media pairs; 1x USB; 1x RJ45 console
- Additional Hardware Features: Trusted Platform Module (TPM) included; Bluetooth Low Energy (BLE) included
- Power Input & Consumption: 12V DC, 3A (dual redundancy optional); up to 2 external DC adapters (1 included); 19.9 W average / 20.53 W maximum
- Thermals & Environment: 70.0 BTU/hr heat dissipation; -35°C to 70°C storage; 10% to 90% non-condensing; up to 10,000 ft (3048 m)
- Physical & Acoustics: 42 x 216 x 178 mm; 1.12 kg; 21.73 dBA
- Compliance / Certifications: FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; USGv6/IPv6
Upgrade Your Network Security
Accelerate your business with the 10G-ready performance of the FortiGate 90G-BDL-809-60.
