[shortdesc] Firewall, desktop, 8x GE RJ45, 2x 10GE/GE shared media WAN, up to 28 Gbps firewall, SD-WAN [/shortdesc]

[properties]

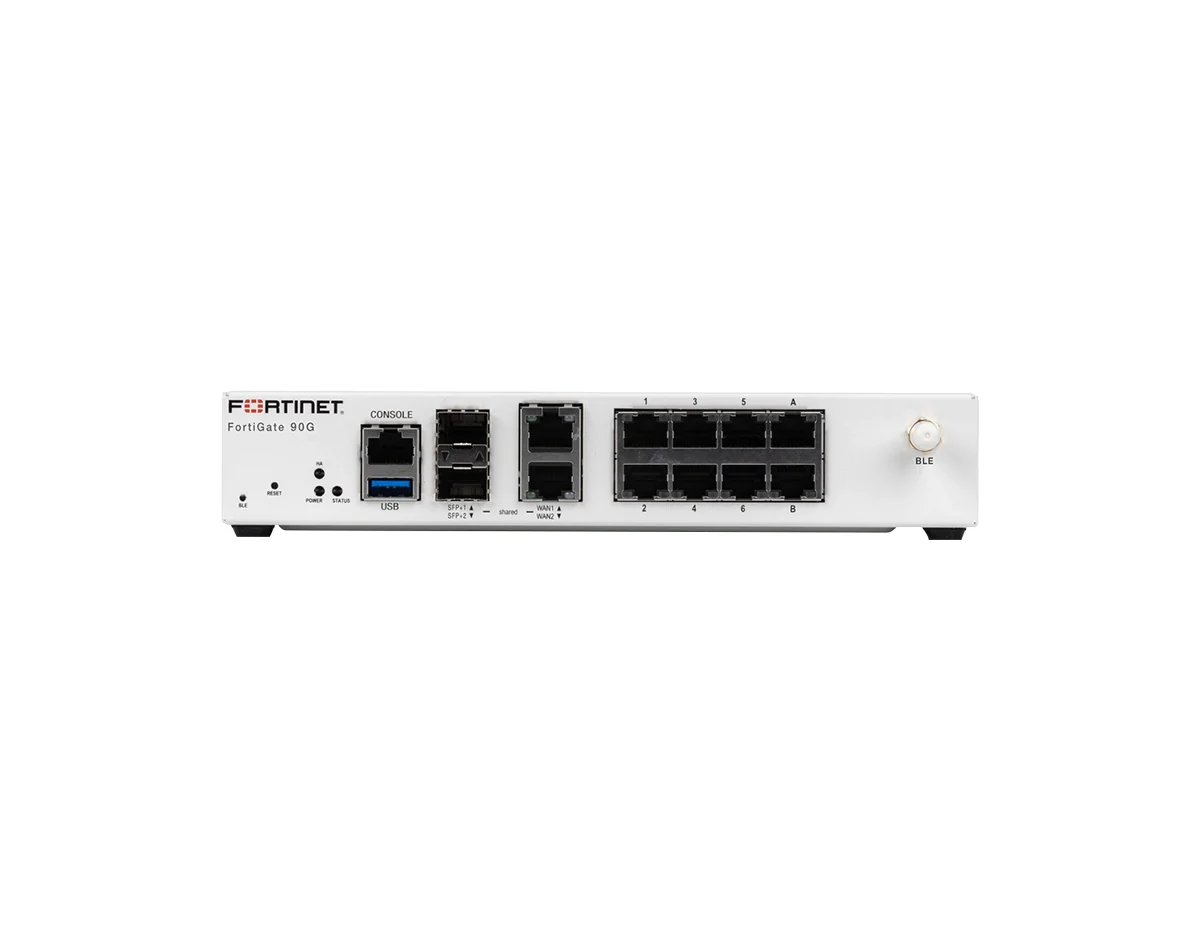

Model / SKU	FortiGate 90G / FG-90G
Form Factor	Desktop
Firewall Throughput	28 Gbps
NGFW Throughput	2.5 Gbps
Threat Protection Throughput	2.2 Gbps
Interfaces	8x GE RJ45 Ports, 2x 10GE/GE SFP+/SFP or 10/5/2.5/GE RJ45 Shared Media Ports
Power Input	12V DC, 3A (dual redundancy optional)
Dimensions (H x W x L)	42 x 216 x 178 mm (1.65 x 8.5 x 7.0 inches)
Weight	1.12 kg (2.47 lbs)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Certifications	Compliance: FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; Certifications: USGv6/IPv6

[/properties]

[specifications]

System Performance - Enterprise Traffic Mix
IPS Throughput	4.5 Gbps
System Performance and Capacity
Firewall Throughput (1518/512/64 byte UDP)	28 / 28 / 27.9 Gbps
Firewall Latency (64 byte UDP)	3.23 μs
Firewall Throughput (Packets Per Second)	41.85 Mpps
Concurrent Sessions (TCP)	3 Million
New Sessions/Second (TCP)	124,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	25 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	2,500
SSL-VPN Throughput	1.4 Gbps
Concurrent SSL-VPN Users (Tunnel Mode)	200
SSL Inspection Throughput (IPS, avg. HTTPS)	2.6 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	1,400
SSL Inspection Concurrent Sessions	300,000
Application Control Throughput (HTTP 64K)	6.7 Gbps
CAPWAP Throughput (HTTP 64K)	23.6 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	24
Maximum Number of FortiAPs (Total / Tunnel)	128 / 64
Maximum Number of FortiTokens	500
Hardware & Interfaces
10/5/2.5/GE RJ45 or 10GE/GE SFP+/SFP Shared Media Pairs	2
GE RJ45 Internal Ports	8
USB Ports	1
Console Port (RJ45)	1
Trusted Platform Module (TPM)	Included
Bluetooth Low Energy (BLE)	Included
Environment & Power
Power Required	Powered by up to 2 External DC Power Adapters (1 adapter included), 100-240V AC, 50/60 Hz
Power Consumption (Average / Maximum)	19.9 W / 20.53 W
Heat Dissipation	70.0 BTU/hr
Storage Temperature	-35°C to 70°C (-31°F to 158°F)
Humidity	10% to 90% non-condensing
Noise Level	21.73 dBA
Operating Altitude	Up to 10,000 ft (3048 m)
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB

[/specifications]

[accesories]

Included Accessories

External DC Power Adapter (1 adapter included)

Optional Accessories

Rack Mount Tray (SP-RACKTRAY-02) Wall Mount Kit, pack of 20 (SP-FG60F-MOUNT-20) Mounting Ear Bracket, 10 pairs pack (SP-EAR-FG90G-10) AC Power Adaptor, pack of 5 (SP-FG60E-PDC-5) 1 GE SFP RJ45 Transceiver Module (FN-TRAN-GC) 1 GE SFP SX Transceiver Module (FN-TRAN-SX) 1 GE SFP LX Transceiver Module (FN-TRAN-LX) 1 GE SFP Transceiver Module, 90km range (FR-TRAN-ZX) 10 GE SFP+ RJ45 Transceiver Module (FN-TRAN-SFP+GC) 10 GE SFP+ Transceiver Module, Short Range (FN-TRAN-SFP+SR) 10 GE SFP+ Transceiver Module, Long Range (FN-TRAN-SFP+LR) 10 GE SFP+ Transceiver Module, Extended Range (FN-TRAN-SFP+ER) 10 GE SFP+ Transceiver Module, 30km Long Range Single BiDi (FN-TRAN-SFP+BD27) 10 GE SFP+ Transceiver Module, 30km Long Range Single BiDi (FN-TRAN-SFP+BD33) 10 GE SFP+ Passive Direct Attach Cable, 1m (FN-CABLE-SFP+1) 10 GE SFP+ Passive Direct Attach Cable, 3m (FN-CABLE-SFP+3) 10 GE SFP+ Passive Direct Attach Cable, 5m (FN-CABLE-SFP+5)

[/accesories]

The FortiGate 90G series redefines desktop security performance by integrating the advanced Fortinet SP5 ASIC, enabling enterprise-grade protection and 10G connectivity in a compact form factor. Designed for hybrid mesh firewall and secure SD-WAN deployments, the FG-90G delivers high throughput with up to 28 Gbps firewall performance and 25 Gbps IPsec VPN performance. This makes it an exceptional choice for modern branches requiring high-bandwidth, direct internet access and secure cloud connectivity.

Running on the unified FortiOS operating system, the FortiGate 90G consolidates networking and security into a single appliance, reducing complexity and operational overhead. It features flexible connectivity options, including two shared media ports (RJ45/SFP+) that allow businesses to upgrade WAN connectivity without replacing hardware. Working with FortiGuard AI-Powered Security Services, the FG-90G supports coordinated, automated threat protection against modern attack vectors, including zero-day and file-based threats.

Next-Gen 10G Connectivity and SP5 ASIC Performance

Key Benefits

• SP5 ASIC Acceleration: Built on Fortinet’s secure SD-WAN ASIC SP5 for up to 28 Gbps firewall throughput and 4.5 Gbps IPS throughput.
• 10GE Shared Media Flexibility: Includes 2x shared media ports supporting 10GE/GE SFP+/SFP or 10/5/2.5/GE RJ45 connectivity.
• Efficient Desktop Operation: Low power draw at 19.9 W average and low acoustic output at 21.73 dBA.
• Converged Networking and Security: Integrates firewalling, SD-WAN, and security in one appliance running FortiOS.
• Deep Encrypted Traffic Inspection: Delivers 2.6 Gbps SSL inspection throughput (IPS, avg. HTTPS) for visibility into encrypted sessions.
• Redundant Power Capable: Supports up to two external DC power adapters (redundancy optional) with 12V DC, 3A input rating.

Ideal Use Cases

• High-Speed Branch Offices: Locations requiring 10G uplink connectivity for data-intensive applications.
• Distributed Enterprises: Scalable secure SD-WAN deployments with direct internet access.
• Hybrid Mesh Firewalls: Unified security across distributed environments.
• Secure Retail & Logistics: Reliable connectivity for POS systems and inventory management.

Technical Specifications Summary

• Firewall Throughput (1518/512/64 byte UDP): 28 / 28 / 27.9 Gbps
• IPS Throughput (Enterprise Traffic Mix): 4.5 Gbps
• NGFW Throughput (Enterprise Traffic Mix): 2.5 Gbps
• Threat Protection Throughput (Enterprise Traffic Mix): 2.2 Gbps
• IPsec VPN Throughput (512 byte): 25 Gbps
• SSL-VPN Throughput: 1.4 Gbps
• Concurrent Sessions (TCP): 3 Million
• New Sessions/Second (TCP): 124,000
• Interfaces: 8x GE RJ45, 2x shared media ports (10GE/GE SFP+/SFP or 10/5/2.5/GE RJ45)
• Power: 12V DC, 3A (dual redundancy optional)
• Consumption: 19.9 W average / 20.53 W maximum
• Physical: 42 x 216 x 178 mm; 1.12 kg
• Environment: 0°C to 40°C operating; 21.73 dBA noise level
