[shortdesc]Firewall, 42 Gbps IPS, 4x25GE SFP28 ULL, dual DC PSU, 960GB SSD, including 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP).[/shortdesc]

[properties]

Product Name	FortiGate 901G-DC
SKU	FG-901G-DC-BDL-950-60
Bundle / Subscription	Appliance + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (5 Year)
Form Factor	Rack Mount, 1 RU
Firewall Throughput (Max)	164 Gbps (1518 byte UDP)
Interfaces	4x 25 GE/10 GE SFP28/SFP+ (ULL), 4x 10 GE/GE SFP+/SFP, 8x GE SFP, 16x GE RJ45, 1x GE RJ45 Management, 1x 2.5 GE/GE RJ45 HA
Internal Storage	960 GB (2x 480 GB SSD)
Power Input	48–60VDC
Dimensions	1.5 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm)
Weight	16.53 lbs (7.5 kg)
Operating Temperature	32°F to 113°F (0°C to 45°C)
Compliance / Certifications	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	42 Gbps
NGFW Throughput	31 Gbps
Threat Protection Throughput	30 Gbps
System Performance and Capacity
IPv4 Firewall Throughput	164 / 163 / 153 Gbps (1518/512/64 byte, UDP)
Firewall Throughput (Packet per Second)	229.5 Mpps
Firewall Latency (64 byte UDP)	3.78 / 2.5 μs*
Concurrent Sessions (TCP)	16 Million
New Sessions/Second (TCP)	720,000
Firewall Policies	50,000
IPsec VPN Throughput	55 Gbps (512 byte)
Gateway-to-Gateway IPsec VPN Tunnels	2,000
SSL-VPN Throughput	10 Gbps
Concurrent SSL-VPN Users	10,000 (Recommended Max, Tunnel Mode)
SSL Inspection Throughput	16.7 Gbps (IPS, avg. HTTPS)
Application Control Throughput	74.8 Gbps (HTTP 64K)
CAPWAP Throughput	133 Gbps (HTTP 64K)
Virtual Domains (Default / Maximum)	10 / 50
Maximum FortiSwitches Supported	196
Maximum FortiAPs Supported	2048 / 1024 (Total / Tunnel)
Maximum FortiTokens Supported	5,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Hardware and Interfaces
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ ULL Slots	4
Hardware Accelerated 10 GE SFP+ / GE SFP Slots	4
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated GE RJ45 Slots	16
2.5 GE/GE HA Port	1
GE Management Port	1
USB Ports (Client/Server)	2 / 2
Console Port	1
Trusted Platform Module (TPM)	Yes
Dimensions and Power
Power Consumption (Average/Maximum)	184 W / 323 W
Heat Dissipation	1103 BTU/h
Redundant Power Supplies	Yes (comes with 2PSU default)
Operating Environment and Certifications
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	58 dBA

[/specifications]

[accesories]

Included Accessories	2x SFP SX Transceivers, Dual DC power supplies (comes with 2PSU default)
Optional Accessories	1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (RJ45, SR, LR, ER, ZR, BiDi), 25 GE SFP28 Transceivers (SR, LR), Direct Attach Cables (10 GE SFP+, 25 GE SFP28)

[/accesories]

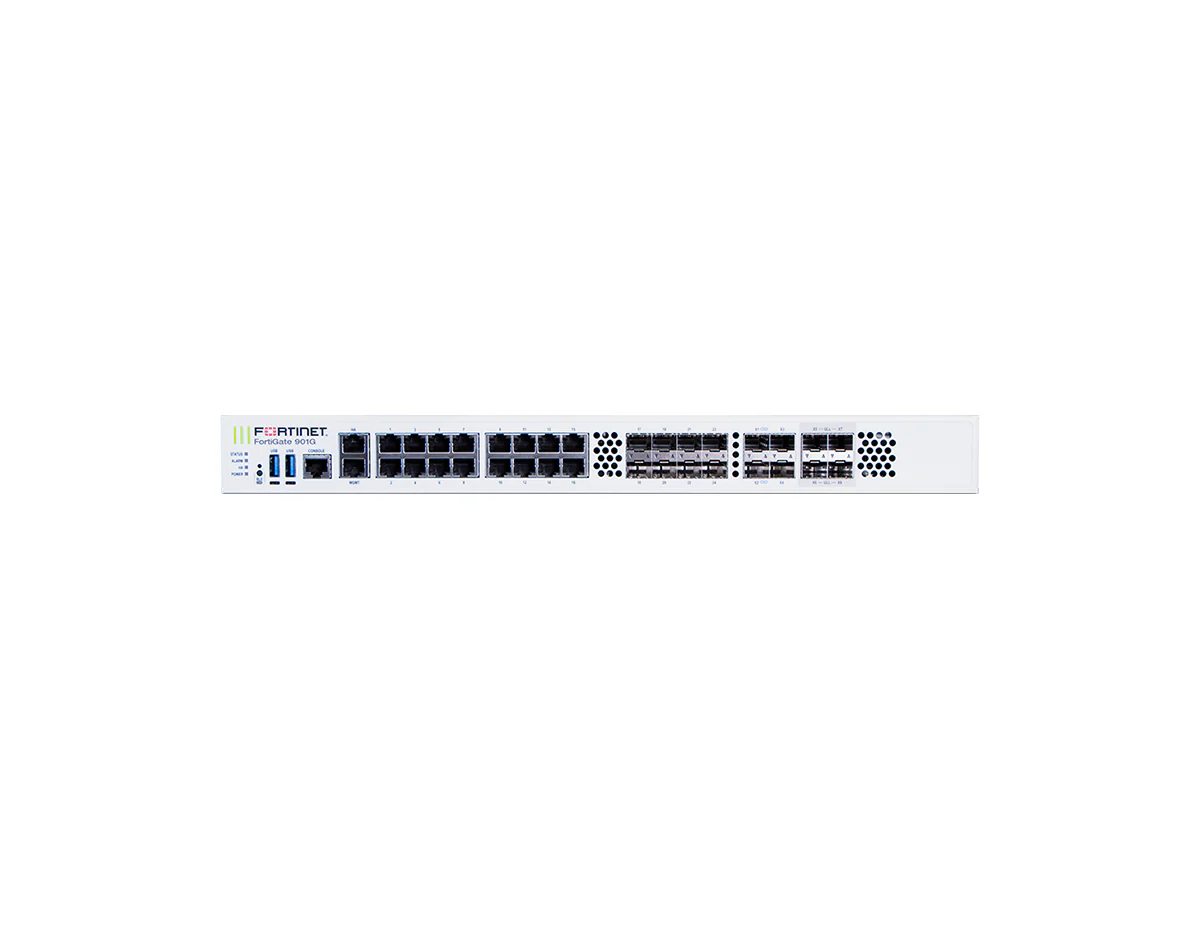

The Fortinet FortiGate 901G-DC Series Next-Generation Firewall (NGFW) is engineered to deliver threat protection and secure networking for demanding enterprise and service provider environments. It achieves up to 42 Gbps of IPS throughput and 31 Gbps of NGFW throughput, accelerated by Fortinet SPU processors (NP7 and CP9). This model supports DC-powered rack deployments with dual hot swappable power supplies and a 48–60VDC input.

The FG-901G-DC provides deep visibility and advanced security functions, leveraging the integrated 960 GB of onboard SSD storage for local logging and data retention. The flexible, high-density interface configuration includes Ultra Low Latency 25 GE SFP28 slots, 10 GE/GE SFP+/SFP slots, 8x GE SFP slots, and 16x GE RJ45 switch ports plus dedicated management and HA ports, offering strong connectivity flexibility for segmenting and connecting critical network zones.

This bundle includes the FortiGate 901G-DC appliance plus FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (5 Year).

Data Center Resilience with 960GB Storage and 30 Gbps Threat Protection

Key Benefits

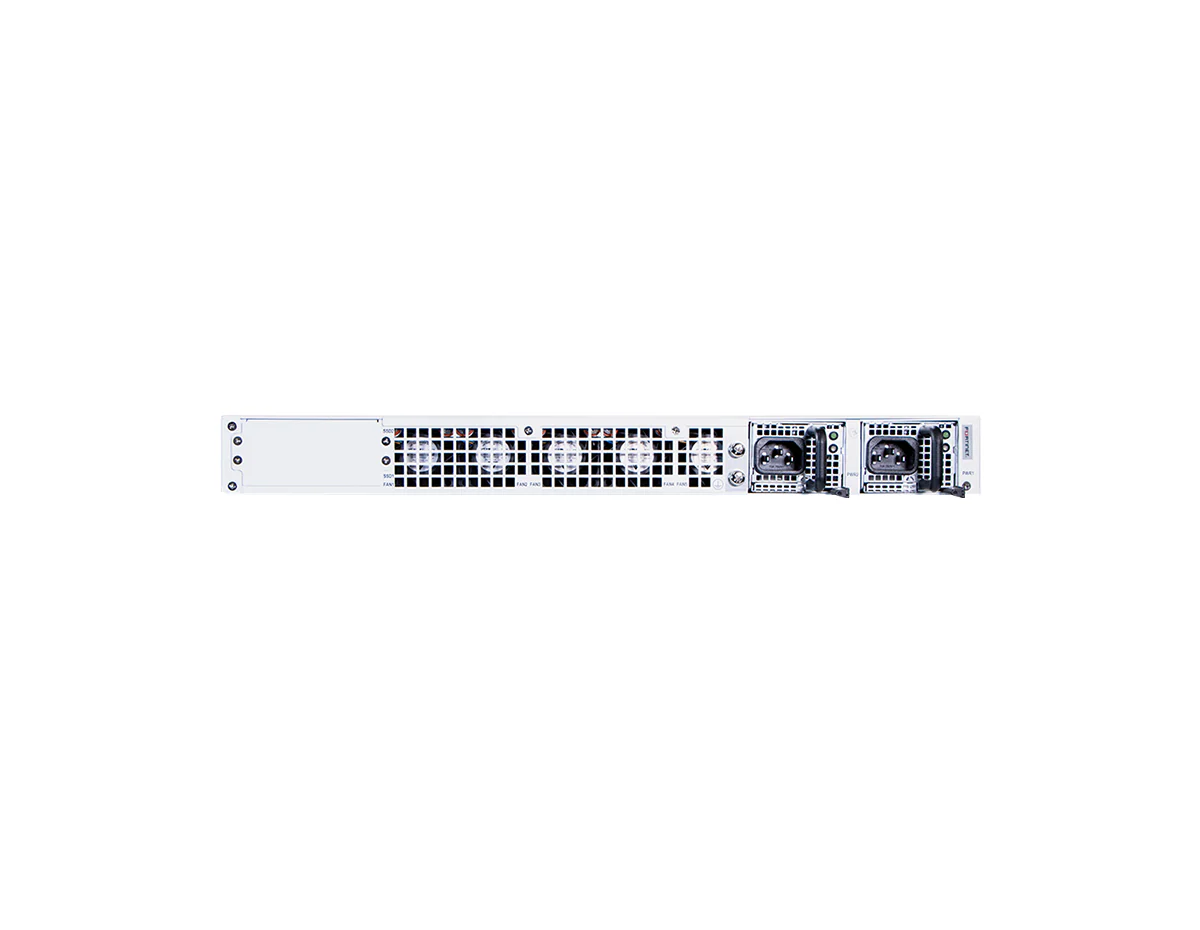

• Telecom-Ready Power: Features redundant hot-swappable dual DC power supplies (48–60VDC input) for resilient rack deployments.
• High-Performance Security: Delivers 42 Gbps IPS throughput and 31 Gbps NGFW throughput with Fortinet SPU processors.
• Integrated Storage: Includes 960 GB (2x 480 GB SSD) onboard storage for local logging and data retention.
• Ultra-Low Latency: Achieves a 3.78 / 2.5 μs firewall latency on Ultra Low Latency (ULL) ports for latency-sensitive traffic.
• Encrypted Traffic Inspection: Provides 16.7 Gbps of SSL inspection throughput (IPS, avg. HTTPS) to secure encrypted traffic at scale.
• Extensive Port Density: Offers 4x 25 GE/10 GE SFP28/SFP+ (ULL), 4x 10 GE/GE SFP+/SFP, 8x GE SFP, 16x GE RJ45 switch ports, a dedicated GE RJ45 management port, and a 2.5 GE/GE RJ45 HA port.

Ideal Use Cases

• Data Center Core Security: High-throughput firewall and VPN termination in DC-powered racks.
• Telecom/Service Provider PoP: Deployment in environments requiring DC power and redundant power supplies.
• Large Enterprise Campus Edge: Securing high-bandwidth perimeters that require high port density and local storage.
• High-Speed Secure SD-WAN: Converged networking and security with deep visibility and inspection performance.

Technical Specifications Summary

• IPS Throughput: 42 Gbps
• NGFW Throughput: 31 Gbps
• Threat Protection Throughput: 30 Gbps
• IPv4 Firewall Throughput (1518/512/64 byte, UDP): 164 / 163 / 153 Gbps
• Firewall Throughput (Packet per Second): 229.5 Mpps
• IPsec VPN Throughput (512 byte): 55 Gbps
• SSL-VPN Throughput: 10 Gbps
• SSL Inspection Throughput (IPS, avg. HTTPS): 16.7 Gbps
• Session Capacity: 16 Million concurrent sessions (TCP); 720,000 new sessions/second (TCP)
• Interfaces: 4x 25 GE/10 GE SFP28/SFP+ (ULL), 4x 10 GE/GE SFP+/SFP, 8x GE SFP, 16x GE RJ45 switch ports, 1x GE RJ45 management port, 1x 2.5 GE/GE HA port
• Onboard Storage: 960 GB (2x 480 GB SSD)
• Power, Physical, and Environment: 48–60VDC; 184 W / 323 W (avg/max); 1103 BTU/h; redundant hot-swappable PSUs (comes with 2PSU default); 1.5 x 17.0 x 15.0 in (44.45 x 432 x 380 mm); 16.53 lbs (7.5 kg); 0°C to 45°C operating; 10%–90% humidity (non-condensing); 58 dBA

Upgrade Your Network Security

Deploy the FG-901G-DC-BDL-950-60 bundle to pair the FortiGate 901G-DC firewall with FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (5 Year).
