[shortdesc]FG-901G-BDL-950-12 FortiGate 901G Firewall, NP7/CP9 SPU, 4x 25GE SFP28, 4x 10GE SFP+, 960GB SSD, including 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)[/shortdesc]

[properties]

Product Name	FortiGate 901G
SKU	FG-901G-BDL-950-12
Bundle / Subscription	BDL-950 (FortiCare Premium + FortiGuard Unified Threat Protection (UTP)), 1 Year Contract
Form Factor	Rack Mount, 1 RU
Firewall Throughput (IPv4)	164 / 163 / 153 Gbps (1518/512/64 byte, UDP)
Interfaces	4x 25 GE SFP28, 4x 10 GE SFP+, 8x 1 GE SFP, 16x GE RJ45 (Switch), 1x GE RJ45 (MGMT), 1x 2.5 GE/GE RJ45 (HA)
Internal Storage	2x 480 GB SSD (960 GB Total)
Power Input	100–240VAC, 50/60 Hz
Dimensions	1.5 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm)
Weight	16.53 lbs (7.5 kg)
Operating Temperature	32°F to 113°F (0°C to 45°C)
Certifications	USGv6/IPv6

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	42 Gbps
NGFW Throughput	31 Gbps
Threat Protection Throughput	30 Gbps
System Performance and Capacity
IPv6 Firewall Throughput	164 / 163 / 153 Gbps (1518/512/86 byte, UDP)
Firewall Latency	3.78 / 2.5 μs (64 byte UDP, ULL ports)
Firewall Throughput (Packet per Second)	229.5 Mpps
Concurrent Sessions (TCP)	16 Million
New Sessions/Second (TCP)	720,000
Firewall Policies	50,000
IPsec VPN Throughput (512 byte)	55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	50,000
SSL-VPN Throughput	10 Gbps
Concurrent SSL-VPN Users (Recommended Max)	10,000 (Tunnel Mode)
SSL Inspection Throughput (IPS, avg. HTTPS)	16.7 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	18,000
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	1.6 Million
Application Control Throughput (HTTP 64K)	74.8 Gbps
CAPWAP Throughput (HTTP 64K)	133 Gbps
Virtual Domains (Default/Maximum)	10 / 50
Maximum Number of FortiSwitches Supported	196
Maximum Number of FortiAPs (Total/Tunnel)	2048 / 1024
Maximum Number of FortiTokens	5,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Hardware and Interfaces
Hardware Accelerated 25 GE SFP28/10 GE SFP+ Slots	4 (Ultra Low Latency)
Hardware Accelerated 10 GE SFP+/GE SFP Slots	4
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated GE RJ45 Slots	16
2.5 GE/GE HA Port	1
GE Management Port	1
USB Ports (Client/Server)	2 / 2
Console Port	1
Trusted Platform Module (TPM)	Yes
Dimensions and Power
Power Consumption (Average/Maximum)	184 W / 323 W
AC Current (Maximum)	6A @ 100VAC
Heat Dissipation	1103 BTU/h
Redundant Power Supplies	Yes (Hot Swappable, Dual Included)
Operating Environment and Certifications
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	58 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 10,000 ft (3,048 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB

[/specifications]

[accesories]

Included Accessories	2x SFP SX Transceivers, Dual Hot Swappable Power Supplies
Optional Accessories	AC Power Supply (SP-FG400F-PS), 1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (RJ45, SR, LR, ER, ZR, BiDi), 25 GE SFP28 Transceivers (SR, LR), DAC Cables (10 GE SFP+, 25 GE SFP28)

[/accesories]

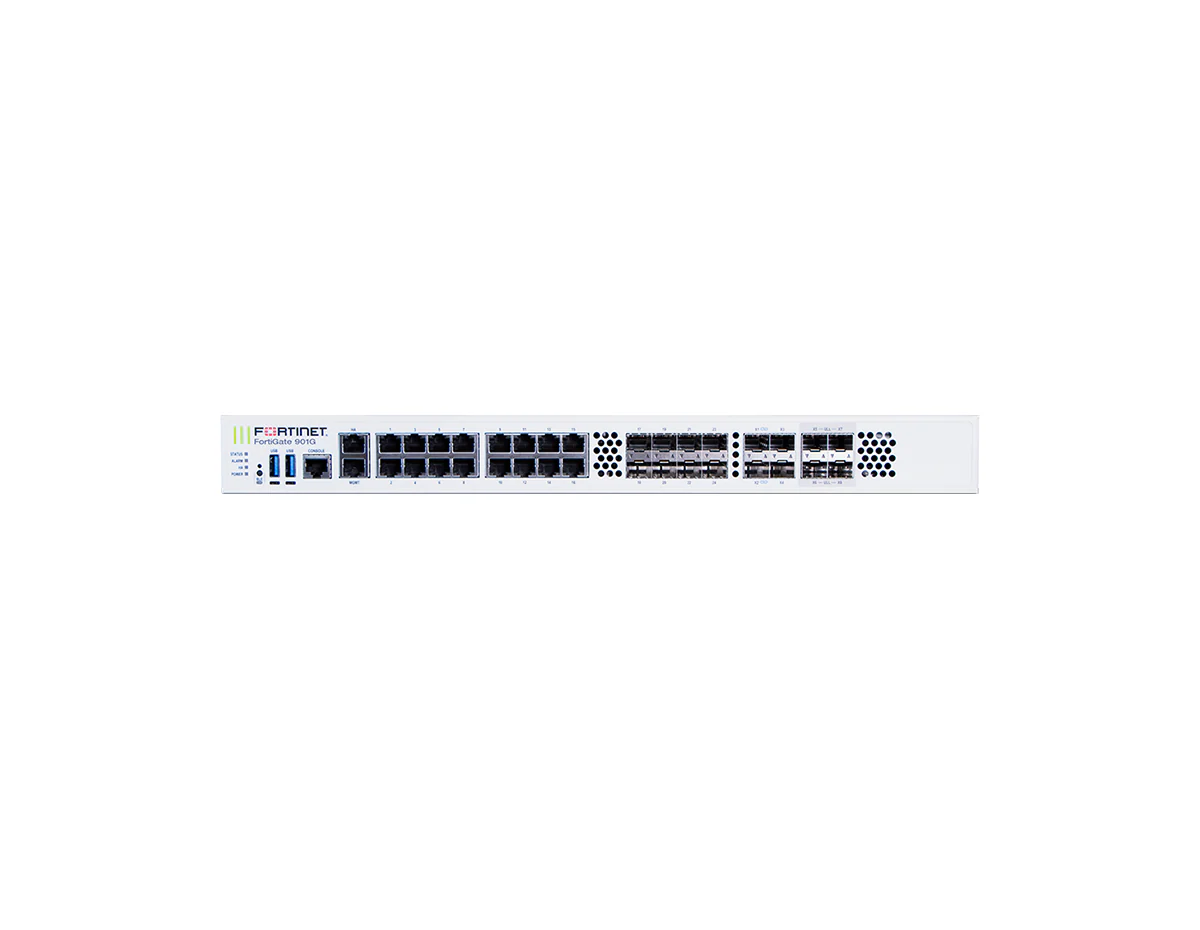

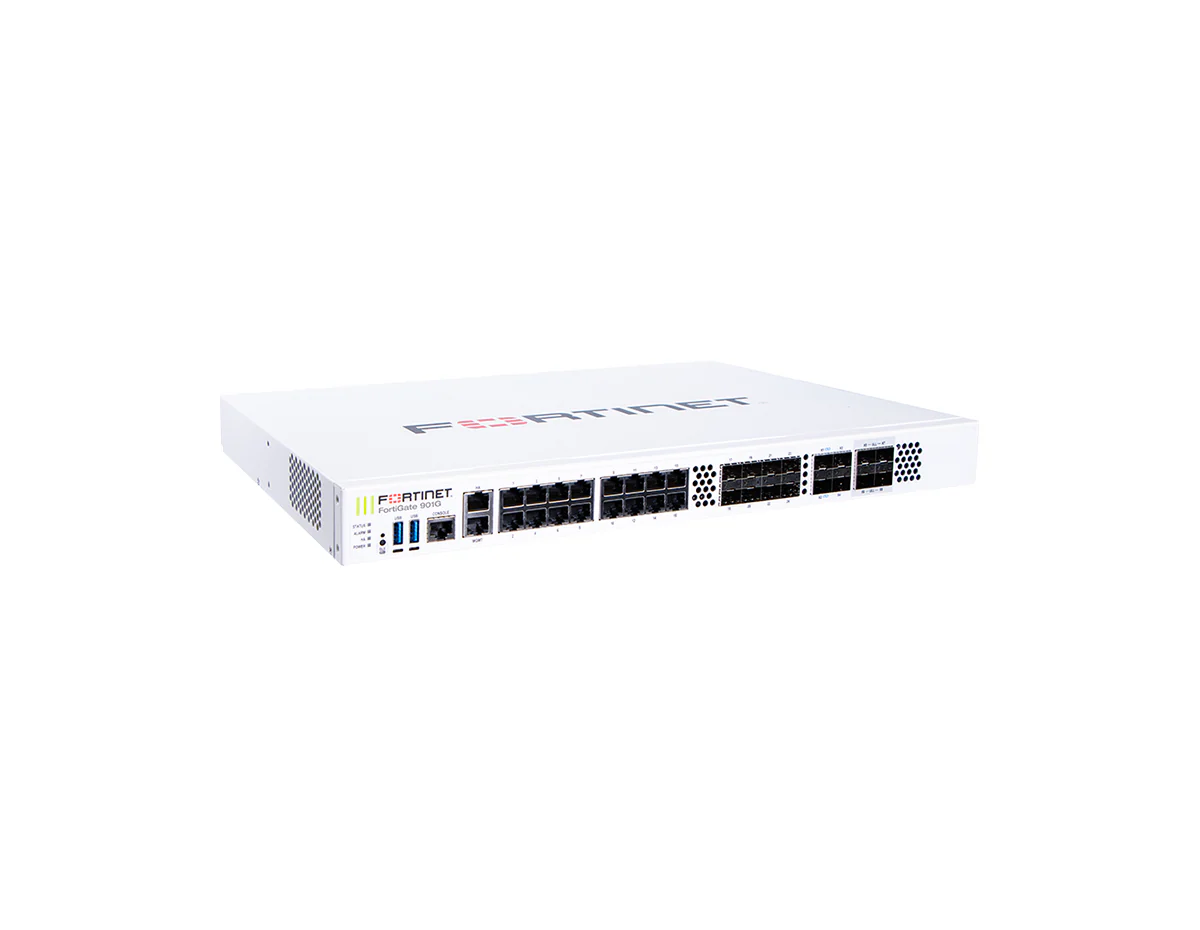

The Fortinet FortiGate 901G Series Next-Generation Firewall (NGFW) utilizes advanced artificial intelligence (AI) and machine learning (ML) to provide comprehensive threat protection at scale. Driven by Fortinet's patented Network Processor 7 (NP7) and the ninth-generation Content Processor (CP9), this appliance delivers superior performance, including 42 Gbps of IPS throughput and 74.8 Gbps of Application Control throughput. The inclusion of 960GB of onboard SSD storage supports local logging and reporting for improved visibility. This bundle includes 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP).

Designed for modern, high-bandwidth networks, the FortiGate 901G features a versatile array of interfaces, including four 25 GE SFP28 slots, four 10 GE SFP+ slots, eight 1 GE SFP slots, sixteen GE RJ45 switch ports, a dedicated GE RJ45 management port, and a 2.5 GE/GE HA port. It incorporates a Trusted Platform Module (TPM) to harden physical networking appliances by generating, storing, and authenticating cryptographic keys. With redundant dual hot-swappable AC power supplies included by default, the FG-901G offers the resilience needed for mission-critical deployments in data centers, campus edges, and hybrid environments.

Data-Driven Security with 960GB Storage and NP7/CP9 Acceleration

Key Benefits

• High-Speed Processing: Delivers 42 Gbps IPS throughput and 31 Gbps NGFW throughput via NP7 and CP9 processors.
• Integrated Storage: Features 2x 480 GB (960 GB total) onboard SSDs for local logging and reporting.
• Versatile Connectivity: Equipped with 4x 25 GE SFP28, 4x 10 GE SFP+, 8x 1 GE SFP, 16x GE RJ45 switch ports, plus dedicated MGMT and HA ports for flexible deployment.
• Ultra-Low Latency: Firewall latency is 3.78 / 2.5 μs (64 byte UDP, ULL ports).
• Encrypted Traffic Inspection: Provides 16.7 Gbps of SSL inspection throughput to secure encrypted data without compromising performance.

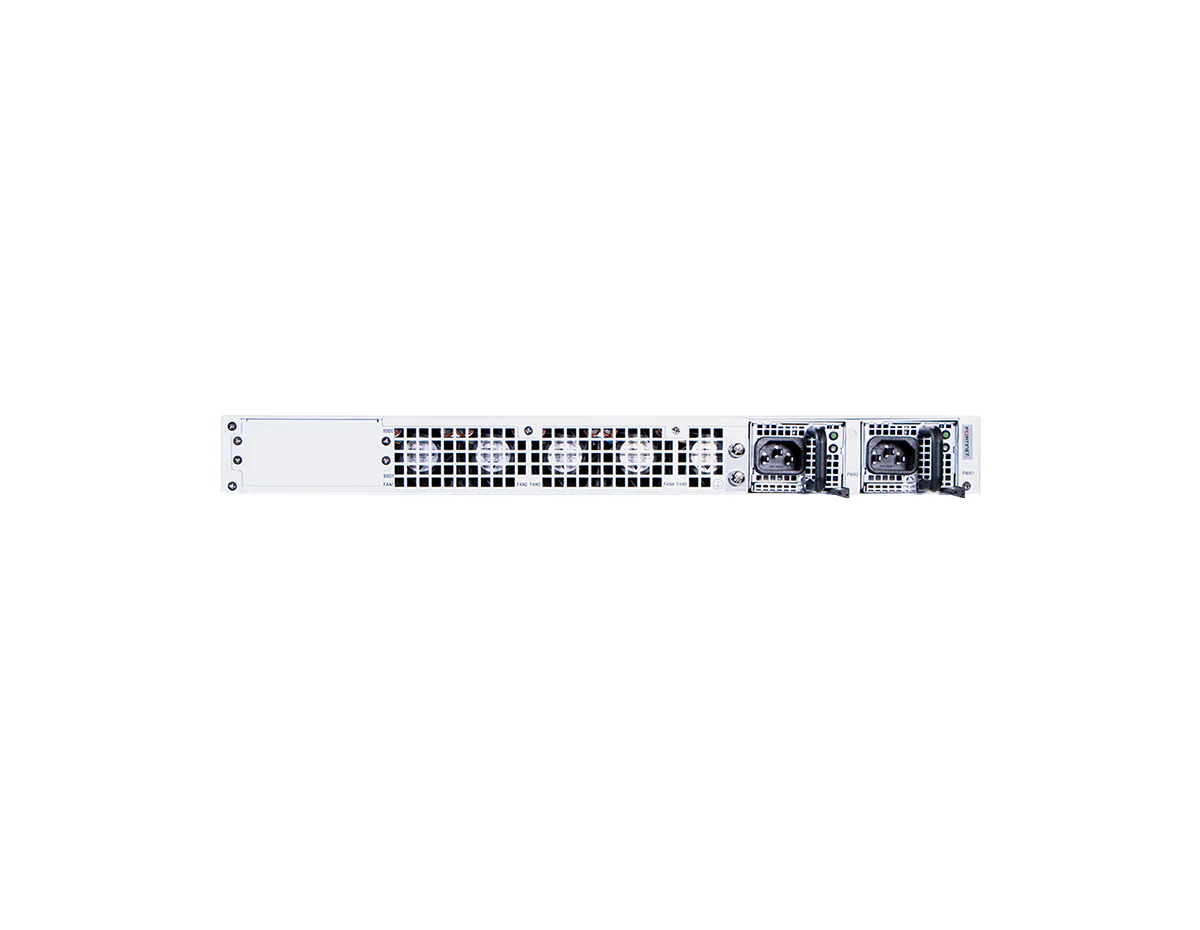

• Operational Resilience: Includes dual hot-swappable AC power supplies to maximize uptime.
• AI-Powered Defense: Leverages AI/ML-powered FortiGuard services to protect against known, zero-day, and emerging threats.

Ideal Use Cases

• Enterprise Edge Security: Securing the network perimeter with high-performance inspection and local log retention.
• Secure SD-WAN: Delivering converged networking and security with operational efficiency and deep analytics.
• Internal Segmentation: Using VXLAN segmentation to isolate network segments and reduce lateral threat movement.
• Hybrid Mesh Firewall: Ensuring consistent policy enforcement across on-premise and cloud environments.

Technical Specifications Summary

• IPS Throughput: 42 Gbps
• NGFW Throughput: 31 Gbps
• Threat Protection Throughput: 30 Gbps
• Firewall Throughput (IPv4 UDP): 164 / 163 / 153 Gbps (1518/512/64 byte)
• IPsec VPN Throughput: 55 Gbps (512 byte)
• SSL-VPN Throughput: 10 Gbps
• SSL Inspection Throughput: 16.7 Gbps (IPS, avg. HTTPS)
• Session Capacity: 16 Million concurrent sessions; 720,000 new sessions/second
• Interfaces: 4x 25 GE SFP28, 4x 10 GE SFP+, 8x 1 GE SFP, 16x GE RJ45 (Switch), 1x GE RJ45 (MGMT), 1x 2.5 GE/GE RJ45 (HA)
• Internal Storage: 960 GB total (2x 480 GB SSD)
• Power (Average/Maximum): 184 W / 323 W; Heat Dissipation: 1103 BTU/h
• Physical/Environment: 1.5 x 17.0 x 15.0 in; 16.53 lbs (7.5 kg); Operating Temp: 32°F to 113°F (0°C to 45°C)
