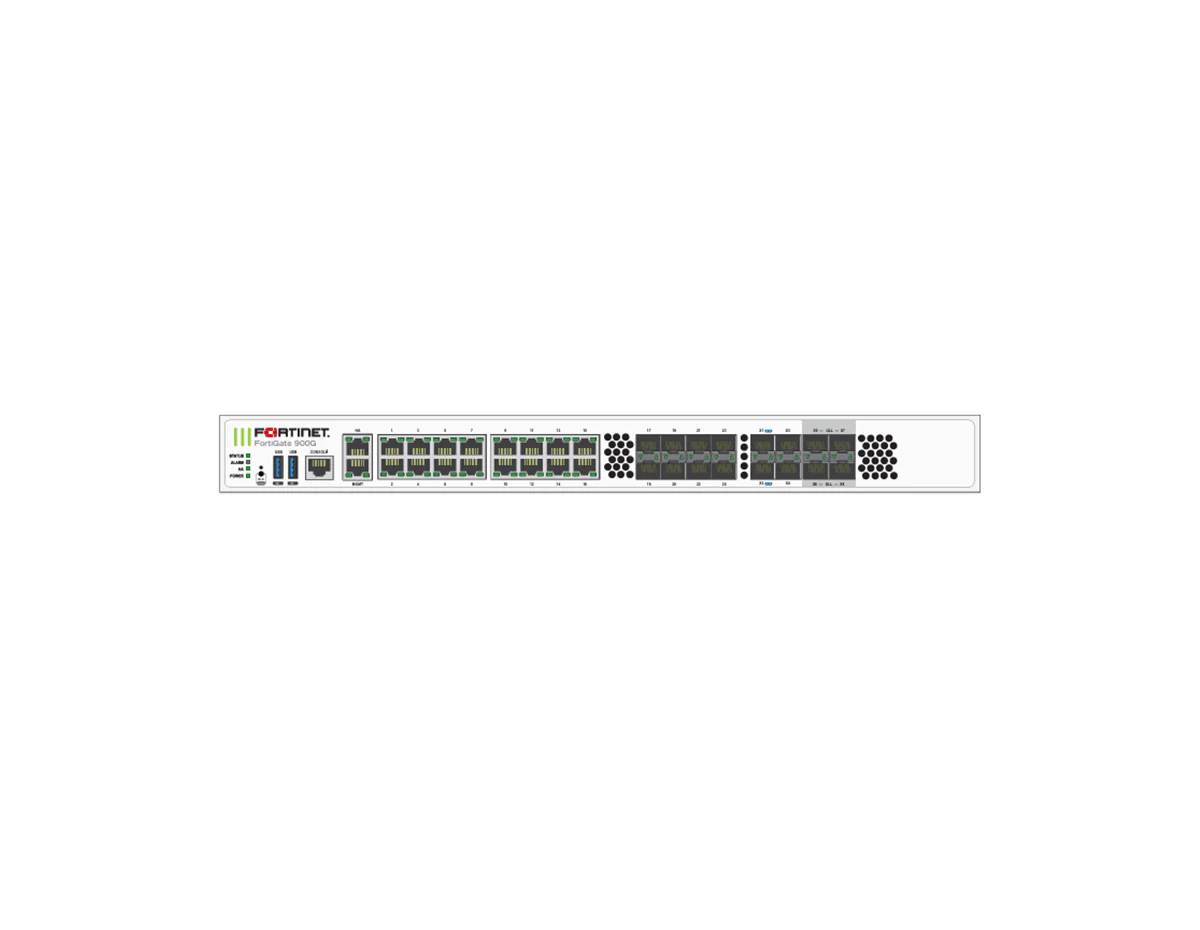

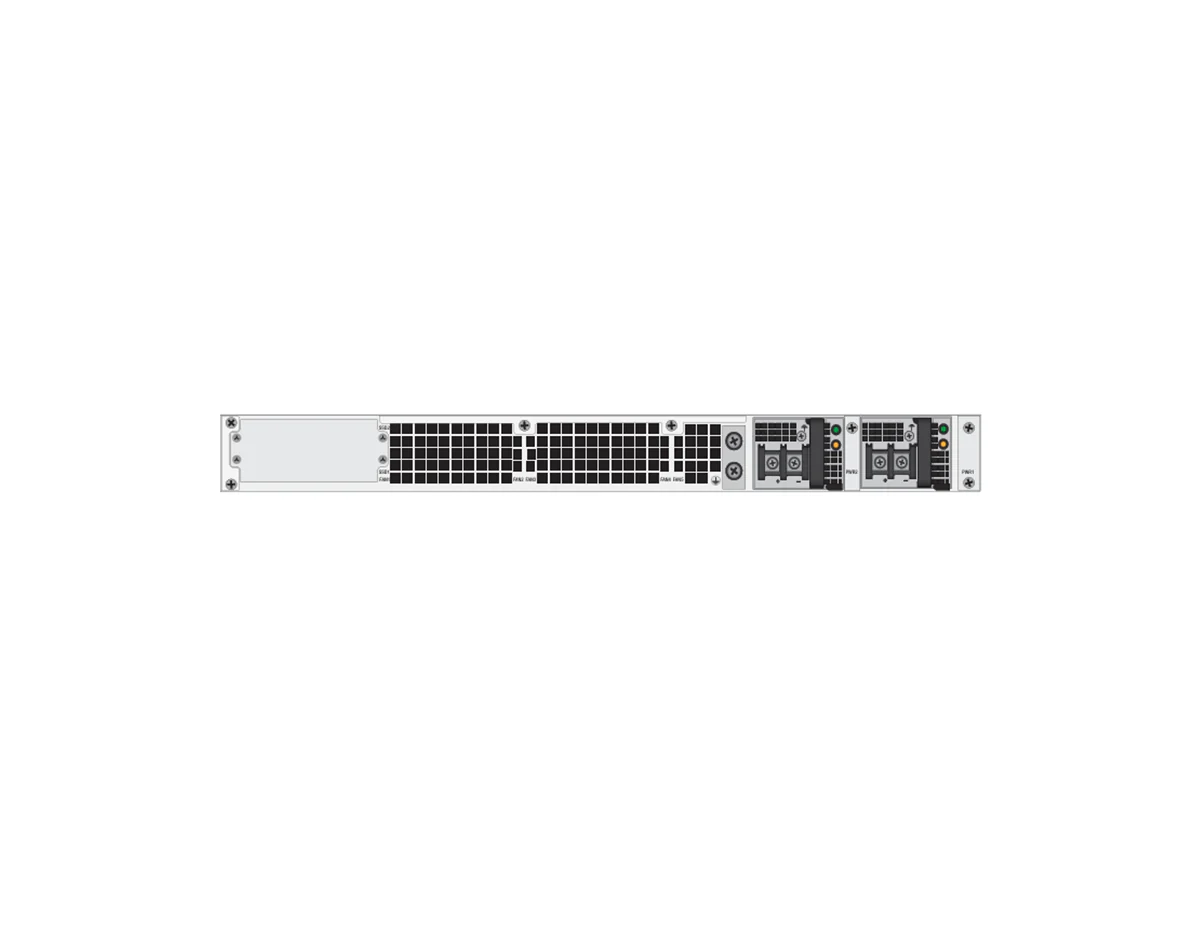

Fortinet FG-900G-DC-BDL-809-12 Next-Generation Firewall
[shortdesc]Firewall, 1RU dual hot-swappable DC PSU, 42 Gbps IPS, 31 Gbps NGFW, 4x25GE SFP28 ULL + 4x10GE SFP+, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection[/shortdesc]
[properties]
| Product Name | FortiGate 900G-DC |
| Model / SKU | FG-900G-DC-BDL-809-12 |
| Bundle / Subscription | FortiCare Premium + FortiGuard Enterprise Protection, 1 Year |
| Form Factor | Rack Mount, 1 RU |
| Firewall Throughput (Max) | 164 Gbps (1518 byte UDP) |
| Interfaces | 4x 25GE/10GE SFP28/SFP+ Ultra Low Latency, 4x 10GE/GE SFP+/SFP, 8x GE SFP, 17x GE RJ45 (16x switch + 1x MGMT), 1x 2.5GE/GE HA RJ45 |
| Onboard Storage | No |
| Power Input | 48–60 VDC |
| Dimensions | 1.5 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm) |
| Weight | 16.53 lbs (7.5 kg) |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Certifications | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB, USGv6/IPv6 |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) | |
| IPS Throughput | 42 Gbps |
| NGFW Throughput | 31 Gbps |
| Threat Protection Throughput | 30 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput | 164 / 163 / 153 Gbps (1518/512/64 byte, UDP) |
| Firewall Throughput (Packet per Second) | 229.5 Mpps |
| Firewall Latency (64 byte UDP) | 3.78 / 2.5 μs* |
| Concurrent Sessions (TCP) | 16 Million |
| New Sessions/Second (TCP) | 720,000 |
| Firewall Policies | 50,000 |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| SSL-VPN Throughput | 10 Gbps |
| Concurrent SSL-VPN Users (Recommended Max) | 10,000 (Tunnel Mode) |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 16.7 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 18,000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 1.6 Million |
| Application Control Throughput (HTTP 64K) | 74.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 133 Gbps |
| Virtual Domains (Default/Maximum) | 10 / 50 |
| Maximum Number of FortiSwitches Supported | 196** |
| Maximum Number of FortiAPs (Total/Tunnel) | 2048 / 1024 |
| Maximum Number of FortiTokens | 5,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Hardware and Interfaces | |
| Hardware Accelerated 25 GE SFP28/10 GE SFP+ Slots | 4 |
| Hardware Accelerated 10 GE SFP+/GE SFP Slots | 4 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated GE RJ45 Slots | 16 |
| 2.5 GE/GE HA Port | 1 |
| GE Management Port | 1 |
| USB Ports (Client/Server) | 2 / 2 |
| Console Port | 1 |
| Trusted Platform Module (TPM) | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Dimensions and Power | |
| Power Consumption (Average/Maximum) | 184 W / 323 W |
| Heat Dissipation | 1103 BTU/h |
| Redundant Power Supplies | Yes (Hot swappable; comes with 2 PSUs) |
| Operating Environment and Certifications | |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | 58 dBA |
| Forced Airflow | Side and Front to Back |
| Operating Altitude | Up to 10,000 ft (3,048 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
[/specifications]
[accesories]
| Included Accessories | 2x SFP SX Transceivers, Dual hot swappable DC power supplies (2 PSUs included) |
| Optional Accessories | DC Power Supply (SP-FG400F-DC-PS), 1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (RJ45, SR, LR, ER, ZR, BiDi), 25 GE SFP28 Transceivers (SR, LR), Direct Attach Cables (10 GE SFP+, 25 GE SFP28) |
[/accesories]
The Fortinet FortiGate 900G-DC Series Firewall (NGFW) combines artificial intelligence (AI)-powered security and machine learning (ML) to deliver threat protection at scale. Driven by Fortinet’s patented Network Processor 7 (NP7) and the ninth-generation Content Processor (CP9), this appliance delivers superior performance, including up to 42 Gbps of IPS throughput and 31 Gbps of NGFW throughput. Featuring dual hot swappable DC power supplies, the FG-900G-DC is designed for resilient, high-speed security and inspection in demanding network environments.
Tailored for high-bandwidth infrastructures, the FortiGate 900G-DC offers an extensive and flexible interface set, including four 25GE/10GE SFP28/SFP+ ultra-low latency slots, four 10GE/GE SFP+/SFP slots, eight GE SFP slots, 17x GE RJ45 ports (including 1x management port and 16x switch ports), and a dedicated 2.5GE/GE HA port. It incorporates a Trusted Platform Module (TPM), a dedicated hardware module that hardens the appliance by generating, storing, and authenticating cryptographic keys. The redundant dual hot swappable DC power supplies included by default provide the mission-critical uptime and high availability required in modern enterprise and service environments.
Secure Networking with Unparalleled NP7/CP9 Acceleration and Dual DC Power Reliability
Key Benefits
- High-Speed Processing: Delivers up to 42 Gbps IPS throughput and 31 Gbps NGFW throughput via NP7 and CP9 processors.
- Resilient DC Power: Features dual hot swappable DC power supplies for high availability in DC-powered environments.
- Extensive Port Density: Equipped with 4x 25GE/10GE SFP28/SFP+ ultra-low latency slots, 4x 10GE/GE SFP+/SFP slots, 8x GE SFP, 17x GE RJ45 ports, and 1x 2.5GE/GE HA port for maximum connectivity flexibility.
- Ultra-Low Latency: Maintains 3.78 / 2.5 μs firewall latency for 64-byte UDP traffic (ULL ports latency noted by *).
- Encrypted Traffic Inspection: Provides 16.7 Gbps of SSL inspection throughput to secure encrypted data without creating bottlenecks.
- System Integrity: Trusted Platform Module (TPM) supports hardware-based key protection and appliance hardening.
- AI-Powered Defense: Leverages FortiGuard AI/ML services to protect against known, zero-day, and emerging threats.
Ideal Use Cases
- Data Center Gateway: Providing ultra-fast, high-density firewall and VPN termination capabilities with DC power.
- Telecom/Service Provider PoP: Integration into centralized DC power distribution for consistent power management.
- High-Speed Secure SD-WAN: Delivering converged networking and security for large-scale, distributed environments.
- Internal Segmentation: Using VXLAN segmentation to isolate network segments and prevent lateral threat movement.
Technical Specifications Summary
- IPS Throughput: 42 Gbps
- NGFW Throughput: 31 Gbps
- Threat Protection Throughput: 30 Gbps
- Firewall Throughput (IPv4): 164 / 163 / 153 Gbps (1518/512/64 byte, UDP)
- Firewall Latency (64 byte UDP): 3.78 / 2.5 μs*
- IPsec VPN Throughput: 55 Gbps (512 byte)
- SSL-VPN Throughput: 10 Gbps; 10,000 recommended concurrent users (Tunnel Mode)
- SSL Inspection (IPS, avg. HTTPS): 16.7 Gbps; 18,000 CPS; 1.6 million concurrent sessions
- Capacity: 16 million concurrent sessions; 720,000 new sessions/second; 50,000 firewall policies
- Interfaces: 4x 25GE/10GE SFP28/SFP+ ULL, 4x 10GE/GE SFP+/SFP, 8x GE SFP, 16x GE RJ45 switch + 1x GE RJ45 MGMT, 1x 2.5GE/GE HA
- Power and Cooling: 48–60VDC; 184 W / 323 W (avg/max); 1103 BTU/h; dual hot swappable PSUs
Upgrade Your Network Security
Deploy the high-performance FG-900G-DC-BDL-809-12 FortiGate 900G-DC bundle for next-level speed, resilient dual DC power, and enterprise-grade protection with FortiCare Premium + FortiGuard Enterprise Protection (1 Year).
