[shortdesc]900G Firewall, NP7/CP9 acceleration, 42 Gbps IPS, 1RU, high port density, including 3 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)[/shortdesc]

[properties]

Product Name	FortiGate 900G
SKU	FG-900G-BDL-950-36
Bundle / Subscription	FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (BDL-950), 3 Year
Form Factor	Rack Mount, 1RU
Firewall Throughput (Max)	164 Gbps (1518 byte UDP)
Interfaces	4x 25 GE SFP28, 4x 10 GE SFP+, 8x 1 GE SFP, 17x GE RJ45 (16x Switch, 1x MGMT), 1x 2.5 GE/GE RJ45 HA
Power Input	100-240VAC, 50/60 Hz
Dimensions	1.5 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm)
Weight	15.98 lbs (7.25 kg)
Operating Temperature	32°F to 113°F (0°C to 45°C)
Certifications	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB, USGv6/IPv6

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	42 Gbps
NGFW Throughput	31 Gbps
Threat Protection Throughput	30 Gbps
System Performance and Capacity
IPv4 Firewall Throughput	164 / 163 / 153 Gbps (1518/512/64 byte, UDP)
Firewall Throughput (Packet per Second)	229.5 Mpps
Firewall Latency (64 byte UDP)	3.78 / 2.5 μs*
Concurrent Sessions (TCP)	16 Million
New Sessions/Second (TCP)	720,000
Firewall Policies	50,000
IPsec VPN Throughput (512 byte)	55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	50,000
SSL-VPN Throughput	10 Gbps
Concurrent SSL-VPN Users (Recommended Max)	10,000 (Tunnel Mode)
SSL Inspection Throughput (IPS, avg. HTTPS)	16.7 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	18,000
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	1.6 Million
Application Control Throughput (HTTP 64K)	74.8 Gbps
CAPWAP Throughput (HTTP 64K)	133 Gbps
Virtual Domains (Default/Maximum)	10 / 50
Maximum Number of FortiSwitches Supported	196
Maximum Number of FortiAPs (Total/Tunnel)	2048 / 1024
Maximum Number of FortiTokens	5,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Hardware and Interfaces
Hardware Accelerated 25 GE SFP28/10 GE SFP+ Slots	4
Hardware Accelerated 10 GE SFP+/GE SFP Slots	4
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated GE RJ45 Slots	16
2.5 GE/GE HA Port	1
GE Management Port	1
USB Ports (Client/Server)	2 / 2
Console Port	1
Trusted Platform Module (TPM)	Yes
Signed Firmware Hardware Switch	—
Dimensions and Power
Power Consumption (Average/Maximum)	170 W / 313 W
AC Current (Maximum)	6A @ 100VAC
Heat Dissipation	1069 BTU/h
Redundant Power Supplies	Yes (Hot Swappable; comes with 2 PSU default)
Operating Environment and Certifications
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	58 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 10,000 ft (3,048 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB

[/specifications]

[accesories]

Included Accessories

2x SFP SX Transceivers, Default Dual Internal Power Supplies

Optional Accessories

AC Power Supply (SP-FG400F-PS), 1 GE SFP Transceivers (FN-TRAN-LX, FN-TRAN-GC, FN-TRAN-SX), 10 GE SFP+ Transceivers (FN-TRAN-SFP+GC, FN-TRAN-SFP+SR, FN-TRAN-SFP+LR, FN-TRAN-SFP+ER, FN-TRAN-SFP+BD27, FN-TRAN-SFP+BD33, FN-TRAN-SFP+ZR, FS-TRAN-SFP+ER), 25 GE SFP28 Transceivers (FN-TRAN-SFP28-SR, FN-TRAN-SFP28-LR), Direct Attach Cables (SP-CABLE-ADASFP+, FN-CABLE-SFP28-1, FN-CABLE-SFP28-3, FN-CABLE-SFP28-5)

[/accesories]

The Fortinet FortiGate 900G Series Next-Generation Firewall (NGFW) utilizes advanced artificial intelligence (AI) and machine learning (ML) to provide comprehensive threat protection at scale. Driven by Fortinet's patented Network Processor 7 (NP7) and the ninth-generation Content Processor (CP9), this appliance delivers superior performance, including 42 Gbps of IPS throughput and 74.8 Gbps of Application Control throughput. Designed for enterprises requiring massive throughput and port density, the FG-900G is capable of handling up to 229.5 million packets per second, ensuring minimal performance impact under heavy traffic and deep inspection.

This FG-900G-BDL-950-36 bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) services for 3 years.

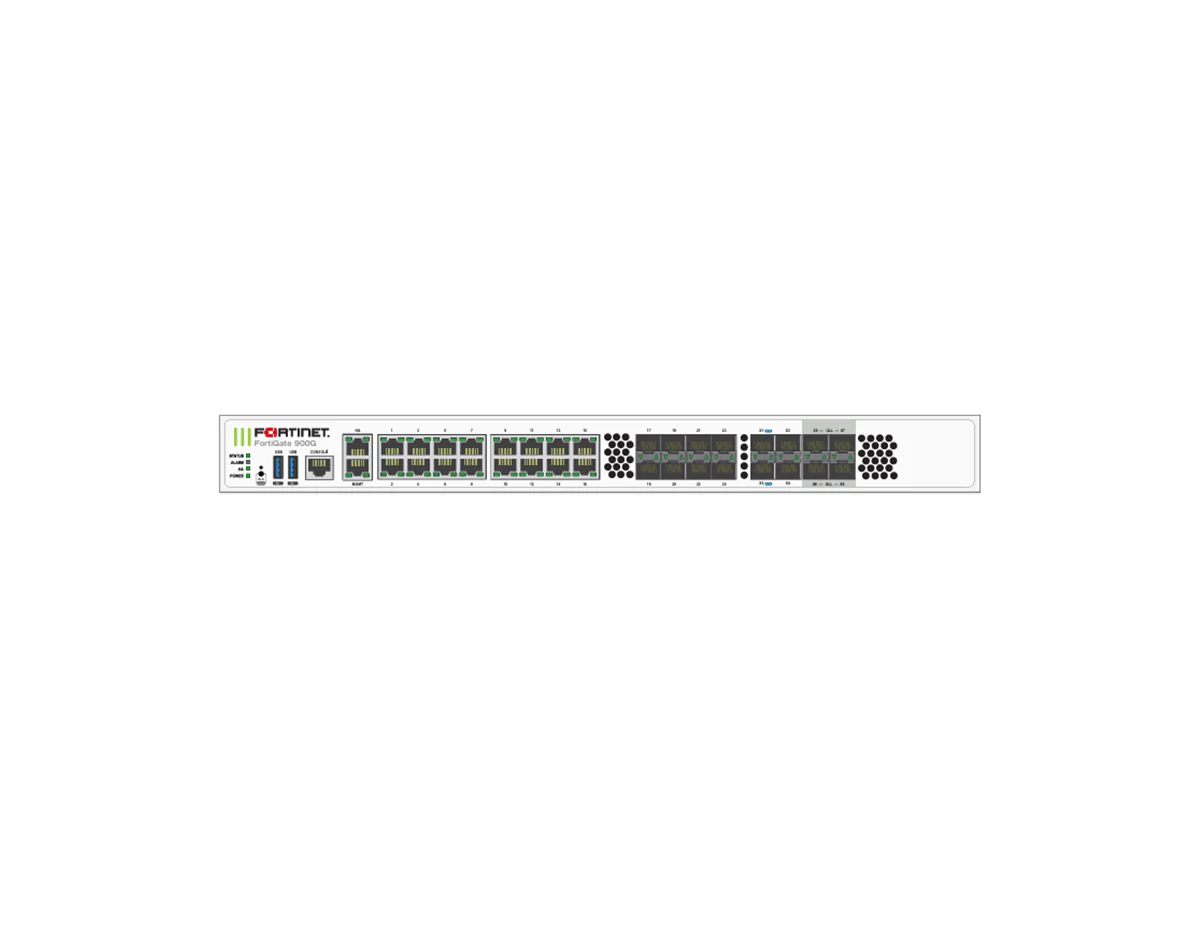

Tailored for modern, high-bandwidth data centers and large campus edges, the FortiGate 900G features an extensive and flexible interface set, including four 25 GE SFP28 slots, four 10 GE SFP+ slots, eight 1 GE SFP slots, and sixteen GE RJ45 switch ports plus dedicated GE management and 2.5 GE/GE HA ports. It incorporates a Trusted Platform Module (TPM) to generate, store, and authenticate cryptographic keys, helping harden the appliance with hardware-based security mechanisms. With redundant dual hot swappable AC power supplies included by default, the FG-900G offers the resilience needed for mission-critical deployments and high availability configurations.

Secure Networking with Unparalleled NP7/CP9 Acceleration and 42 Gbps IPS Throughput

Key Benefits

• High-Speed Processing: Delivers 42 Gbps IPS throughput and 31 Gbps NGFW throughput via NP7 and CP9 processors.
• Extensive Port Density: Equipped with 4x 25 GE SFP28, 4x 10 GE SFP+, and 16x GE RJ45 switch ports plus dedicated management and HA ports for maximum connectivity flexibility.
• Ultra-Low Latency: Maintains a 3.78 / 2.5 μs firewall latency, essential for critical, time-sensitive network applications.
• Encrypted Traffic Inspection: Provides 16.7 Gbps of SSL inspection throughput to secure encrypted data without creating bottlenecks.
• Hardware Root of Trust: Includes a Trusted Platform Module (TPM) to help protect cryptographic keys and strengthen appliance integrity.
• Operational Resilience: Includes dual hot swappable power supplies by default to maximize uptime.
• AI-Powered Defense: Leverages FortiGuard AI/ML services to protect against known, zero-day, and emerging threats.

Ideal Use Cases

• Enterprise Edge Security: Securing the network perimeter with high-performance inspection and massive port capacity.
• High-Speed Secure SD-WAN: Delivering converged networking and security for large-scale, distributed environments.
• Internal Segmentation: Using VXLAN segmentation to isolate network segments and prevent lateral threat movement.
• Data Center Gateway: Providing ultra-fast, high-density firewall and VPN termination capabilities.

Technical Specifications Summary

• IPS Throughput: 42 Gbps
• NGFW Throughput: 31 Gbps
• Threat Protection Throughput: 30 Gbps
• IPv4 Firewall Throughput (UDP): 164 / 163 / 153 Gbps (1518/512/64 byte)
• Firewall Throughput (Packet per Second): 229.5 Mpps
• Concurrent Sessions (TCP): 16 Million
• New Sessions/Second (TCP): 720,000
• IPsec VPN Throughput (512 byte): 55 Gbps
• SSL-VPN Throughput: 10 Gbps (Recommended Max Users: 10,000)
• SSL Inspection (IPS, avg. HTTPS): 16.7 Gbps (18,000 CPS; 1.6 Million concurrent sessions)
• Interfaces: 4x 25 GE SFP28, 4x 10 GE SFP+, 8x GE SFP, 17x GE RJ45 (16x Switch, 1x MGMT), 1x 2.5 GE/GE RJ45 HA
• Power Consumption (Average/Maximum): 170 W / 313 W

Upgrade Your Network Security

Deploy the high-performance FortiGate 900G (FG-900G-BDL-950-36) for next-level speed and security consolidation.
