[shortdesc] Firewall, 8x GE PoE/+ RJ45, 2x GE RJ45/SFP, 128GB SSD, 10/10/7 Gbps, including 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]

[properties]

Model / SKU	FortiGate / FG-81F-POE-BDL-950-60
Bundle / Subscription	Firewall plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (5-Year Contract)
Form Factor	Desktop / Wall Mount / Rack Tray
Internal Storage	1x 128 GB SSD
Total PoE Power Budget	96 W
Firewall Throughput (IPv4, 1518/512/64 byte UDP)	10 / 10 / 7 Gbps
Interfaces	8x GE RJ45 PoE/+ Ports, 2x GE RJ45/SFP Shared Media Ports
Power Input	+54V DC, 3A
Dimensions (H x W x L)	60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches)
Weight	1.4 kg (3.1 lbs)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Compliance / Certifications	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, USGv6/IPv6

[/properties]

[specifications]

System Performance - Enterprise Traffic Mix
IPS Throughput	1.4 Gbps
NGFW Throughput	1 Gbps
Threat Protection Throughput	900 Mbps
System Performance and Capacity
Firewall Latency (64 byte UDP)	3.23 μs
New Sessions/Second (TCP)	45,000
Concurrent Sessions (TCP)	1.5 Million
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
SSL-VPN Throughput	950 Mbps
Concurrent SSL-VPN Users (Tunnel Mode)	200
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	24
Hardware & Interfaces
GE RJ45/SFP Shared Media Pairs	2
GE RJ45/SFP Shared Media Pairs	2
USB Ports 3.0	1
Console Port (RJ45)	1
Environment & Power
Power Consumption (Average / Maximum)	98 W / 137 W
Heat Dissipation	467.5 BTU/h
Storage Temperature	-35°C to 70°C (-31°F to 158°F)
Humidity	10% to 90% non-condensing
Noise Level	31.56 dBA
Operating Altitude	Up to 2250 m (7400 ft)

[/specifications]

[accesories]

Included Accessories	External DC Power Adapter (1 adapter included)
Optional Accessories	Rack Mount Tray (SP-RACKTRAY-02) Wall Mount Kit (SP-FG60F-MOUNT-20) AC Power Adaptor (SP-FG80E-POE-PDC) 1 GE SFP RJ45 Transceiver Module (FN-TRAN-GC) 1 GE SFP SX Transceiver Module (FN-TRAN-SX) 1 GE SFP LX Transceiver Module (FN-TRAN-LX) 1GE SFP Transceiver, 90km Range (FR-TRAN-ZX)

[/accesories]

The FortiGate 81F-POE-BDL-950-60 is an integrated Firewall and SD-WAN appliance for distributed enterprise sites. With 8 Power over Ethernet (PoE/+) ports and a 96W total power budget, it can power edge devices such as access points, IP phones, and cameras. The FG-81F-POE also includes 128GB SSD onboard storage.

Running FortiOS and accelerated by Fortinet’s Secure SD-WAN ASIC SP4, the FG-81F-POE delivers up to 10 / 10 / 7 Gbps IPv4 firewall throughput, 1.4 Gbps IPS throughput, and 6.5 Gbps IPsec VPN throughput while maintaining a low firewall latency of 3.23 μs (64 byte UDP). This bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 5 years.

Secure Networking Power and Visibility with 96W PoE+ and 128GB SSD

Key Benefits

• Integrated Power Delivery: Features 8x GE PoE/+ ports with a 96W total power budget for powering edge devices directly.
• Onboard Storage: Includes a 128GB SSD for onboard storage.
• Bundle Entitlement Included: FortiCare Premium and FortiGuard Unified Threat Protection (UTP) coverage included for 5 years.
• ASIC-Accelerated Performance: Delivers up to 10 / 10 / 7 Gbps firewall throughput and 1.4 Gbps IPS throughput via the Fortinet Secure SD-WAN ASIC SP4.
• Security Fabric Ready: Integrates control over FortiAPs (up to 96 total / 48 tunnel) and FortiSwitches (up to 24).
• Resilient Design: Supports optional dual external DC power adapters for redundancy (one adapter included).
• Low Latency Performance: Maintains firewall latency of 3.23 μs (64 byte UDP) for critical applications.

Ideal Use Cases

• Branch Office Deployments: Firewall and SD-WAN connectivity for distributed enterprise locations.
• Retail and POS Locations: Securely power and connect edge devices such as cameras and point-of-sale systems using PoE/+ ports.
• Distributed Enterprises: Deployments requiring onboard storage with 128GB SSD.
• Secure Remote Work Hubs: Support for remote access deployments with up to 2,500 Client-to-Gateway IPsec VPN tunnels.

Technical Specifications Summary

• Firewall Throughput (IPv4, 1518/512/64 byte UDP): 10 / 10 / 7 Gbps
• IPS Throughput (Enterprise Traffic Mix): 1.4 Gbps
• NGFW Throughput (Enterprise Traffic Mix): 1 Gbps
• Threat Protection Throughput (Enterprise Traffic Mix): 900 Mbps
• IPsec VPN Throughput (512 byte): 6.5 Gbps
• IPsec VPN Tunnels: 200 gateway-to-gateway, 2,500 client-to-gateway
• SSL-VPN: 950 Mbps throughput, 200 concurrent users (tunnel mode)
• Session Capacity: 1.5 Million concurrent sessions (TCP), 45,000 new sessions/second (TCP)

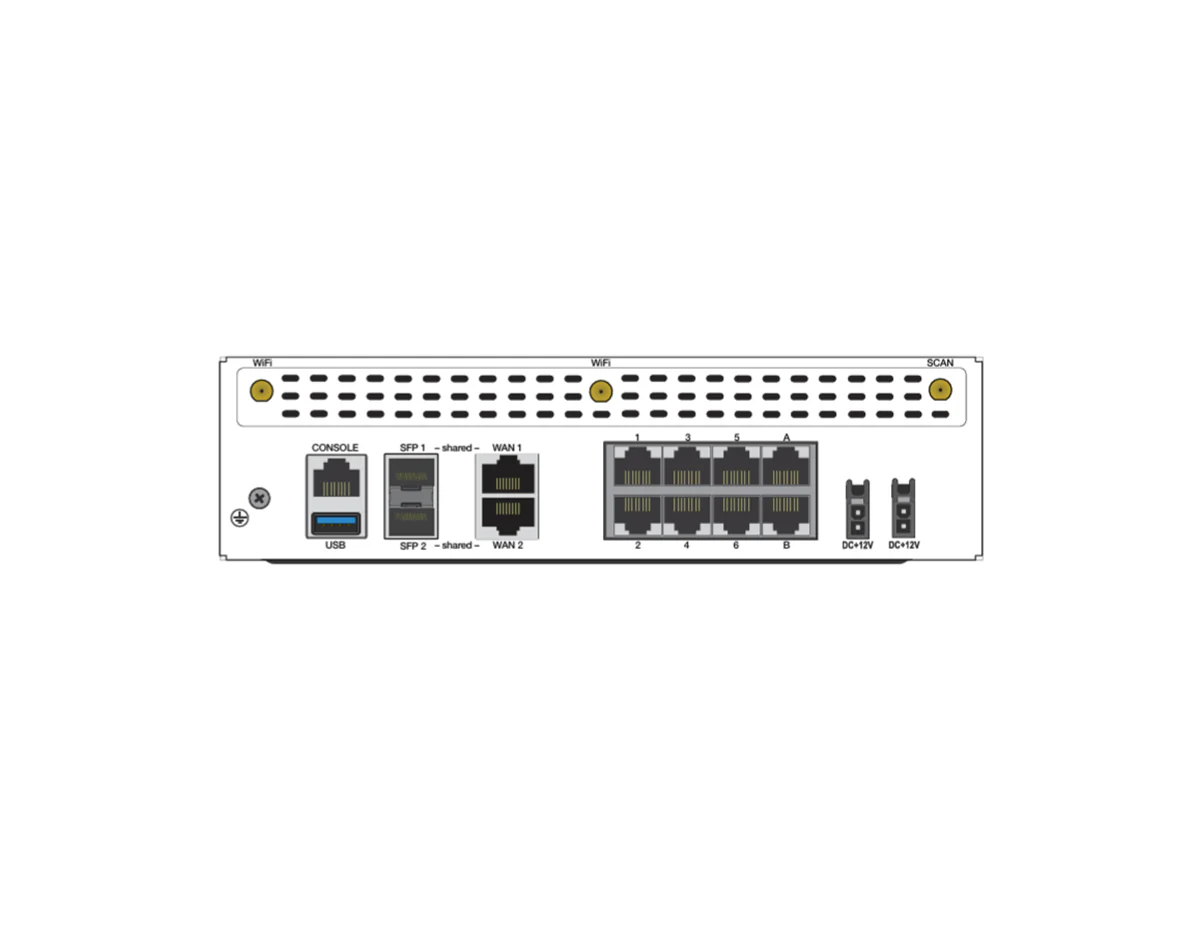

• Interfaces: 8x GE RJ45 PoE/+ ports (6 internal + 2 FortiLink), 2x GE RJ45/SFP shared media pairs, 1x USB 3.0, 1x RJ45 console
• PoE Budget: 96W total available (max 30W per PoE/+ port, 802.3at)
• Power & Heat: 98 W / 137 W (average / maximum), 467.5 BTU/h heat dissipation
• Physical & Environment: 60 x 216 x 178 mm, 1.4 kg, 0°C to 40°C operating, 31.56 dBA noise level

Upgrade Your Network Security

Streamline your branch operations with the high-performance, consolidated FortiGate 81F-POE-BDL-950-60.
