Fortinet FortiGate 81F-POE Unified Threat Protection (UTP) 3-Year Bundle (FG-81F-POE-BDL-950-36)
[shortdesc] Firewall, desktop, 8x GE RJ45 PoE+ ports, 128GB SSD, 10/10/7 Gbps, including 3 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]
[properties]
| Model / SKU | FortiGate / FG-81F-POE-BDL-950-36 |
| Bundle / Subscription | Firewall plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (3-Year Contract) |
| Form Factor | Desktop / Wall Mount / Rack Tray |
| Internal Storage | 1x 128 GB SSD |
| Total PoE Power Budget | 96 W |
| Firewall Throughput (Max) | 10 Gbps |

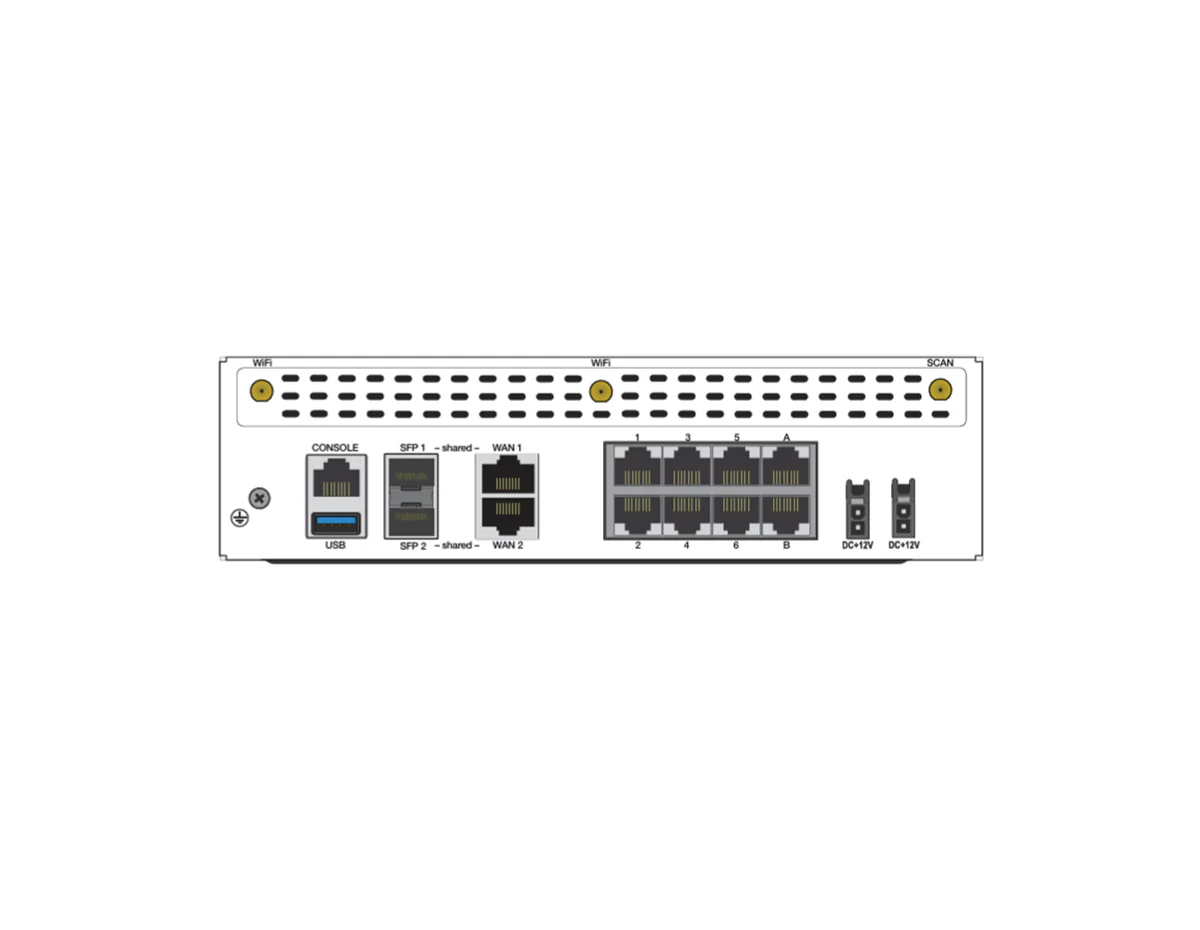

| Interfaces | 8x GE RJ45 PoE/+ ports, 2x GE RJ45/SFP shared media WAN ports |
| Power Input | +54V DC, 3A |
| Dimensions (H x W x L) | 60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches) |
| Weight | 1.4 kg (3.1 lbs) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Compliance / Certifications | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, USGv6/IPv6 |
[/properties]
[specifications]
| System Performance - Enterprise Traffic Mix | |
| IPS Throughput | 1.4 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 900 Mbps |
| System Performance and Capacity | |
| Firewall Throughput (1518/512/64 byte UDP) | 10 / 10 / 7 Gbps |
| Firewall Latency (64 byte UDP) | 3.23 μs |
| New Sessions/Second (TCP) | 45,000 |
| Concurrent Sessions (TCP) | 1.5 Million |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| SSL-VPN Throughput | 950 Mbps |
| Concurrent SSL-VPN Users (Tunnel Mode) | 200 |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 24 |
| Hardware & Interfaces | |
| GE RJ45 PoE/+ Ports (Total) | 8 (6 Internal + 2 FortiLink) |
| GE RJ45/SFP Shared Media Pairs | 2 |
| USB Ports 3.0 | 1 |
| Console Port (RJ45) | 1 |
| Environment & Power | |
| Power Consumption (Average / Maximum) | 98 W / 137 W |
| Heat Dissipation | 467.5 BTU/h |
| Storage Temperature | -35°C to 70°C (-31°F to 158°F) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | 31.56 dBA |
| Operating Altitude | Up to 2250 m (7400 ft) |
[/specifications]
[accesories]
| Included Accessories | External DC Power Adapter (1 adapter included) |
| Optional Accessories |
|
[/accesories]
The FortiGate 81F-POE-BDL-950-36 is a desktop firewall designed for distributed sites that need integrated PoE connectivity and onboard storage. With 8 GE RJ45 PoE/+ ports and a 96W total PoE power budget, it can power compatible edge devices directly from the appliance while providing 128GB of onboard SSD storage.
This firewall runs on FortiOS with integrated SD-WAN capabilities and delivers up to 10 / 10 / 7 Gbps firewall throughput (1518/512/64 byte UDP), 1.4 Gbps IPS throughput, and 6.5 Gbps IPsec VPN throughput (512 byte). This bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 3 years.
Secure Networking Power and Visibility with 96W PoE+ and 128GB SSD
Key Benefits
- Integrated Power Delivery: Features 8x GE PoE/+ ports with a 96W total power budget for powering compatible edge devices.
- Onboard Storage Included: Includes 128GB SSD onboard storage.
- Bundle + Support Included: FortiCare Premium and FortiGuard Unified Threat Protection (UTP) coverage included for 3 years.
- ASIC-Accelerated Performance: Delivers up to 10 / 10 / 7 Gbps firewall throughput and 1.4 Gbps IPS throughput with low latency.
- Converged Security Fabric: Supports up to 96 FortiAPs (total) and up to 24 FortiSwitches.
- Resilient Power Option: Input rated at +54V DC, 3A with dual redundancy optional.
- Optimal Network Latency: Firewall latency rated at 3.23 μs (64 byte UDP).
Ideal Use Cases
- Secure Branch Deployments: Firewall and SD-WAN for distributed enterprise and branch locations.
- PoE-Enabled Edge Connectivity: Power compatible access points, IP phones, and cameras using built-in PoE/+ ports.
- Distributed Enterprises: Sites requiring strong VPN and threat inspection performance for consistent user experience.
- Secure Remote Work Hubs: Deployments supporting up to 2,500 Client-to-Gateway IPsec VPN Tunnels.
Technical Specifications Summary
- IPS Throughput: 1.4 Gbps
- NGFW Throughput: 1 Gbps
- Threat Protection Throughput: 900 Mbps
- Firewall Throughput (IPv4, 1518/512/64 byte UDP): 10 / 10 / 7 Gbps
- VPN Throughput: 6.5 Gbps (IPsec, 512 byte)
- SSL-VPN Throughput: 950 Mbps
- Concurrent Sessions (TCP): 1.5 Million
- Total PoE Power Budget: 96 W (max 30 W per PoE/+ port)
- Power Consumption (Average / Maximum): 98 W / 137 W
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Dimensions (H x W x L): 60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches)
- Weight: 1.4 kg (3.1 lbs)
Upgrade Your Network Security
Streamline your branch operations with the high-performance, consolidated FortiGate 81F-POE-BDL-950-36.
