[properties]

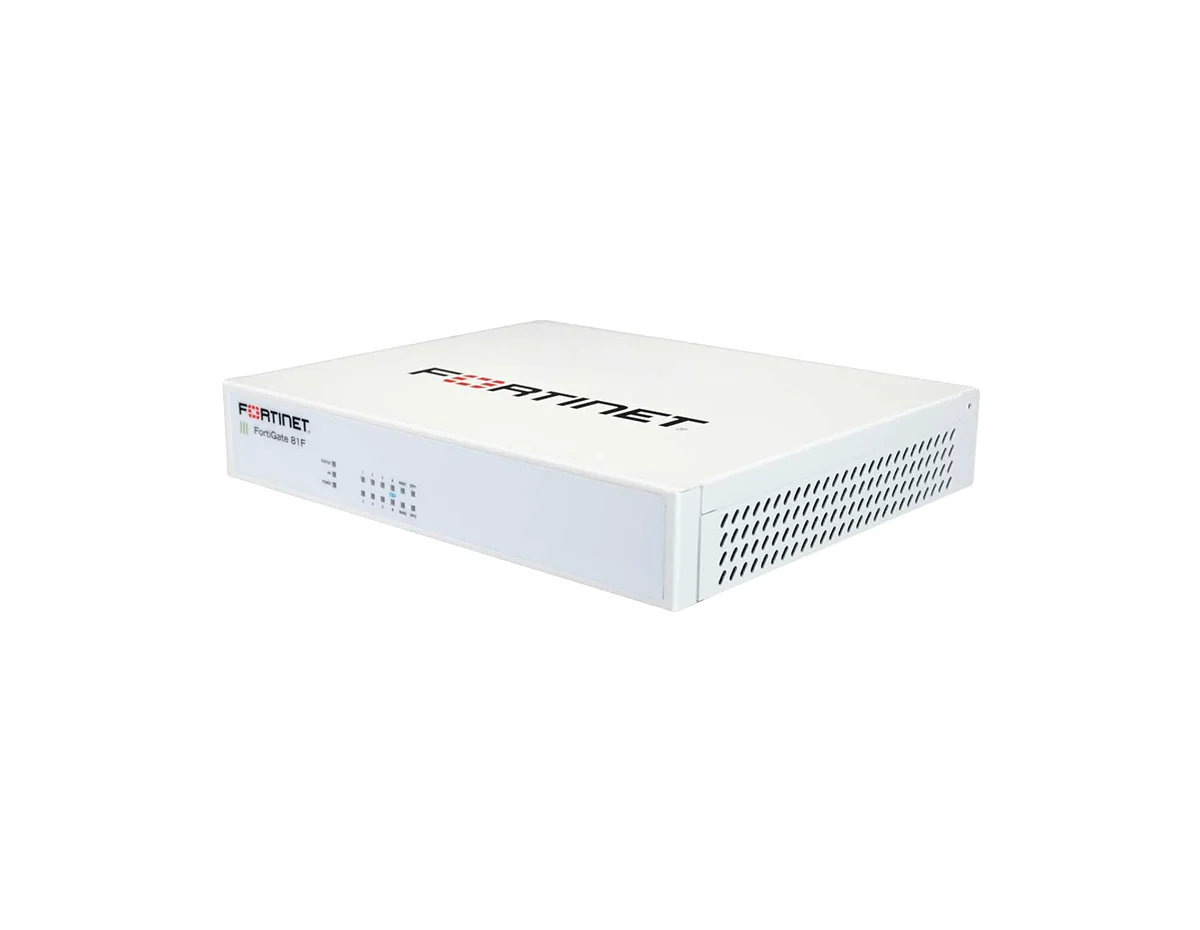

Properties	FG-81F-BDL-950-12
Description	8 x GE RJ45 ports, 2 x RJ45/SFP shared media WAN ports, 128GB onboard storage
Product Family	Early Level Firewalls
Product Type	Firewall
GE RJ45 Internal Ports	6
GE RJ45 FortiLink Ports (Default)	2
GE RJ45/SFP Shared Media Pairs	2
GE RJ45 PoE/+ Port	-
USB Port	1
Console (RJ45)	1
Wireless Interface	0
Internal Storage	1x 128 GB SSD
Dimensions in.	1.65 x 8.5 x 7
Form Factor	Desktop/ Wall Mount/ Rack Tray
Power Required	Powered by up to 2 External DC Power Adapters (1 adapter included), 100–240V AC, 50/60 Hz
Maximum Current	115VAC/0.4A, 230VAC/0.2A
Power Consumption (Average / Maximum)	13.5 W / 16.5 W
Bundle	24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
Bundle Duration	1 Years

[/properties][specifications]

Firewall Throughput (1518 / 512 / 64 byte, UDP)	10 / 10 / 7 Gbps
Firewall Latency (64 byte UDP packets)	3.23 μs
Firewall Throughput (Packets Per Second)	10.5 Mpps
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Second (TCP)	45,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte packets)	6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	2500
SSL-VPN Throughput	950 Mbps
Concurrent SSL-VPN Users (Recommended Maximum)	200
IPS Throughput	1.4 Gbps
SSL Inspection Throughput	715 Mbps
Application Control Throughput	1.8 Gbps
NGFW Throughput	1 Gbps
Threat Protection Throughput	900 Mbps
CAPWAP Throughput	9 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	16
Maximum Number of FortiAPs (Total / Tunnel Mode)	96 / 48
Maximum Number of FortiTokens	500
Maximum Number of Registered FortiClients	-
High Availability Configurations	Active/Active, Active/Passive, Clustering
Operating Temperature	32–104°F (0–40°C)
Regulatory Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications][accesories]

SP-FG60E-PDC-5	Pack of 5 AC power adaptors for FG/FWF 60E/61E, 60F/61F, 80E/81E and 80F/81F
SP-FWF80F-PDC-5	Pack of 5 AC power adaptors for FWF-80/81F-2R, power cable SP-FG60CPCOR-XX sold separately
SP-RACKTRAY-02	Rack mount tray for all FortiGate E series and F series desktop models.
SP-FG60F-MOUNT-20	Pack of 20 wall mount kits for FG/FWF-40F series, FG/FWF-60F series, FG-80F, FG-81F and FG-80F-Bypass

[/accesories]

8 x GE RJ45 ports, 2 x RJ45/SFP shared media WAN ports, 128GB SSD, Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 1Yr Bundle, 24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web Filtering and Antispam Service) plus term of contract
