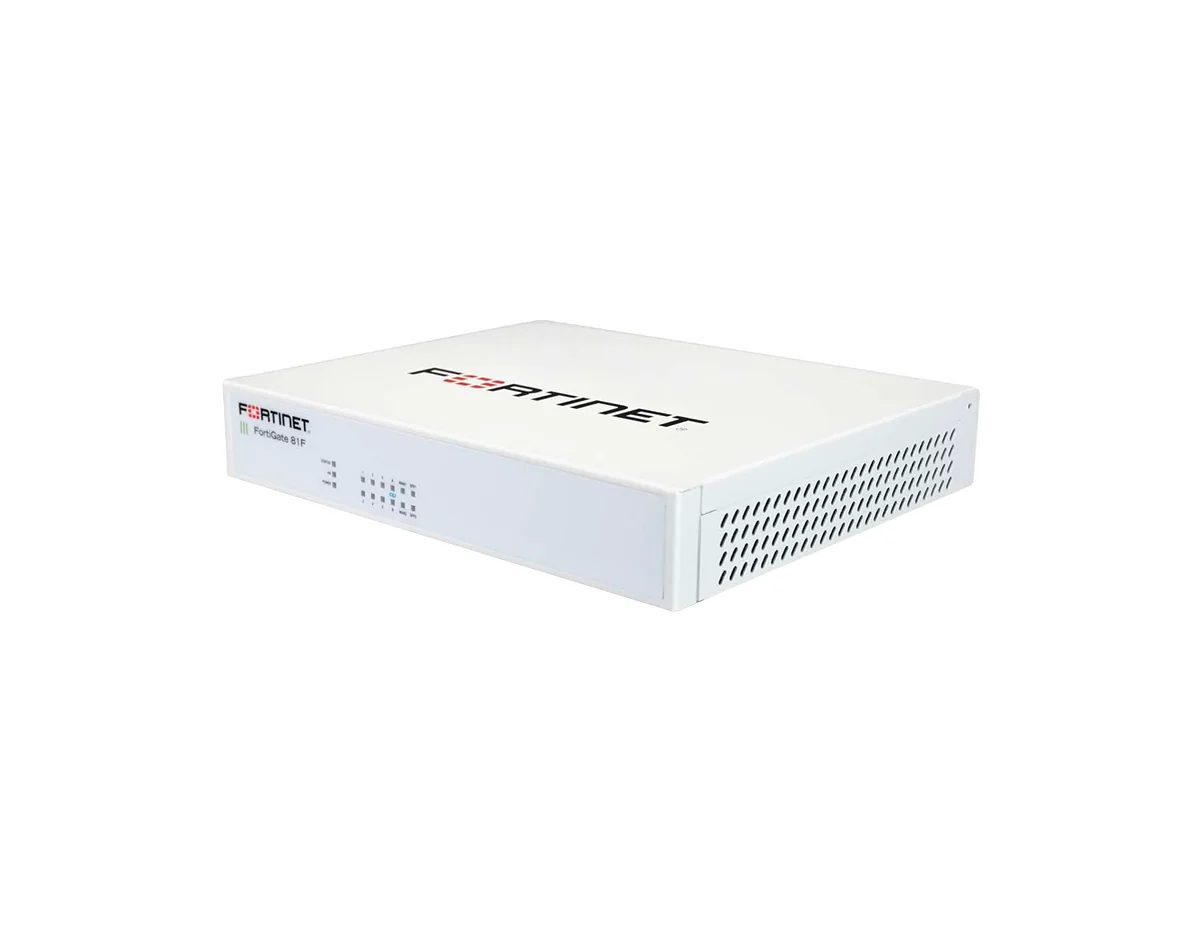

Fortinet FortiGate 81F Next-Generation Firewall
[shortdesc]10 Gbps firewall throughput, secure SD-WAN, 8x GE RJ45 ports, dual RJ45/SFP WAN, 128GB SSD storage [/shortdesc]
[properties]
| Model | Fortinet FortiGate 81F |
| SKU | FG-81F |
| Product Type | Next Generation Firewall |
| Form Factor | Desktop / Wall Mount / Rack Tray |
| Operating System | FortiOS |
| Processor | FortiASIC SoC4 |
| Internal Storage | 1 x 128 GB SSD |
| Firewall Throughput | 10 Gbps (1518 byte UDP) |
| IPS Throughput | 1.4 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 900 Mbps |
| Interfaces | 8 x GE RJ45 ports, 2 x GE RJ45/SFP shared media ports |
| USB Ports | 1 x USB 3.0 Type-A |
| Console Port | RJ45 |
| Power Consumption | 13.5 W (average), 16.5 W (maximum) |
| Cooling | Fanless |
| Dimensions (H x W x D) | 40 x 216 x 178 mm (1.6 x 8.5 x 7.0 in) |
| Weight | 1.1 kg (2.4 lbs) |
| Operating Temperature | 0 C to 40 C (32 F to 104 F) |
| Storage Temperature | -35 C to 70 C (-31 F to 158 F) |
| Certifications | FCC, CE, ICES, RCM, VCCI, BSMI, UL/cUL, CB, USGv6/IPv6 |
[/properties]
[specifications]
| Firewall Throughput (UDP) | 10 / 10 / 7 Gbps (1518 / 512 / 64 byte) |
| Firewall Latency | 3.23 microseconds (64 byte UDP) |
| Firewall Throughput (Packets) | 10.5 Mpps |
| Concurrent Sessions | 1.5 million |
| New Sessions per Second | 45,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput | 6.5 Gbps (512-byte packets) |
| Gateway-to-Gateway VPN Tunnels | 200 |
| Client-to-Gateway VPN Tunnels | 2,500 |
| SSL-VPN Throughput | 950 Mbps |
| Concurrent SSL-VPN Users | 200 (recommended maximum) |
| SSL Inspection Throughput | 715 Mbps |
| SSL Inspection Concurrent Sessions | 100,000 |
| Application Control Throughput | 1.8 Gbps |
| CAPWAP Throughput | 9 Gbps |
| Virtual Domains (VDOMs) | 10 (default / maximum) |
| Maximum FortiAPs Supported | 96 total / 48 tunnel mode |
| Maximum FortiSwitches Supported | 24 |
| High Availability | Active-Active, Active-Passive, Clustering |
[/specifications]
[accesories]
| Included | FortiGate 81F appliance; External power adapter; Documentation |
| Optional | SP-RACKTRAY-02 rack mount tray; Wall mount kit; SFP transceiver modules |
[/accesories]
Enterprise Branch Security with Integrated Secure SD-WAN
The Fortinet FortiGate 81F is a next-generation firewall designed for enterprise branch offices and mid-sized businesses that require high-performance security and simplified WAN connectivity. Powered by Fortinet purpose-built SPU architecture and FortiOS, the FortiGate 81F delivers advanced threat protection, deep SSL inspection, and secure SD-WAN in a compact, fanless desktop appliance.
With integrated storage and high session capacity, the FortiGate 81F enables consistent security enforcement across applications, users, and locations while maintaining ultra-low latency and operational efficiency.
Key Benefits and Features
- High-Performance NGFW: Delivers up to 10 Gbps firewall throughput and 900 Mbps threat protection to secure modern encrypted traffic without bottlenecks.
- Integrated Secure SD-WAN: Optimizes application performance across multiple WAN links with intelligent traffic steering and built-in security.
- Advanced Threat Protection: Supports IPS, application control, malware protection, and SSL inspection with real-time FortiGuard intelligence.
- Purpose-Built Security Processor: Fortinet SPU acceleration ensures low latency and consistent performance under heavy inspection workloads.
- Compact Fanless Design: Desktop form factor with silent operation, ideal for branch offices and space-constrained environments.
Ideal Use Cases
- Enterprise branch office perimeter security
- Secure SD-WAN deployments with multiple WAN links
- Mid-sized business network protection
- Encrypted traffic inspection and application control
- Distributed environments requiring centralized security policies
Technical Specifications
- Firewall Throughput: Up to 10 Gbps
- Threat Protection Throughput: Up to 900 Mbps
- NGFW Throughput: Up to 1 Gbps
- SSL Inspection Throughput: Up to 715 Mbps
- Interfaces: 8x GE RJ45 ports, 2x GE RJ45/SFP shared WAN ports
- Internal Storage: 128 GB SSD
- Concurrent Sessions: Up to 1.5 million
- VPN Performance: Up to 6.5 Gbps IPsec VPN throughput
- Form Factor: Desktop, fanless
Secure Your Branch Without Compromise
Deploy the Fortinet FortiGate 81F today to achieve high-performance security, integrated SD-WAN, and enterprise-grade protection in a compact platform.
