[shortdesc] Firewall, integrated DSL RJ11, 10/10/7 Gbps throughput, 2x GE RJ45/SFP shared media, including 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]

[properties]

Model / SKU	FortiGate / FG-80F-DSL-BDL-950-60
Bundle / Subscription	Firewall plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (5-Year Contract)
Form Factor	Desktop / Wall Mount (Optional)
Integrated Modem	DSL (VDSL2 / ADSL2 / ADSL2+ / G.DMT / T1.413 / G.Lite)
Firewall Throughput	10 / 10 / 7 Gbps (1518 / 512 / 64 byte, UDP)
NGFW Throughput	1 Gbps
Threat Protection Throughput	900 Mbps
Interfaces	1x DSL RJ11, 2x GE RJ45/SFP Shared Media, 6x GE RJ45 Ports, 2x GE RJ45 FortiLink Ports (Default)
Power Input	12V DC, 5A
Dimensions (H x W x L)	60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches)
Weight	1.39 kg (3.07 lbs)
Certifications	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, USGv6/IPv6

[/properties]

[specifications]

System Performance — Enterprise Traffic Mix
IPS Throughput	1.4 Gbps
System Performance and Capacity
Firewall Latency (64 byte UDP)	3.23 μs
Firewall Throughput (Packets Per Second)	10.5 Mpps
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Second (TCP)	45,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	2,500
SSL-VPN Throughput	950 Mbps
Concurrent SSL-VPN Users (Tunnel Mode)	200
SSL Inspection Throughput (IPS, avg. HTTPS)	715 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)	700
SSL Inspection Concurrent Sessions	100,000
Application Control Throughput (HTTP 64K)	1.8 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	24
Maximum Number of FortiAPs (Total / Tunnel)	96 / 48
Maximum Number of FortiTokens	500
Hardware & Interfaces
DSL RJ11 Port	1
GE RJ45/SFP Shared Media Pairs	2
GE RJ45 Internal Ports	6
GE RJ45 FortiLink Ports (Default)	2
USB Ports	1
Console Port (RJ45)	1
Bluetooth Low Energy (BLE)	—
DSL Modem Specifications
Supported Types	Annex A, B, I, J, M & L
Environment & Power
Power Required	Powered by up to 2 External DC Power Adapters (1 adapter included), 100-240V AC, 50/60 Hz
Power Consumption (Average / Maximum)	28.0 W / 31.6 W
Heat Dissipation	108 BTU/h
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	24.14 dBA
Operating Altitude	Up to 7400 ft (2250 m)

[/specifications]

[accesories]

Included Accessories	External DC Power Adapter (1 adapter included)
Optional Accessories	AC Power Adapter (SP-FWF80F-PDC-5) (Power cable SP-FGPCOR-XX sold separately) Rack Mount Tray (SP-RACKTRAY-02) Wall Mount Kit (SP-FG60F-MOUNT-20) 1 GE SFP RJ45 Transceiver Module (FN-TRAN-GC) 1 GE SFP SX Transceiver Module (FN-TRAN-SX) 1 GE SFP LX Transceiver Module (FN-TRAN-LX) 1GE SFP Transceiver, 90km Range, -40°/85°C Operation (FR-TRAN-ZX)

[/accesories]

The FortiGate 80F-DSL-BDL-950-60 integrates broadband connectivity directly into the security appliance, offering an all-in-one solution for branch offices and distributed sites relying on DSL connectivity. By incorporating a VDSL2/ADSL2+ DSL modem via a dedicated RJ11 port, this model removes the complexity and single points of failure associated with external modems. This consolidation allows businesses to leverage low-cost broadband lines for primary connectivity or backup WAN links while maintaining enterprise-grade security controls through the Fortinet Security Fabric.

This bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 5 years, aligning deployment with ongoing security updates and support coverage. The FG-80F-DSL platform delivers up to 10 / 10 / 7 Gbps of firewall throughput (1518 / 512 / 64 byte UDP) and 1.4 Gbps of IPS performance, helping keep secure connectivity from becoming a bottleneck while enabling advanced SD-WAN capabilities.

Integrated DSL Connectivity with Converged Security

Key Benefits

• Integrated DSL Modem: Built-in RJ11 WAN port supports VDSL2, ADSL2+, and legacy standards (Annex A/B/I/J/M/L) for direct broadband connection.
• Bundle + Support Included: FortiCare Premium and FortiGuard Unified Threat Protection (UTP) coverage included for 5 years.
• ASIC-Accelerated Performance: Built on the SP4 ASIC to deliver industry-leading firewall and SD-WAN performance.
• Consolidated Footprint: Reduces equipment clutter and power consumption by combining the modem, router, and firewall into a single device.
• Secure SD-WAN: Enables secure direct internet access with SSL inspection and application-aware routing.
• High Port Density: Features 6 internal GE RJ45 ports and 2 Shared Media ports in addition to the DSL interface for flexible LAN/WAN connectivity.
• Unified Management: Simplifies deployment and monitoring via FortiManager and FortiGate Cloud.

Ideal Use Cases

• Retail Locations: Consolidate point-of-sale security and broadband connectivity in a single compact device.
• Remote Branch Offices: Utilize DSL lines for cost-effective primary or backup WAN connectivity with full firewall protection.
• Managed Service Providers (MSPs): Deploy a unified customer premise equipment (CPE) solution that reduces on-site visits and simplifies troubleshooting.

Technical Specifications Summary

• IPS Throughput (Enterprise Traffic Mix): 1.4 Gbps
• NGFW Throughput (Enterprise Traffic Mix): 1 Gbps
• Threat Protection Throughput (Enterprise Traffic Mix): 900 Mbps
• IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 10 / 10 / 7 Gbps
• Firewall Latency (64 byte UDP): 3.23 μs
• Concurrent Sessions / New Sessions per Second (TCP): 1.5 Million / 45,000
• IPsec VPN Throughput (512 byte): 6.5 Gbps (200 gateway-to-gateway tunnels, 2,500 client-to-gateway tunnels)
• SSL-VPN Throughput / Concurrent Users (Tunnel Mode): 950 Mbps / 200
• SSL Inspection (IPS, avg. HTTPS): 715 Mbps (CPS: 700, Concurrent Sessions: 100,000)

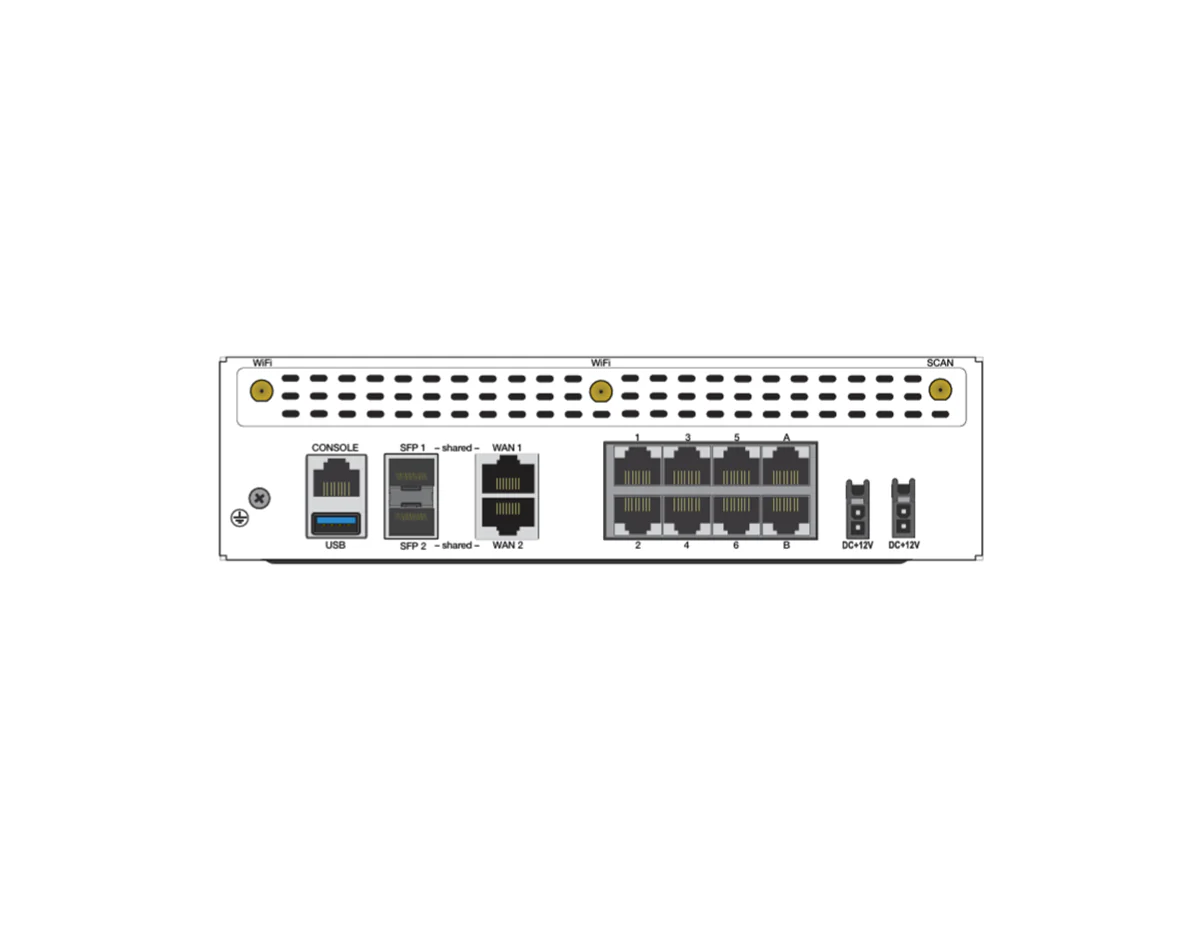

• Interface Mix: 1x DSL RJ11, 2x GE RJ45/SFP shared media pairs, 6x GE RJ45 internal ports, 2x GE RJ45 FortiLink ports, 1x USB, 1x RJ45 console
• Power, Acoustics, and Thermal: 28.0 W / 31.6 W avg/max, 108 BTU/h, 24.14 dBA
• Physical and Operating Range: 60 x 216 x 178 mm, 1.39 kg, 0°C to 40°C operating, 10% to 90% non-condensing humidity, up to 2250 m altitude

Upgrade Your Network Security

Simplify your branch network with the integrated DSL capabilities of the FortiGate 80F-DSL-BDL-950-60 and included 5-year UTP bundle.
