[shortdesc] Firewall, desktop DSL RJ11 (VDSL2/ADSL2+), 10/10/7 Gbps IPv4 firewall, 1 Gbps NGFW, including 3 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]

[properties]

Model / SKU	FortiGate / FG-80F-DSL-BDL-809-36
Bundle / Subscription	Firewall appliance plus 3 Year FortiCare Premium and FortiGuard Enterprise Protection (BDL-809-36)
Form Factor	Desktop / Wall Mount (Optional)
Integrated Modem	DSL (VDSL2 / ADSL2 / ADSL2+ / G.DMT / T1.413 / G.Lite)
Firewall Throughput	10 / 10 / 7 Gbps (1518 / 512 / 64 byte, UDP)
NGFW Throughput	1 Gbps
Threat Protection Throughput	900 Mbps
Interfaces	1x DSL RJ11, 2x GE RJ45/SFP Shared Media, 6x GE RJ45 Ports, 2x GE RJ45 FortiLink Ports (Default)
Power Input	12V DC, 5A
Dimensions (H x W x L)	60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches)
Weight	1.39 kg (3.07 lbs)
Certifications	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, USGv6/IPv6

[/properties]

[specifications]

System Performance — Enterprise Traffic Mix
IPS Throughput	1.4 Gbps
System Performance and Capacity
Firewall Latency (64 byte UDP)	3.23 μs
Firewall Throughput (Packets Per Second)	10.5 Mpps
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Second (TCP)	45,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	2,500
SSL-VPN Throughput	950 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	200
SSL Inspection Throughput (IPS, avg. HTTPS)	715 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)	700
SSL Inspection Concurrent Sessions	100,000
Application Control Throughput (HTTP 64K)	1.8 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	24
Maximum Number of FortiAPs (Total / Tunnel)	96 / 48
Maximum Number of FortiTokens	500
Hardware & Interfaces
DSL RJ11 Port	1
GE RJ45/SFP Shared Media Pairs	2
GE RJ45 Internal Ports	6
GE RJ45 FortiLink Ports (Default)	2
USB Ports	1
Console Port (RJ45)	1
Bluetooth Low Energy (BLE)	—
DSL Modem Specifications
Supported Modes	VDSL2, ADSL2, ADSL2+, G.DMT, T1.413, G.Lite
Supported Types	Annex A, B, I, J, M & L
Environment & Power
Power Required	Powered by up to two external DC power adapters (one adapter included), 100-240V AC, 50/60 Hz
Power Consumption (Average / Maximum)	28.0 W / 31.6 W
Heat Dissipation	108 BTU/h
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	24.14 dBA
Operating Altitude	Up to 7400 ft (2250 m)

[/specifications]

[accesories]

Included Accessories	External DC Power Adapter (1 adapter included)
Optional Accessories	AC Power Adaptor, pack of 5 (SP-FWF80F-PDC-5) (Power cable SP-FGPCOR-XX sold separately) Rack Mount Tray (SP-RACKTRAY-02) Wall Mount Kit, pack of 20 (SP-FG60F-MOUNT-20) 1 GE SFP RJ45 Transceiver Module (FN-TRAN-GC) 1 GE SFP SX Transceiver Module (FN-TRAN-SX) 1 GE SFP LX Transceiver Module (FN-TRAN-LX) 1GE SFP Transceiver, 90km Range, -40°/85°C Operation (FR-TRAN-ZX)

[/accesories]

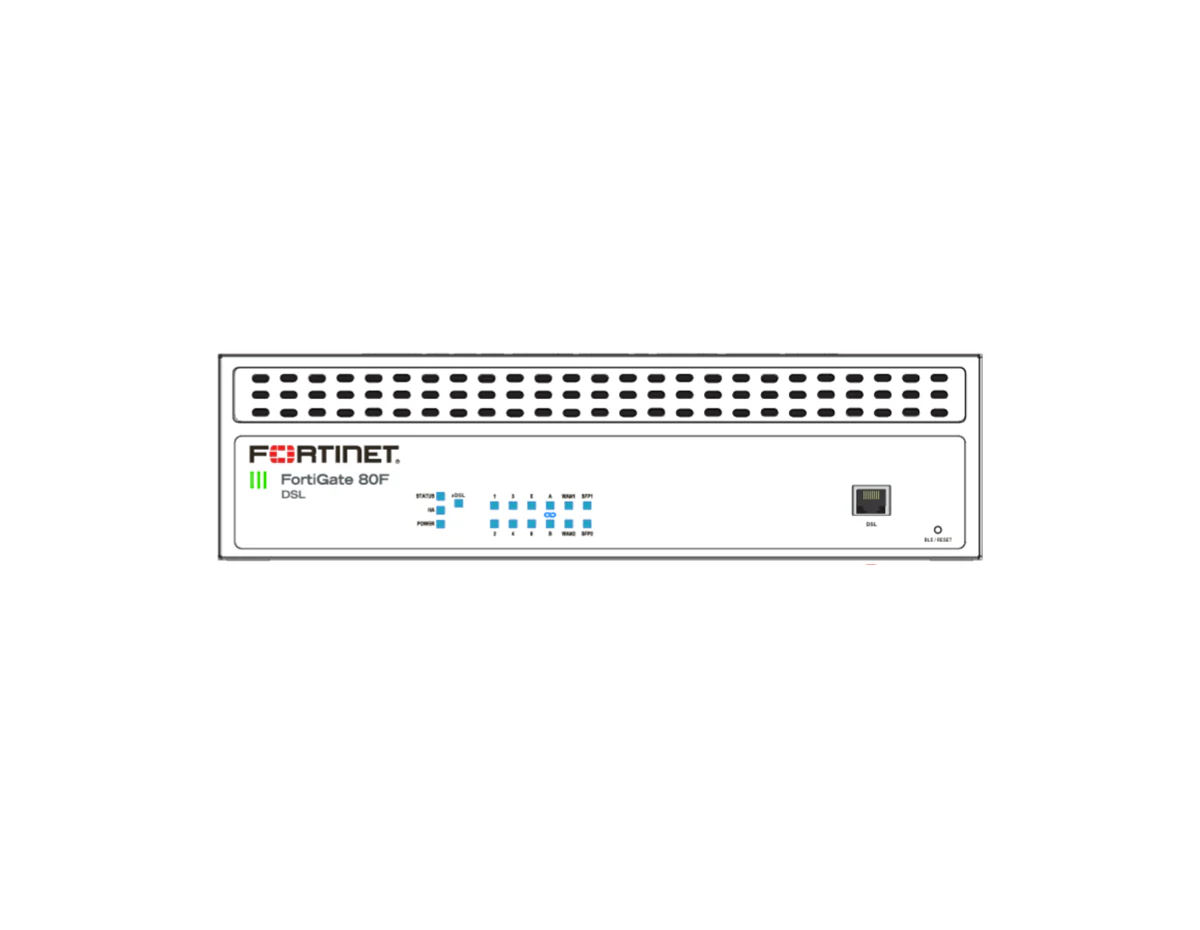

The FortiGate 80F-DSL-BDL-809-36 integrates firewalling, SD-WAN, and security in one appliance for distributed enterprise sites, featuring an embedded DSL module with a dedicated RJ11 port supporting VDSL2, ADSL2, ADSL2+, and legacy DSL standards.

This bundle includes 3 Year FortiCare Premium and FortiGuard Enterprise Protection. The FG-80F-DSL platform delivers up to 10 / 10 / 7 Gbps IPv4 firewall throughput (1518 / 512 / 64 byte UDP) and up to 1.4 Gbps IPS throughput, supporting secure connectivity and SD-WAN deployment at branch locations.

Integrated DSL Connectivity with Converged Security

Key Benefits

• Integrated DSL Connectivity: 1x DSL RJ11 port supports VDSL2, ADSL2, ADSL2+, G.DMT, T1.413, and G.Lite; supported types include Annex A, B, I, J, M & L.
• Bundle + Coverage Included: Includes 3 Year FortiCare Premium and FortiGuard Enterprise Protection (BDL-809-36).
• ASIC-Accelerated Architecture: Built on the secure SD-WAN ASIC SP4 for accelerated networking and security functions.
• Converged Networking and Security: FortiOS converges networking and security in a single operating system for unified protection and operations.
• Secure SD-WAN Capabilities: Integrated SD-WAN with accelerated application identification and steering for efficient WAN edge operation.

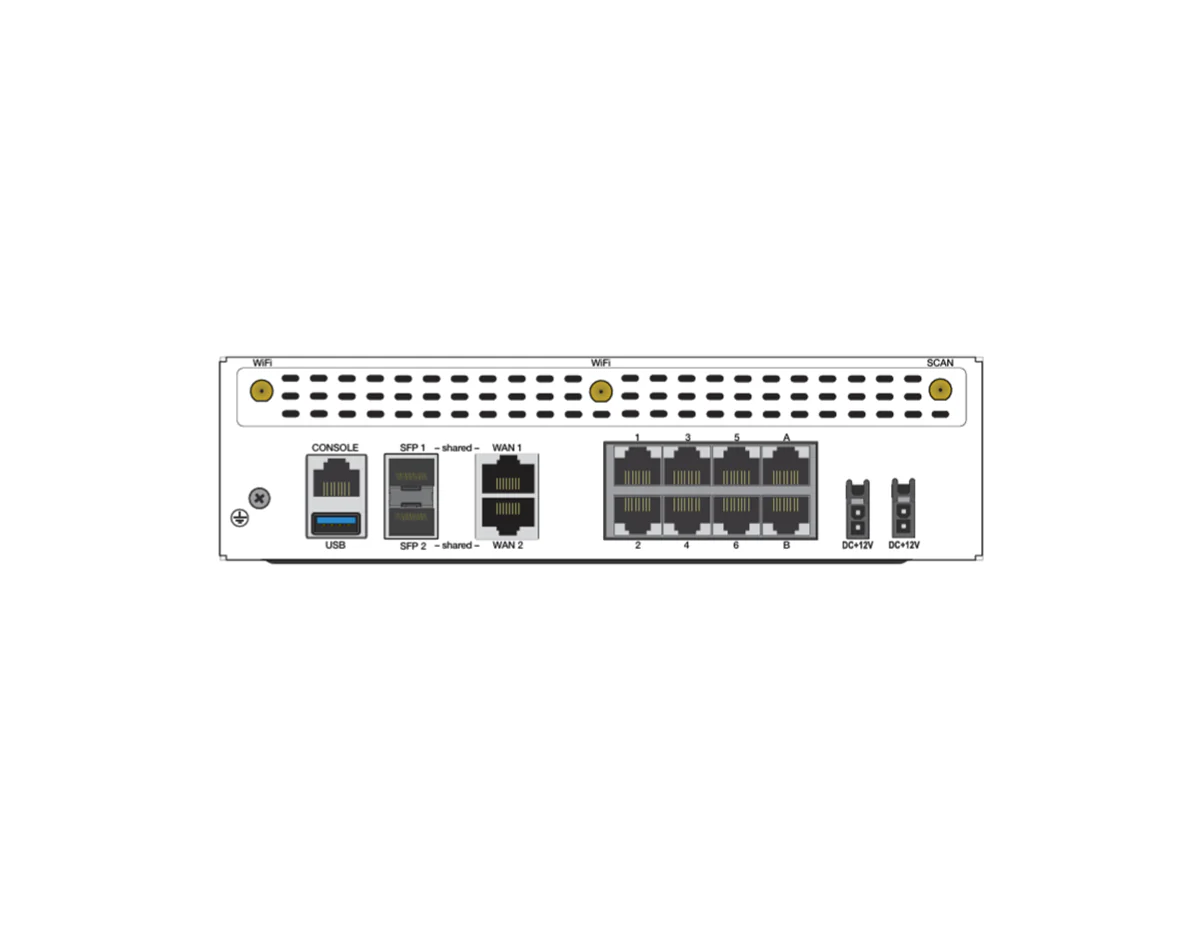

• Flexible Interfaces: 2x GE RJ45/SFP shared media ports, 6x GE RJ45 ports, and 2x GE RJ45 FortiLink ports (default), plus 1x USB and 1x RJ45 console.
• Centralized Management Options: Supports centralized management and visibility using FortiManager and FortiGate Cloud.

Ideal Use Cases

• Perimeter Protection: Inspect and control inbound and outbound traffic based on defined security policies.
• Secure SD-WAN WAN Edge: Consolidate SD-WAN and firewall functions with unified management from a single FortiOS operating system.
• Secure Branch Deployments: Extend protection across WAN, LAN, and branch connectivity with support for FortiSwitch and FortiAP integration.

Technical Specifications Summary

• IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 10 / 10 / 7 Gbps
• IPS Throughput (Enterprise Traffic Mix): 1.4 Gbps
• NGFW Throughput (Enterprise Traffic Mix): 1 Gbps
• Threat Protection Throughput (Enterprise Traffic Mix): 900 Mbps
• IPsec VPN Throughput (512 byte): 6.5 Gbps
• SSL-VPN Throughput: 950 Mbps
• Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 200
• SSL Inspection Throughput (IPS, avg. HTTPS): 715 Mbps; SSL Inspection CPS: 700; SSL Inspection Concurrent Sessions: 100,000
• Concurrent Sessions (TCP): 1.5 Million; New Sessions/Second (TCP): 45,000
• Interfaces: 1x DSL RJ11, 2x GE RJ45/SFP shared media pairs, 6x GE RJ45 ports, 2x GE RJ45 FortiLink ports (default), 1x USB, 1x RJ45 console
• Power & Physical: 12V DC, 5A; 28.0 W average / 31.6 W maximum; 60 x 216 x 178 mm; 1.39 kg
• Operating Environment: 0°C to 40°C operating, -35°C to 70°C storage, 10% to 90% non-condensing humidity; 24.14 dBA noise level

Upgrade Your Network Security

Simplify branch connectivity with the FortiGate 80F-DSL-BDL-809-36 Firewall, combining integrated DSL access with SD-WAN capabilities and included 3-year Enterprise Protection bundle coverage.
