[shortdesc] Firewall with embedded DSL (VDSL2/ADSL2+), 10 / 10 / 7 Gbps firewall, 8x GE RJ45, 2x GE RJ45/SFP shared, SD-WAN [/shortdesc]

[properties]

Model / SKU	FortiGate 80F-DSL / FG-80F-DSL
Form Factor	Desktop / Wall Mount (Optional)
Integrated Modem	DSL (VDSL2 / ADSL2 / ADSL2+ / G.DMT / T1.413 / G.Lite)
Firewall Throughput	10 / 10 / 7 Gbps (1518 / 512 / 64 byte, UDP)
NGFW Throughput	1 Gbps
Threat Protection Throughput	900 Mbps
Interfaces	1x DSL RJ11, 2x GE RJ45/SFP Shared Media, 6x GE RJ45 Ports, 2x GE RJ45 FortiLink Ports (Default)
Power Input	12V DC, 5A
Dimensions (H x W x L)	60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches)
Weight	1.39 kg (3.07 lbs)
Certifications	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, USGv6/IPv6

[/properties]

[specifications]

System Performance - Enterprise Traffic Mix
System Performance and Capacity
Firewall Latency (64 byte UDP)	3.23 μs
Firewall Throughput (Packets Per Second)	10.5 Mpps
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Second (TCP)	45,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	2,500
SSL-VPN Throughput	950 Mbps
Concurrent SSL-VPN Users (Tunnel Mode)	200
SSL Inspection Throughput (IPS, avg. HTTPS)	715 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)	700
SSL Inspection Concurrent Sessions	100,000
Application Control Throughput (HTTP 64K)	1.8 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	24
Maximum Number of FortiAPs (Total / Tunnel)	96 / 48
Maximum Number of FortiTokens	500

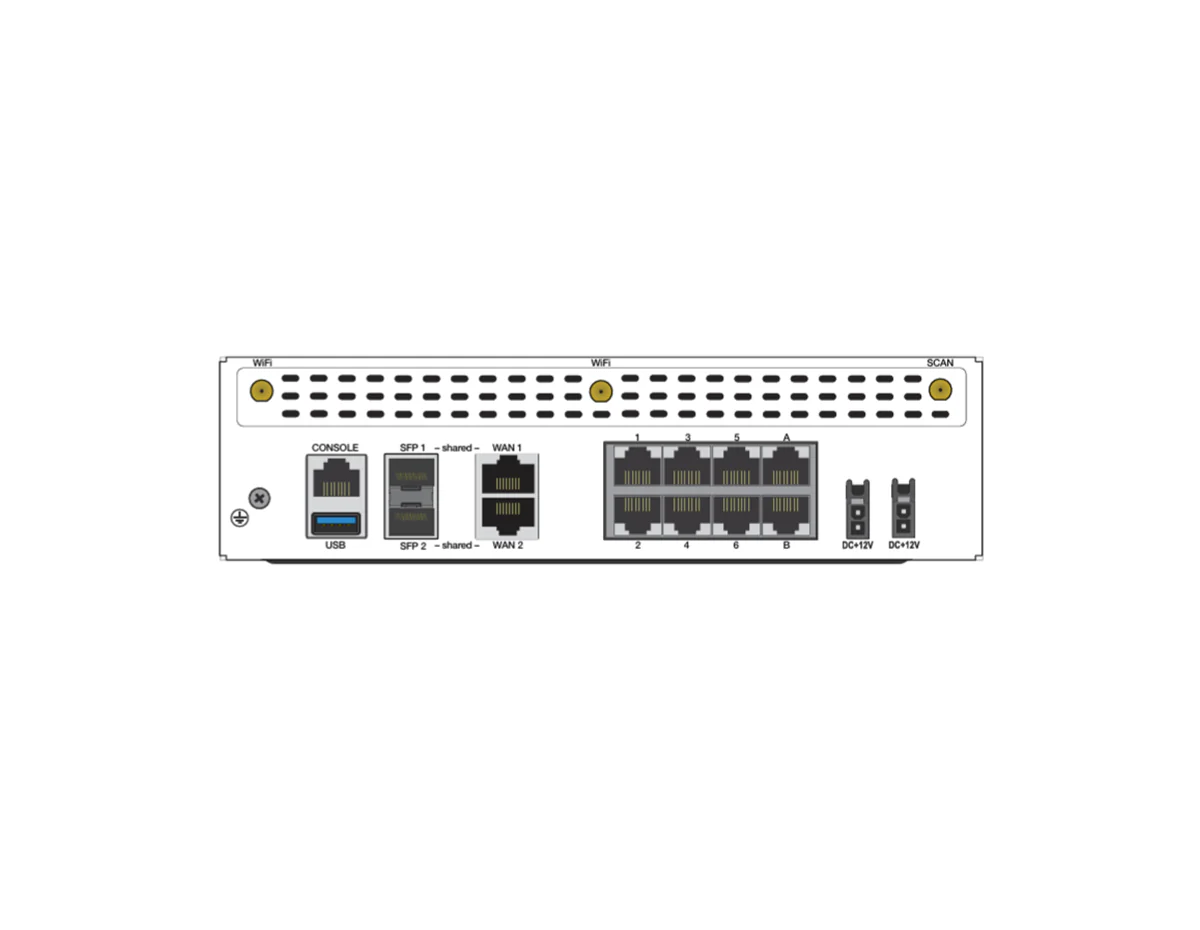

Hardware & Interfaces
DSL RJ11 Port	1
GE RJ45/SFP Shared Media Pairs	2
GE RJ45 Internal Ports	6
GE RJ45 FortiLink Ports (Default)	2
USB Ports	1
Console Port (RJ45)	1
Bluetooth Low Energy (BLE)	—
DSL Modem Specifications
Supported Modes	VDSL2, ADSL2, ADSL2+, G.DMT, T1.413, G.Lite
Supported Types	Annex A, B, I, J, M & L
Environment & Power
Power Required	Powered by up to 2 External DC Power Adapters (1 adapter included), 100-240V AC, 50/60 Hz
Power Consumption (Average / Maximum)	28.0 W / 31.6 W
Heat Dissipation	108 BTU/h
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	24.14 dBA
Operating Altitude	Up to 7400 ft (2250 m)

[/specifications]

[accesories]

Included Accessories

External DC Power Adapter (1 adapter included)

Optional Accessories

AC Power Adaptor (SP-FWF80F-PDC-5) Pack of 5 AC power adaptors (Power cable SP-FGPCOR-XX sold separately) Rack Mount Tray (SP-RACKTRAY-02) Wall Mount Kit (SP-FG60F-MOUNT-20) Pack of 20 wall mount kits 1 GE SFP RJ45 Transceiver Module (FN-TRAN-GC) 1 GE SFP SX Transceiver Module (FN-TRAN-SX) 1 GE SFP LX Transceiver Module (FN-TRAN-LX) 1GE SFP Transceiver, 90km Range, -40°/85°C Operation (FR-TRAN-ZX)

[/accesories]

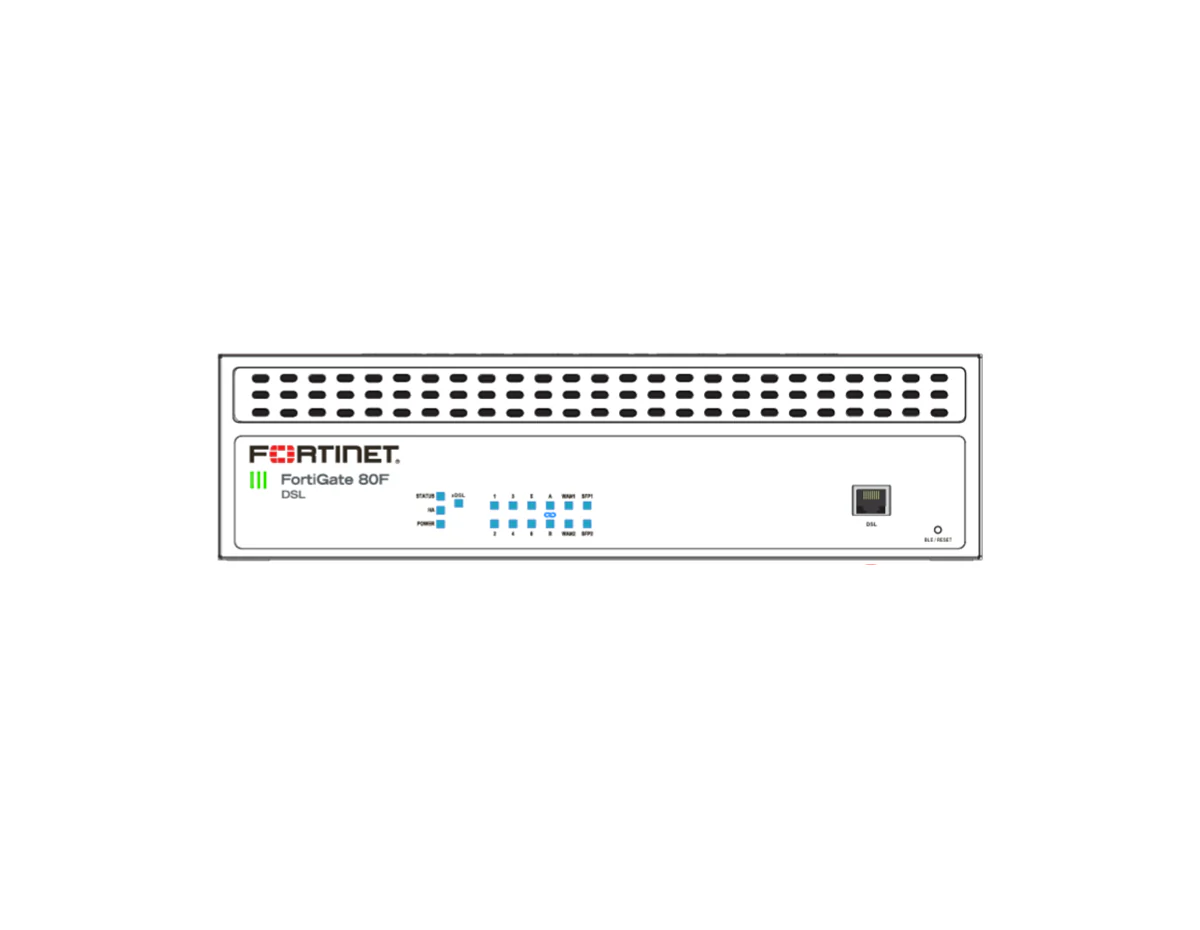

The FortiGate 80F-DSL integrates specialized broadband connectivity directly into the security appliance, offering a seamless all-in-one solution for branch offices and distributed enterprises relying on DSL connectivity. By incorporating a VDSL2/ADSL2+ DSL modem via a dedicated RJ11 port, this model removes the complexity and point-of-failure risks associated with external modems. This consolidation allows businesses to leverage low-cost broadband lines for primary connectivity or backup WAN links while maintaining enterprise-grade security controls through the Fortinet Security Fabric.

Despite its added modem capabilities, the FG-80F-DSL retains the high-performance architecture of the 80F series, driven by the patented SP4 SD-WAN ASIC. It provides up to 10 / 10 / 7 Gbps of firewall throughput (1518 / 512 / 64 byte UDP) and 1.4 Gbps of IPS performance, ensuring that secure connectivity does not compromise network speed. The device supports integrated SD-WAN capabilities, including application identification and steering, making it an ideal choice for hybrid WAN deployments requiring legacy DSL compatibility.

Integrated DSL Connectivity with Converged Security

Key Benefits

• Integrated DSL Modem: Built-in RJ11 WAN port supports VDSL2, ADSL2+, and legacy standards (Annex A/B/I/J/M/L) for direct broadband connection.
• ASIC-Accelerated Performance: Powered by the SP4 ASIC to deliver industry-leading firewall and SD-WAN performance.
• Consolidated Footprint: Combines modem, routing, and firewall functions into a single compact appliance.
• Secure SD-WAN: Supports deep SSL inspection and application identification and steering.
• High Port Density: Features 6 internal GE RJ45 ports and 2 FortiLink ports (default), plus 2 GE RJ45/SFP shared media ports and the DSL interface.
• Unified Management: Simplifies deployment and monitoring via FortiManager and FortiGate Cloud.

Ideal Use Cases

• Perimeter Protection: Apply security policies and inspect traffic for branch and distributed enterprise sites using DSL connectivity.
• Secure SD-WAN: Enable integrated SD-WAN at the WAN edge with consolidated networking and security.
• Secure Branch: Extend protection across WAN, LAN, and connected access infrastructure in branch locations.

Technical Specifications Summary

• IPS Throughput (Enterprise Traffic Mix): 1.4 Gbps
• NGFW Throughput (Enterprise Traffic Mix): 1 Gbps
• Threat Protection Throughput (Enterprise Traffic Mix): 900 Mbps
• IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 10 / 10 / 7 Gbps
• IPsec VPN Throughput (512 byte): 6.5 Gbps
• SSL-VPN Throughput: 950 Mbps (recommended maximum 200 concurrent users, tunnel mode)
• SSL Inspection Throughput (IPS, avg. HTTPS): 715 Mbps
• Concurrent Sessions (TCP): 1.5 Million
• New Sessions/Second (TCP): 45,000
• Interfaces: 1x DSL RJ11, 2x GE RJ45/SFP shared media pairs, 6x GE RJ45 internal ports, 2x GE RJ45 FortiLink ports (default)
• Power Consumption (Average / Maximum): 28.0 W / 31.6 W
• Dimensions and Operating Environment: 60 x 216 x 178 mm, 0°C to 40°C operating, -35°C to 70°C storage, 10% to 90% non-condensing humidity

Upgrade Your Network Security

Simplify your branch network with the integrated DSL capabilities of the FortiGate 80F-DSL.
