[shortdesc] Firewall, SD-WAN, 4x GE PoE/+ (60W), 64GB SSD, fanless desktop, including 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]

[properties]

Model / SKU	FortiGate 71G-POE / FG-71G-POE-BDL-950-60
Hardware Model	FG-71G-POE
Bundle Includes	FortiGate 71G-POE appliance + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (60 months)
Form Factor	Desktop (Fanless)
Internal Storage	64GB SSD
PoE Power Budget	60 W (Max 30 W per port, 802.3at)
Firewall Throughput	10 Gbps
NGFW Throughput	1.5 Gbps
Threat Protection Throughput	1.3 Gbps

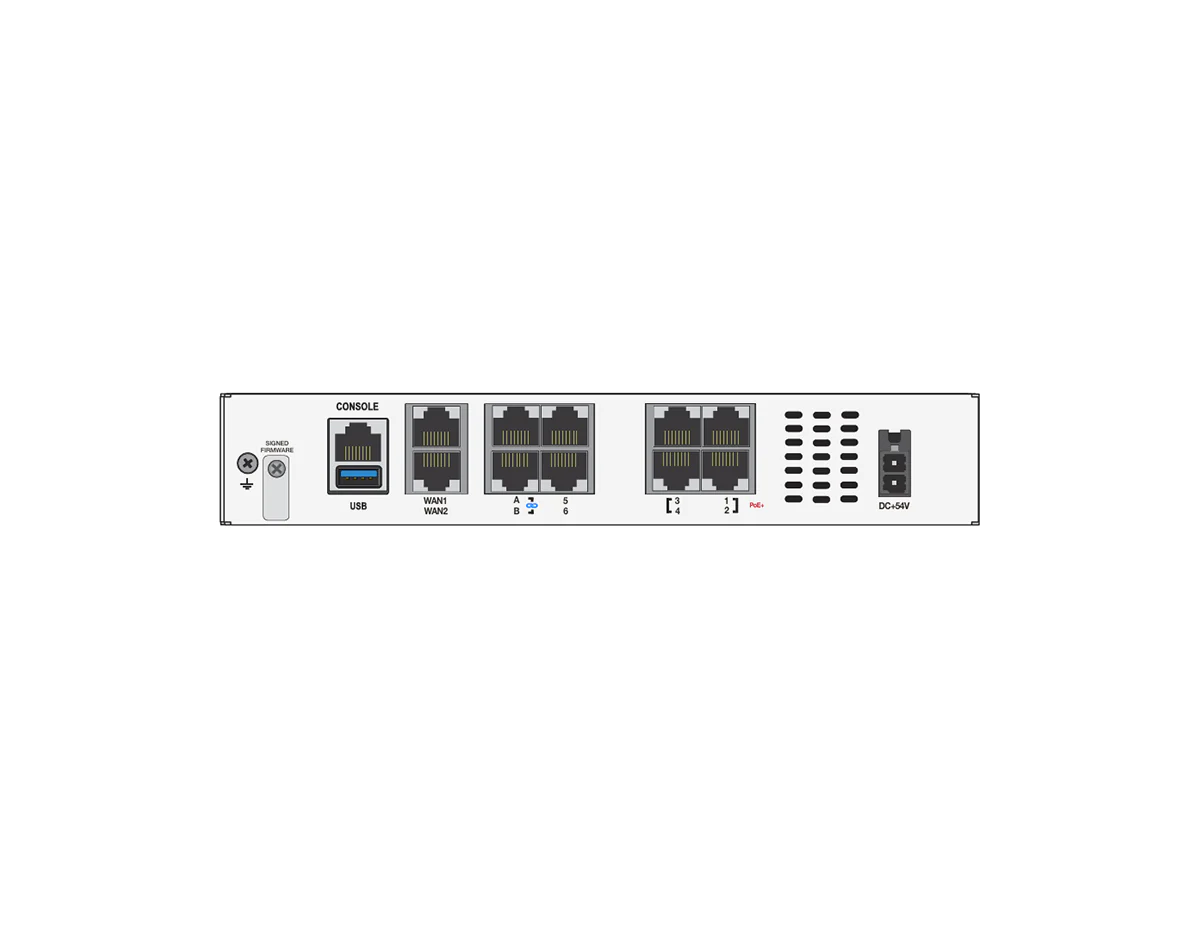

Interfaces	10x GE RJ45 Ports (2x WAN, 4x FortiLink with 2x FortiLink default, 4x PoE/+), 1x USB, 1x Console
Dimensions (H x W x L)	40.5 x 216 x 160 mm (1.6 x 8.5 x 6.3 inches)
Weight	0.993 kg (2.19 lbs)

[/properties]

[specifications]

System Performance - Enterprise Traffic Mix
IPS Throughput	2.5 Gbps
System Performance and Capacity
Firewall Throughput (1518/512/64 byte UDP)	10 / 10 / 10 Gbps
Firewall Latency (64 byte UDP)	2.46 µs
Firewall Throughput (Packets Per Second)	15 Mpps
Concurrent Sessions (TCP)	1.4 M
New Sessions/Second (TCP)	100,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	7.1 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	500
SSL Inspection Throughput (IPS, avg. HTTPS)	1.4 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	715
SSL Inspection Concurrent Sessions	140,000
Application Control Throughput (HTTP 64K)	3.6 Gbps
CAPWAP Throughput (HTTP 64K)	6.8 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	24
Maximum Number of FortiAPs (Total / Tunnel Mode)	96 / 48
Maximum Number of FortiTokens	500
High Availability Configurations	Active-Active, Active-Passive, Clustering
Hardware & Interfaces
GE WAN Ports	2
GE LAN Ports (2x FortiLink default)	4
GE RJ45 PoE/+ Ports	4
USB Port	1
Console Port (RJ45)	1
Trusted Platform Module (TPM)	Included
Environment & Power
Power Required	Powered by External DC Power Adapter, 100-240V AC, 50/60 Hz
Power Consumption (Average / Maximum)	76 W / 79 W
Heat Dissipation	269.39 BTU/hr
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	Fanless
Operating Altitude	Up to 10,000 ft (3048 m)
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

AC Power Adaptor (SP-FG50G-POE-PDC-5) - Pack of 5 (Power cable SP-FGPCOR-XX sold separately) Rack Mount Tray (SP-RACKTRAY-02)

[/accesories]

The FortiGate 71G-POE Bundle pairs enterprise-grade NGFW security and SD-WAN with integrated PoE power delivery in a silent, fanless desktop appliance. With 4x dedicated PoE/+ ports and a 60W total power budget, it can power wireless access points, VoIP phones, cameras, and IoT devices directly from the firewall—reducing equipment sprawl at branch sites.

Powered by Fortinet’s SP5 ASIC and running FortiOS, this bundle delivers high-performance inspection and threat prevention while enabling centralized operations through FortiManager and FortiGate Cloud. The built-in 64GB SSD supports local logging for improved visibility and operational resilience at the edge.

Secure, Powered, and Converged Networking for the Edge

Key Benefits

• Bundle Coverage: Includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 60 months.
• Integrated PoE/+ Support: 4x GE RJ45 PoE/+ ports with a 60W budget for downstream devices.
• Onboard SSD Storage: 64GB SSD for local logging and visibility.
• High-Performance Security: Up to 1.5 Gbps NGFW and 1.3 Gbps Threat Protection throughput.
• Fanless Reliability: Silent operation for office and retail environments.
• FortiOS & Centralized Management: Streamlined operations with FortiManager and FortiGate Cloud.

Ideal Use Cases

• Retail & Point of Sale: Power and secure edge devices with one compact appliance.
• Small Branch Offices: Converged security, SD-WAN, and PoE for simplified deployments.
• Secure Telework / Micro-Branches: Quiet, compact NGFW with local logging.

Technical Specifications Summary

• Firewall Throughput (1518/512/64 byte UDP): 10 / 10 / 10 Gbps
• IPS Throughput: 2.5 Gbps
• NGFW Throughput: 1.5 Gbps
• Threat Protection Throughput: 1.3 Gbps
• IPsec VPN Throughput (512 byte): 7.1 Gbps
• Firewall Latency (64 byte UDP): 2.46 µs
• Concurrent Sessions (TCP): 1.4 M (New sessions/sec: 100,000)
• Firewall Policies: 5,000
• Interfaces: 2x GE RJ45 WAN, 4x GE RJ45 FortiLink (2x FortiLink default), 4x GE RJ45 PoE/+ (60 W total; max 30 W per port, 802.3at), 1x USB, 1x RJ45 Console
• Total Available PoE Power Budget: 60 W (Max 30 W per PoE/+ port, 802.3at)
• Power Consumption (Average / Maximum): 76 W / 79 W
• Dimensions / Weight: 40.5 x 216 x 160 mm; 0.993 kg (2.19 lbs)

Upgrade Your Network Security

Deploy secure connectivity and integrated power at the edge with the FortiGate 71G-POE Bundle (FG-71G-POE-BDL-950-60).
