[shortdesc] Firewall with SD-WAN, 10x GE RJ45, 4x PoE_plus ports, 64GB SSD, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]

[properties]

Model / SKU	FortiGate 71G-POE / FG-71G-POE-BDL-809-12
Hardware Model	FG-71G-POE
Bundle Includes	FortiGate 71G-POE appliance + FortiCare Premium + FortiGuard Enterprise Protection (12 months)
Form Factor	Desktop (Fanless)
Internal Storage	64GB SSD
PoE Power Budget	60 W (Max 30 W per port, 802.3at)
Firewall Throughput	10 / 10 / 10 Gbps (1518/512/64 byte UDP packets)
NGFW Throughput	1.5 Gbps
Threat Protection Throughput	1.3 Gbps

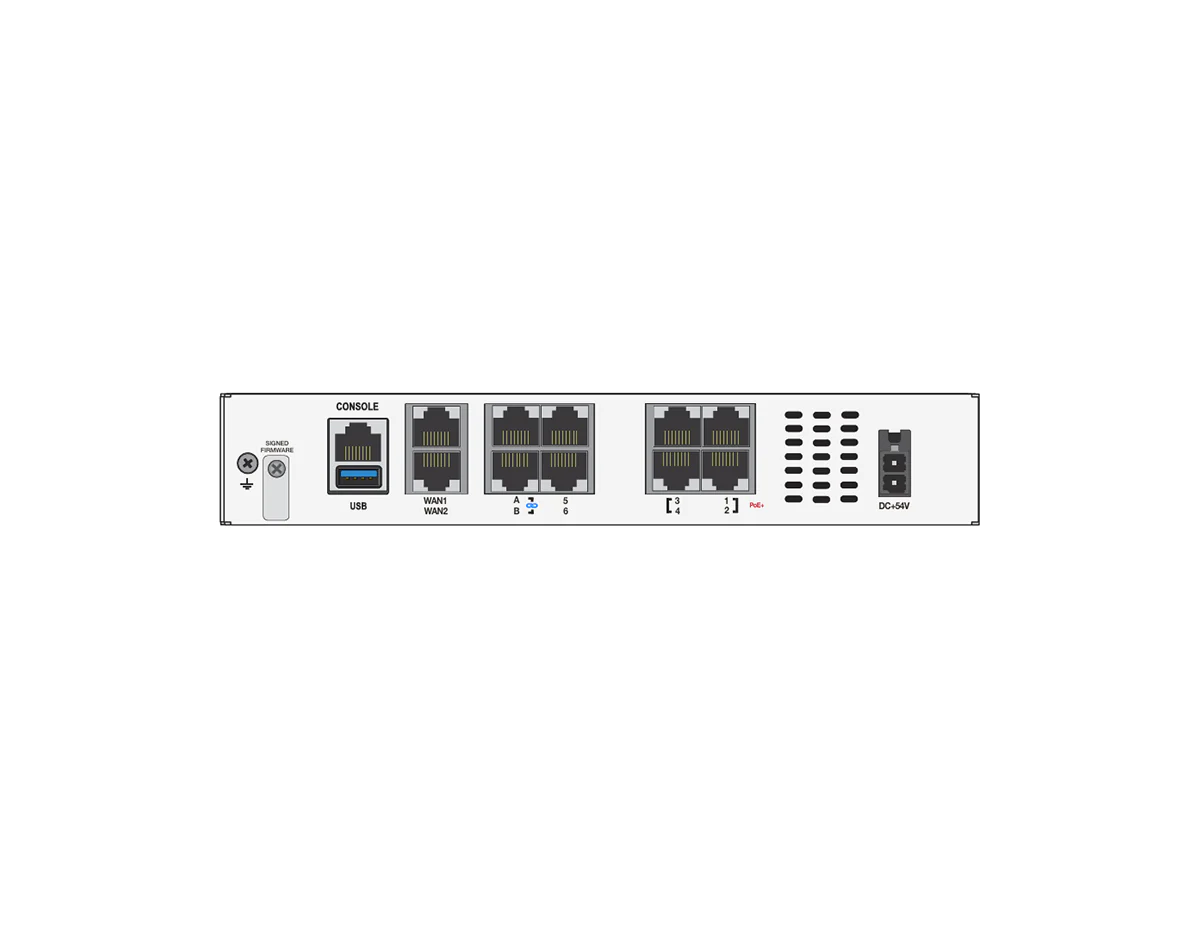

Interfaces	10x GE RJ45 Ports (2x WAN, 4x FortiLink (default), 4x GE RJ45 PoE/+), 1x USB, 1x RJ45 Console
Dimensions (H x W x L)	40.5 x 216 x 160 mm (1.6 x 8.5 x 6.3 inches)
Weight	0.993 kg (2.19 lbs)

[/properties]

[specifications]

System Performance - Enterprise Traffic Mix
IPS Throughput	2.5 Gbps
System Performance and Capacity
Firewall Latency (64 byte UDP)	2.46 µs
Firewall Throughput (Packets Per Second)	15 Mpps
Concurrent Sessions (TCP)	1.4 Million
New Sessions/Second (TCP)	100,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	7.1 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	500
SSL Inspection Throughput (IPS, avg. HTTPS)	1.4 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	715
SSL Inspection Concurrent Sessions	140,000
Application Control Throughput (HTTP 64K)	3.6 Gbps
CAPWAP Throughput (HTTP 64K)	6.8 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	24
Maximum Number of FortiAPs (Total / Tunnel Mode)	96 / 48
Maximum Number of FortiTokens	500
High Availability Configurations	Active-Active, Active-Passive, Clustering
Hardware & Interfaces
GE WAN Ports	2
GE LAN Ports (2x FortiLink default)	4
GE RJ45 PoE/+ Ports	4
USB Port	1
Console Port (RJ45)	1
Trusted Platform Module (TPM)	Included
Environment & Power
Power Required	Powered by External DC Power Adapter, 100-240V AC, 50/60 Hz
Power Consumption (Average / Maximum)	76 W / 79 W
Heat Dissipation	269.39 BTU/hr
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	Fanless
Operating Altitude	Up to 10,000 ft (3048 m)
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

AC Power Adaptor (SP-FG50G-POE-PDC-5) - Pack of 5 (Power cable SP-FGPCOR-XX sold separately) Rack Mount Tray (SP-RACKTRAY-02)

[/accesories]

The FortiGate 71G-POE Bundle pairs enterprise-grade NGFW security and SD-WAN with integrated PoE power delivery in a silent, fanless desktop appliance. With 4x dedicated PoE/+ ports and a 60W total power budget, it can power compatible PoE devices directly from the firewall—reducing hardware sprawl at branch sites.

Powered by Fortinet’s SP5 ASIC and running FortiOS, this bundle delivers high-performance inspection and threat prevention while enabling centralized operations through FortiManager and FortiGate Cloud. The built-in 64GB SSD provides internal storage.

Secure, Powered, and Converged Networking for the Edge

Key Benefits

• Bundle Coverage: Includes FortiCare Premium and FortiGuard Enterprise Protection for 12 months.
• Integrated PoE/+ Support: 4x GE RJ45 PoE/+ ports with a 60W budget for downstream devices.
• Onboard SSD Storage: 64GB SSD internal storage.
• High-Performance Security: Up to 1.5 Gbps NGFW and 1.3 Gbps Threat Protection throughput.
• Fanless Reliability: Silent operation for office and retail environments.
• FortiOS & Centralized Management: Streamlined operations with FortiManager and FortiGate Cloud.

Ideal Use Cases

• Retail & Point of Sale: Power and secure edge devices with one compact appliance.
• Small Branch Offices: Converged security, SD-WAN, and PoE for simplified deployments.
• Secure Telework / Micro-Branches: Quiet, compact NGFW with internal storage.

Technical Specifications Summary

• Firewall Throughput (1518/512/64 byte UDP): 10 / 10 / 10 Gbps
• IPS Throughput (Enterprise Traffic Mix): 2.5 Gbps
• NGFW Throughput (Enterprise Traffic Mix): 1.5 Gbps
• Threat Protection Throughput (Enterprise Traffic Mix): 1.3 Gbps
• IPsec VPN Throughput (512 byte): 7.1 Gbps
• Firewall Latency (64 byte UDP): 2.46 µs
• PoE Power Budget: 60 W total (max 30 W per port, 802.3at) across 4x PoE/+ ports
• Interfaces: 10x GE RJ45 (2x WAN, 4x FortiLink default, 4x PoE/+), 1x USB, 1x RJ45 Console
• Internal Storage: 64GB SSD
• Power Consumption (Avg/Max): 76 W / 79 W

Upgrade Your Network Security

Deploy secure connectivity and integrated power at the edge with the FortiGate 71G-POE Bundle (FG-71G-POE-BDL-809-12).
