[shortdesc] FortiGate 71G-POE Firewall, fanless desktop, 10x GE RJ45, 4x GE PoE/+, 60W PoE budget, 64GB SSD, 1.3 Gbps threat protection [/shortdesc]

[properties]

Model / SKU	FortiGate 71G-POE / FG-71G-POE
Form Factor	Desktop
Internal Storage	64GB SSD
PoE Power Budget	60 W
Firewall Throughput	10 Gbps
NGFW Throughput	1.5 Gbps
Threat Protection Throughput	1.3 Gbps
Interfaces	10x GE RJ45 ports (including 4x internal ports, 4x GE RJ45 PoE ports, 2x WAN ports)
Dimensions (H x W x L)	40.5 x 216 x 160 mm (1.6 x 8.5 x 6.3 inches)
Weight	0.993 kg (2.19 lbs)

[/properties]

[specifications]

System Performance - Enterprise Traffic Mix
IPS Throughput	2.5 Gbps
NGFW Throughput	1.5 Gbps
Threat Protection Throughput	1.3 Gbps
System Performance and Capacity
Firewall Throughput (1518/512/64 byte UDP)	10 / 10 / 10 Gbps
Firewall Latency (64 byte UDP)	2.46 μs
Firewall Throughput (Packets Per Second)	15 Mpps
Concurrent Sessions (TCP)	1.4 Million
New Sessions/Second (TCP)	100,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	7.1 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	500
SSL Inspection Throughput (IPS, avg. HTTPS)	1.4 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	715
SSL Inspection Concurrent Sessions	140,000
Application Control Throughput (HTTP 64K)	3.6 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	24
Maximum Number of FortiAPs (Total / Tunnel Mode)	96 / 48
Maximum Number of FortiTokens	500
Hardware & Interfaces
Hardware Accelerated GE WAN Ports	2
Hardware Accelerated GE RJ45 Ports	2
Hardware Accelerated GE RJ45 FortiLink Ports (Default)	2
Hardware Accelerated GE RJ45 PoE/+ Ports	4
USB Port	1
Console Port (RJ45)	1
Internal Storage	64GB SSD
Trusted Platform Module (TPM)	Included
Environment & Power
Power Required	Powered by External DC Power Adapter, 100-240V AC, 50/60 Hz
Total Available PoE Power Budget	60 W
Power Consumption (Average / Maximum)	76 W / 79 W
Heat Dissipation	269.39 BTU/hr
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	Fanless
Operating Altitude	Up to 10,000 ft (3048 m)
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

AC Power Adaptor (SP-FG50G-POE-PDC-5) - Pack of 5 Rack Mount Tray (SP-RACKTRAY-02)

[/accesories]

The FortiGate 71G-POE integrates enterprise-grade security, SD-WAN, and power delivery into a single fanless desktop appliance. With 4x dedicated PoE/+ ports and a 60W total power budget, this model enables seamless powering of IoT devices, Wireless Access Points, or VoIP phones directly from the firewall, eliminating the need for extra power injectors or switches. It features 64GB of internal SSD storage, providing capacity for local logging and improved visibility for edge locations.

Powered by the Fortinet SP5 ASIC, the FG-71G-POE delivers industry-leading performance with 1.5 Gbps of NGFW throughput and 2.5 Gbps of IPS throughput. Running on the unified FortiOS operating system, it offers comprehensive protection against modern threats through integrated FortiGuard AI-Powered Security Services. Its robust connectivity options—including dual WAN ports and FortiLink ports—make it an ideal solution for secure branch networking and converged IT infrastructure.

Secure, Powered, and Converged Networking for the Edge

Key Benefits

• Integrated PoE+ Support: 4x GE RJ45 PoE/+ ports with a 60W budget to power and connect downstream devices efficiently.
• Onboard SSD Storage: Includes 64GB of SSD storage for local logging, reporting, and enhanced network visibility.
• High-Performance Security: Delivers 1.5 Gbps NGFW throughput and 1.3 Gbps Threat Protection throughput powered by the SP5 ASIC.
• Unified SD-WAN: Consolidates networking and security functions to optimize user experience and reduce operational costs.
• Fanless Reliability: Silent, fanless operation tailored for desktop environments and noise-sensitive areas.
• Centralized Management: Simplifies provisioning and operations through FortiManager and FortiGate Cloud.

Ideal Use Cases

• Retail Locations: Power POS systems and secure Wi-Fi access points with a single, compact device.
• Small Branch Offices: Converged security and connectivity for remote sites needing simplified infrastructure.
• Secure Telework: Enterprise-grade protection with internal storage for local logging and traffic visibility.

Technical Specifications Summary

• Firewall Throughput (1518/512/64 byte UDP): 10 / 10 / 10 Gbps
• IPS Throughput (Enterprise Traffic Mix): 2.5 Gbps
• NGFW Throughput (Enterprise Traffic Mix): 1.5 Gbps
• Threat Protection Throughput (Enterprise Traffic Mix): 1.3 Gbps
• IPsec VPN Throughput (512 byte): 7.1 Gbps
• Sessions (TCP): 1.4 Million concurrent; 100,000 new sessions/second

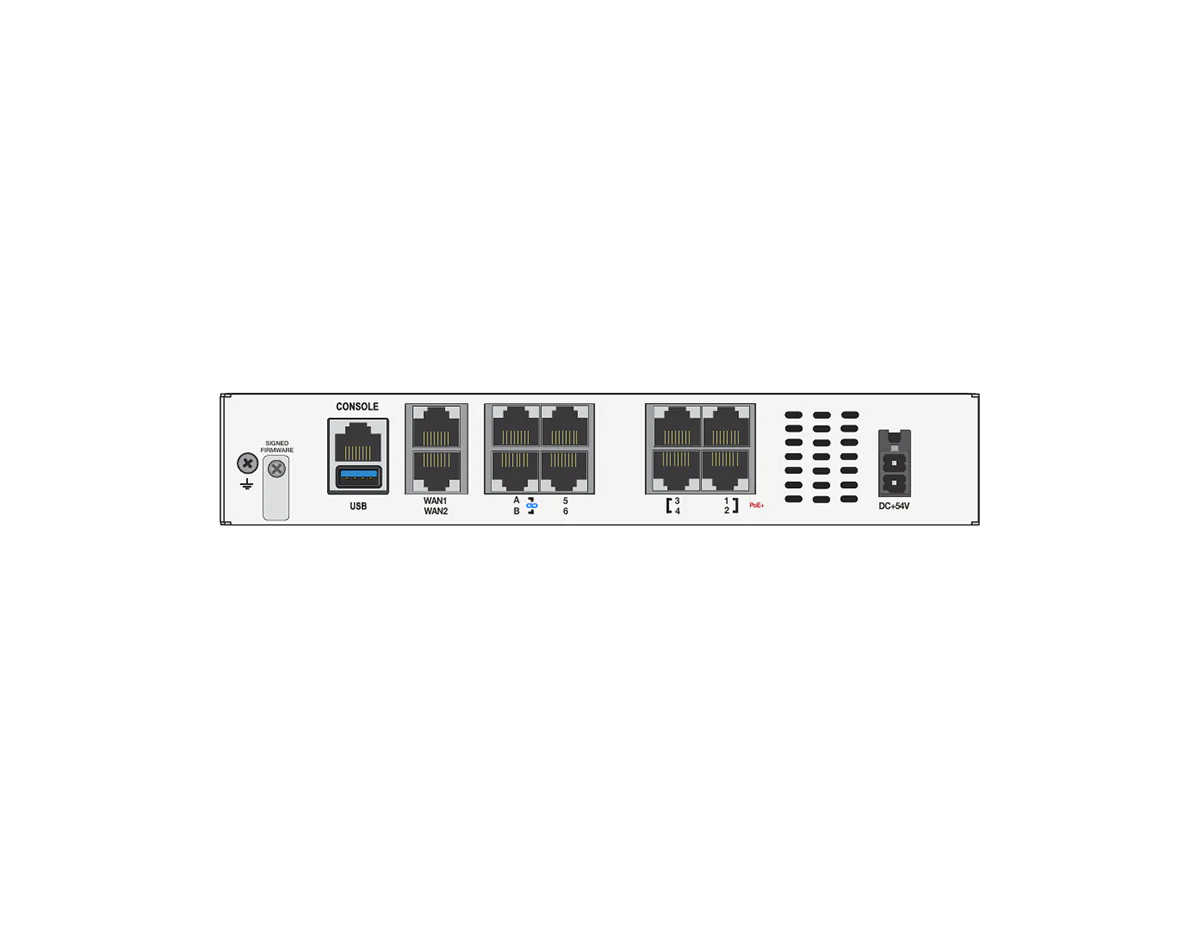

• Interfaces: 2x GE WAN, 2x GE RJ45, 2x GE RJ45 FortiLink (default), 4x GE RJ45 PoE/+ (10x GE RJ45 total)
• PoE Power Budget: 60 W total; maximum 30 W per PoE/+ port (802.3at)
• Power Consumption / Heat Dissipation: 76 W average / 79 W maximum; 269.39 BTU/hr
• Form Factor / Dimensions / Weight: Desktop, fanless; 40.5 x 216 x 160 mm (1.6 x 8.5 x 6.3 inches); 0.993 kg (2.19 lbs)
• Operating Environment / Compliance / Certifications: 0°C to 40°C, 10% to 90% non-condensing; FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; USGv6/IPv6
