[shortdesc] FortiGate 71F Firewall, fanless desktop, secure SD-WAN, 10x GE RJ45, 128GB SSD, 10/10/6 Gbps, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]

[properties]

Feature	Details
Product SKU	FG-71F-BDL-809-12
Bundle Includes	FG-71F appliance plus FortiCare Premium and FortiGuard Enterprise Protection (1 Year)
Form Factor	Desktop (Fanless)
Internal Storage	1 x 128 GB SSD
Firewall Throughput	10/10/6 Gbps (1518/512/64 byte UDP packets)

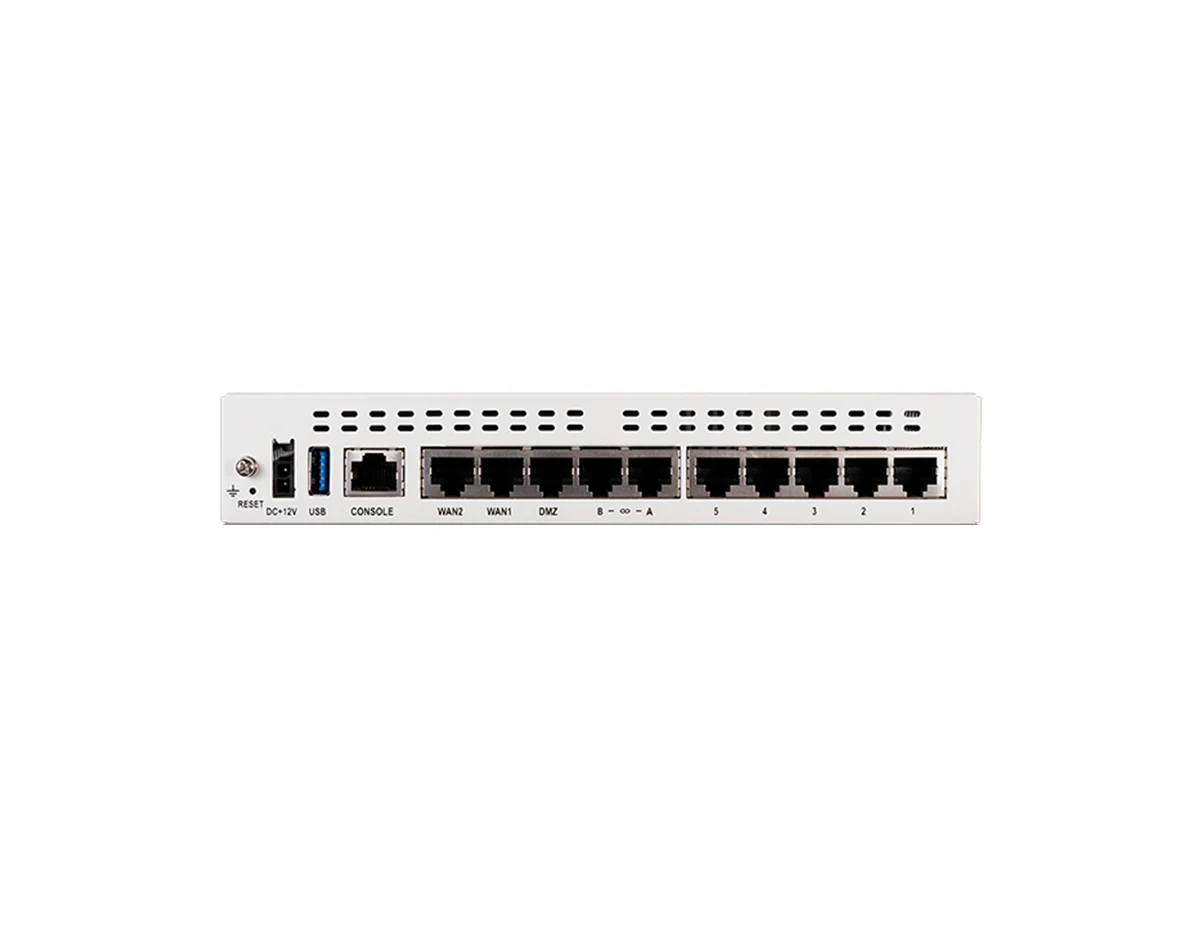

Interfaces	10 x GE RJ45 ports (2 x WAN, 1 x DMZ, 2 x FortiLink, 5 x internal)
Threat Protection	800 Mbps
Power Input	12VDC, 3A
Dimensions (H x W x L)	1.5 x 8.5 x 6.3 inches (38.5 x 216 x 160 mm)
Weight	2.23 lbs (1.01 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)

[/properties]

[specifications]

System Performance & Capacity
IPS Throughput	1.4 Gbps
NGFW Throughput	1 Gbps
Firewall Latency (64 byte UDP packets)	2.54 µs
Concurrent Sessions (TCP)	1.5 M
New Sessions/Second (TCP)	35,000
Firewall Policies	5,000
VPN Performance
IPsec VPN Throughput (512 byte)	6.1 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
SSL-VPN Throughput	405 Mbps
Concurrent SSL-VPN Users	200
SSL Inspection Throughput	700 Mbps
Hardware & Environment
USB Port	1x USB
Console Port	1x RJ45
Power Consumption (Average / Max)	17.2 W / 18.7 W
Heat Dissipation	63.8 BTU/hr
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	Fanless 0 dBA
Compliance & Certifications	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; Certifications: USGv6/IPv6

[/specifications]

[accesories]

Accessory Type	Description
Optional	Rack Mount Tray (SP-RACKTRAY-02), AC Power Adaptor (SP-FG60E-PDC-5, Pack of 5), Wall Mount Kit (SP-FG60F-MOUNT-20, Pack of 20)

[/accesories]

The FortiGate 71F-BDL-809-12 bundle runs on FortiOS, the industry's first converged networking and security operating system, enabling businesses to gain benefits of operational efficiency and unified protection. As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.

The 71F family is built on the patented SD-WAN-based ASIC, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design further accelerates the convergence of networking and security functions in the 71F family to optimize secure connections and deliver a robust user experience at branch locations. Additionally, the FG-71F includes 128 GB SSD onboard storage.

Converged Next-Generation Firewall and SD-WAN with Integrated Storage

Key Benefits

• Unparalleled Performance: Enabled by Fortinet's patented ASIC and the FortiOS operating system to deliver industry-leading throughput and faster security inspections.
• Integrated Storage: Includes onboard SSD storage to support local log storage and data retention at the branch.
• Enterprise-Grade Protection: Includes 1 Year FortiCare Premium and FortiGuard Enterprise Protection alongside FortiGuard AI-Powered Security Services to protect against malicious traffic, file-based threats, and web-based attacks.
• Simplified Operations: Centralized management for networking and security with automated workflows, deep analytics, and self-healing capabilities.
• Integrated SD-WAN: Delivers faster application identification to avoid delays and accelerates overlay performance regardless of location.
• Compact & Fanless: Small, lightweight desktop form factor with 0 dBA noise level, suitable for noise-sensitive environments like retail or small offices.

Ideal Use Cases

• Secure Branch: Extends security to WAN, LAN, and WLAN at branch offices for unified protection and reliable connectivity with local logs.
• Perimeter Protection: Inspects and controls incoming and outgoing traffic based on defined security policies to guard against defined and unknown threats.
• Secure SD-WAN: Enables best-of-breed WAN edge with integrated SD-WAN, WAN optimization, and security from a single OS.
• Universal ZTNA: Controls access to applications no matter where the user is and no matter where the application is hosted for universal application of access policies.

Technical Specifications Summary

• Security performance: IPS 1.4 Gbps; NGFW 1 Gbps; Threat Protection 800 Mbps
• Firewall performance: 10/10/6 Gbps (1518/512/64 byte UDP); 2.54 µs latency (64 byte UDP); 9 Mpps firewall throughput
• Capacity: 1.5 M concurrent sessions (TCP); 35,000 new sessions/second (TCP); 5,000 firewall policies
• IPsec VPN: 6.1 Gbps (512 byte); 200 gateway-to-gateway tunnels; 500 client-to-gateway tunnels
• SSL VPN & inspection: 405 Mbps SSL-VPN; 200 concurrent SSL-VPN users; 700 Mbps SSL inspection throughput; 500 SSL inspection CPS; 100,000 concurrent SSL inspection sessions
• Interfaces: 10 x GE RJ45 (2 x WAN, 1 x DMZ, 2 x FortiLink, 5 x internal) plus 1 x USB and 1 x RJ45 console
• Storage & form factor: 1 x 128 GB SSD onboard storage; desktop; fanless 0 dBA
• Power & thermals: 12VDC, 3A; 17.2 W average / 18.7 W maximum; 63.8 BTU/hr heat dissipation
• Physical & environment: 38.5 x 216 x 160 mm; 2.23 lbs (1.01 kg); 0°C to 40°C operating; -35°C to 70°C storage; 10% to 90% non-condensing

Upgrade Your Network Security

Choose the FortiGate 71F-BDL-809-12 bundle for a scalable, high-performance security solution that unifies networking and protection.
