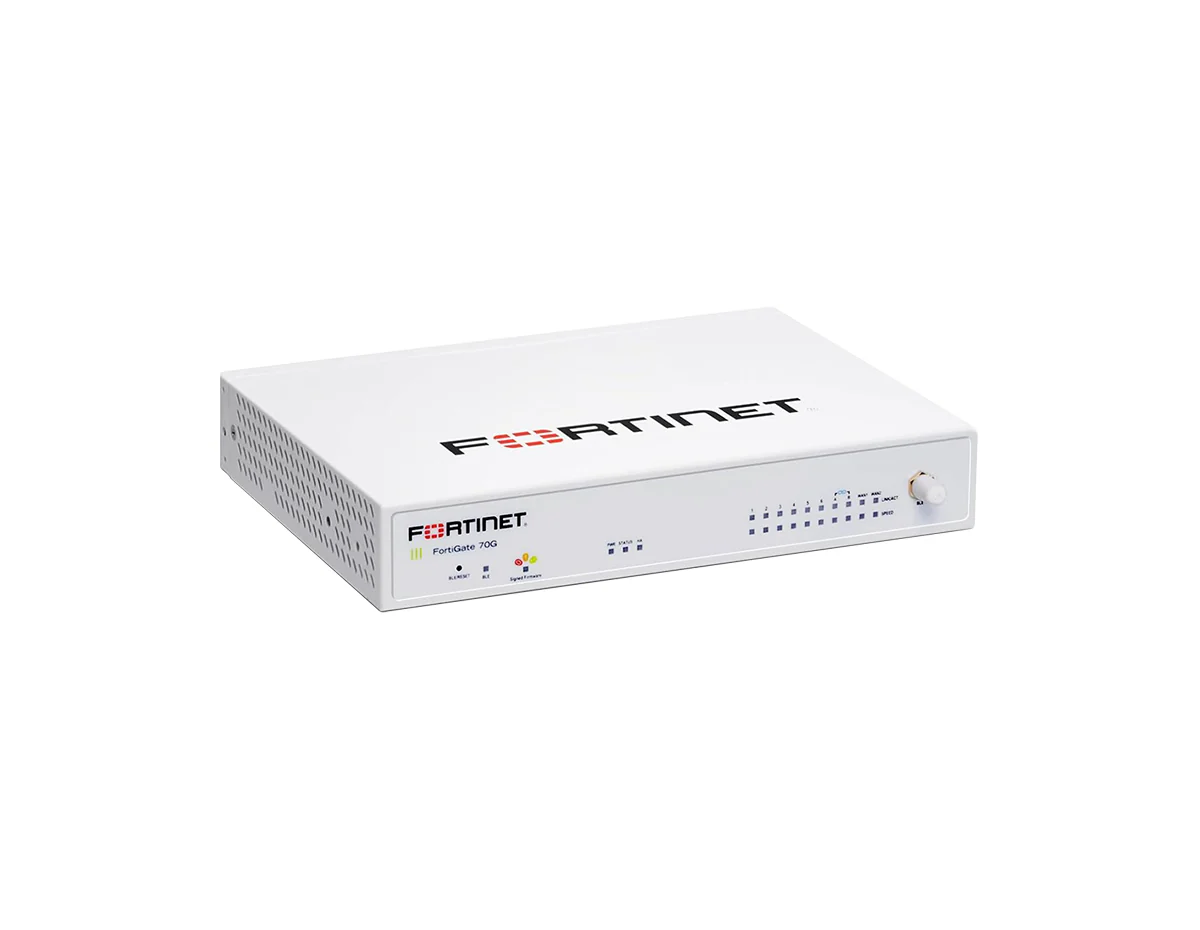

Fortinet FortiGate 70G Next-Generation Firewall Unified Threat Protection (UTP) 5-Year Bundle
[shortdesc] Firewall, fanless desktop, 10x GE RJ45, 10/10/10 Gbps firewall, SD-WAN, including 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]
[properties]
| Feature | Details |
|---|---|
| Product SKU | FG-70G-BDL-950-60 |
| Bundle Includes | FG-70G firewall plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (5 Year contract) |
| Form Factor | Desktop (Fanless) |
| Firewall Throughput | 10 / 10 / 10 Gbps (1518 / 512 / 64 byte UDP packets) |
| Interfaces | 10 x GE RJ45 ports (2 x WAN, 7 x Internal, 1 x DMZ; 2 x FortiLink ports by default) |
| Threat Protection | 1.3 Gbps |
| Power Input | 12V DC, 3A |
| Dimensions (H x W x L) | 1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm) |
| Weight | 2.01 lbs (0.91 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
[/properties]
[specifications]
| System Performance & Capacity | |
|---|---|
| IPS Throughput | 2.5 Gbps |
| NGFW Throughput | 1.5 Gbps |
| Firewall Latency | 2.46 μs |
| Concurrent Sessions (TCP) | 1.4 Million |
| New Sessions/Second (TCP) | 100,000 |
| Firewall Policies | 5,000 |
| VPN Performance | |
| IPsec VPN Throughput (512 byte) | 7.1 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 500 |
| SSL Inspection Throughput | 1.4 Gbps |
| Hardware & Environment | |
| USB Port | 1x USB Port |
| Console Port | 1x RJ45 |
| Power Consumption (Average / Max) | 12.3 W / 12.8 W |
| Heat Dissipation | 43.65 BTU/hr |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | Fanless |
| Compliance & Certifications | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, USGv6/IPv6 |
[/specifications]
[accesories]
| Accessory Type | Description |
|---|---|
| Optional | Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), Mounting Ear Brackets (SP-EAR-FG90G-10), AC Power Adaptor (SP-FG60E-PDC-5, pack of 5; power cable SP-FG60CPCOR-XX sold separately). For PoE models: AC Power Adaptor (SP-FG50G-POE-PDC-5, pack of 5; power cable SP-FGPCOR-XX sold separately). |
[/accesories]
The FortiGate 70G-BDL-950-60 bundle runs on FortiOS, the industry's first converged networking and security operating system, enabling businesses to gain benefits of operational efficiency and unified protection. As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.
The 70G family is built on the patented SD-WAN-based ASIC SP5, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design and embedded multi-core processor further accelerate the convergence of networking and security functions in the 70G family to optimize secure connections and deliver a robust user experience at branch locations.
Converged Next-Generation Firewall and SD-WAN
Key Benefits
- Unparalleled Performance: Enabled by Fortinet's patented SP5 ASIC and the FortiOS operating system to deliver industry-leading throughput and faster security inspections.
- UTP Security Bundle: Includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (5 Year contract) alongside FortiGuard AI-Powered Security Services for protection against malicious traffic, file-based threats, and web-based attacks.
- Simplified Operations: Centralized management for networking and security with automated workflows, deep analytics, and self-healing capabilities.
- Integrated SD-WAN: Delivers faster application identification to avoid delays and accelerates overlay performance regardless of location.
- Compact & Fanless: Small, lightweight desktop form factor with fanless cooling, suitable for deployment in noise-sensitive environments.
Ideal Use Cases
- Secure Branch: Extends security to WAN, LAN, and WLAN at branch offices for unified protection and reliable connectivity.
- Perimeter Protection: Inspects and controls incoming and outgoing traffic based on defined security policies to guard against defined and unknown threats.
- Secure SD-WAN: Enables best-of-breed WAN edge with integrated SD-WAN, WAN optimization, and security from a single OS.
- Universal ZTNA: Controls access to applications no matter where the user is and no matter where the application is hosted for universal application of access policies.
Technical Specifications Summary
- Firewall throughput: 10 / 10 / 10 Gbps (1518 / 512 / 64 byte UDP packets)
- IPS throughput: 2.5 Gbps
- NGFW throughput: 1.5 Gbps
- Threat Protection throughput: 1.3 Gbps
- IPsec VPN throughput (512 byte): 7.1 Gbps
- SSL inspection throughput (IPS, avg. HTTPS): 1.4 Gbps
- Firewall throughput (packets per second): 15 Mpps
- Firewall latency (64 byte UDP): 2.46 μs
- Sessions & policies: 1.4 M concurrent sessions (TCP); 100,000 new sessions/second (TCP); 5,000 firewall policies
- Interfaces: 2 x GE RJ45 WAN, 6 x GE RJ45, 2 x GE RJ45 FortiLink (default), 1 x RJ45 console, 1 x USB
- Power & thermal: 12V DC, 3A; 12.3 W avg / 12.8 W max; 43.65 BTU/hr heat dissipation
- Physical, environment & compliance: 40.5 x 216 x 160 mm; 2.01 lbs (0.91 kg); 0°C to 40°C operating; -35°C to 70°C storage; 10% to 90% non-condensing humidity; fanless; Compliance: FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; Certifications: USGv6/IPv6
Upgrade Your Network Security
Deploy the FortiGate 70G-BDL-950-60 bundle today for a compact, high-performance security solution powered by the SP5 ASIC and backed by FortiCare Premium and FortiGuard Unified Threat Protection (UTP).
