Fortinet FortiGate 70F Unified Threat Protection (UTP) 5-Year Bundle (FG-70F-BDL-950-60)
[shortdesc] Firewall, fanless desktop, 10x GE RJ45, SD-WAN, 10/10/6 Gbps, including 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]
[properties]
| Feature | Details |
|---|---|
| Product SKU | FG-70F-BDL-950-60 |
| Bundle Includes | FG-70F appliance plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (5 Year contract) |
| Form Factor | Desktop (Fanless) |
| Firewall Throughput | 10 / 10 / 6 Gbps (1518 / 512 / 64 byte UDP packets) |

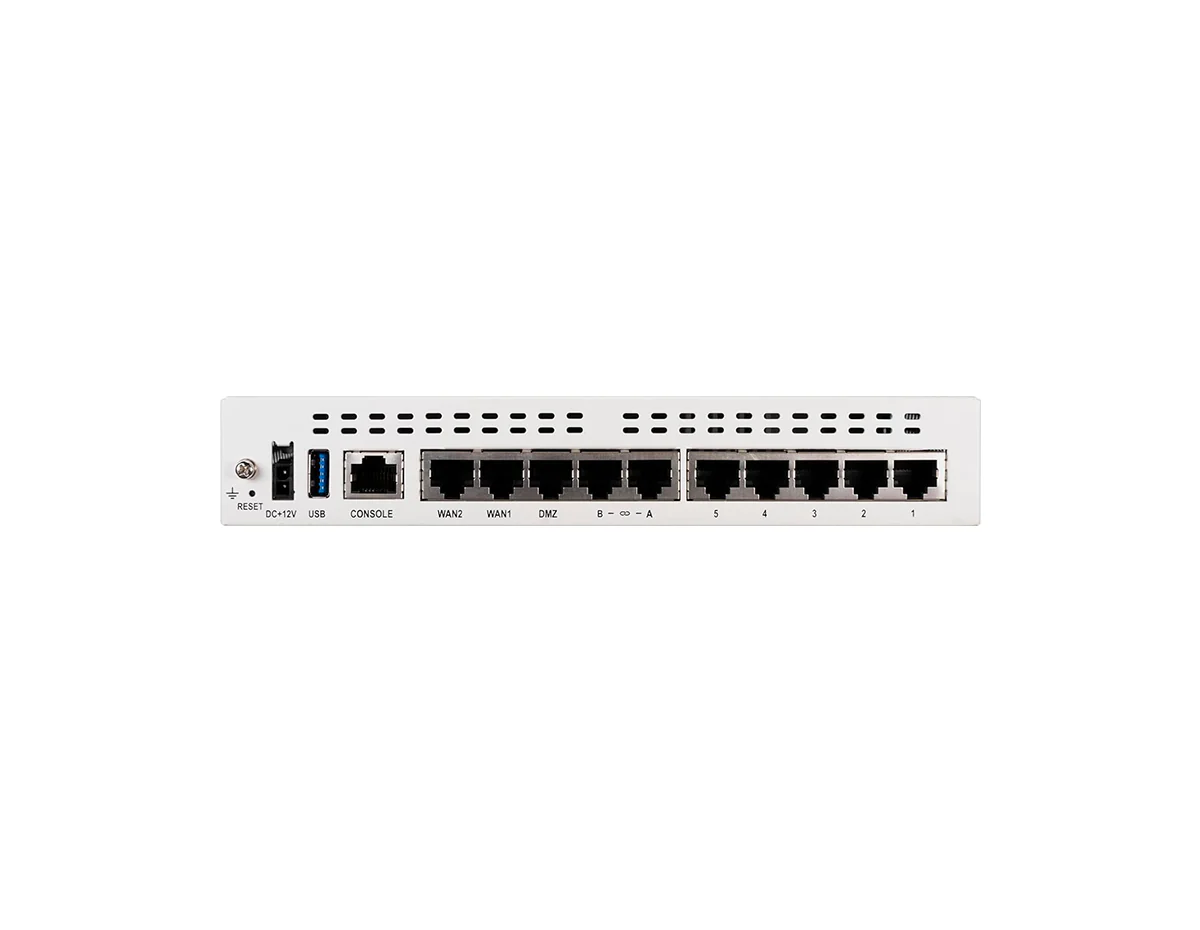

| Interfaces | 10x GE RJ45 Ports (2x WAN, 1x DMZ, 2x FortiLink (default), 5x Internal), plus 1x USB and 1x RJ45 Console |
| Threat Protection | 800 Mbps |
| Power Input | 12VDC, 3A |
| Dimensions (H x W x L) | 1.5 x 8.5 x 6.3 inches (38.5 x 216 x 160 mm) |
| Weight | 2.23 lbs (1.01 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
[/properties]
[specifications]
| System Performance & Capacity | |
|---|---|
| IPS Throughput | 1.4 Gbps |
| NGFW Throughput | 1 Gbps |
| Firewall Latency | 2.54 μs |
| New Sessions/Second (TCP) | 35,000 |
| Firewall Policies | 5,000 |
| VPN Performance | |
| IPsec VPN Throughput (512 byte) | 6.1 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 500 |
| SSL-VPN Throughput | 405 Mbps |
| SSL Inspection Throughput | 700 Mbps |
| Hardware & Environment | |
| USB Port | 1x USB |
| Console Port | 1x RJ45 |
| Power Consumption (Average / Max) | 10.17 W / 12.43 W |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Compliance & Certifications | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; USGv6/IPv6 |
[/specifications]
[accesories]
| Accessory Type | Description |
|---|---|
| Optional | Rack Mount Tray (SP-RACKTRAY-02), AC Power Adaptor (SP-FG60E-PDC-5), Wall Mount Kit (SP-FG60F-MOUNT-20) |
[/accesories]
The FortiGate 70F-BDL-950-60 bundle runs on FortiOS, the industry's first converged networking and security operating system, enabling businesses to gain benefits of operational efficiency and unified protection. As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.
The 70F family is built on the patented SD-WAN-based ASIC, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design and embedded multi-core processor further accelerate the convergence of networking and security functions in the 70F family to optimize secure connections and deliver a robust user experience at branch locations.
Converged Next-Generation Firewall and SD-WAN
Key Benefits
- Unparalleled Performance: Enabled by Fortinet's patented ASIC and the FortiOS operating system to deliver industry-leading throughput and faster security inspections.
- UTP Security Bundle: Includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (5 Year contract) to support unified protection for distributed sites.
- Simplified Operations: Centralized management for networking and security with automated workflows, deep analytics, and self-healing capabilities.
- Integrated SD-WAN: Delivers faster application identification to avoid delays and accelerates overlay performance regardless of location.
- Compact & Fanless: Small, lightweight desktop form factor suitable for noise-sensitive environments.
Ideal Use Cases
- Secure Branch: Extends security to WAN, LAN, and WLAN at branch offices for unified protection and reliable connectivity.
- Perimeter Protection: Inspects and controls incoming and outgoing traffic based on defined security policies to guard against defined and unknown threats.
- Secure SD-WAN: Enables best-of-breed WAN edge with integrated SD-WAN, WAN optimization, and security from a single OS.
- Universal ZTNA: Controls access to applications no matter where the user is and no matter where the application is hosted for universal application of access policies.
Technical Specifications Summary
- Firewall throughput: 10 / 10 / 6 Gbps (1518 / 512 / 64 byte UDP packets).
- Firewall throughput (packets per second): 9 Mpps.
- Firewall latency: 2.54 μs (64 byte UDP packets).
- Concurrent sessions (TCP): 1.5 M.
- New sessions/second (TCP): 35,000.
- Firewall policies: 5,000.
- Threat protection throughput: 800 Mbps (Enterprise Traffic Mix).
- IPsec VPN throughput: 6.1 Gbps (512 byte).
- IPsec VPN tunnels: 200 gateway-to-gateway, 500 client-to-gateway.
- SSL-VPN throughput: 405 Mbps; 200 concurrent users (recommended maximum, tunnel mode).
- SSL inspection: 700 Mbps throughput; 500 CPS; 100,000 concurrent sessions (IPS, avg. HTTPS).
- Interfaces: 2x GE RJ45 WAN, 1x GE RJ45 DMZ, 2x GE RJ45 FortiLink (default), 5x GE RJ45 internal, 1x USB, 1x RJ45 console.
- Power consumption: 10.17 W average / 12.43 W maximum.
- Physical: 1.5 x 8.5 x 6.3 in (38.5 x 216 x 160 mm); 2.23 lbs (1.01 kg).
- Environment: 0°C to 40°C operating, -35°C to 70°C storage, 10% to 90% non-condensing humidity; fanless 0 dBA.
Upgrade Your Network Security
Deploy the FortiGate 70F-BDL-950-60 bundle today for a compact, high-performance security solution that unifies networking and protection with FortiCare Premium and FortiGuard Unified Threat Protection (UTP).
