[shortdesc] Firewall with integrated SD-WAN, 10x GE RJ45 ports, 10/10/6 Gbps firewall throughput, 800 Mbps threat protection, fanless desktop design [/shortdesc]

[properties]

Feature	Details
Product SKU	FG-70F
Form Factor	Desktop
Firewall Throughput	10 / 10 / 6 Gbps (1518 / 512 / 64 byte UDP packets)
Interfaces	10x GE RJ45 Ports (7x Internal including 2x FortiLink (default), 2x WAN, 1x DMZ)
Threat Protection	800 Mbps
Power Input	12VDC, 3A
Dimensions (H x W x L)	1.5 x 8.5 x 6.3 inches (38.5 x 216 x 160 mm)
Weight	2.23 lbs (1.01 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)

[/properties]

[specifications]

System Performance & Capacity
IPS Throughput	1.4 Gbps
NGFW Throughput	1 Gbps
Firewall Latency	2.54 μs
New Sessions/Second (TCP)	35,000
Firewall Policies	5,000
VPN Performance
IPsec VPN Throughput (512 byte)	6.1 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	500
SSL-VPN Throughput	405 Mbps
SSL Inspection Throughput	700 Mbps
Hardware & Environment
USB Port	1x USB
Console Port	1x RJ45
Power Consumption (Average / Max)	10.17 W / 12.43 W
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	Fanless 0 dBA
Compliance & Certifications	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, USGv6/IPv6

[/specifications]

[accesories]

Accessory Type	Description
Optional	Rack Mount Tray (SP-RACKTRAY-02), AC Power Adaptor (SP-FG60E-PDC-5), Wall Mount Kit (SP-FG60F-MOUNT-20)

[/accesories]

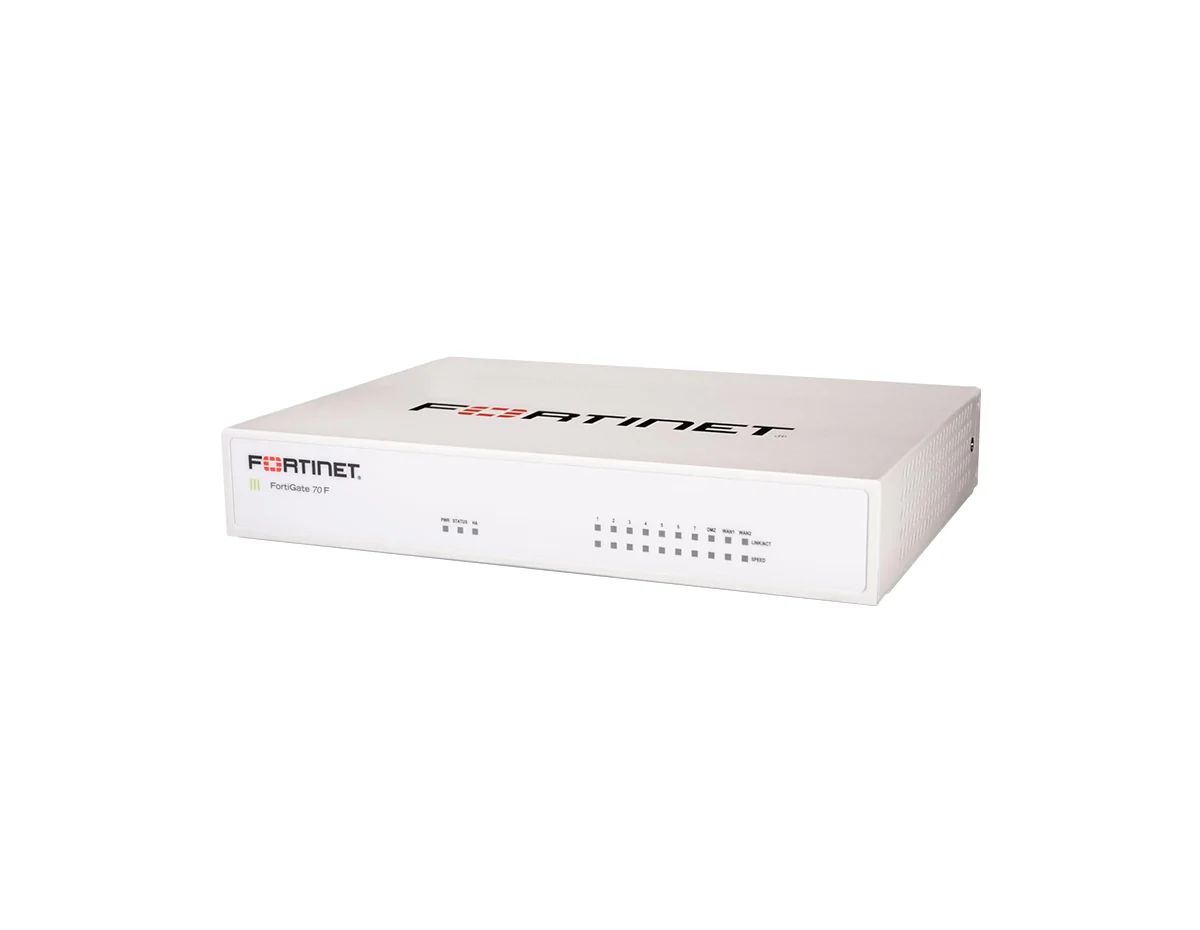

The FortiGate 70F series runs on FortiOS, the industry's first converged networking and security operating system, enabling businesses to gain benefits of operational efficiency and unified protection. As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.

The 70F family is built on the patented SD-WAN-based ASIC, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design and embedded multi-core processor further accelerate the convergence of networking and security functions in the 70F family to optimize secure connections and deliver a robust user experience at branch locations.

Converged Next-Generation Firewall and SD-WAN

Key Benefits

• Unparalleled Performance: Enabled by Fortinet's patented ASIC and the FortiOS operating system to deliver industry-leading throughput and faster security inspections.
• Enterprise-Grade Protection: Natively integrated FortiGuard AI-Powered Security Services protect against malicious traffic, file-based threats, and web-based attacks.
• Simplified Operations: Centralized management for networking and security with automated workflows, deep analytics, and self-healing capabilities.
• Integrated SD-WAN: Delivers faster application identification to avoid delays and accelerates overlay performance regardless of location.
• Compact & Fanless: Small, lightweight desktop form factor suitable for noise-sensitive environments.

Ideal Use Cases

• Secure Branch: Extends security to WAN, LAN, and WLAN at branch offices for unified protection and reliable connectivity.
• Perimeter Protection: Inspects and controls incoming and outgoing traffic based on defined security policies to guard against defined and unknown threats.
• Secure SD-WAN: Enables best-of-breed WAN edge with integrated SD-WAN, WAN optimization, and security from a single OS.
• Universal ZTNA: Controls access to applications no matter where the user is and no matter where the application is hosted for universal application of access policies.

Technical Specifications Summary

• Firewall performance: 10 / 10 / 6 Gbps firewall throughput (1518 / 512 / 64 byte UDP), 2.54 μs latency (64 byte UDP).
• Security throughput: IPS 1.4 Gbps, NGFW 1 Gbps, Threat Protection 800 Mbps (Enterprise Traffic Mix).

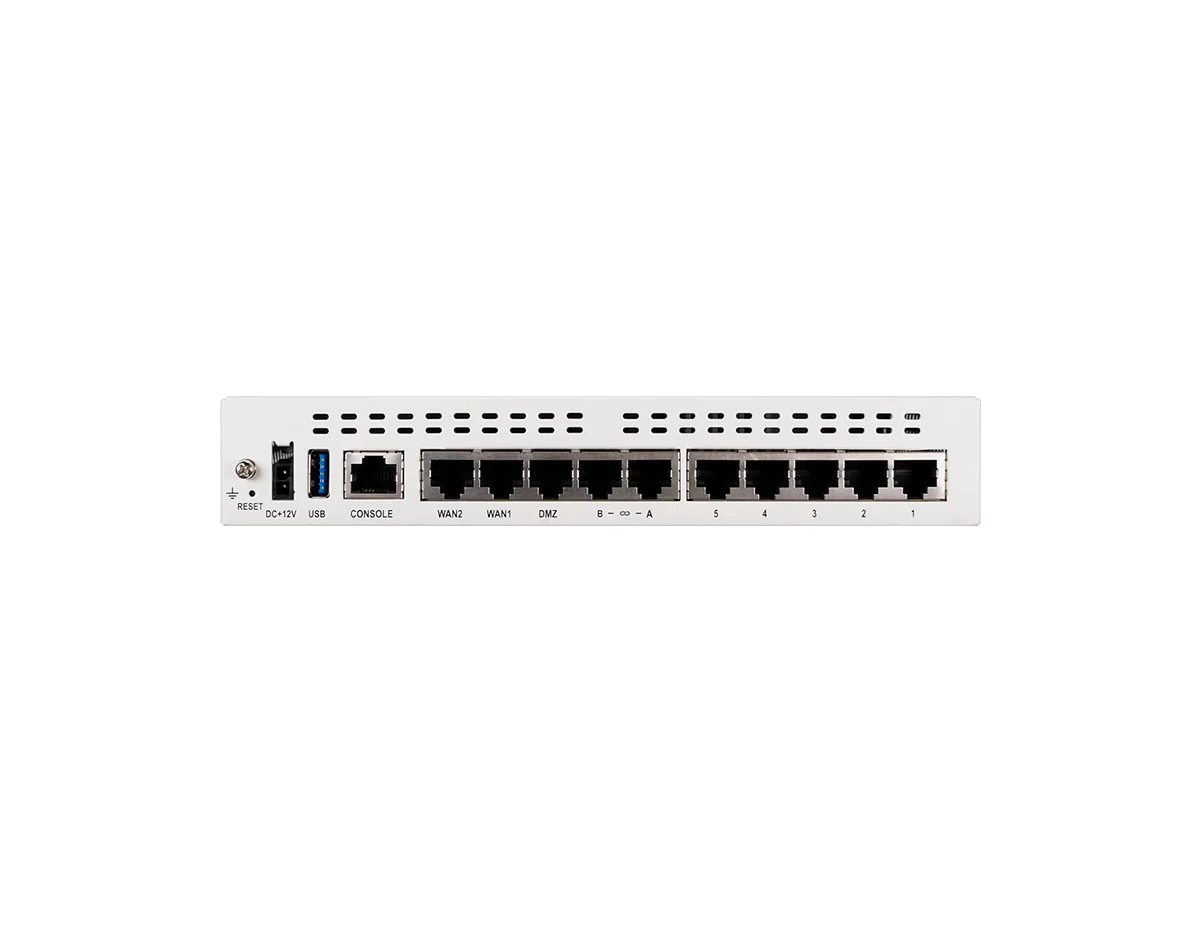

• Interface set: 10x GE RJ45 ports (2x WAN, 1x DMZ, 7x Internal including 2x FortiLink default), plus 1x USB and 1x RJ45 console.
• IPsec VPN capacity: 6.1 Gbps IPsec VPN throughput (512 byte), 200 gateway-to-gateway tunnels, 500 client-to-gateway tunnels.
• SSL performance: 405 Mbps SSL-VPN throughput, 700 Mbps SSL inspection throughput (IPS, avg. HTTPS).
• Power, acoustics, and size: 12VDC, 3A; 10.17 W / 12.43 W (avg / max); fanless 0 dBA; 1.5 x 8.5 x 6.3 in (38.5 x 216 x 160 mm), 2.23 lbs (1.01 kg).

Upgrade Your Network Security

Deploy the FortiGate 70F today for a compact, high-performance security solution that unifies networking and protection.
