Fortinet FG-7040E Firewall
[shortdesc]
[properties]

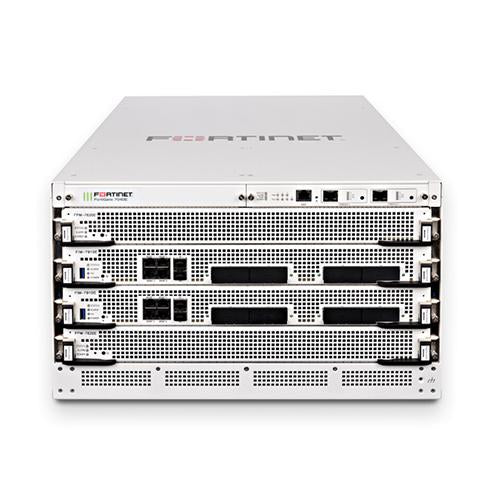

- FG-7040E chassis including system management module, 3x fan modules and 3x AC PSUs
| Properties | FG-7040E |
| Description |
Next Generation 6U 19-inch 4-slot rack mount chassis with 2x Fortinet Processor Modules (FPM) and 2x Fortinet Interface Modules (FIM).
|
| Product Family | Chasis Based Firewalls |
| Product Type | Firewall |
| Fortinet Processor Module (FPM) Slots | 2 |
| Fortinet Interface Module (FIM) Slots | 2 |
| Shelf Manager | 1 |
| Dimensions in. | 10.4 x 17.3 x 25.6 |
| Form Factor | 6 RU |
| Power Required |
AC (configured with 3 PSUs by default,
optionally an additional PSU can be added for redundancy) |
| Maximum Current | AC:12A@100V, 10A@240V DC:30A per feed (2+2) |
| Power Consumption (Average / Maximum) | 2500 / 1800 W |
| Operating Temperature | 32–104°F (0–40°C) |
| Certifications |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
|
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 315 / 310 / 200 Gbps |
| Firewall Latency (64 byte UDP packets) | 7.00 μs |
| Firewall Throughput (Packets Per Second) | 300 Mpps |
| Concurrent Sessions (TCP) | 160 Million |
| New Sessions/Second (TCP) | 950.000 |
| Firewall Policies | 200.000 |
| IPsec VPN Throughput (512 byte packets) | 100Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 40000 |
| Client-to-Gateway IPsec VPN Tunnels | 64000 |
| SSL-VPN Throughput | N/A |
| Concurrent SSL-VPN Users (Recommended Maximum) | N/A |
| SSL Inspection Throughput | 50 Gbps |
| Application Control Throughput | 80 Gbps |
| IPS Throughput | 140 / 60 Gbps |
| NGFW Throughput | 50 Gbps |
| Threat Protection Throughput | 40 Gbps |
| CAPWAP Throughput | N/A |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | N/A |
| High Availability Configurations | Supported |
| FPM-7620E |
Hot swappable processor module for 7000E series — SPU NP6 and CP9 hardware accelerated.
|
| FPM-7630E |
Hot swappable processor module for 7000E series — SPU NP6 and CP9 hardware accelerated.
|
| FIM-7901E |
Hot swappable I/O module for 7000E series — 4x GE RJ45 management ports and 34x 10 GE SFP+ slots.
|
| FIM-7904E |
Hot swappable I/O module for 7000E series — 4x GE RJ45 management ports, 2x 10 GE SFP+ slots and 8x 40 GE QSFP+.
|
| FIM-7910E |
Hot swappable I/O module for 7000E series — 4x GE RJ45 management ports, 2x 10 GE SFP+ slots and 4x 100 GE CFP2 slots.
|
| FIM-7920E |
Hot swappable I/O module for 7000E series — 4x GE RJ45 management ports, 2x 10 GE SFP+ slots and 4x 100 G QSFP28 slots.
|
| FG-TRAN-CFP2-SR10 |
100 GE CFP2 transceivers, 10 channel parallel fiber, short range for all systems with CFP2 slots. 100 GE CFP2 transceivers, long range, over single mode fiber, for all systems with CFP2 slots. 40 GE QSFP+ transceivers, short range for all systems with QSFP+ slots.
|
| FG-TRAN-CFP2-LR4 |
100 GE CFP2 transceivers, long range, over single mode fiber, for all systems with CFP2 slots.
|
| FG-TRAN-QSFP+SR |
40 GE QSFP+ transceivers, short range for all systems with QSFP+ slots.
|
| FG-TRAN-QSFP+LR |
40 GE QSFP+ transceivers, long range for all systems with QSFP+ slots.
|
| FG-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots.
|
| FG-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
|
| FS-TRAN-SFP+GC |
10 GE copper SFP+ RJ45 transceiver. For FortiSwitch only, up to 30m.
|
| FG-TRAN-QSFP28-SR4 |
100 GE QSFP28 transceivers, 4 channel parallel fiber, short range for all systems with QSFP28 slots.
|
| FG-TRAN-QSFP28-LR4 |
100 GE QSFP28 transceivers, 4 channel parallel fiber, long range for all systems with QSFP28 slots.
|
FG-7040E chassis including system management module, 3x fan modules and 3x AC PSUs
