[shortdesc]Firewall, 1RU rackmount, 4x 25GE SFP28, 164 Gbps firewall, 38 Gbps IPS, including 5 Year FortiCare Premium and FortiGuard Enterprise Protection[/shortdesc]

[properties]

Product Name	FortiGate 700G
SKU	FG-700G-BDL-809-60
Bundle / Subscription	BDL-809 (Hardware + FortiCare Premium + FortiGuard Enterprise Protection), 5 Year
Form Factor	Rack Mount, 1RU
Firewall Throughput (IPv4)	164 Gbps (1518 byte, UDP)
Interfaces	4x 25 GE SFP28, 4x 10 GE SFP+, 16x 1 GE SFP, 8x 5/2.5/GE RJ45, 1x 2.5 GE/GE HA, 1x GE Management
Power Input	100-240VAC, 50/60 Hz
Dimensions	1.75 x 17.0 x 13.5 inches (44.45 x 432 x 342 mm)
Weight	7.72 lbs (3.5 kg)
Operating Temperature	32°F to 113°F (0°C to 45°C)
Certifications	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB, USGv6/IPv6

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	38 Gbps
NGFW Throughput	29 Gbps
Threat Protection Throughput	26 Gbps
System Performance and Capacity
IPv4 Firewall Throughput	164 / 163 / 145 Gbps (1518/512/64 byte, UDP)
IPv6 Firewall Throughput	164 / 163 / 145 Gbps (1518/512/86 byte, UDP)
Firewall Latency	3.87 μs (64 byte, UDP)
Firewall Throughput (Packet per Second)	217.5 Mpps
Concurrent Sessions (TCP)	16 Million
New Sessions/Second (TCP)	700,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)	55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	50,000
SSL-VPN Throughput	8 Gbps
Concurrent SSL-VPN Users (Recommended Max)	10,000 (Tunnel Mode)
SSL Inspection Throughput	14 Gbps (IPS, avg. HTTPS)
SSL Inspection CPS	13,000 (IPS, avg. HTTPS)
SSL Inspection Concurrent Session	1.6 Million (IPS, avg. HTTPS)
Application Control Throughput	50 Gbps (HTTP 64K)
CAPWAP Throughput	133 Gbps (HTTP 64K)
Virtual Domains (Default/Maximum)	10 / 50
Maximum Number of FortiSwitches Supported	96
Maximum Number of FortiAPs (Total/Tunnel)	1024 / 512
Maximum Number of FortiTokens	5,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Hardware and Interfaces
Hardware Accelerated 25 GE SFP28/10 GE SFP+ Slots	4
Hardware Accelerated 10 GE SFP+/GE SFP Slots	4
Hardware Accelerated GE SFP Slots	16
Hardware Accelerated GE RJ45 Slots	8 (5 / 2.5 / GE)
2.5 GE/GE HA Port	1
GE Management Port	1
USB Ports (Client/Server)	2
Console Port	1
Onboard Storage	No
Trusted Platform Module (TPM)	Yes
FortiSentry	Yes
Dimensions and Power
Power Consumption (Average/Maximum)	230 W / 283 W
AC Current (Maximum)	6A @ 100VAC
Heat Dissipation	965 BTU/h

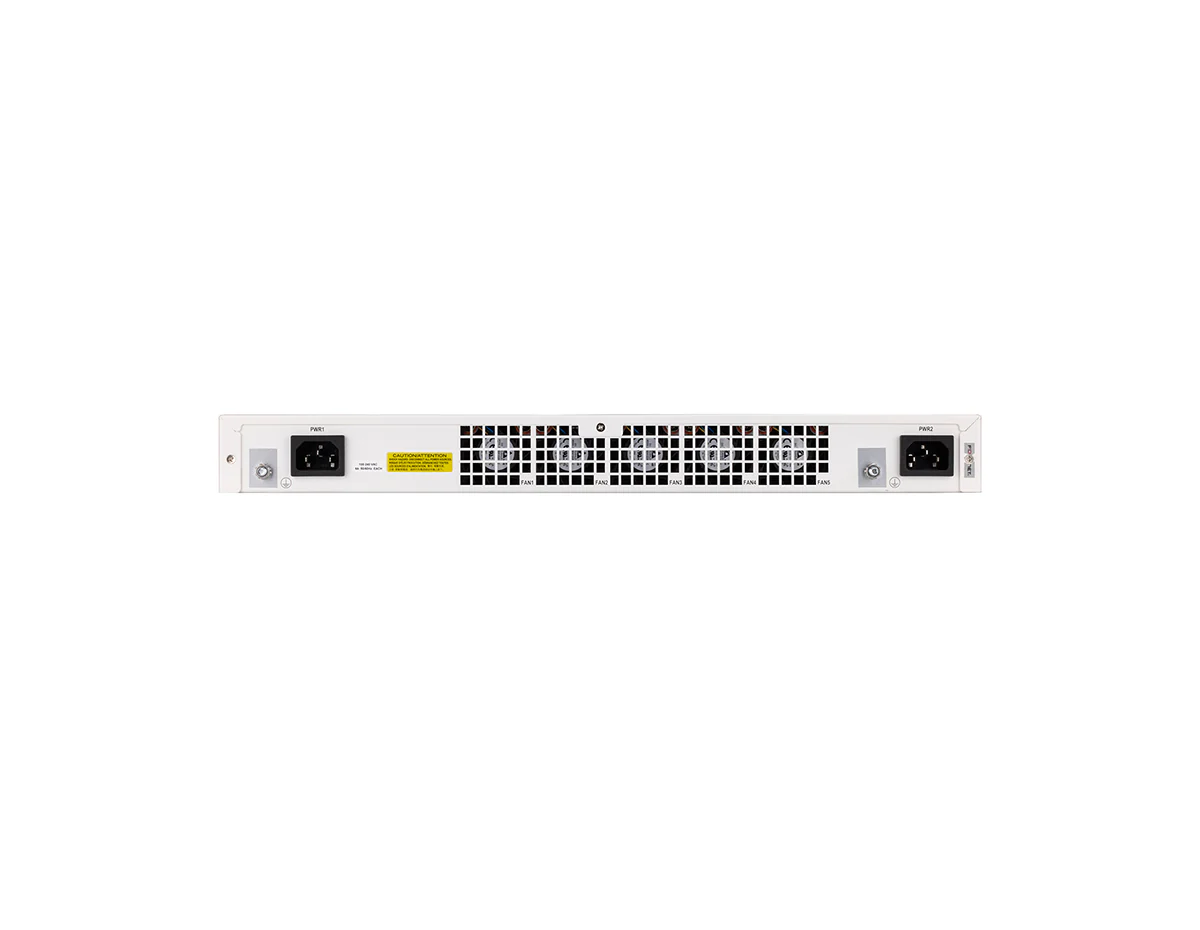

Redundant Power Supplies	Default dual non-swappable AC PSU for 1+1 Redundancy
Operating Environment and Certifications
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	59 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 10,000 ft (3,048 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB

[/specifications]

[accesories]

Included Accessories	2x SFP SX Transceivers, Default Dual Internal Power Supplies
Optional Accessories	1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (RJ45, SR, LR, ER, ZR, BiDi), 25 GE SFP28 Transceivers (SR, LR), Direct Attach Cables (10 GE SFP+, 25 GE SFP28)

[/accesories]

The Fortinet FortiGate 700G Series next-generation firewall (NGFW) utilizes advanced artificial intelligence (AI) and machine learning (ML) to provide scalable threat protection and deep visibility across enterprise networks. Driven by Fortinet's patented Network Processor 7 (NP7) and the Content Processor 10 (CP10), this appliance delivers performance including 38 Gbps of IPS throughput and 50 Gbps of Application Control throughput. The inclusion of the CP10 processor accelerates resource-intensive security functions such as pattern matching and fast inspection of real-time traffic.

This FG-700G-BDL-809-60 bundle includes Hardware + FortiCare Premium + FortiGuard Enterprise Protection for a 5 Year term, aligning support coverage with integrated security services. The FortiGate 700G is designed for connectivity and resilience, featuring a diverse range of interfaces including four 25 GE SFP28 slots, four 10 GE SFP+ slots, and eight 5/2.5/GE RJ45 ports to accommodate modern network demands. It also incorporates FortiSentry, an out-of-band hardware module that continuously monitors the integrity of the FortiOS filesystem to detect and prevent unauthorized modifications. With dual non-swappable AC power supplies included for 1+1 redundancy, the FG-700G ensures mission-critical reliability for data centers, hybrid mesh firewalls, and secure SD-WAN deployments.

Advanced AI-Powered Security with 25GE Connectivity and CP10 Acceleration

Key Benefits

• Unparalleled Performance: Delivers 38 Gbps IPS and 29 Gbps NGFW throughput powered by NP7 and CP10 ASICs.
• Future-Proof Connectivity: Equipped with 4x 25 GE SFP28 and 8x 5/2.5/GE RJ45 ports for high-speed network integration.
• System Integrity: Features FortiSentry, a dedicated module that monitors FortiOS integrity to prevent malicious tampering.
• AI-Driven Protection: Utilizes AI/ML-powered FortiGuard services to block known, zero-day, and unknown attacks.
• Deep Visibility: Provides 14 Gbps of SSL inspection throughput to analyze encrypted traffic without performance impact.
• Operational Reliability: Includes default dual internal power supplies to ensure continuous operation in mission-critical environments.
• Unified Management: Supports a consolidated security fabric architecture, simplifying policy enforcement across hybrid environments.

Ideal Use Cases

• Enterprise Edge Protection: Securing the network perimeter with high-performance inspection and AI-driven threat defense.
• Hybrid Mesh Firewall: Providing consistent security and policy enforcement across on-premise and cloud segments.
• Secure SD-WAN: Transforming WAN edges with a unified platform that combines networking and security capabilities.
• Internal Segmentation: Using VXLAN segmentation and high-speed interfaces to prevent lateral threat movement.

Technical Specifications Summary

• IPS Throughput: 38 Gbps
• NGFW Throughput: 29 Gbps
• Threat Protection Throughput: 26 Gbps
• IPv4 Firewall Throughput: 164 / 163 / 145 Gbps (1518/512/64 byte, UDP)
• IPv6 Firewall Throughput: 164 / 163 / 145 Gbps (1518/512/86 byte, UDP)
• IPsec VPN Throughput (512 byte): 55 Gbps
• SSL Inspection Throughput: 14 Gbps (IPS, avg. HTTPS)
• Power Consumption (Average/Maximum): 230 W / 283 W
• Interfaces: 4x 25 GE SFP28, 4x 10 GE SFP+, 16x 1 GE SFP, 8x 5/2.5/GE RJ45, 1x 2.5 GE/GE HA, 1x GE Management
• Dimensions: 1.75 x 17.0 x 13.5 inches (44.45 x 432 x 342 mm)
• Operating Temperature: 32°F to 113°F (0°C to 45°C)
• Compliance: FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB

Upgrade Your Network Security

Secure your enterprise with the AI-powered performance of the FortiGate 700G with the FG-700G-BDL-809-60 bundle.
