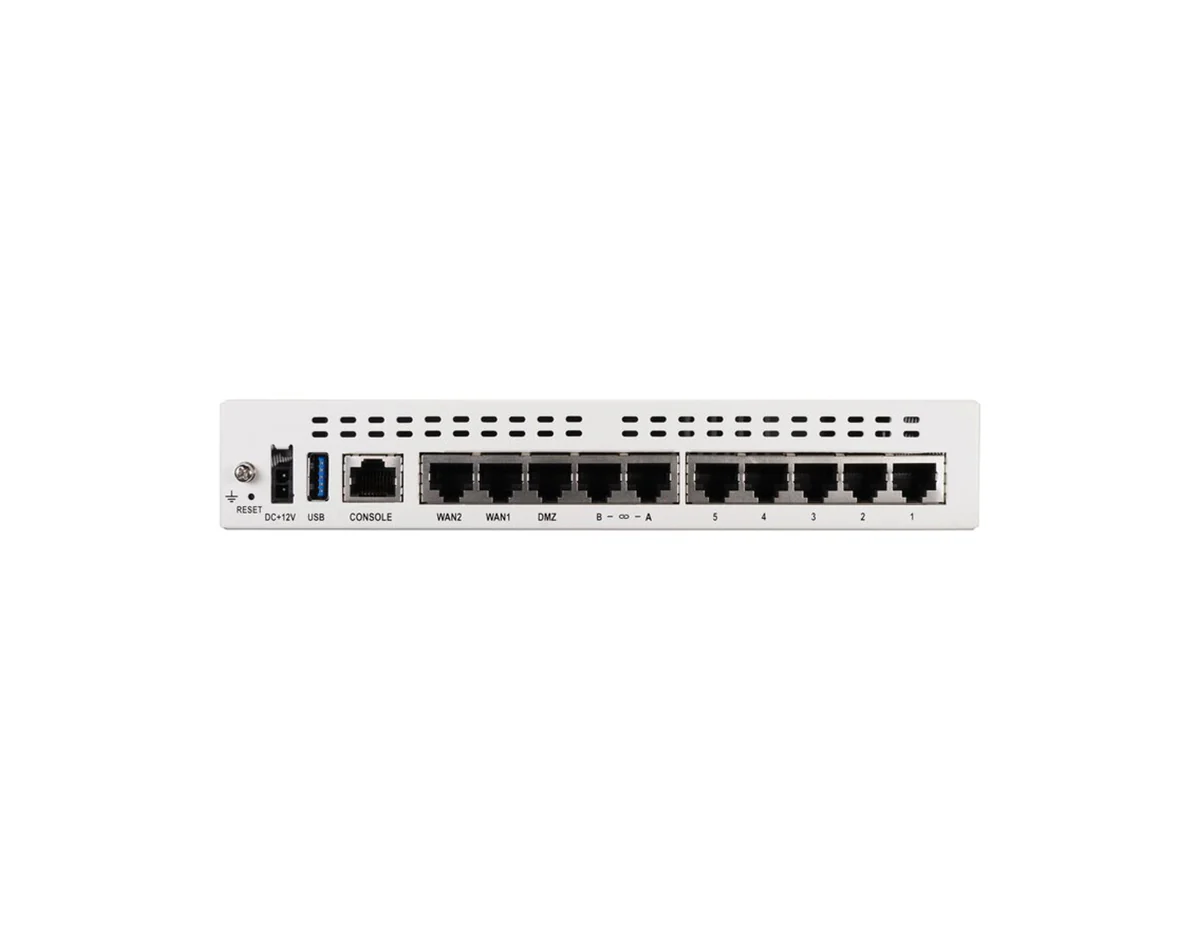

Fortinet FG-60F-BDL-950-36 Firewall
- Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 3Yr Bundle
| Property | Details |
| Product Name | Fortinet FG-60F-BDL-950-36 Firewall |
| Description | FortiGate 60F firewall with 10 x GE RJ45 ports including 5 x internal ports, 2 x WAN ports, and 1 x DMZ port, in a fanless desktop form factor with 3-year 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP) bundle. |
| Product Family | Entry Level FortiGate Firewalls |
| Product Type | Firewall |
| GE RJ45 Internal Ports | 5 |
| GE RJ45 WAN / DMZ Ports | 2 / 1 |
| USB Port | 1 |
| Console (RJ45) | 1 |
| Wireless Interface | 0 |
| Bundle | 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP) |
| Bundle Duration | 3 Years |
[specifications]
| Specification | Details |
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 10 / 10 / 6 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.3 Ī¼s |
| Firewall Throughput (Packets Per Second) | 9 Mpps |
| Concurrent Sessions (TCP) | 700,000 |
| New Sessions/Second (TCP) | 30,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte packets) | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 500 |
| SSL-VPN Throughput | 900 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 200 |
| IPS Throughput | 1.4 Gbps |
| SSL Inspection Throughput | 630 Mbps |
| Application Control Throughput | 1.8 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 700 Mbps |
| CAPWAP Throughput | 890 Mbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions | 1.5 x 8.5 x 6.3 in |
| Form Factor | Desktop |
| Power Required | 100-240V AC, 50/60 Hz (External DC Power Adapter) |
| Maximum Current | 100V AC / 1.0A, 240V AC / 0.6A |
| Power Consumption (Average / Maximum) | 10.17 W / 12.43 W |
| Operating Temperature | 32Ā°F to 104Ā°F (0Ā°C to 40Ā°C) |
| Regulatory Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
[/specifications]
[accesories]
| Accessory | Details |
| SP-RACKTRAY-02 | Rack mount tray for all FortiGate E series and F series desktop models; backwards compatible with SP-RackTray-01 |
| SP-FG60E-PDC-5 | Pack of 5 AC power adaptors for FG/FWF 60E/61E, 60F/61F, and 80E/81E |
| SP-FG60F-MOUNT-20 | Pack of 20 wall mount kits for FG/FWF-60F and FG/FWF-80F series |
[/accesories]
Fortinet FG-60F-BDL-950-36 Firewall
The Fortinet FG-60F-BDL-950-36 is a compact, fanless next-generation firewall designed for branch offices, remote sites, and small business environments. Built on Fortinetās SPU architecture, it provides strong protection against web-based, file-based, and device-based threats while maintaining efficient performance in a desktop form factor.
This bundle includes 3-year 24x7 FortiCare support and FortiGuard Unified Threat Protection (UTP), delivering essential security services such as IPS, antivirus, botnet protection, mobile malware protection, FortiGate Cloud Sandbox, application control, web filtering, and antispam. It is a solid option for organizations that need reliable perimeter security, VPN connectivity, and simplified deployment.
