Fortinet FG-601F-BDL-809-12 Next-Generation Firewall
[shortdesc]Firewall, 1RU, 4x 25GE SFP28, 14 Gbps IPS, 480GB SSD, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection[/shortdesc]
[properties]
| Product Name | FortiGate 601F |
| SKU | FG-601F-BDL-809-12 |
| Bundle / Subscription | FortiGate 601F + FortiCare Premium + FortiGuard Enterprise Protection, 1 Year |
| Form Factor | Rack Mount, 1 RU |
| Firewall Throughput (IPv4/IPv6, 1518/512/64 byte, UDP) | 139 / 137.5 / 70 Gbps (1518/512/64 byte, UDP) |
| Interfaces | 4x 25GE SFP28, 4x 10GE SFP+, 8x GE SFP, 18x GE RJ45 (16x switch ports, 1x MGMT port, 1x HA port) |
| Internal Storage | 480 GB (2 x 240 GB SSD) |
| Power Input | 100–240V AC, 50/60Hz |
| Dimensions (H x W x L) | 1.75 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm) |
| Weight | 16.2 lbs (7.35 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Certifications | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB, USGv6/IPv6 |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) | |
| IPS Throughput | 14 Gbps |
| NGFW Throughput | 11.5 Gbps |
| Threat Protection Throughput | 10.5 Gbps |
| System Performance and Capacity | |
| Firewall Throughput (Packet per Second) | 105 Mpps |
| Firewall Latency (64 byte) | 4.12 μs / 2.5 μs (ULL ports) |
| Concurrent Sessions (TCP) | 8 Million |
| New Sessions/Second (TCP) | 550,000 |
| Firewall Policies | 30,000 |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| SSL-VPN Throughput | 4.3 Gbps |
| SSL Inspection Throughput | 9 Gbps (IPS, avg. HTTPS) |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| Maximum Number of FortiAPs (Total/Tunnel) | 1024 / 512 |
| Hardware and Interfaces | |
| 25 GE SFP28 Slots | 4 |
| 10 GE SFP+ Slots | 4 |
| GE SFP Slots | 8 |
| GE RJ45 Ports (Switch) | 16 |
| GE RJ45 Ports (MGMT/HA) | 2 |
| USB Ports | 2 |
| RJ45 Console Port | 1 |
| Power & Environment | |
| Power Consumption (Average/Maximum) | 174 W / 260 W |
| Heat Dissipation | 888 BTU/h |
| Redundant Power Supplies | Dual Hot Swappable (Included) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 5% to 90% non-condensing |
| Noise Level | 55 dBA |
[/specifications]
[accesories]
| Included Accessories | 2x SFP (SX 1 GE) Transceivers, Dual Hot Swappable Power Supplies |
| Optional Accessories | AC Power Supply (SP-FG400F-PS, power cable SP-FGPCOR-XX sold separately), 1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (RJ45, SR, LR, ER, ZR, BiDi), 25 GE SFP28 Transceivers (SR, LR), DAC Cables (10 GE SFP+, 25 GE SFP28) |
[/accesories]
The Fortinet FortiGate 601F is a high-performance next-generation firewall designed for large enterprise and data center deployments. Powered by Fortinet’s patented SPU technology, the FortiGate 601F delivers up to 139 / 137.5 / 70 Gbps firewall throughput (1518/512/64 byte, UDP), 14 Gbps IPS throughput, and 55 Gbps IPsec VPN throughput (512 byte) to support high-speed security enforcement at scale. The integrated 480 GB (2 x 240 GB) onboard SSD storage provides local capacity for onboard storage needs such as logging. The FG-601F-BDL-809-12 bundle includes the FortiGate 601F with 1 Year FortiCare Premium and FortiGuard Enterprise Protection.

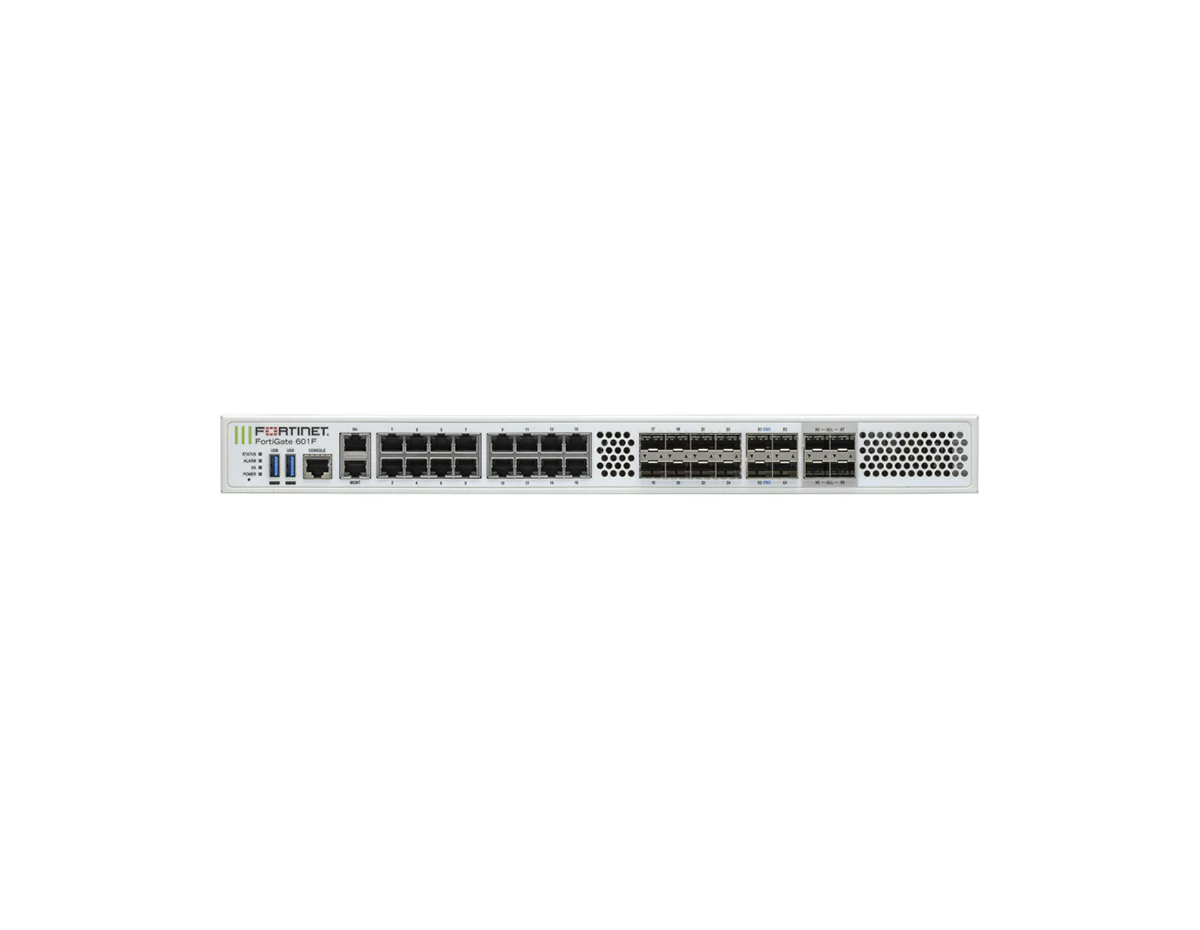

The 601F’s interface configuration includes 4x 25GE SFP28 slots and 4x 10GE SFP+ slots, along with 8x GE SFP slots and 18x GE RJ45 ports (including 16x switch ports, 1x MGMT port, and 1x HA port) to provide high-density connectivity options for modern networks. Integrated into the Fortinet Security Fabric platform, this firewall supports secure networking with unified policy enforcement and advanced edge protection for hybrid IT environments, including secure SD-WAN and network segmentation use cases.
Secure Networking with SPU-Accelerated Performance and Integrated 480 GB (2 x 240 GB) SSD Storage
Key Benefits
- Extreme Throughput: Achieves up to 139 / 137.5 / 70 Gbps firewall throughput (1518/512/64 byte, UDP) and 14 Gbps IPS throughput for high-performance security.
- High-Speed Connectivity: Features 4x 25GE SFP28 and 4x 10GE SFP+ slots for high-bandwidth uplinks and data center connectivity.
- Integrated Storage: Includes 480 GB (2 x 240 GB) onboard SSD storage for onboard storage needs.
- Encrypted Visibility: Provides 9 Gbps SSL Inspection throughput (IPS, avg. HTTPS) to inspect encrypted traffic at scale.
- Maximum Capacity: Supports up to 8 million concurrent sessions and 30,000 firewall policies for large environments.
- Mission-Critical Reliability: Includes dual hot-swappable power supplies for operational resilience.
Ideal Use Cases
- Data Center Edge Security: Protecting high-throughput infrastructure with 25GE connectivity options.
- Enterprise Campus Security: Securing large networks requiring dense port configurations and high session capacity.
- Secure SD-WAN: Deploying secure SD-WAN with unified networking and security capabilities.
- High-Speed Segmentation: Implementing internal segmentation using integrated switching ports and high-speed interfaces.
Technical Specifications Summary
- Form Factor & Size: Rack Mount, 1 RU; 1.75 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm); 16.2 lbs (7.35 kg)
- Interfaces: 4x 25GE SFP28, 4x 10GE SFP+, 8x GE SFP, 18x GE RJ45 (16x switch ports, 1x MGMT, 1x HA), 1x RJ45 console, 2x USB
- Internal Storage: 480 GB (2 x 240 GB SSD)
- Security Performance: 14 Gbps IPS; 11.5 Gbps NGFW; 10.5 Gbps Threat Protection (Enterprise Traffic Mix)
- Firewall Performance: 139 / 137.5 / 70 Gbps IPv4/IPv6 firewall throughput (1518/512/64 byte, UDP); 105 Mpps firewall throughput
- Latency: 4.12 μs / 2.5 μs (64 byte, UDP; ULL ports)
- VPN Performance: 55 Gbps IPsec VPN throughput (512 byte); 2,000 gateway-to-gateway tunnels; 50,000 client-to-gateway tunnels
- SSL Performance: 4.3 Gbps SSL-VPN throughput; 9 Gbps SSL inspection throughput (IPS, avg. HTTPS)
- Capacity: 8 Million concurrent sessions; 550,000 new sessions/second; 30,000 firewall policies
- Power: 174 W / 260 W (Average/Maximum); 100–240V AC, 50/60Hz; dual hot-swappable redundant power supplies
- Environment: 32°F to 104°F (0°C to 40°C) operating temperature; 5% to 90% non-condensing humidity; 55 dBA noise level
- Compliance & Certifications: FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6
Upgrade Your Network Security
Deploy the FortiGate 601F bundle FG-601F-BDL-809-12 to bring high-throughput firewall performance and enterprise-grade security services into your network.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Fortinet FG-601F-BDL-809-12 Next-Generation Firewall
Fortinet FG-601F-BDL-809-12 Next-Generation Firewall
[shortdesc]Firewall, 1RU, 4x 25GE SFP28, 14 Gbps IPS, 480GB SSD, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection[/shortdesc]
[properties]
| Product Name | FortiGate 601F |
| SKU | FG-601F-BDL-809-12 |
| Bundle / Subscription | FortiGate 601F + FortiCare Premium + FortiGuard Enterprise Protection, 1 Year |
| Form Factor | Rack Mount, 1 RU |
| Firewall Throughput (IPv4/IPv6, 1518/512/64 byte, UDP) | 139 / 137.5 / 70 Gbps (1518/512/64 byte, UDP) |
| Interfaces | 4x 25GE SFP28, 4x 10GE SFP+, 8x GE SFP, 18x GE RJ45 (16x switch ports, 1x MGMT port, 1x HA port) |
| Internal Storage | 480 GB (2 x 240 GB SSD) |
| Power Input | 100–240V AC, 50/60Hz |
| Dimensions (H x W x L) | 1.75 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm) |
| Weight | 16.2 lbs (7.35 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Certifications | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB, USGv6/IPv6 |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) | |
| IPS Throughput | 14 Gbps |
| NGFW Throughput | 11.5 Gbps |
| Threat Protection Throughput | 10.5 Gbps |
| System Performance and Capacity | |
| Firewall Throughput (Packet per Second) | 105 Mpps |
| Firewall Latency (64 byte) | 4.12 μs / 2.5 μs (ULL ports) |
| Concurrent Sessions (TCP) | 8 Million |
| New Sessions/Second (TCP) | 550,000 |
| Firewall Policies | 30,000 |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| SSL-VPN Throughput | 4.3 Gbps |
| SSL Inspection Throughput | 9 Gbps (IPS, avg. HTTPS) |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| Maximum Number of FortiAPs (Total/Tunnel) | 1024 / 512 |
| Hardware and Interfaces | |
| 25 GE SFP28 Slots | 4 |
| 10 GE SFP+ Slots | 4 |
| GE SFP Slots | 8 |
| GE RJ45 Ports (Switch) | 16 |
| GE RJ45 Ports (MGMT/HA) | 2 |
| USB Ports | 2 |
| RJ45 Console Port | 1 |
| Power & Environment | |
| Power Consumption (Average/Maximum) | 174 W / 260 W |
| Heat Dissipation | 888 BTU/h |
| Redundant Power Supplies | Dual Hot Swappable (Included) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 5% to 90% non-condensing |
| Noise Level | 55 dBA |
[/specifications]
[accesories]
| Included Accessories | 2x SFP (SX 1 GE) Transceivers, Dual Hot Swappable Power Supplies |
| Optional Accessories | AC Power Supply (SP-FG400F-PS, power cable SP-FGPCOR-XX sold separately), 1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (RJ45, SR, LR, ER, ZR, BiDi), 25 GE SFP28 Transceivers (SR, LR), DAC Cables (10 GE SFP+, 25 GE SFP28) |
[/accesories]
The Fortinet FortiGate 601F is a high-performance next-generation firewall designed for large enterprise and data center deployments. Powered by Fortinet’s patented SPU technology, the FortiGate 601F delivers up to 139 / 137.5 / 70 Gbps firewall throughput (1518/512/64 byte, UDP), 14 Gbps IPS throughput, and 55 Gbps IPsec VPN throughput (512 byte) to support high-speed security enforcement at scale. The integrated 480 GB (2 x 240 GB) onboard SSD storage provides local capacity for onboard storage needs such as logging. The FG-601F-BDL-809-12 bundle includes the FortiGate 601F with 1 Year FortiCare Premium and FortiGuard Enterprise Protection.
The 601F’s interface configuration includes 4x 25GE SFP28 slots and 4x 10GE SFP+ slots, along with 8x GE SFP slots and 18x GE RJ45 ports (including 16x switch ports, 1x MGMT port, and 1x HA port) to provide high-density connectivity options for modern networks. Integrated into the Fortinet Security Fabric platform, this firewall supports secure networking with unified policy enforcement and advanced edge protection for hybrid IT environments, including secure SD-WAN and network segmentation use cases.
Secure Networking with SPU-Accelerated Performance and Integrated 480 GB (2 x 240 GB) SSD Storage
Key Benefits
- Extreme Throughput: Achieves up to 139 / 137.5 / 70 Gbps firewall throughput (1518/512/64 byte, UDP) and 14 Gbps IPS throughput for high-performance security.
- High-Speed Connectivity: Features 4x 25GE SFP28 and 4x 10GE SFP+ slots for high-bandwidth uplinks and data center connectivity.
- Integrated Storage: Includes 480 GB (2 x 240 GB) onboard SSD storage for onboard storage needs.
- Encrypted Visibility: Provides 9 Gbps SSL Inspection throughput (IPS, avg. HTTPS) to inspect encrypted traffic at scale.
- Maximum Capacity: Supports up to 8 million concurrent sessions and 30,000 firewall policies for large environments.
- Mission-Critical Reliability: Includes dual hot-swappable power supplies for operational resilience.
Ideal Use Cases
- Data Center Edge Security: Protecting high-throughput infrastructure with 25GE connectivity options.
- Enterprise Campus Security: Securing large networks requiring dense port configurations and high session capacity.
- Secure SD-WAN: Deploying secure SD-WAN with unified networking and security capabilities.
- High-Speed Segmentation: Implementing internal segmentation using integrated switching ports and high-speed interfaces.
Technical Specifications Summary
- Form Factor & Size: Rack Mount, 1 RU; 1.75 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm); 16.2 lbs (7.35 kg)
- Interfaces: 4x 25GE SFP28, 4x 10GE SFP+, 8x GE SFP, 18x GE RJ45 (16x switch ports, 1x MGMT, 1x HA), 1x RJ45 console, 2x USB
- Internal Storage: 480 GB (2 x 240 GB SSD)
- Security Performance: 14 Gbps IPS; 11.5 Gbps NGFW; 10.5 Gbps Threat Protection (Enterprise Traffic Mix)
- Firewall Performance: 139 / 137.5 / 70 Gbps IPv4/IPv6 firewall throughput (1518/512/64 byte, UDP); 105 Mpps firewall throughput
- Latency: 4.12 μs / 2.5 μs (64 byte, UDP; ULL ports)
- VPN Performance: 55 Gbps IPsec VPN throughput (512 byte); 2,000 gateway-to-gateway tunnels; 50,000 client-to-gateway tunnels
- SSL Performance: 4.3 Gbps SSL-VPN throughput; 9 Gbps SSL inspection throughput (IPS, avg. HTTPS)
- Capacity: 8 Million concurrent sessions; 550,000 new sessions/second; 30,000 firewall policies
- Power: 174 W / 260 W (Average/Maximum); 100–240V AC, 50/60Hz; dual hot-swappable redundant power supplies
- Environment: 32°F to 104°F (0°C to 40°C) operating temperature; 5% to 90% non-condensing humidity; 55 dBA noise level
- Compliance & Certifications: FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6
Upgrade Your Network Security
Deploy the FortiGate 601F bundle FG-601F-BDL-809-12 to bring high-throughput firewall performance and enterprise-grade security services into your network.
Original: $31,246.00
-65%$31,246.00
$10,936.10Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
[shortdesc]Firewall, 1RU, 4x 25GE SFP28, 14 Gbps IPS, 480GB SSD, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection[/shortdesc]
[properties]
| Product Name | FortiGate 601F |
| SKU | FG-601F-BDL-809-12 |
| Bundle / Subscription | FortiGate 601F + FortiCare Premium + FortiGuard Enterprise Protection, 1 Year |
| Form Factor | Rack Mount, 1 RU |
| Firewall Throughput (IPv4/IPv6, 1518/512/64 byte, UDP) | 139 / 137.5 / 70 Gbps (1518/512/64 byte, UDP) |
| Interfaces | 4x 25GE SFP28, 4x 10GE SFP+, 8x GE SFP, 18x GE RJ45 (16x switch ports, 1x MGMT port, 1x HA port) |
| Internal Storage | 480 GB (2 x 240 GB SSD) |
| Power Input | 100–240V AC, 50/60Hz |
| Dimensions (H x W x L) | 1.75 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm) |
| Weight | 16.2 lbs (7.35 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Certifications | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB, USGv6/IPv6 |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) | |
| IPS Throughput | 14 Gbps |
| NGFW Throughput | 11.5 Gbps |
| Threat Protection Throughput | 10.5 Gbps |
| System Performance and Capacity | |
| Firewall Throughput (Packet per Second) | 105 Mpps |
| Firewall Latency (64 byte) | 4.12 μs / 2.5 μs (ULL ports) |
| Concurrent Sessions (TCP) | 8 Million |
| New Sessions/Second (TCP) | 550,000 |
| Firewall Policies | 30,000 |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| SSL-VPN Throughput | 4.3 Gbps |
| SSL Inspection Throughput | 9 Gbps (IPS, avg. HTTPS) |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| Maximum Number of FortiAPs (Total/Tunnel) | 1024 / 512 |
| Hardware and Interfaces | |
| 25 GE SFP28 Slots | 4 |
| 10 GE SFP+ Slots | 4 |
| GE SFP Slots | 8 |
| GE RJ45 Ports (Switch) | 16 |
| GE RJ45 Ports (MGMT/HA) | 2 |
| USB Ports | 2 |
| RJ45 Console Port | 1 |
| Power & Environment | |
| Power Consumption (Average/Maximum) | 174 W / 260 W |
| Heat Dissipation | 888 BTU/h |
| Redundant Power Supplies | Dual Hot Swappable (Included) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 5% to 90% non-condensing |
| Noise Level | 55 dBA |
[/specifications]
[accesories]
| Included Accessories | 2x SFP (SX 1 GE) Transceivers, Dual Hot Swappable Power Supplies |
| Optional Accessories | AC Power Supply (SP-FG400F-PS, power cable SP-FGPCOR-XX sold separately), 1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (RJ45, SR, LR, ER, ZR, BiDi), 25 GE SFP28 Transceivers (SR, LR), DAC Cables (10 GE SFP+, 25 GE SFP28) |
[/accesories]
The Fortinet FortiGate 601F is a high-performance next-generation firewall designed for large enterprise and data center deployments. Powered by Fortinet’s patented SPU technology, the FortiGate 601F delivers up to 139 / 137.5 / 70 Gbps firewall throughput (1518/512/64 byte, UDP), 14 Gbps IPS throughput, and 55 Gbps IPsec VPN throughput (512 byte) to support high-speed security enforcement at scale. The integrated 480 GB (2 x 240 GB) onboard SSD storage provides local capacity for onboard storage needs such as logging. The FG-601F-BDL-809-12 bundle includes the FortiGate 601F with 1 Year FortiCare Premium and FortiGuard Enterprise Protection.
The 601F’s interface configuration includes 4x 25GE SFP28 slots and 4x 10GE SFP+ slots, along with 8x GE SFP slots and 18x GE RJ45 ports (including 16x switch ports, 1x MGMT port, and 1x HA port) to provide high-density connectivity options for modern networks. Integrated into the Fortinet Security Fabric platform, this firewall supports secure networking with unified policy enforcement and advanced edge protection for hybrid IT environments, including secure SD-WAN and network segmentation use cases.
Secure Networking with SPU-Accelerated Performance and Integrated 480 GB (2 x 240 GB) SSD Storage
Key Benefits
- Extreme Throughput: Achieves up to 139 / 137.5 / 70 Gbps firewall throughput (1518/512/64 byte, UDP) and 14 Gbps IPS throughput for high-performance security.
- High-Speed Connectivity: Features 4x 25GE SFP28 and 4x 10GE SFP+ slots for high-bandwidth uplinks and data center connectivity.
- Integrated Storage: Includes 480 GB (2 x 240 GB) onboard SSD storage for onboard storage needs.
- Encrypted Visibility: Provides 9 Gbps SSL Inspection throughput (IPS, avg. HTTPS) to inspect encrypted traffic at scale.
- Maximum Capacity: Supports up to 8 million concurrent sessions and 30,000 firewall policies for large environments.
- Mission-Critical Reliability: Includes dual hot-swappable power supplies for operational resilience.
Ideal Use Cases
- Data Center Edge Security: Protecting high-throughput infrastructure with 25GE connectivity options.
- Enterprise Campus Security: Securing large networks requiring dense port configurations and high session capacity.
- Secure SD-WAN: Deploying secure SD-WAN with unified networking and security capabilities.
- High-Speed Segmentation: Implementing internal segmentation using integrated switching ports and high-speed interfaces.
Technical Specifications Summary
- Form Factor & Size: Rack Mount, 1 RU; 1.75 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm); 16.2 lbs (7.35 kg)

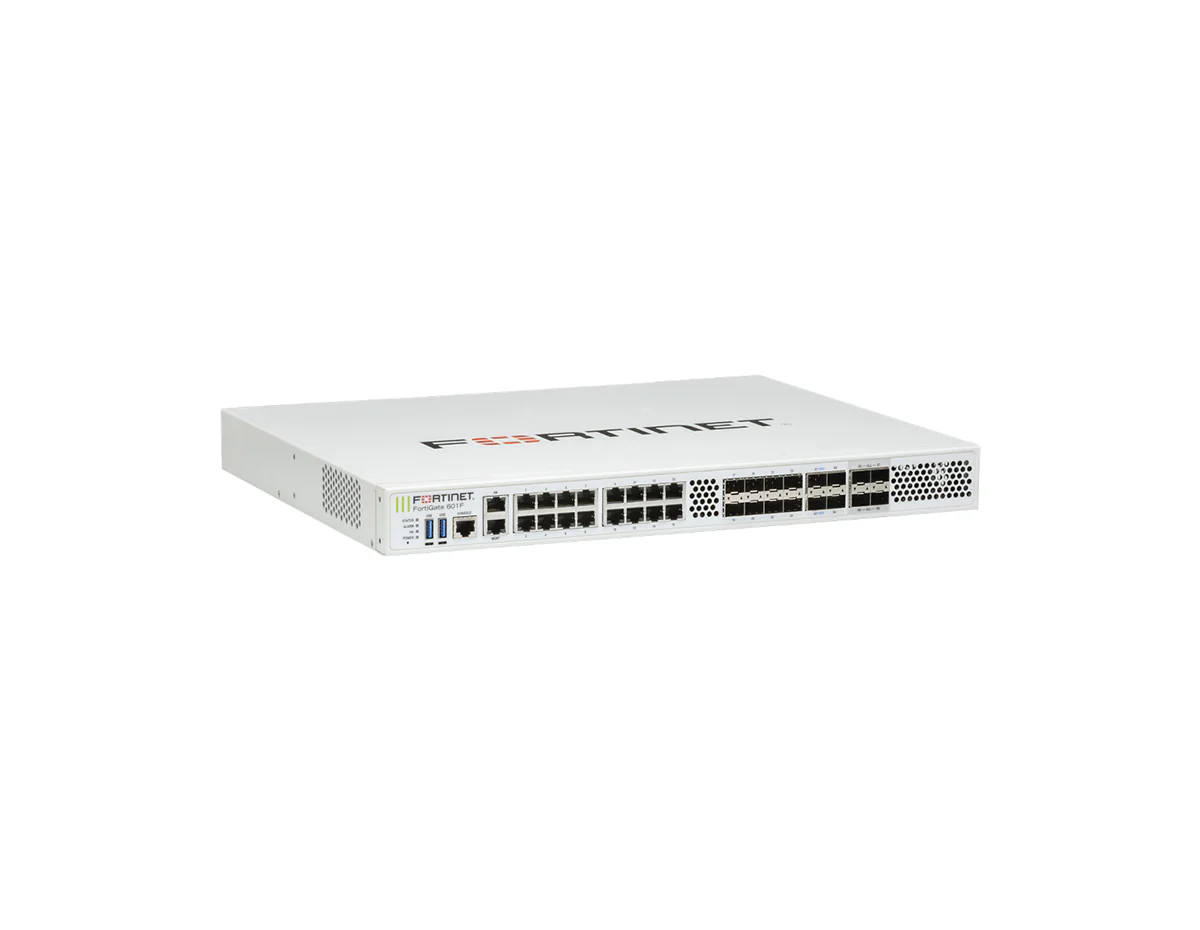

- Interfaces: 4x 25GE SFP28, 4x 10GE SFP+, 8x GE SFP, 18x GE RJ45 (16x switch ports, 1x MGMT, 1x HA), 1x RJ45 console, 2x USB
- Internal Storage: 480 GB (2 x 240 GB SSD)
- Security Performance: 14 Gbps IPS; 11.5 Gbps NGFW; 10.5 Gbps Threat Protection (Enterprise Traffic Mix)
- Firewall Performance: 139 / 137.5 / 70 Gbps IPv4/IPv6 firewall throughput (1518/512/64 byte, UDP); 105 Mpps firewall throughput
- Latency: 4.12 μs / 2.5 μs (64 byte, UDP; ULL ports)
- VPN Performance: 55 Gbps IPsec VPN throughput (512 byte); 2,000 gateway-to-gateway tunnels; 50,000 client-to-gateway tunnels
- SSL Performance: 4.3 Gbps SSL-VPN throughput; 9 Gbps SSL inspection throughput (IPS, avg. HTTPS)
- Capacity: 8 Million concurrent sessions; 550,000 new sessions/second; 30,000 firewall policies

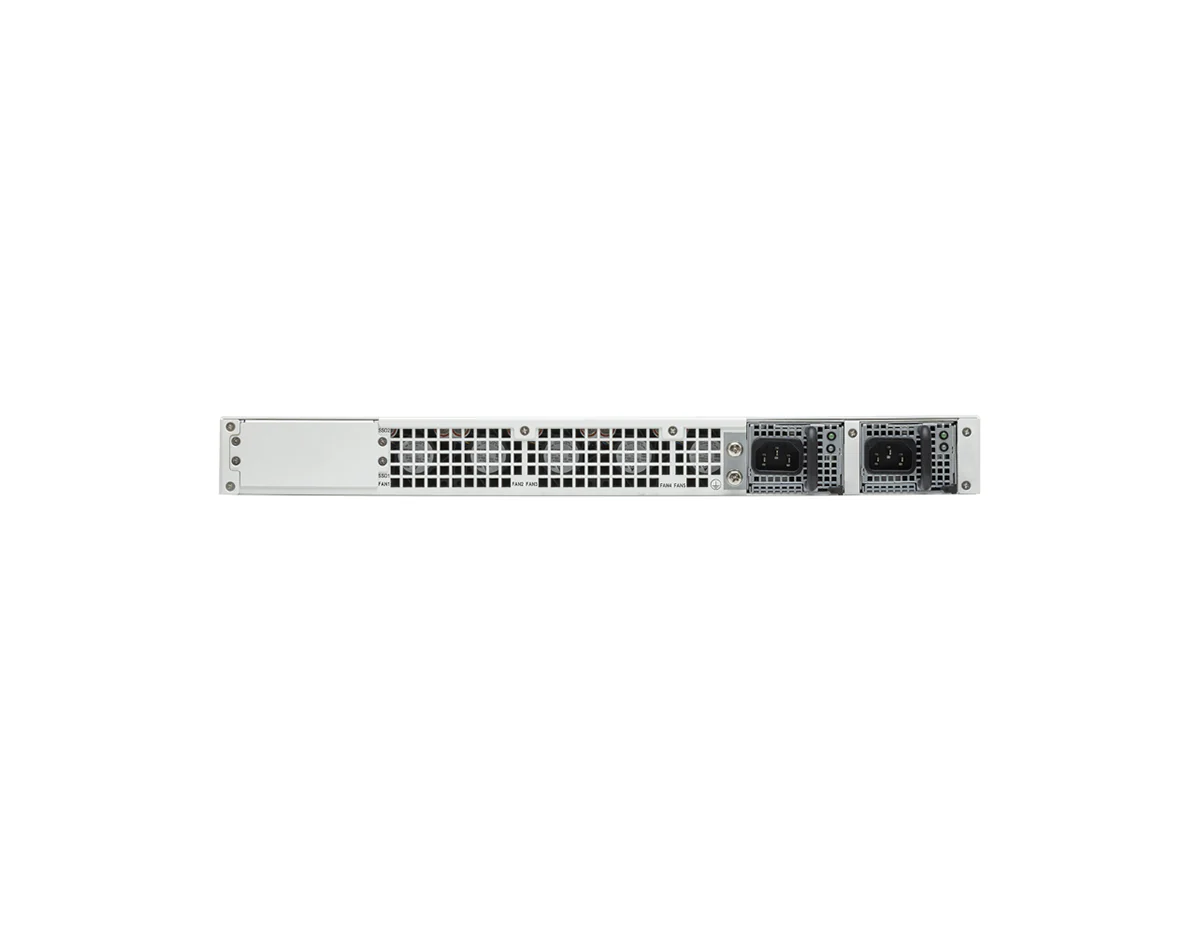

- Power: 174 W / 260 W (Average/Maximum); 100–240V AC, 50/60Hz; dual hot-swappable redundant power supplies
- Environment: 32°F to 104°F (0°C to 40°C) operating temperature; 5% to 90% non-condensing humidity; 55 dBA noise level
- Compliance & Certifications: FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6
Upgrade Your Network Security
Deploy the FortiGate 601F bundle FG-601F-BDL-809-12 to bring high-throughput firewall performance and enterprise-grade security services into your network.
