Fortinet FortiGate 51G-5G Next-Generation Firewall with 5-Year Enterprise Protection Bundle
[shortdesc] Firewall, embedded 5G WAN, 64GB SSD, 5x GE RJ45, secure SD-WAN, including 5 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]
[properties]
| Feature | Details |
|---|---|
| Product SKU | FG-51G-5G-BDL-809-60 |
| Bundle Contents | Firewall appliance plus FortiCare Premium and FortiGuard Enterprise Protection (5 Year) |
| Form Factor | Desktop |
| Integrated Modem | Embedded 3G/4G/LTE/5G wireless WAN module |
| Internal Storage | 64 GB SSD |
| Firewall Throughput | 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets) |

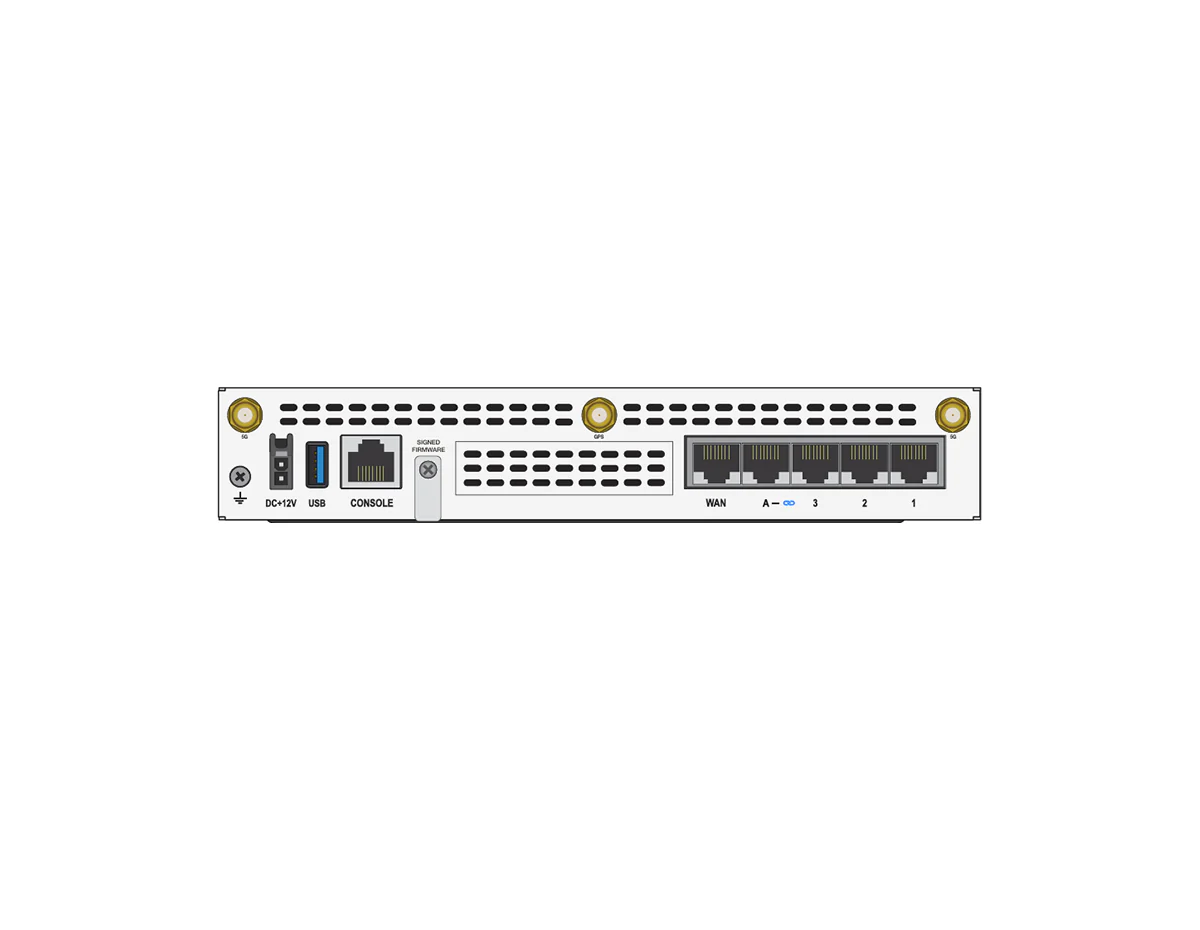

| Interfaces | 5x GE RJ45 ports (1x WAN, 1x FortiLink, 3x Ethernet), 1x USB, 1x RJ45 console, 5x SMA WWAN antenna ports, 2x Nano SIM |
| Threat Protection | 1.1 Gbps |
| Power Input | 12VDC, 3A |
| Dimensions (H x W x L) | 1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm) |
| Weight | 2.2 lbs (1.0 kg) |
[/properties]
[specifications]
| System Performance & Capacity | |
|---|---|
| IPS Throughput | 2.25 Gbps |
| NGFW Throughput | 1.25 Gbps |
| Firewall Latency | 2.42 μs |
| Concurrent Sessions (TCP) | 720,000 |
| New Sessions/Second (TCP) | 85,000 |
| Firewall Policies | 2,000 |
| Wireless WAN (5G/LTE) Specifications | |
| Modem Model | Telit Cinterion FN990A28-HP |
| 5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 |
| LTE Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| SIM Slots | 2x Nano SIM (Active/Passive) |
| Carrier Certifications | PTCRB (Yes), AT&T (Yes), T-Mobile (Target Q4), Verizon (Target Q4), Public Safety Network (Yes; FirstNet Capable) |
| VPN Performance | |
| IPsec VPN Throughput (512 byte) | 4.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL Inspection Throughput | 1.3 Gbps |
| Hardware & Environment | |
| USB Port | 1x USB |
| Console Port | 1x RJ45 |
| Power Consumption (Average / Max) | 8.3 W / 8.9 W |
| Heat Dissipation | 30.35 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Compliance & Certifications | Compliance: FCC, ISED, CE, UL/cUL, CB; Certifications: USGv6/IPv6 |
[/specifications]
[accesories]
| Accessory Type | Description |
|---|---|
| Included | 5x External SMA WWAN Antennas |
| Optional | Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG-40F-PA-10 (-XX)) |
[/accesories]
The FortiGate 51G-5G series transforms distributed enterprise connectivity with a powerful combination of Next-Generation Firewall security, embedded high-speed 5G connectivity, and onboard storage. Built on the Fortinet SP5 ASIC, this appliance delivers strong performance, while the integrated cellular module provides a robust primary or failover connection to help maintain business continuity at remote or branch locations. This bundle includes FortiCare Premium and FortiGuard Enterprise Protection for a 5-year term.
This compact desktop appliance features a Telit Cinterion FN990A28-HP modem supporting a wide range of 5G and LTE bands. With dual Nano SIM slots, it enables carrier redundancy, allowing organizations to maintain uptime even if one cellular network fails. Additionally, the FG-51G-5G includes 64GB of internal SSD storage for local log retention.
High-Performance 5G SD-WAN Gateway with Storage
Key Benefits
- Embedded 5G Connectivity: Integrated 5G/LTE wireless WAN module supports flexible deployment as a primary or failover WAN connection.
- Integrated SSD Storage: 64GB onboard SSD enables local logging and log retention.
- SP5 ASIC Performance: Powered by Fortinet's SD-WAN ASIC to deliver high firewall and IPS performance for branch deployments.
- Carrier Redundancy: Dual Nano SIM slots (Active/Passive) allow for flexible carrier switching to maximize uptime and network resilience.
- Converged Security: Unifies advanced threat protection, SSL inspection, and SD-WAN into a single device to reduce complexity and cost.
Ideal Use Cases
- 5G Branch Connectivity: Provides high-speed primary connectivity for locations where wired broadband is unavailable, expensive, or slow.
- Mission-Critical Failover: Acts as a reliable backup connection for retail and enterprise branches to prevent downtime during wired outage events.
- Local Logging & Compliance: Ideal for sites requiring local data retention and logging without constant upstream connectivity to a log server.
- Pop-Up & Mobile Sites: Rapidly deploys secure, high-bandwidth networking for temporary kiosks, construction sites, or mobile workstations.
Technical Specifications Summary
- Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
- Firewall Latency: 2.42 μs (64 byte UDP packets)
- Firewall Throughput (Packets Per Second): 6 Mpps
- IPS Throughput (Enterprise Mix): 2.25 Gbps
- NGFW Throughput (Enterprise Mix): 1.25 Gbps
- Threat Protection Throughput (Enterprise Mix): 1.1 Gbps
- Concurrent Sessions (TCP): 720,000
- New Sessions/Second (TCP): 85,000
- VPN Throughput: 4.5 Gbps (IPsec, 512 byte)
- SSL Inspection Throughput: 1.3 Gbps (IPS, avg. HTTPS)
- Ports & Cellular: 1x GE WAN, 1x GE RJ45 FortiLink (default), 3x GE RJ45 Ethernet, 1x USB, 1x RJ45 console; 5x SMA WWAN antenna ports; 2x Nano SIM (Active/Passive)
- Power, Physical & Environment: 12VDC, 3A; 8.3 W average / 8.9 W maximum; 1.6 x 8.5 x 6.3 in (40.5 x 216 x 160 mm), 2.2 lbs (1.0 kg); 32°F to 104°F (0°C to 40°C); Fanless 0 dBA; Compliance: FCC, ISED, CE, UL/cUL, CB; Certifications: USGv6/IPv6
Upgrade Your Network Security
Deploy the FortiGate 51G-5G Bundle (FG-51G-5G-BDL-809-60) today for a secure, resilient, and storage-enhanced network utilizing the power of 5G, including 5 Year FortiCare Premium and FortiGuard Enterprise Protection.
