Fortinet FortiGate 51G-5G Next-Generation Firewall with 1-Year Enterprise Protection Bundle
[shortdesc] Firewall, 5G modem, 64GB SSD, 5x GE RJ45, 2x Nano SIM, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]
[properties]
| Feature | Details |
|---|---|
| Product SKU | FG-51G-5G-BDL-809-12 |
| Bundle Contents | Firewall plus FortiCare Premium and FortiGuard Enterprise Protection (1 Year Contract) |
| Form Factor | Desktop |
| Integrated Modem | Embedded 3G/4G/LTE/5G wireless WAN module |
| Internal Storage | 64 GB SSD |
| Firewall Throughput | 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets) |
| Interfaces | 5x GE RJ45 Ports (1x WAN, 1x FortiLink, 3x Internal Ethernet), 5x SMA WWAN Antenna Ports |
| Threat Protection | 1.1 Gbps |
| Power Input | 12VDC, 3A |
| Dimensions (H x W x L) | 1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm) |
| Weight | 2.2 lbs (1.0 kg) |
[/properties]
[specifications]
| System Performance & Capacity | |
|---|---|
| IPS Throughput | 2.25 Gbps |
| NGFW Throughput | 1.25 Gbps |
| Firewall Latency | 2.42 µs |
| Concurrent Sessions (TCP) | 720,000 |
| New Sessions/Second (TCP) | 85,000 |
| Firewall Policies | 2,000 |
| Wireless WAN (5G/LTE) Specifications | |
| Modem Model | Telit Cinterion FN990A28-HP |
| 5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 support on n41, n77, n78, n79) |
| LTE Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| SIM Slots | 2x Nano SIM (Active/Passive) |
| Carrier Certifications | PTCRB: Yes; ATT: Yes; T-Mobile: Target Q4; Verizon: Target Q4; Public Safety Network: Yes (FirstNet Capable) |
| VPN Performance | |
| IPsec VPN Throughput (512 byte) | 4.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL Inspection Throughput | 1.3 Gbps |
| Hardware & Environment | |
| USB Port | 1x USB |
| Console Port | 1x RJ45 |
| Power Consumption (Average / Max) | 8.3 W / 8.9 W |
| Heat Dissipation | 30.35 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Compliance & Certifications | Compliance: FCC, ISED, CE, UL/cUL, CB; Certifications: USGv6/IPv6 |
[/specifications]
[accesories]
| Accessory Type | Description |
|---|---|
| Included | 5x External SMA WWAN Antennas |
| Optional | Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG-40F-PA-10 (-XX)) |
[/accesories]
The FortiGate 51G-5G model delivers a combination of Next-Generation Firewall security, embedded high-speed 5G connectivity, and onboard SSD storage. Built on the Fortinet SP5 Secure SD-WAN ASIC and FortiOS, it provides strong firewall and IPS performance, while the integrated cellular module supports primary or failover connectivity for distributed enterprise and branch locations. This bundle includes FortiCare Premium and FortiGuard Enterprise Protection for a 1-year contract term.
This compact desktop firewall includes a Telit Cinterion FN990A28-HP modem supporting a wide range of 5G and LTE bands. With dual Nano SIM slots (Active/Passive), it supports carrier redundancy for improved WAN resiliency. Additionally, the FG-51G-5G includes 64GB of internal SSD storage for local storage needs.
High-Performance 5G SD-WAN Gateway with Storage
Key Benefits
- Embedded 5G Connectivity: Integrated 5G/LTE wireless WAN module supports deployment as a primary or failover WAN connection.
- Integrated SSD Storage: 64GB onboard SSD provides built-in storage for local data needs.
- SP5 ASIC Performance: Built on Fortinet's Secure SD-WAN ASIC SP5 to deliver high firewall and IPS performance for branch deployments.
- Carrier Redundancy: Dual Nano SIM slots (Active/Passive) support carrier switching to improve WAN availability.
- Converged Security: Integrates firewall, threat protection, SSL inspection, and SD-WAN in a single appliance.
Ideal Use Cases
- 5G Branch Connectivity: Provides a high-speed WAN option for locations where wired broadband is unavailable, expensive, or slow.
- Mission-Critical Failover: Supports backup connectivity for branch locations during wired WAN outage events.
- Onboard Storage Requirements: Suitable for sites that benefit from built-in SSD storage on the firewall.
- Pop-Up & Mobile Sites: Supports rapid deployment for temporary sites requiring secure connectivity.
Technical Specifications Summary
- Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
- Firewall Latency: 2.42 µs (64 byte UDP packets)
- IPS Throughput (Enterprise Mix): 2.25 Gbps
- NGFW Throughput (Enterprise Mix): 1.25 Gbps
- Threat Protection Throughput (Enterprise Mix): 1.1 Gbps
- IPsec VPN Throughput: 4.5 Gbps (512 byte)
- SSL Inspection Throughput: 1.3 Gbps
- Ports & Cellular: 5x GE RJ45 (1x WAN, 1x FortiLink, 3x Ethernet), 1x USB, 1x RJ45 console; 5x SMA WWAN antenna ports; 2x Nano SIM (Active/Passive)
- Storage: 64 GB SSD
- Power: 12VDC, 3A; 8.3 W average / 8.9 W maximum
- Physical & Environment: 1.6 x 8.5 x 6.3 in (40.5 x 216 x 160 mm), 2.2 lbs (1.0 kg); 32°F to 104°F (0°C to 40°C); 10% to 90% non-condensing; Fanless 0 dBA; Compliance: FCC, ISED, CE, UL/cUL, CB; Certifications: USGv6/IPv6
Upgrade Your Network Security
Deploy the FortiGate 51G-5G Bundle (FG-51G-5G-BDL-809-12) for secure, resilient 5G connectivity with onboard SSD storage, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection coverage.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Fortinet FortiGate 51G-5G Next-Generation Firewall with 1-Year Enterprise Protection Bundle
Fortinet FortiGate 51G-5G Next-Generation Firewall with 1-Year Enterprise Protection Bundle
[shortdesc] Firewall, 5G modem, 64GB SSD, 5x GE RJ45, 2x Nano SIM, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]
[properties]
| Feature | Details |
|---|---|
| Product SKU | FG-51G-5G-BDL-809-12 |
| Bundle Contents | Firewall plus FortiCare Premium and FortiGuard Enterprise Protection (1 Year Contract) |
| Form Factor | Desktop |
| Integrated Modem | Embedded 3G/4G/LTE/5G wireless WAN module |
| Internal Storage | 64 GB SSD |
| Firewall Throughput | 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets) |
| Interfaces | 5x GE RJ45 Ports (1x WAN, 1x FortiLink, 3x Internal Ethernet), 5x SMA WWAN Antenna Ports |
| Threat Protection | 1.1 Gbps |
| Power Input | 12VDC, 3A |
| Dimensions (H x W x L) | 1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm) |
| Weight | 2.2 lbs (1.0 kg) |
[/properties]
[specifications]
| System Performance & Capacity | |
|---|---|
| IPS Throughput | 2.25 Gbps |
| NGFW Throughput | 1.25 Gbps |
| Firewall Latency | 2.42 µs |
| Concurrent Sessions (TCP) | 720,000 |
| New Sessions/Second (TCP) | 85,000 |
| Firewall Policies | 2,000 |
| Wireless WAN (5G/LTE) Specifications | |
| Modem Model | Telit Cinterion FN990A28-HP |
| 5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 support on n41, n77, n78, n79) |
| LTE Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| SIM Slots | 2x Nano SIM (Active/Passive) |
| Carrier Certifications | PTCRB: Yes; ATT: Yes; T-Mobile: Target Q4; Verizon: Target Q4; Public Safety Network: Yes (FirstNet Capable) |
| VPN Performance | |
| IPsec VPN Throughput (512 byte) | 4.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL Inspection Throughput | 1.3 Gbps |
| Hardware & Environment | |
| USB Port | 1x USB |
| Console Port | 1x RJ45 |
| Power Consumption (Average / Max) | 8.3 W / 8.9 W |
| Heat Dissipation | 30.35 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Compliance & Certifications | Compliance: FCC, ISED, CE, UL/cUL, CB; Certifications: USGv6/IPv6 |
[/specifications]
[accesories]
| Accessory Type | Description |
|---|---|
| Included | 5x External SMA WWAN Antennas |
| Optional | Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG-40F-PA-10 (-XX)) |
[/accesories]
The FortiGate 51G-5G model delivers a combination of Next-Generation Firewall security, embedded high-speed 5G connectivity, and onboard SSD storage. Built on the Fortinet SP5 Secure SD-WAN ASIC and FortiOS, it provides strong firewall and IPS performance, while the integrated cellular module supports primary or failover connectivity for distributed enterprise and branch locations. This bundle includes FortiCare Premium and FortiGuard Enterprise Protection for a 1-year contract term.
This compact desktop firewall includes a Telit Cinterion FN990A28-HP modem supporting a wide range of 5G and LTE bands. With dual Nano SIM slots (Active/Passive), it supports carrier redundancy for improved WAN resiliency. Additionally, the FG-51G-5G includes 64GB of internal SSD storage for local storage needs.
High-Performance 5G SD-WAN Gateway with Storage
Key Benefits
- Embedded 5G Connectivity: Integrated 5G/LTE wireless WAN module supports deployment as a primary or failover WAN connection.
- Integrated SSD Storage: 64GB onboard SSD provides built-in storage for local data needs.
- SP5 ASIC Performance: Built on Fortinet's Secure SD-WAN ASIC SP5 to deliver high firewall and IPS performance for branch deployments.
- Carrier Redundancy: Dual Nano SIM slots (Active/Passive) support carrier switching to improve WAN availability.
- Converged Security: Integrates firewall, threat protection, SSL inspection, and SD-WAN in a single appliance.
Ideal Use Cases
- 5G Branch Connectivity: Provides a high-speed WAN option for locations where wired broadband is unavailable, expensive, or slow.
- Mission-Critical Failover: Supports backup connectivity for branch locations during wired WAN outage events.
- Onboard Storage Requirements: Suitable for sites that benefit from built-in SSD storage on the firewall.
- Pop-Up & Mobile Sites: Supports rapid deployment for temporary sites requiring secure connectivity.
Technical Specifications Summary
- Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
- Firewall Latency: 2.42 µs (64 byte UDP packets)
- IPS Throughput (Enterprise Mix): 2.25 Gbps
- NGFW Throughput (Enterprise Mix): 1.25 Gbps
- Threat Protection Throughput (Enterprise Mix): 1.1 Gbps
- IPsec VPN Throughput: 4.5 Gbps (512 byte)
- SSL Inspection Throughput: 1.3 Gbps
- Ports & Cellular: 5x GE RJ45 (1x WAN, 1x FortiLink, 3x Ethernet), 1x USB, 1x RJ45 console; 5x SMA WWAN antenna ports; 2x Nano SIM (Active/Passive)
- Storage: 64 GB SSD
- Power: 12VDC, 3A; 8.3 W average / 8.9 W maximum
- Physical & Environment: 1.6 x 8.5 x 6.3 in (40.5 x 216 x 160 mm), 2.2 lbs (1.0 kg); 32°F to 104°F (0°C to 40°C); 10% to 90% non-condensing; Fanless 0 dBA; Compliance: FCC, ISED, CE, UL/cUL, CB; Certifications: USGv6/IPv6
Upgrade Your Network Security
Deploy the FortiGate 51G-5G Bundle (FG-51G-5G-BDL-809-12) for secure, resilient 5G connectivity with onboard SSD storage, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection coverage.
Original: $2,405.00
-65%$2,405.00
$841.75Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
[shortdesc] Firewall, 5G modem, 64GB SSD, 5x GE RJ45, 2x Nano SIM, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]
[properties]
| Feature | Details |
|---|---|
| Product SKU | FG-51G-5G-BDL-809-12 |
| Bundle Contents | Firewall plus FortiCare Premium and FortiGuard Enterprise Protection (1 Year Contract) |
| Form Factor | Desktop |
| Integrated Modem | Embedded 3G/4G/LTE/5G wireless WAN module |
| Internal Storage | 64 GB SSD |
| Firewall Throughput | 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets) |
| Interfaces | 5x GE RJ45 Ports (1x WAN, 1x FortiLink, 3x Internal Ethernet), 5x SMA WWAN Antenna Ports |
| Threat Protection | 1.1 Gbps |
| Power Input | 12VDC, 3A |
| Dimensions (H x W x L) | 1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm) |
| Weight | 2.2 lbs (1.0 kg) |
[/properties]
[specifications]
| System Performance & Capacity | |
|---|---|
| IPS Throughput | 2.25 Gbps |
| NGFW Throughput | 1.25 Gbps |
| Firewall Latency | 2.42 µs |
| Concurrent Sessions (TCP) | 720,000 |
| New Sessions/Second (TCP) | 85,000 |
| Firewall Policies | 2,000 |
| Wireless WAN (5G/LTE) Specifications | |
| Modem Model | Telit Cinterion FN990A28-HP |
| 5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 support on n41, n77, n78, n79) |
| LTE Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| SIM Slots | 2x Nano SIM (Active/Passive) |
| Carrier Certifications | PTCRB: Yes; ATT: Yes; T-Mobile: Target Q4; Verizon: Target Q4; Public Safety Network: Yes (FirstNet Capable) |
| VPN Performance | |
| IPsec VPN Throughput (512 byte) | 4.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL Inspection Throughput | 1.3 Gbps |
| Hardware & Environment | |
| USB Port | 1x USB |
| Console Port | 1x RJ45 |
| Power Consumption (Average / Max) | 8.3 W / 8.9 W |
| Heat Dissipation | 30.35 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Compliance & Certifications | Compliance: FCC, ISED, CE, UL/cUL, CB; Certifications: USGv6/IPv6 |
[/specifications]
[accesories]
| Accessory Type | Description |
|---|---|
| Included | 5x External SMA WWAN Antennas |
| Optional | Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG-40F-PA-10 (-XX)) |
[/accesories]
The FortiGate 51G-5G model delivers a combination of Next-Generation Firewall security, embedded high-speed 5G connectivity, and onboard SSD storage. Built on the Fortinet SP5 Secure SD-WAN ASIC and FortiOS, it provides strong firewall and IPS performance, while the integrated cellular module supports primary or failover connectivity for distributed enterprise and branch locations. This bundle includes FortiCare Premium and FortiGuard Enterprise Protection for a 1-year contract term.
This compact desktop firewall includes a Telit Cinterion FN990A28-HP modem supporting a wide range of 5G and LTE bands. With dual Nano SIM slots (Active/Passive), it supports carrier redundancy for improved WAN resiliency. Additionally, the FG-51G-5G includes 64GB of internal SSD storage for local storage needs.
High-Performance 5G SD-WAN Gateway with Storage
Key Benefits
- Embedded 5G Connectivity: Integrated 5G/LTE wireless WAN module supports deployment as a primary or failover WAN connection.
- Integrated SSD Storage: 64GB onboard SSD provides built-in storage for local data needs.
- SP5 ASIC Performance: Built on Fortinet's Secure SD-WAN ASIC SP5 to deliver high firewall and IPS performance for branch deployments.
- Carrier Redundancy: Dual Nano SIM slots (Active/Passive) support carrier switching to improve WAN availability.
- Converged Security: Integrates firewall, threat protection, SSL inspection, and SD-WAN in a single appliance.
Ideal Use Cases
- 5G Branch Connectivity: Provides a high-speed WAN option for locations where wired broadband is unavailable, expensive, or slow.
- Mission-Critical Failover: Supports backup connectivity for branch locations during wired WAN outage events.
- Onboard Storage Requirements: Suitable for sites that benefit from built-in SSD storage on the firewall.
- Pop-Up & Mobile Sites: Supports rapid deployment for temporary sites requiring secure connectivity.
Technical Specifications Summary
- Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
- Firewall Latency: 2.42 µs (64 byte UDP packets)
- IPS Throughput (Enterprise Mix): 2.25 Gbps
- NGFW Throughput (Enterprise Mix): 1.25 Gbps
- Threat Protection Throughput (Enterprise Mix): 1.1 Gbps
- IPsec VPN Throughput: 4.5 Gbps (512 byte)
- SSL Inspection Throughput: 1.3 Gbps
- Ports & Cellular: 5x GE RJ45 (1x WAN, 1x FortiLink, 3x Ethernet), 1x USB, 1x RJ45 console; 5x SMA WWAN antenna ports; 2x Nano SIM (Active/Passive)
- Storage: 64 GB SSD
- Power: 12VDC, 3A; 8.3 W average / 8.9 W maximum
- Physical & Environment: 1.6 x 8.5 x 6.3 in (40.5 x 216 x 160 mm), 2.2 lbs (1.0 kg); 32°F to 104°F (0°C to 40°C); 10% to 90% non-condensing; Fanless 0 dBA; Compliance: FCC, ISED, CE, UL/cUL, CB; Certifications: USGv6/IPv6
Upgrade Your Network Security

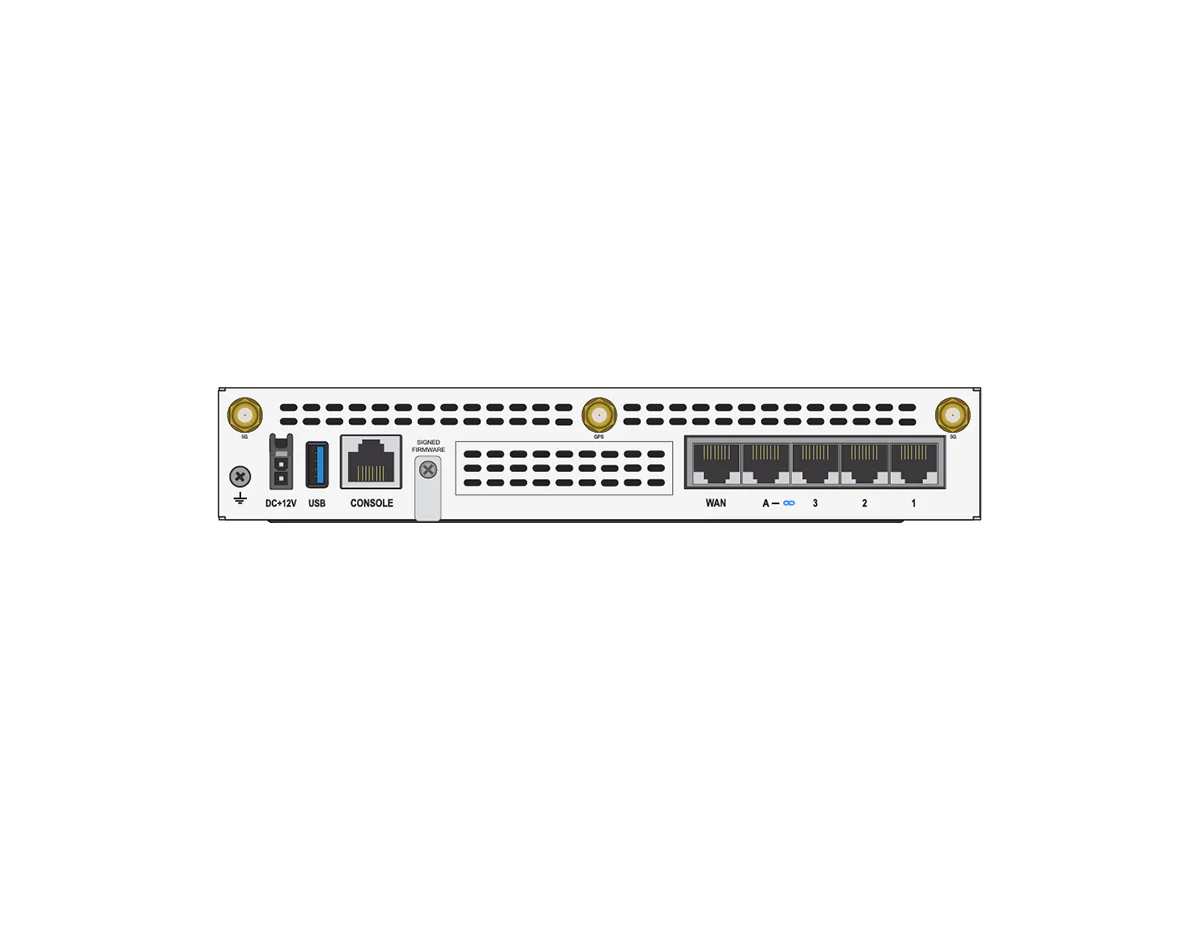

Deploy the FortiGate 51G-5G Bundle (FG-51G-5G-BDL-809-12) for secure, resilient 5G connectivity with onboard SSD storage, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection coverage.
