Fortinet FortiGate 50G-DSL Next-Generation Firewall with 5-Year Unified Threat Protection (UTP)
[shortdesc] Firewall, 5x GE RJ45 plus RJ11 DSL, 5/5/4 Gbps throughput, SD-WAN, including 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]
[properties]
| Feature | Details |
|---|---|
| Product SKU | FG-50G-DSL-BDL-950-60 |
| Base Hardware Model | FG-50G-DSL |
| Bundle Contents | FortiGate 50G-DSL firewall plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (5 Year Contract) |
| Form Factor | Desktop (Fanless) |
| Integrated Modem | VDSL2 / ADSL2 / ADSL2+ (RJ11) |
| Firewall Throughput | 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets) |

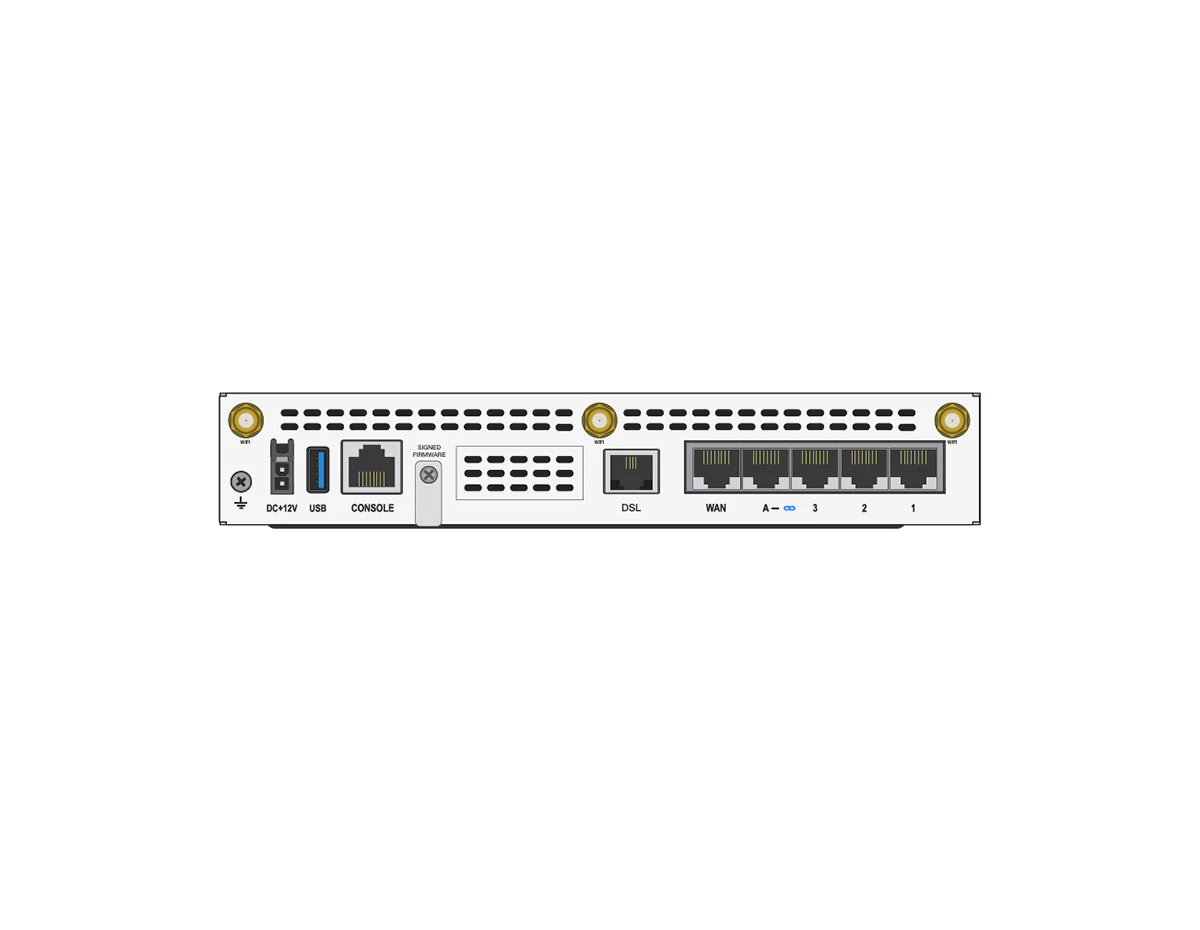

| Interfaces | 1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x RJ11 DSL |
| Threat Protection | 1.1 Gbps |
| Power Input | 12VDC, 3A |
| Dimensions (H x W x L) | 1.7 x 8.5 x 7.0 inches (42 x 216 x 178 mm) |
| Weight | 2.14 lbs (0.97 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
[/properties]
[specifications]
| System Performance & Capacity | |
|---|---|
| IPS Throughput | 2.25 Gbps |
| NGFW Throughput | 1.25 Gbps |
| Firewall Latency | 2.42 μs |
| Concurrent Sessions (TCP) | 720,000 |
| New Sessions/Second (TCP) | 85,000 |
| Firewall Policies | 2,000 |
| DSL Modem Specifications | |
| Interface | 1x RJ11 DSL Port |
| Supported Modes | VDSL2, ADSL2, ADSL2+, G.DMT, T1.413, G.Lite |
| Supported Types | Annex A, B, I, J, M, L |
| VPN Performance | |
| IPsec VPN Throughput (512 byte) | 4.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL Inspection Throughput | 1.3 Gbps |
| Hardware & Environment | |
| USB Port | 1x USB |
| Console Port | 1x RJ45 |
| Power Consumption (Average / Max) | 12.43 W / 13.01 W |
| Heat Dissipation | 44.36 BTU/hr |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Compliance & Certifications | FCC, ISED, CE, UL/cUL, CB; USGv6/IPv6 |
[/specifications]
[accesories]
| Accessory Type | Description |
|---|---|
| Optional | Rack Mount Tray (SP-RACKTRAY-02), Mounting Ear Bracket (SP-EAR-FG90G-10), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG-40F-PA-10) |
[/accesories]
The FortiGate 50G-DSL series integrates enterprise-grade security and SD-WAN capabilities with a built-in DSL modem, providing a unified solution for locations relying on legacy broadband connections. This bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for a 5-year contract term. Built on Fortinet’s powerful SP5 ASIC, it accelerates firewall and security performance, ensuring that advanced protection does not compromise network speed. The integrated DSL interface supports various standards including VDSL2 and ADSL2+, allowing for seamless deployment without additional modem equipment.
Designed for compact, noise-sensitive environments, the fanless FG-50G-DSL offers reliable operation with 0 dBA noise levels. It simplifies network architecture by consolidating networking, security, and DSL connectivity into a single, centrally managed device. This reduces equipment footprint, lowers cabling complexity, and provides robust connectivity options for retail stores, small offices, and distributed branch networks.
Integrated DSL and Secure SD-WAN
Key Benefits
- Bundle Coverage Included: FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (5-year contract) included with the firewall.
- Embedded DSL Modem: Integrated RJ11 port supports VDSL2, ADSL2, and ADSL2+ for direct WAN connectivity, eliminating the need for external bridges.
- SP5 ASIC Performance: Delivers up to 5 / 5 / 4 Gbps firewall throughput (1518/512/64 byte UDP packets) and accelerated inspection capabilities, ensuring high-speed security for broadband connections.
- Silent Operation: Fanless desktop design ensures quiet, reliable performance, making it ideal for open office environments and retail counters.
- Unified Security: Consolidates advanced threat protection, IPS, and web security services into a single device to help protect against sophisticated cyber threats.
- Simplified Management: FortiOS provides a single pane of glass for managing security policies, SD-WAN rules, and DSL connection settings.
Ideal Use Cases
- Distributed Branch Sites with DSL: Deploy a secure, all-in-one WAN edge for locations where DSL is the primary internet connection.
- Secure SD-WAN Consolidation: Combine WAN connectivity, security, and SD-WAN in one platform to simplify branch deployments.
- Perimeter Protection for Small Sites: Apply consistent firewall policy and inspection at the edge of remote offices and small locations.
- Integrated Secure Access: Connect and secure downstream access by pairing with Fortinet switching and wireless (where applicable) under centralized management.
Technical Specifications Summary
- Firewall Throughput (1518/512/64 byte UDP packets): 5 / 5 / 4 Gbps
- IPS / NGFW / Threat Protection Throughput: 2.25 Gbps / 1.25 Gbps / 1.1 Gbps
- IPsec VPN Throughput (512 byte): 4.5 Gbps; 200 gateway-to-gateway tunnels; 250 client-to-gateway tunnels
- SSL Inspection Performance: 1.3 Gbps; 699 CPS; 74,000 concurrent sessions
- Latency & Capacity: 2.42 μs firewall latency; 720,000 concurrent TCP sessions; 85,000 new sessions/second; 2,000 firewall policies
- Interfaces: 1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x RJ11 DSL, 1x USB, 1x RJ45 console
- xDSL Support: VDSL2, ADSL2, ADSL2+, G.DMT, T1.413, G.Lite; Annex A/B/I/J/M/L
- Power & Thermal: 12VDC, 3A; 12.43 W average / 13.01 W maximum; 44.36 BTU/hr
- Physical: 42 x 216 x 178 mm; 0.97 kg; fanless desktop
- Environment & Compliance: 0°C to 40°C operating; -35°C to 70°C storage; 10% to 90% non-condensing; FCC, ISED, CE, UL/cUL, CB; USGv6/IPv6
Upgrade Your Network Security
Deploy the FortiGate 50G-DSL Bundle (FG-50G-DSL-BDL-950-60) today for a secure, streamlined, and high-performance network solution for DSL environments, including 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) coverage.
