Fortinet FortiGate 50G-DSL Next-Generation Firewall with 1-Year Unified Threat Protection (UTP)
[shortdesc] Firewall, VDSL2/ADSL2+ modem, 5x GE RJ45, 5/5/4 Gbps, including 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]
[properties]
| Feature | Details |
|---|---|
| Product SKU | FG-50G-DSL-BDL-950-12 |
| Base Model | FG-50G-DSL |
| Bundle Contents | FG-50G-DSL firewall plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (1 Year contract) |
| Form Factor | Desktop (Fanless) |
| Integrated Modem | VDSL2 / ADSL2 / ADSL2+ (RJ11) |
| Firewall Throughput | 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets) |

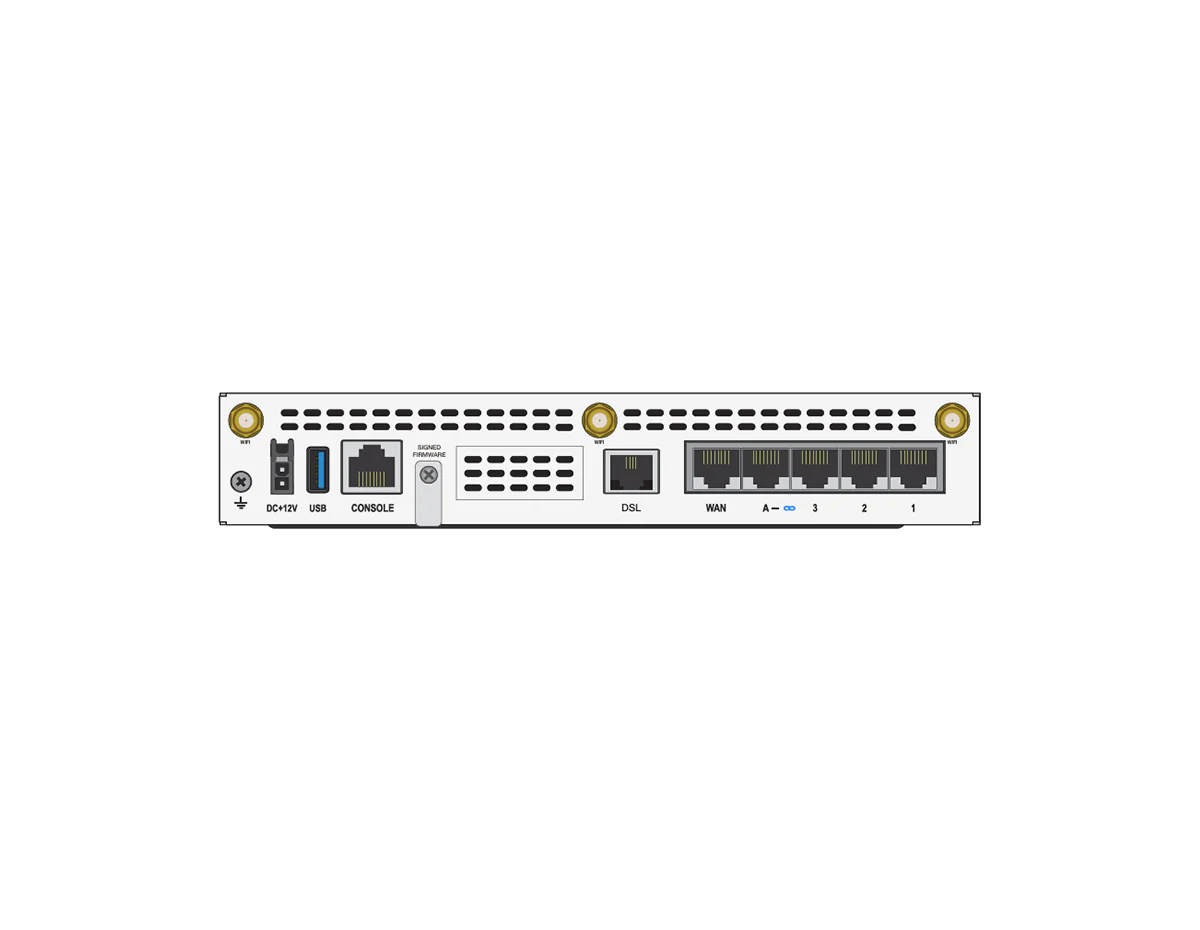

| Interfaces | 5x GE RJ45 ports (1x GE RJ45 WAN, 1x FortiLink by default, 3x internal) plus 1x DSL RJ11 port |
| Threat Protection | 1.1 Gbps |
| Power Input | 12VDC, 3A |
| Dimensions (H x W x L) | 1.7 x 8.5 x 7.0 inches (42 x 216 x 178 mm) |
| Weight | 2.14 lbs (0.97 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
[/properties]
[specifications]
| System Performance & Capacity | |
|---|---|
| IPS Throughput | 2.25 Gbps |
| NGFW Throughput | 1.25 Gbps |
| Firewall Latency | 2.42 μs |
| Concurrent Sessions (TCP) | 720,000 |
| New Sessions/Second (TCP) | 85,000 |
| Firewall Policies | 2,000 |
| DSL Modem Specifications | |
| Supported Modes | VDSL2, ADSL2, ADSL2+, G.DMT, T1.413, G.Lite |
| Supported Types | Annex A, B, I, J, M, L |
| VPN Performance | |
| IPsec VPN Throughput (512 byte) | 4.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 1.3 Gbps |
| Hardware & Environment | |
| USB Port | 1x USB |
| Console Port | 1x RJ45 |
| Power Consumption (Average / Max) | 12.43 W / 13.01 W |
| Heat Dissipation | 44.36 BTU/hr |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Compliance & Certifications | FCC, ISED, CE, UL/cUL, CB; USGv6/IPv6 |
[/specifications]
[accesories]
| Accessory Type | Description |
|---|---|
| Optional | Rack Mount Tray (SP-RACKTRAY-02), Mounting Ear Bracket (SP-EAR-FG90G-10), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG-40F-PA-10) |
[/accesories]
The FortiGate 50G-DSL series integrates enterprise-grade security and SD-WAN capabilities with a built-in DSL modem, providing a unified solution for locations relying on legacy broadband connections. This bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for a 1-year contract term, enabling enhanced security services and support coverage alongside the firewall platform. Built on Fortinet’s powerful SP5 ASIC, it accelerates firewall and security performance, ensuring that advanced protection does not compromise network speed. The integrated DSL interface supports various standards including VDSL2 and ADSL2+, allowing for seamless deployment without additional modem equipment.
Designed for compact, noise-sensitive environments, the fanless FG-50G-DSL offers reliable operation with 0 dBA noise levels. It simplifies network architecture by consolidating networking, security, and DSL connectivity into a single, centrally managed device. This reduces equipment footprint, lowers cabling complexity, and provides robust connectivity options for retail stores, small offices, and distributed branch networks.
Integrated DSL and Secure SD-WAN
Key Benefits
- Bundle Coverage Included: FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (1-year contract) included with the firewall.
- Embedded DSL Modem: Integrated RJ11 port supports VDSL2, ADSL2, and ADSL2+ for direct WAN connectivity, eliminating the need for external bridges.
- SP5 ASIC Performance: Delivers up to 5 / 5 / 4 Gbps firewall throughput (1518/512/64 byte UDP packets) with accelerated inspection capabilities for high-performance security at the WAN edge.
- Silent Operation: Fanless desktop design ensures quiet, reliable performance, making it ideal for open office environments and retail counters.
- Unified Security: Consolidates IPS, application control, and threat protection in a single firewall platform.
- Simplified Management: FortiOS provides a single pane of glass for managing security policies, SD-WAN rules, and DSL connection settings.
Ideal Use Cases
- Branch Offices with DSL: Provides a secure, all-in-one gateway for locations where DSL is the primary internet connection.
- Retail Locations: Secures Point-of-Sale (POS) systems and guest Wi-Fi while maintaining reliable connectivity via existing phone lines.
- Legacy Network Consolidation: Replaces aging routers and modems with a modern, secure SD-WAN appliance that supports legacy DSL infrastructure.
- Secure Remote Work: Ensures secure connectivity for home offices or small sites requiring enterprise-grade protection over residential DSL lines.
Technical Specifications Summary
- Firewall Throughput (1518/512/64 byte UDP): 5 / 5 / 4 Gbps
- IPS / NGFW / Threat Protection Throughput: 2.25 Gbps / 1.25 Gbps / 1.1 Gbps
- Firewall Latency (64 byte UDP): 2.42 μs
- Session Capacity: 720,000 concurrent TCP sessions; 85,000 new sessions/second (TCP)
- IPsec VPN: 4.5 Gbps (512 byte); 200 gateway-to-gateway tunnels; 250 client-to-gateway tunnels
- SSL Inspection Throughput (IPS, avg. HTTPS): 1.3 Gbps
- Ports: 5x GE RJ45 (1x WAN, 1x FortiLink default, 3x internal), 1x DSL RJ11, 1x USB, 1x RJ45 console
- xDSL Support: VDSL2, ADSL2, ADSL2+, G.DMT, T1.413, G.Lite; Annex A/B/I/J/M/L
- Power & Efficiency: 12VDC, 3A; 12.43 W average / 13.01 W maximum; 44.36 BTU/hr
- Physical: 1.7 x 8.5 x 7.0 in (42 x 216 x 178 mm); 2.14 lbs (0.97 kg)
- Environment & Compliance: 0°C to 40°C operating; 10% to 90% non-condensing; fanless 0 dBA; FCC, ISED, CE, UL/cUL, CB; USGv6/IPv6
Upgrade Your Network Security
Deploy the FortiGate 50G-DSL Bundle (FG-50G-DSL-BDL-950-12) today for a secure, streamlined, and high-performance network solution for DSL environments, including FortiCare Premium and FortiGuard Unified Threat Protection (UTP) coverage for 1 year.
