[shortdesc] Firewall, embedded xDSL RJ11, 5x GE RJ45 (WAN/FortiLink/LAN), 5/5/4 Gbps firewall, 4.5 Gbps IPsec VPN, fanless desktop [/shortdesc]

[properties]

Feature	Details
Product SKU	FG-50G-DSL
Form Factor	Desktop (Fanless)
Integrated Modem	xDSL RJ11: vDSL2, ADSL2, ADSL2+, G.DMT, T1.413, G.Lite; Annex A/B/I/J/M/L
Firewall Throughput	5 / 5 / 4 Gbps (1518/512/64 byte UDP)

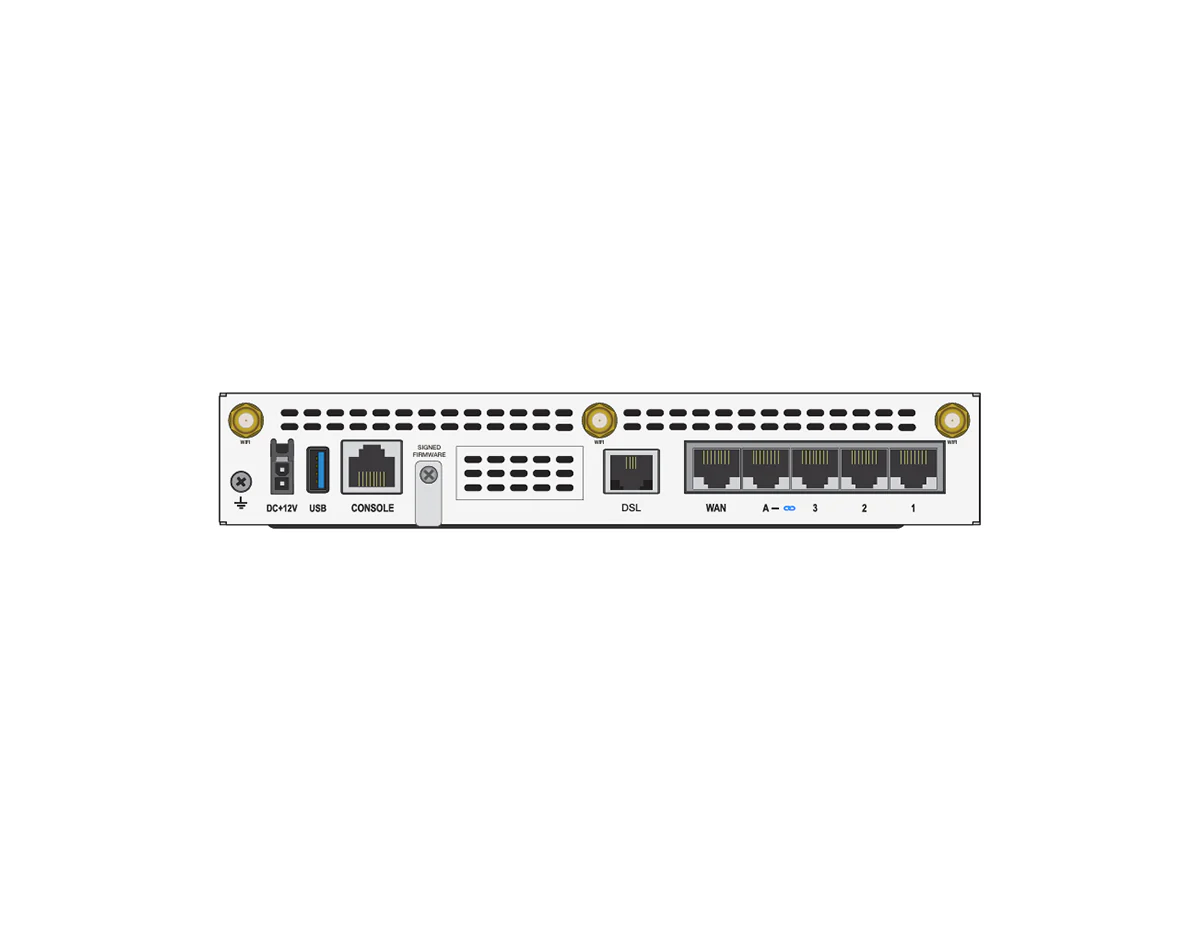

Interfaces	5x GE RJ45 (1x WAN, 1x FortiLink, 3x LAN), 1x DSL RJ11
Threat Protection	1.1 Gbps
Power Input	12VDC, 3A
Dimensions (H x W x L)	1.7 x 8.5 x 7.0 inches (42 x 216 x 178 mm)
Weight	2.14 lbs (0.97 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)

[/properties]

[specifications]

System Performance & Capacity
IPS Throughput	2.25 Gbps
NGFW Throughput	1.25 Gbps
Firewall Latency	2.42 μs
Concurrent Sessions (TCP)	720,000
New Sessions/Second (TCP)	85,000
Firewall Policies	2,000
DSL Modem Specifications
Supported Modes	vDSL2, ADSL2, ADSL2+, G.DMT, T1.413, G.Lite
Supported Types	Annex A, B, I, J, M, L
VPN Performance
IPsec VPN Throughput (512 byte)	4.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	250
SSL Inspection Throughput (IPS, avg. HTTPS)	1.3 Gbps
Hardware & Environment
USB Port	1x USB
Console Port	1x RJ45
Power Consumption (Average / Max)	12.43 W / 13.01 W
Heat Dissipation	44.36 BTU/hr
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	Fanless 0 dBA
Compliance & Certifications	FCC, ISED, CE, UL/cUL, CB; USGv6/IPv6

[/specifications]

[accesories]

Accessory Type	Description
Optional	Rack Mount Tray (SP-RACKTRAY-02), Mounting Ear Bracket (SP-EAR-FG90G-10), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG-40F-PA-10)

[/accesories]

The FortiGate 50G-DSL series integrates enterprise-grade security and SD-WAN capabilities with a built-in DSL modem, providing a unified solution for locations relying on legacy broadband connections. Built on Fortinet’s powerful SP5 ASIC, it accelerates firewall and security performance, ensuring that advanced protection does not compromise network speed. The integrated DSL interface supports standards including vDSL2 and ADSL2+, allowing for seamless deployment without additional modem hardware.

Designed for compact, noise-sensitive environments, the fanless FG-50G-DSL offers reliable operation with 0 dBA noise levels. It simplifies network architecture by consolidating networking, security, and DSL connectivity into a single, centrally managed device. This reduces hardware footprint, lowers cabling complexity, and provides robust connectivity options for retail stores, small offices, and distributed branch networks.

Integrated DSL and Secure SD-WAN

Key Benefits

• Embedded DSL Modem: Integrated RJ11 port supports vDSL2, ADSL2, ADSL2+, G.DMT, T1.413, and G.Lite for direct WAN connectivity, eliminating the need for external bridges.
• SP5 ASIC Performance: Delivers up to 5 / 5 / 4 Gbps firewall throughput (1518/512/64 byte UDP) with accelerated inspection capabilities for secure broadband connections.
• Silent Operation: Fanless desktop design ensures quiet, reliable performance, making it ideal for open office environments and retail counters.
• Unified Security: Consolidates IPS, NGFW, and threat protection capabilities in a single firewall for distributed enterprise sites.
• Simplified Management: FortiOS provides a single operating system for managing security policies, SD-WAN rules, and DSL connection settings.

Ideal Use Cases

• Branch Offices with DSL: Provides a secure, all-in-one gateway for locations where DSL is the primary internet connection.
• Retail Locations: Secures Point-of-Sale (POS) systems and guest Wi-Fi while maintaining reliable connectivity via existing phone lines.
• Legacy Network Consolidation: Replaces aging routers and modems with a modern, secure SD-WAN appliance that supports legacy DSL infrastructure.
• Secure Remote Work: Ensures secure connectivity for home offices or small sites requiring enterprise-grade protection over residential DSL lines.

Technical Specifications Summary

• Firewall Throughput (1518/512/64 byte UDP): 5 / 5 / 4 Gbps
• IPS Throughput: 2.25 Gbps
• NGFW Throughput: 1.25 Gbps
• Threat Protection Throughput: 1.1 Gbps
• Firewall Throughput (Packets Per Second): 6 Mpps
• IPsec VPN Throughput (512 byte): 4.5 Gbps
• SSL Inspection Throughput (IPS, avg. HTTPS): 1.3 Gbps
• Interfaces: 1x DSL RJ11, 1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 LAN, 1x USB, 1x RJ45 console
• Power: 12VDC, 3A; 12.43 W average / 13.01 W maximum
• Physical & Environment: 1.7 x 8.5 x 7.0 in, 2.14 lbs; 0°C to 40°C operating, fanless 0 dBA; FCC, ISED, CE, UL/cUL, CB; USGv6/IPv6

Upgrade Your Network Security

Deploy the FortiGate 50G-DSL today for a secure, streamlined, and high-performance network solution tailored for DSL environments.
